Metra Electronics CS-D2D Manuale utente
HOME
THEATER
GRCUP
• Digital to Digital
Format
Converter
User
manual

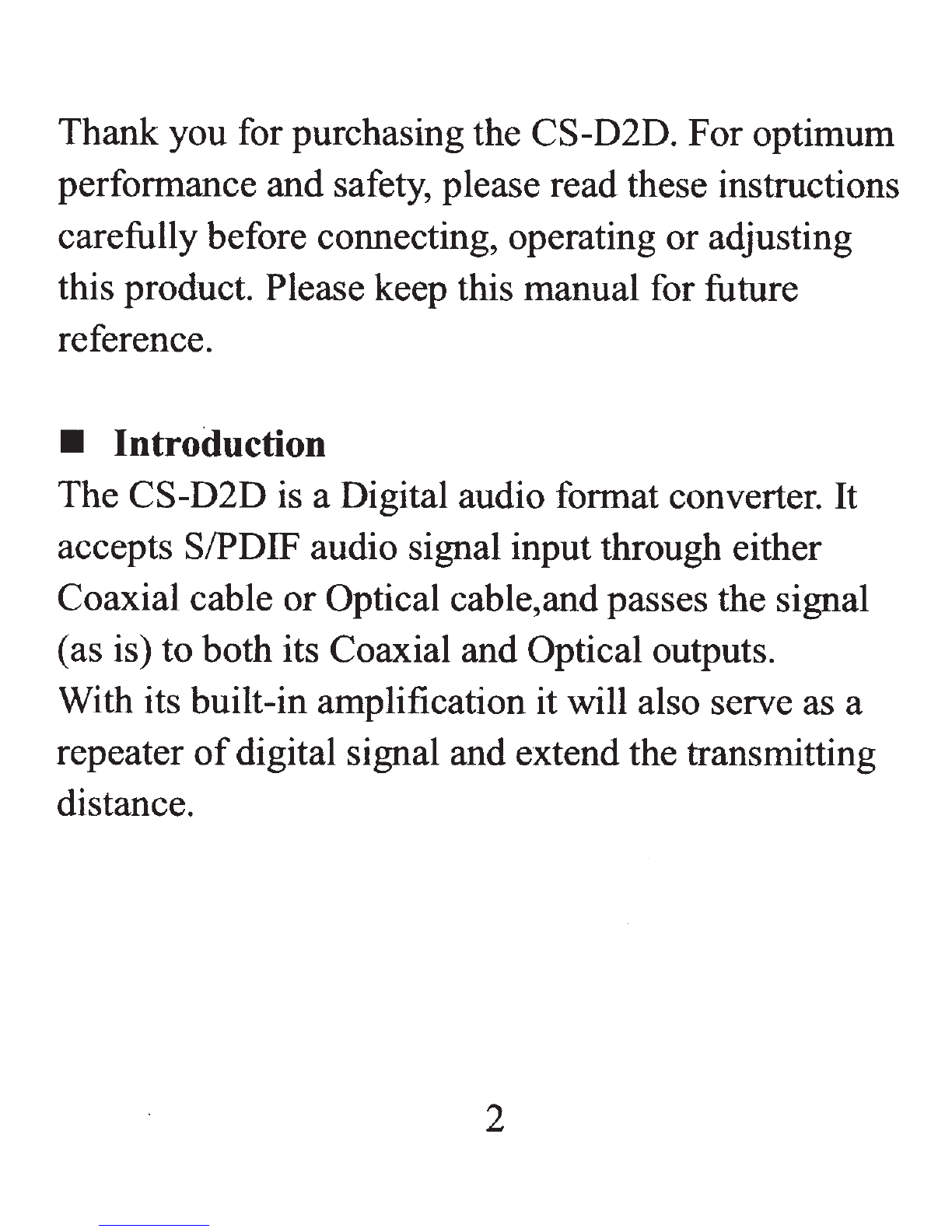

Thank you for purchasing the CS-D2D. For optimum
performance and safety, please read these instructions
carefully before connecting, operating or adjusting
this product. Please keep this manual for future
reference.
• Introduction
The CS-D2D is a Digital audio format converter. It
accepts S/PDIF audio signal input through either
Coaxial cable or Optical cable,and passes the signal
(as is) to both its Coaxial and Optical outputs.
With its built-in amplification it will also serve as a
repeater
of
digital signal and extend the transmitting
distance.
2
• Features
Supports two-way conversion: Coaxial to Optical
or Optical to Coaxial.
Amplifies S/PDIF audio signal and extends the
transferring distance, through Coaxial and/or Optical
cables.
Setup
Connect power to CS-D2D with provided
5V
wall
wart (or) userprovided USB power supply
Select one input from Coaxial
or
Optical inputs
and send S/PDIF audio signal to both Coaxial and
Optical output ports simultaneously.
• Package
1.
Digital 2-way audio converter
2.
5V
DC Power SupplyAdapter
3. Operation Manual
• Specifications
Input Ports 1 x Coaxial
RCA
Jack and 1 x Optical port
3
Output Ports 1 x Coaxial RCAJack and 1 x Optical port
Dimension
66mm
x 55mm x 20
mm
Weight
40g
Power Consumption (Max) IW
Operation controls and Functions
·:·
0 0
1.
Optical
IN:
Connectthe Optical inputto
an
Optical
digital audio source.
2. Coaxial
IN:
ConnecttheCoaxialinputto
an
Coaxial
digital audio source.
3. DC
IN:
Plugthe
5V
DC
power
supply into the unit.
4. USB Power: Connect the
USB
power
port
to
any
powered
USB with a Mini-USB cable
or
Mini-USB to
AC
adapter.
5. Input switch: Select the Optical
or
Coaxial input.
6. PowerLED:
The
LED will illuminate when
4
connected to power
7. Coaxial Output: Connect the output ports to the
Coaxial input port
of
audio device.
8. Optical Output: Connect the output ports to the
Optical input port
of
audio device.
5
H a
. .M.
E.
T
..
H
·E·=
AT
.:E
...
.·
'R
·
Gt"'~
·R-=··.
a·.·
U·
. p
...
..
.
·,
;
'
" .
'
:~
~
:
'
.
.·
:
-~-
.....
'
. .
~
.·
....
.
: .
.-
.
:
. ... . . .
.
.. :
:·.
..
'
:
..
.· ::
.
' ' .·
•'
_.
.
. : : . . .
..
...
.....
.
....
.
.
. . . .
1-866-839-9187 •
Fax
J-386-252-9399
460 Walker Street, Holly Hill, FL 32117
6
