INSTALLATION INSTRUCTIONS
99-5839CH
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 4/16/19 INST99-5839CH
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen interface for climate and personalization features
• Painted charcoal with a matte black center

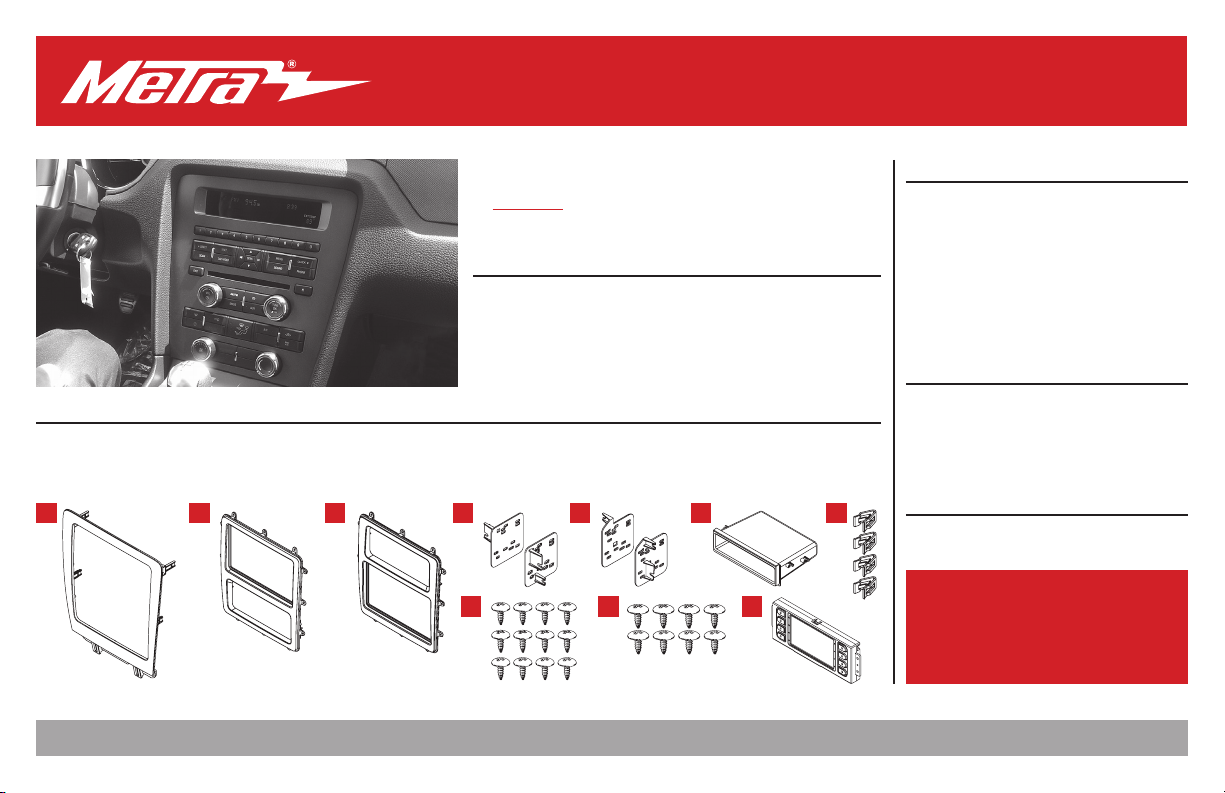

KIT COMPONENTS
• A) Radio/Display trim panel • B) Radio/Display sub-trim panel upper (a) • C) Radio/Display sub-trim panel lower (b) • D) Radio brackets upper (a)
• E) Radio brackets lower (b) • F) Pocket • G) (4) Panel clips • H) (12) #6 x 3/8” Phillips pan-head screws • I) (8) #8 x 3/8” Phillips truss-head screws
• J) Touchscreen display assembly and wiring harness • K) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................5
Axxess Interface Installation ............................6-13
Final Assembly ..................................................... 10
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
A B C D
H I J
E F G
Ford Mustang 2010-2014
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
1.800.221.0932
|
MetraOnline.com
2

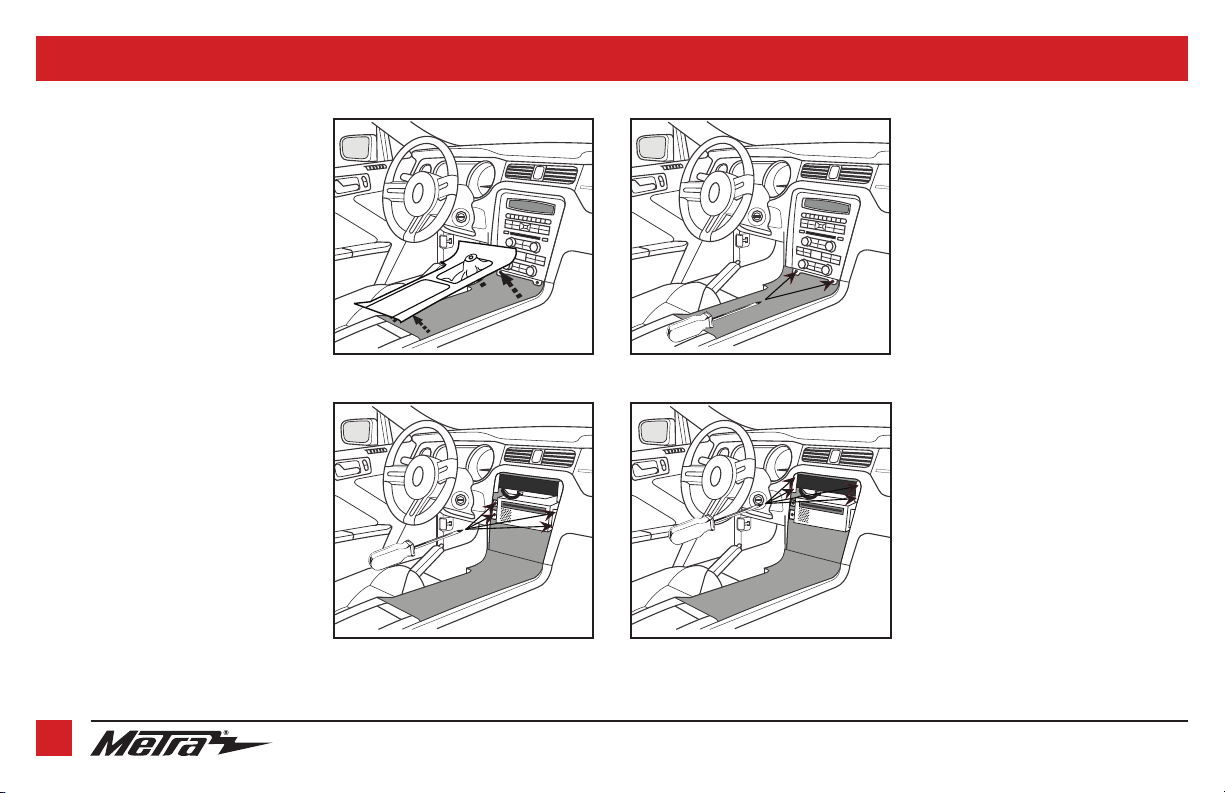

DASH DISASSEMBLY
1. Unclip and remove the trim panel
surrounding the shifter, including the
cup holders. (Figure A)
2. Remove (2) 9/32” screws from the
bottom of the radio/climate control
panel, then unclip and remove the
panel. (Figure B)
3. Remove (4) Phillips screws securing the
radio chassis to the vehicle. Slide the
chassis out, then unplug and remove.
(Figure C)
4. Remove (4) Phillips screws securing the
radio display to the vehicle. Slide the
display out, then unplug and remove.
(Figure D)
Continue to Kit Preparation
(Figure C) (Figure D)
(Figure B)(Figure A)
3
REV. 4/16/2019 INST99-5839CH

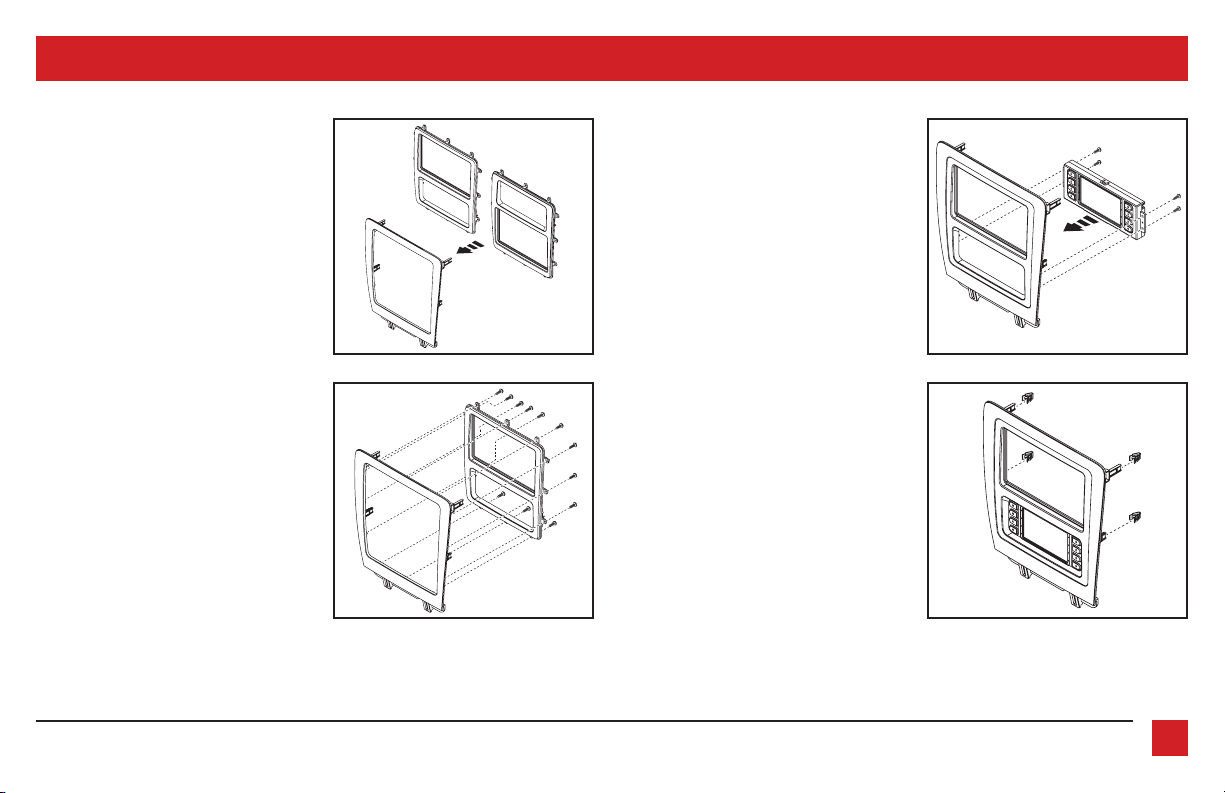

KIT PREPARATION
1. There are two different radio/display
sub-trim panels to choose from. One for
mounting the radio in the upper portion
of the kit, and another one for mounting
it in the lower portion. (Figure A)
If mounting the radio in the upper
portion, a factory module will need to
be re-located:
a. Remove the module from the sub-
dash and relocate it to the bottom
of the dash opening. The mounting
brackets attached to the module will
need to be bent outward to make
room for the radio.
(Figure B) (Figure D)
(Figure A) (Figure C)
2. Attach the desired radio/display
sub-trim panel to the radio/display
panel using the (12) #6 x 3/8” pan-head
screws provided. (Figure B)
3. Attach the touchscreen display
assembly to the radio/display sub-
panel using the (4) #8 x 3/8” truss-head
screws provided. (Figure C)
4. Attach the (4) panel clips provided to
the radio/display panel. (Figure D)
Continue to Kit Assembly
1.800.221.0932
|
MetraOnline.com
4

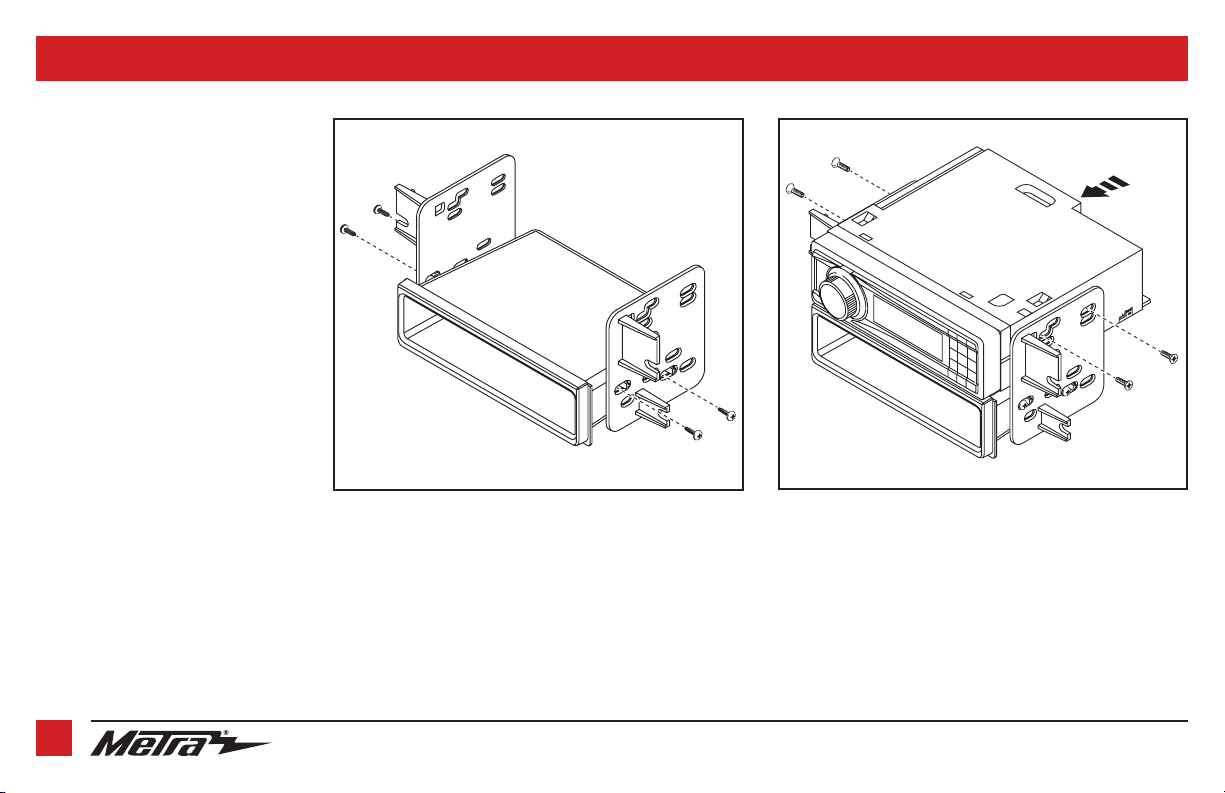

KIT ASSEMBLY
(Figure A) (Figure B)
ISO DIN radio provision with pocket
1. Attach the pocket to the appropriate
radio brackets using the (4) #8 x 3/8”
Phillips truss-head screws provided.
(Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, and then secure it using the
screws supplied with the radio.
(Figure B)
Continue to Axxess
Interface Installation
5
REV. 4/16/2019 INST99-5839CH

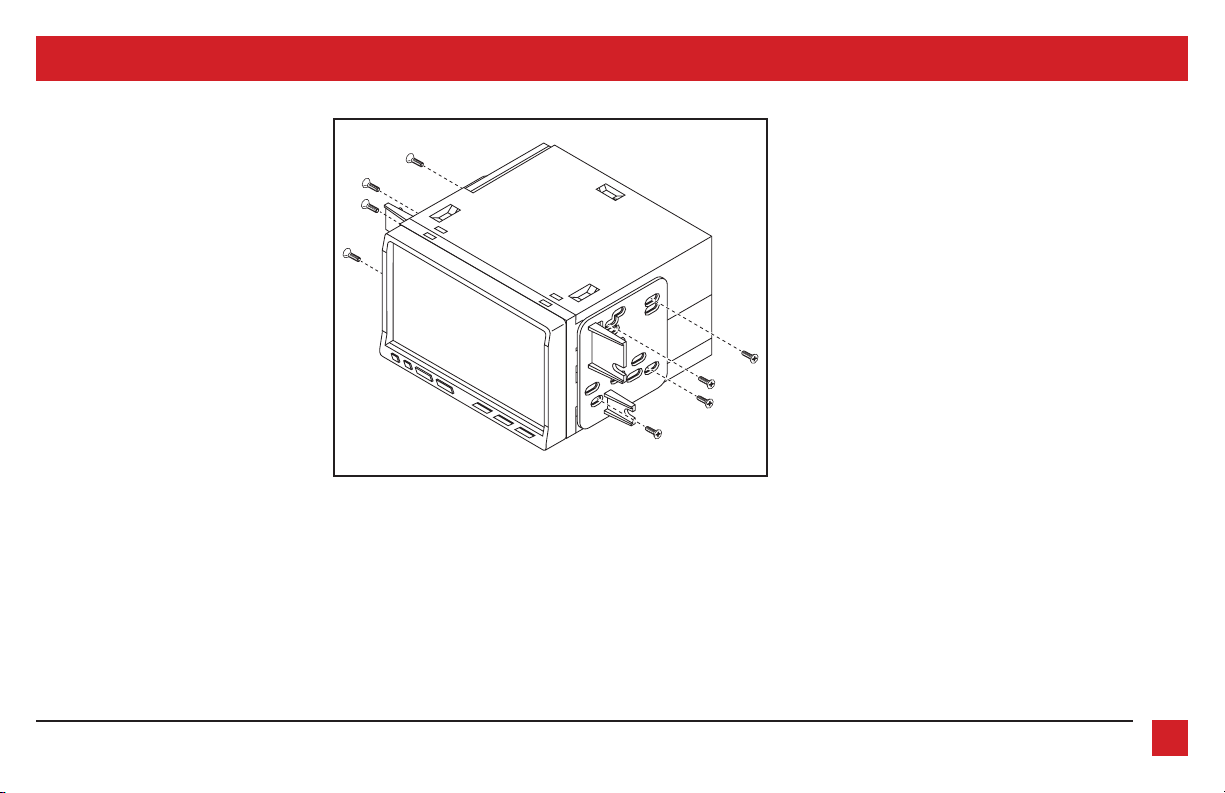

ISO DDIN radio provision
1. Attach the appropriate radio brackets to
the radio using the screws supplied with
the radio. (Figure A)
Continue to Axxess
Interface Installation
KIT ASSEMBLY
(Figure A)
1.800.221.0932
|
MetraOnline.com
6
AXXESS INTERFACE INSTALLATION
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip ties
TOOLS REQUIRED
INTERFACE FEATURES
INTERFACE COMPONENTS
• Axxess interface (built into the touchscreen display)
• 5839 harness
• 16-pin harness with stripped leads
• 4-pin harness with yellow RCA jacks
• Female 3.5mm jack with stripped leads
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains SYNC
• Retains the factory AUX-IN jack
• Provides an aftermarket backup camera input
• Can be used in both amplified and non-amplified models
• Retains balance and fade
• Micro-B USB updatable
Connections ...........................................................................................................................................7-8
Installation ...............................................................................................................................................9
Programming ...........................................................................................................................................9
Extra features (SYNC)............................................................................................................................. 10
Touchscreen display operation ..........................................................................................................11-12
Steering wheel control settings .......................................................................................................13-14
Troubleshooting ......................................................................................................................................14
TABLE OF CONTENTS
REV. 4/16/2019 INST99-5839CH 7
CONNECTIONS
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• If the vehicle is equipped with a Shaker/Shaker-Pro sound system or NAV, connect the Blue/
White wire to the amp turn on wire. This wire must be connected to hear sound from the
factory amplifier.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
•
If the aftermarket radio has a mute wire and the vehicle is equipped with SYNC, connect the
Brown wire to it. If the mute wire is not connected, the radio will turn off when SYNC is activated.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire
• Tape off and disregard the following (4) wires, they will not be used in this application:
Green, Green/Black, Purple, Purple/Black
From the 5839 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Blue wire to the power antenna wire.
• If the vehicle is equipped with NAV, connect the Blue/White wire with a red connector to the
amp turn on wire. This wire must be connected to hear sound from the factory amplifier.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.
• For models
with
SYNC: Connect the Red and White RCA jacks labeled “RSE/SYNC/SAT”, to the
audio AUX-IN jacks. Disregard the Red and White RCA jacks labeled “FROM 3.5”, they will not
be used in this application.
• For models
without
SYNC: Connect the Red and White RCA jacks labeled “FROM 3.5”, to the
audio AUX-IN jacks. Disregard the Red and White RCA jacks labeled “RSE/SYNC/SAT”, they
will not be used in this application.
• Disregard the DIN jack, it will not be used in this application.
Continued on the next page
1.800.221.0932
|
MetraOnline.com
8
3.5mm jack - steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel control.
• For the radios listed below: Connect the female 3.5mm connector with stripped leads, to the male
3.5mm SWC jack from the 5839 harness. Any remaining wires tape off and disregard.
•
Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White wire of
the connector. Then connect the remaining steering wheel control wire, normally Brown/White,
to the Brown wire of the connector
.
•
Metra OE:
Connect the steering wheel control Key 1 wire
(Gray)
to the
Brown
wire.
•
Kenwood or select JVC with a steering wheel control wire:
Connect the
Blue/Yellow
wire to the
Brown
wire.
Note:
If your
Kenwood
radio auto detects as a
JVC
, manually set the radio type to
Kenwood
.
See the instructions under changing radio type.
•
XITE:
Connect the steering wheel control SWC-2 wire from the radio to the
Brown
wire.
•
Parrot Asteroid Smart or Tablet:
Connect the 3.5mm jack into the AX-SWC-PARROT (sold separately),
and then connect the 4-pin connector from the AX-SWC-PARROT into the radio
.
Note:
The radio must be updated to rev. 2.1.4 or higher software.
•
Universal “2 or 3 wire” radio:
Connect the steering wheel control wire, referred to as Key-A or
SWC-1, to the
Brown
wire of the connector. Then connect the remaining steering wheel control wire,
referred to as Key-B or SWC-2, to the
Brown/White
wire of the connector. If the radio comes with a
third wire for ground, disregard this wire
.
Note:
After the interface has been programmed to the vehicle, refer to the manual provided with
the radio for assigning the SWC buttons. Contact the radio manufacturer for more information.
• For all other radios: Connect the 3.5mm jack into the port on the radio designated for an external
steering wheel control interface. Refer to the manual provided with the radio if in doubt as to where the
3.5mm jack goes to.
CONNECTIONS (CONT.)
For models
with
a Shaker system:
• Connect the White RCA jack labeled “SUBWOOFER”, to the subwoofer out jack.
• Disregard the Red RCA jack labeled “CENTER CHANNEL”, it will not be used in this
application.
• Enable Audio Output Attenuation in Configuration Settings after the kit has been
programmed.
For models
with
a Shaker Pro system:
• Connect the Red RCA jack labeled “CENTER CHANNEL”, to the subwoofer out jack.
• Disregard the White RCA jack labeled “SUBWOOFER”, it will not be used in this
application.
• Enable Audio Output Attenuation in Configuration Settings after the kit has been
programmed.
4-pin harness with yellow RCA jacks:
This harness is to be used to add an aftermarket backup camera to the touchscreen
display, if so desired.
• Connect the Yellow RCA jack labeled “Rearview camera”, to the RCA jack on the
aftermarket backup camera.
• Disregard the Yellow RCA jack labeled “AUX video”, it will not be used in this
application.
REV. 4/16/2019 INST99-5839CH 9

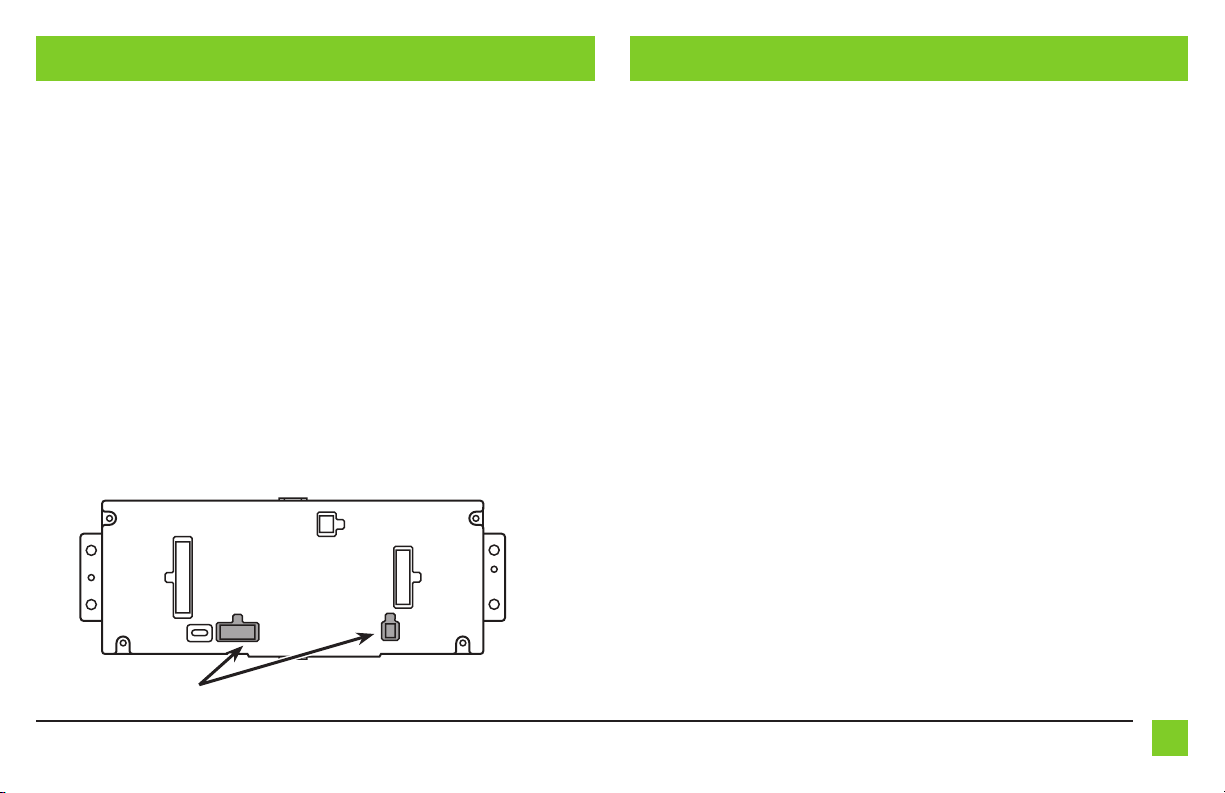

It is highly advisable to read the following steps beforehand, to ensure a clear understanding of
what is to be expected. The following steps must be done in the order that they are numbered.
With the vehicle completely off:
1. Connect the
16-pin harness with stripped leads
into port “B” in the touchscreen display.
2. Connect the
5839 harness
to the wiring harnesses in the vehicle. These harnesses are the
ones removed in step 3 of dash disassembly. Then insert the
5839 harness
into port “A”
in the touchscreen display. But do not install this harness until exactly before step 1 from
the
Programming
section. This is a timed process.
3.
If installing a backup camera, and the image is desired to to be displayed onto the touchscreen
display, connect the 4-pin harness with yellow RCA jacks into port “C” in the touchscreen display
.
4. Disregard ports “D” and “E”, they will not be used in this application.
5. Port “F” is an update port for future firmware upgrades.
6.
Locate the factory antenna connector in the dash and complete all necessary connections to
the radio. Use the antenna adapter provided to adapt the factory antenna connector to the
aftermarket radio.
AB
C
E
FD
I N S TAL L AT I ON PROGRAMMING
1. Refer to step 2 from the Installation section.
2. Start the vehicle.
3. Program the kit:
a. Once the touchscreen display loads up, select the vehicle type.
b. Wait until the radio comes on, and the touchscreen display shows SWC Configured*.
This process may take up to 3 minutes.
Note: f the touchscreen display does not load up, or the radio doesn’t come on within
3 minutes, and/or the touchscreen display does not show SWC Configured*, check all
connections, then reset the interface and try again. Refer to the Troubleshooting section.
* For models with steering wheel controls.
4.
Cycle the key off. If the driver’s door is closed, open and close the door. Cycle the key back on.
5. Test all functions of the installation for proper operation, before reassembling the dash.
Note: DO NOT CONNECT!
1.800.221.0932
|
MetraOnline.com
10
1. Secure the completed assembly to the dash using the factory screws.
2. Reassemble the dash in reverse order of disassembly using the 99-5839CH radio display trim
panel.
FINAL ASSEMBLY EXTRA FEATURES
SYNC (4.2-inch display screen models only):
If the vehicle is equipped with SYNC, the 99-5839CH can retain this feature.
1. Change the source of the radio to AUX-IN.
2. Press the Info button on the touchscreen display to enter the SYNC menu. Press the climate
control icon to get back to the main menu.
Altri manuali per 99-5839CH
1
Indice
Altri manuali Metra Electronics Rack e supporto
