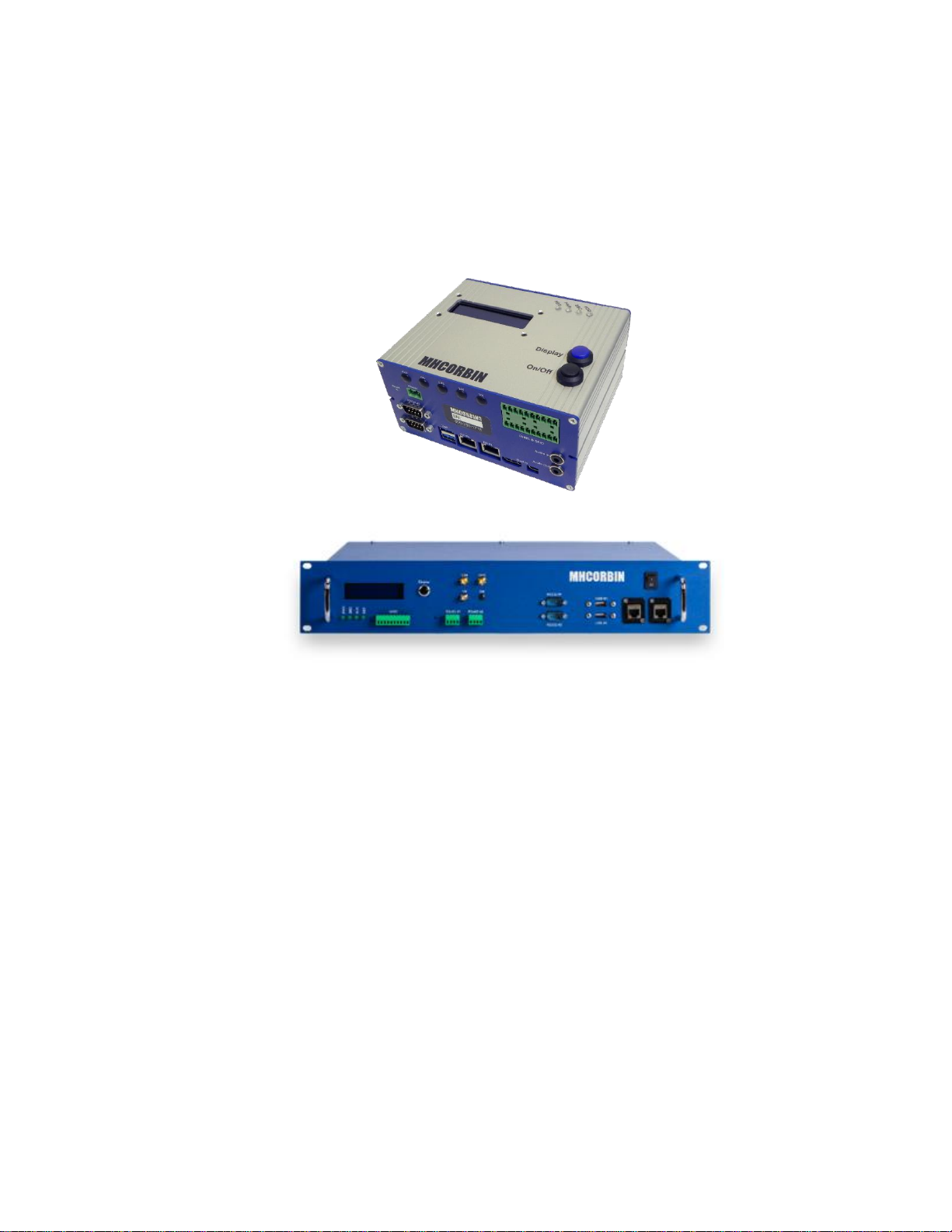

MH Corbin Connect:ITS

User Manual

Version 3.6

September 21, 2020

MH Corbin

6077 Frantz Rd Ste 203

Dublin OH 43017

800-380-1718

https://mhcorbin.com

This documentation is for your informational purposes only and is subject to change without notice by MH Corbin. This documentation may not be copied, transferred,

reproduced, disclosed, modified or duplicated, in whole or in part, without the prior written consent of MH Corbin. This documentation is confidential and constitutestrade

secrets proprietary to MH Corbin and may not be disclosed by you to any other person or entity or used for any other purpose.

If you are a licensed user of the software product(s) addressed in the documentation, you may print or otherwise make available a reasonable number of copies of the

documentation for internal use by you and your employees in connection with the use of the licensed software, provided that all MH Corbin copyright notices and legends are

affixed to each reproduced copy.

The right to print or otherwise make available copies of the documentation is limited to the period during which the applicable license for such software remains in full force and

effect. Should the license terminate for any reason, it is your responsibility to certify in writing to MH Corbin that all copies and partial copies of the documentation have been

returned to MH Corbin or destroyed.

TO THE EXTENT PERMITTED BY APPLICABLE LAW, MH Corbin PROVIDES THIS DOCUMENTATION “AS IS” WITHOUT WARRANTY OF ANY KIND, INCLUDING

WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. IN NO

EVENT WILL MH Corbin BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY LOSS OR DAMAGE, DIRECT OR INDIRECT, FROM THE USE OF THIS

DOCUMENTATION, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST INVESTMENT, BUSINESS INTERRUPTION, GOODWILL, OR LOST DATA, EVEN

IF MH Corbin IS EXPRESSLY ADVISED IN ADVANCE OF THE POSSIBILITY OF SUCH LOSS OR DAMAGE.

The use of any software product(s) referenced in the documentation is governed by the applicable license agreement and such license agreement is not modified in any way by

the terms of this notice.

companies



Table of Contents
MH Corbin Connect:ITS User Manual ........................................................................ 1
Table of Contents...................................................................................................... 3
Installation ............................................................................................................... 7
Mounting.............................................................................................................. 7
Power Hook Up..................................................................................................... 7
Indicators and Connectors..................................................................................... 7
Connect:ITS 19 ............................................................................................................7
Front Panel LEDs ......................................................................................................7
Front Panel Connectors............................................................................................8
Rear Panel Connectors.............................................................................................9
Connect:ITS DIN ..........................................................................................................9
Front Panel...............................................................................................................9
Display Button Modes............................................................................................10
Front Panel LEDs ....................................................................................................10
Bottom Panel Connectors......................................................................................11
Antenna Connectors ..............................................................................................11
Exploded View of RS485 / GPIO Pinout .................................................................12
RS232 Connectors..................................................................................................13
USB Connectors......................................................................................................13
Power Connector ...................................................................................................13
Ethernet Ports........................................................................................................13
Display and Audio Connectors...............................................................................14
Setup / Modem Physical...................................................................................... 15
VX 21 Wireless Radio Install................................................................................. 16
Administration........................................................................................................ 17
Connecting to the Connect:ITS............................................................................. 17
Control Page ....................................................................................................... 18
Setup Page.......................................................................................................... 19
Location.....................................................................................................................19



Ping Remote Host .....................................................................................................19
SNMP and NTCIP Parameters ...................................................................................19
Configure V2I RSU Parameters Pre FW 1.0.42..........................................................20
Configure Lidar (Requires FW Restart) .....................................................................21
Configure Metiri and Telegraf (Requires FW Restart) ..............................................22
Metiri Application Snapshot Overview ..................................................................24
Watchdog Properties................................................................................................25
Disabling Items on Display Screen: IP Address .........................................................26
Disabling Backlight, and Heartbeat light...................................................................26
Backup and Restore ..................................................................................................26
Reboot / Reset Buttons.............................................................................................26
System Info ...............................................................................................................27
Setup/IP Page ..................................................................................................... 27
Single NIC Mode........................................................................................................27
Dual NICs and Bridged Mode....................................................................................27
Nameserver...............................................................................................................28
DHCP .........................................................................................................................28
MAC Address, Firmware Version, Refresh Date Stamp............................................28
Static IP .....................................................................................................................28
Setup/Logging Page............................................................................................. 29
Info Log .....................................................................................................................29
Debug Log .................................................................................................................29
Error Log....................................................................................................................30
Setup/Password Page.......................................................................................... 30
Setup/Firmware.................................................................................................. 31
Firmware Failure to Update and Resolution.............................................................32
Successful Firmware Update and 502 Error..............................................................32
Rolling Firmware Back...............................................................................................33
Setup/Units and Time.......................................................................................... 33
Setup/ITS Sensors Page ....................................................................................... 34
Sensors......................................................................................................................34
Adding New Sensors .................................................................................................35
Adding New Serial Sensor.........................................................................................36
Adding New Network Sensor....................................................................................36
Removing Configured Sensors..................................................................................37



Editing Configured Sensors.......................................................................................37
Setup/Modem Page ............................................................................................ 37
Step 1 - PPP peer port...............................................................................................38
Step 2 - Modem Provisioning....................................................................................38
Step 3 - PPP Chat Script.............................................................................................39
Step 4 - PPPo Adapters .............................................................................................39
Step 5 - Perform Manual PPP Connection ................................................................39
Step 6 - Show Addresses and Routing ......................................................................39
Step 7 - Change Default Route Step 7.......................................................................40
Frequently used Modem APN Strings.......................................................................40
Setup/Scripts Page .............................................................................................. 40
Creating Scripts.........................................................................................................41
Applications............................................................................................................ 43
Rest Api’s............................................................................................................ 43
Lidar....................................................................................................................... 44
Lidar Tab............................................................................................................. 44
Appendix A –Sensor Channels ................................................................................ 45
ISS ...................................................................................................................... 45
SX300 Statistical........................................................................................................45
Lufft.................................................................................................................... 45
WS100UMB...............................................................................................................45
WS200UMB...............................................................................................................45
WS300UMB...............................................................................................................46
WS400UMB...............................................................................................................46
WS500UMB...............................................................................................................46
WS600UMB...............................................................................................................47
VS2KUMB..................................................................................................................47
NIRS31UMB...............................................................................................................48
MARWIS StaRWIS......................................................................................................49
MH Corbin .......................................................................................................... 49
VX21..........................................................................................................................49
Vaisala................................................................................................................ 49
DSC111......................................................................................................................49
Wavetronix HD.................................................................................................... 50
HD125 .......................................................................................................................50

HD125 Periodic .........................................................................................................50

Appendix B –Database Schema............................................................................... 51

Change Log ............................................................................................................. 53

___________________________- 7 - ___________________________

Installation

Mounting

Connect:ITS comes configured for din-rail and shelf mounting. The Connect:ITS enclosure 3” D x 5” H x

6” W, and it weighs approximately 1.5lbs. It is recommended to install by placing the top mount point of

the Connect:ITS with the spring on the top of the rail first. While pressing the top of the Connect:ITS

down swing the bottom part of the mount inwards toward the rail.

Power Hook Up

Power is supplied through a 12VDC or 24VDC power supply, or from a 12VDC or 24VDC battery. Power is

provided via a 2-pin Phoenix connector on the bottom of the Connect:ITS.

Indicators and Connectors

Connect:ITS 19

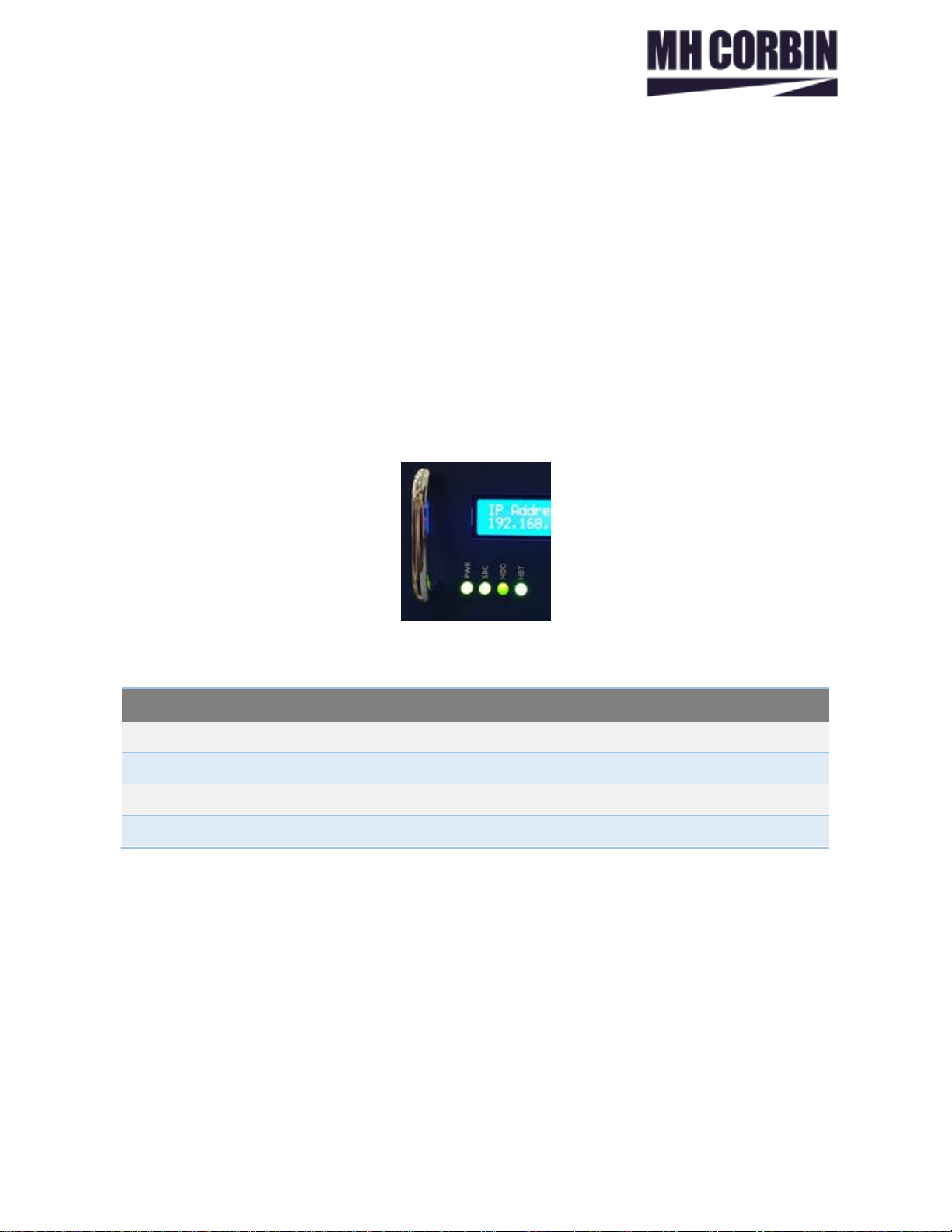

Front Panel LEDs

Front

Panel LEDs

PWR

Lights green when the unit is receiving power from the backplane.

SBC

Lights green when the internal Computer has powered up.

HDD

Flashes green during disk activity

HBT

Flashes green when unit is operating normally.

___________________________- 8 - ___________________________

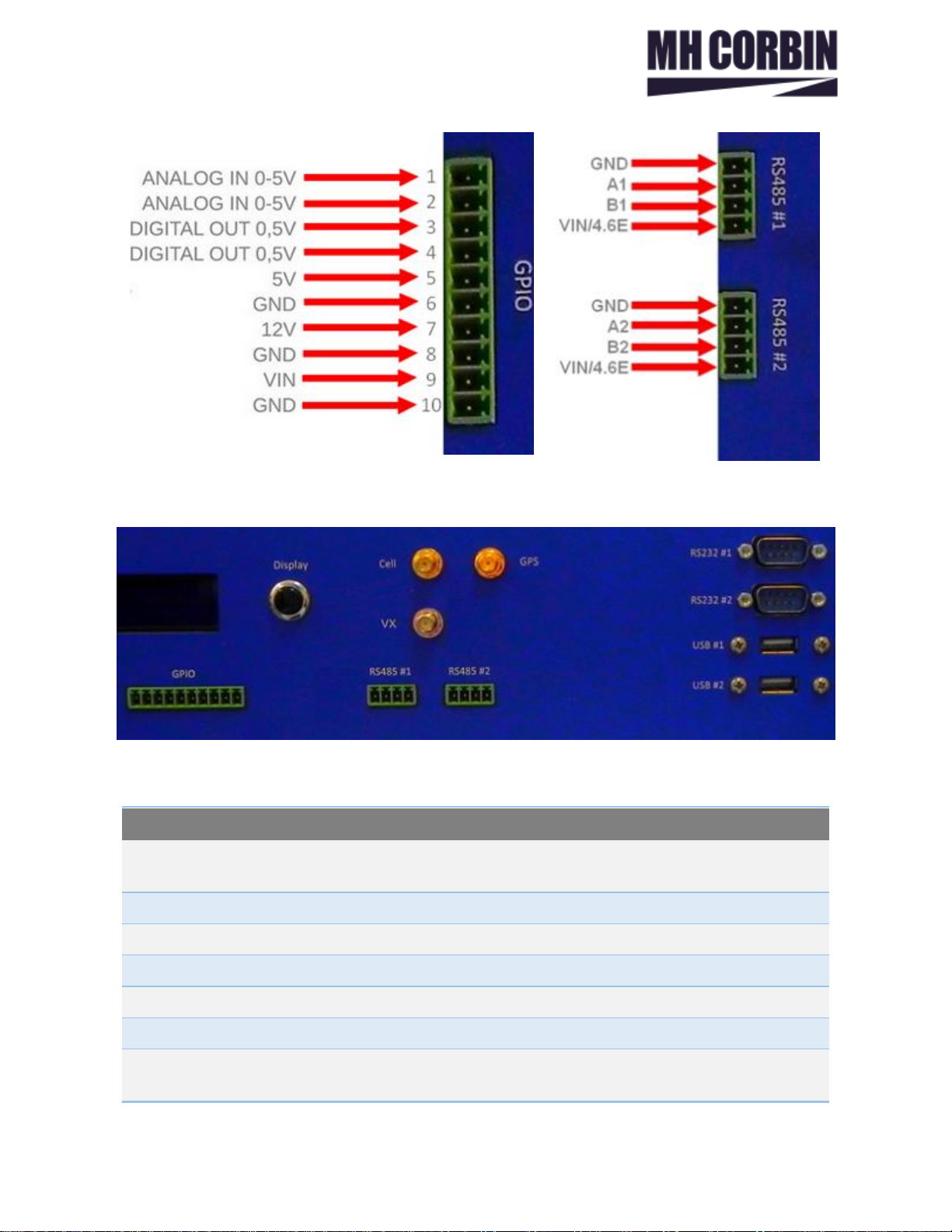

Front Panel Connectors

Front Panel

Connectors

RS485 #1, 2

Sensor Input connector for sensors that utilize the RS485 serial data

connections.

RS232 #1, 2

Connector for RS232 sensors.

USB #1, 2

Connector for USB sensors.

Cell

Antenna connector for internal cellular modem.

GPS

Antenna connector for internal cellular GPS.

Antenna connector for 915Mhz internal radio.

Display Button

This button allows user to cycle through pertinent system information such as:

IP address, IP Mode, CPU Temp (C), Firmware Version

___________________________- 9 - ___________________________

Front Panel

Connectors

GPIO

10 General Purpose pins used for analog/digital inputs and outputs.

Rear Panel Connectors

Rear Panel

Connectors

Power Jack

12VDC Power Input (12VDC 2.5-amp) size 2.1mm X 5.5mm.

Fuse Holder

2.5-amp Slow Blow fuse.

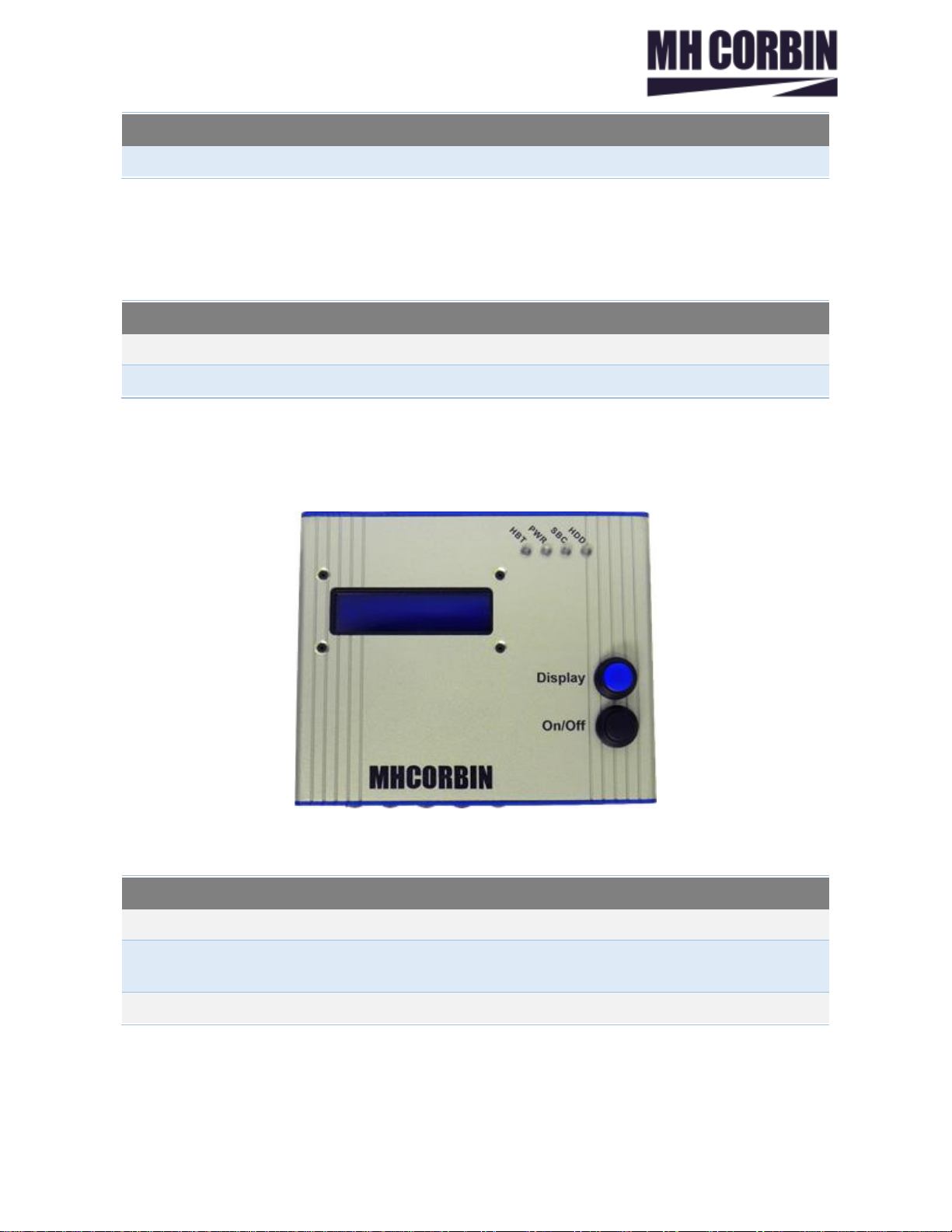

Connect:ITS DIN

Front Panel

Connect:ITS

DIN Front Panel

LCD Screen

Displays unit information IP address, IP Mode, CPU Temp (C), Firmware Version

Display Button

This button allows user to cycle through pertinent system information such as:

IP address, IP Mode, CPU Temp (C), Firmware Version.

ON/OFF

This button turns the Connect:ITS DIN on and off

___________________________- 10 - ___________________________

Display Button Modes

First IP Address for Eth #1

CPU Temperature shown as Celsius.

Can be changed to Fahrenheit in Setup.

IP Address Type shown as Static. Can be changed to

DHCP in Setup.

Firmware Version

Front Panel LEDs

Indice

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
