MICRO-AIR EasyStart 364 Manuale utente
Rev
1.00
NOTE: Power should always be turned off
when working with electrical co ponents
Relearning EasyStart – 364
1. Remove the cover and find the jumper (JP1) Please note that you will need to ove the
black start capacitor slightly to fully expose the ju per pins.
Rev
1.00
NOTE: Power should always be turned off
when working with electrical co ponents

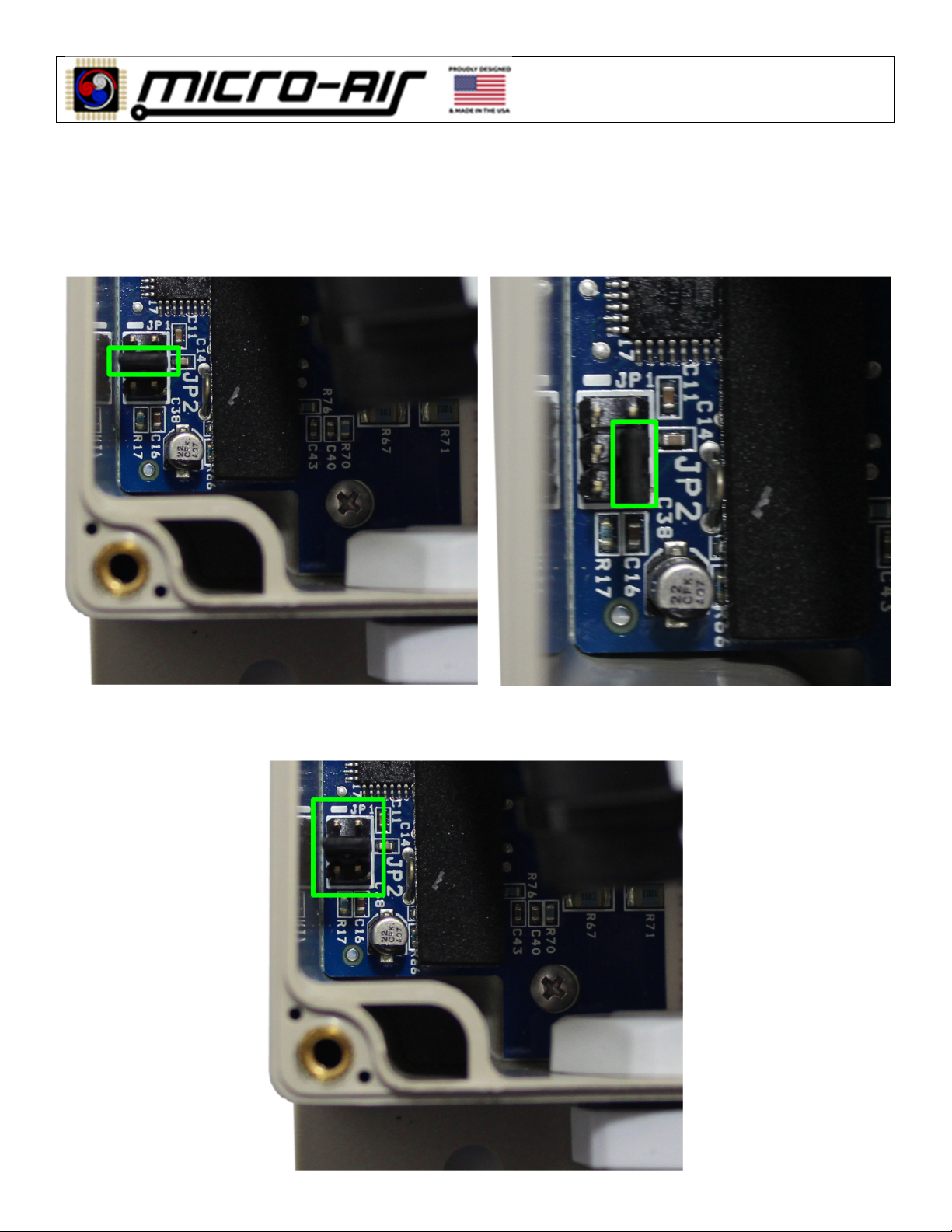

2. Move the jumper block from the Factory Default to the Relearn position as sho n in
the belo examples. We reco end using a pair of needle nose plyers or tweezers.
3. Apply po er to EasyStart and start the compressor. Run it for 10 seconds then turn
po er off.
Factory Default (across pins 3 and 4)
Relearn Position (across pins 4 and 6)
4. Move the jumper block back to the factory position. (across pins 3 and 4). Put the
cover back on and do four ore starts. Learning is finished.
