Microh DUO BEAM/RG Manuale utente
User Manual
DUO BEAM/RG
1
Thank you for purchasing the DUO BEAM/RG Laser Show System. This
manual is intended to help you to use the functions of the unit. It is
suggested that you should refer to this instruction manual before
operating the DUO BEAM/RG.
Features of the product:
zClass IIIb Laser show product:
Red: Diode Laser module up to 60mW@650nm.
Green: Diode Pumped Solid State lasers up to 50mW @532nm.
zBuilt-in high speed stepping motor.
zReal-time calculating unit to generate patterns.
zSound Active operation for scan and pattern changes.
z48 pre programmed laser sequences.
zCompatible with standard DMX512 signal.
zThe use of fog will enhance the aerial effect of this unit
zInput power: AC 120V 60Hz.
zPower consumption: Max. 50VA
zOperation temperature: Operation-temp.: 20...35°C
storage: -20°C...+80° (humidity no condensation)
zMeasure: 300mm×100mm×180mm
zWeight: 3.6kg
2

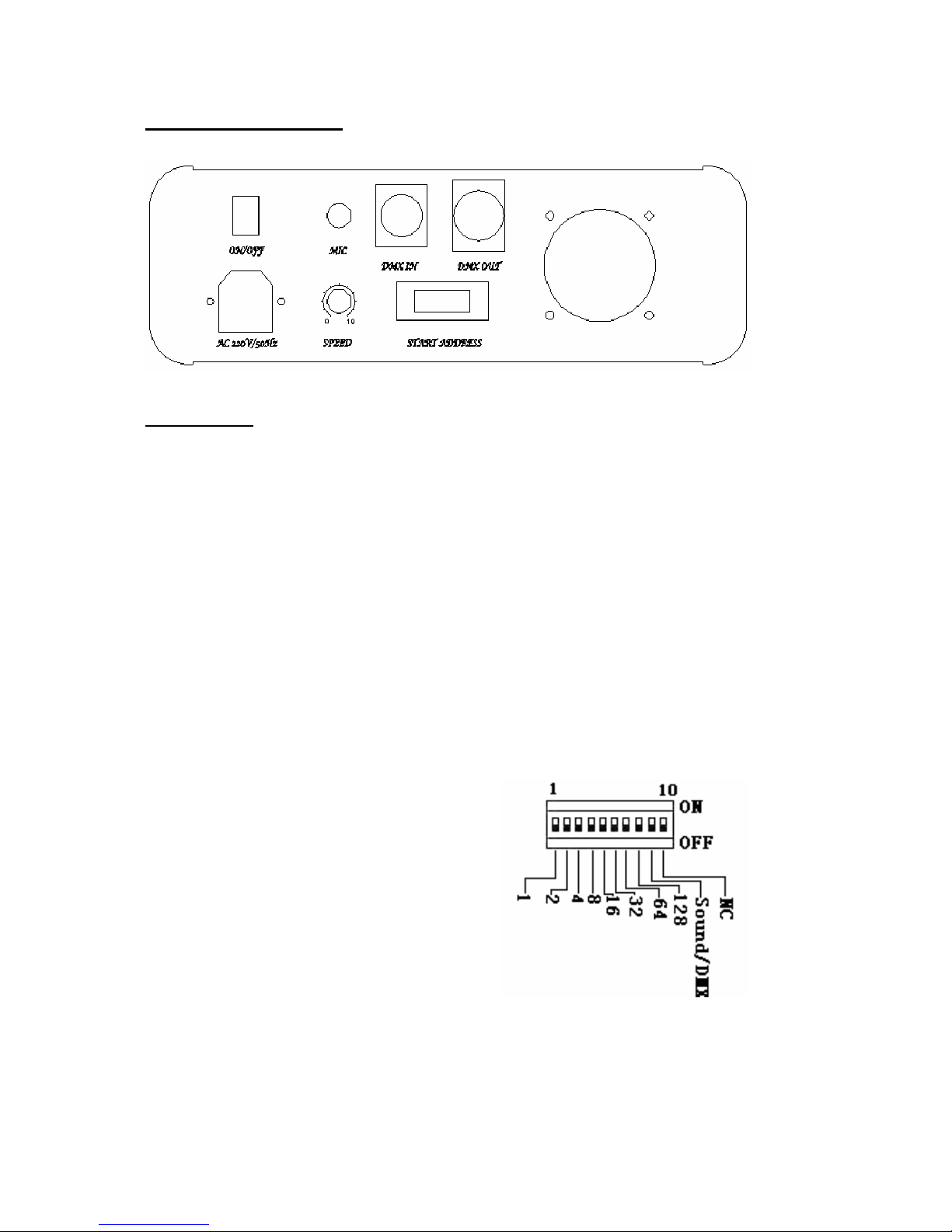

The rear panel view:
Installation
1. Carefully inspect your Laser Show equipment as you unpack it. If any damage is
evident, such as dents or scratches on the covers or broken knobs, etc., immediately
notify your carrier and your dealer.
2. Hang the unit in a safe place. Please ensure that the unit is properly secured.
3. Choose the operation mode.
Let us look at the function of the DIP switch:
1st-8th bit: Start address (from 1-255).
The 9th bit:
OFF: Sound activation mode
ON: DMX512 mode
The 10th bit: Not Connected
3
zSound Active Mode
When the equipment operates in this mode, the patterns will be changed by
music. Please follow the instructions as below:
1) Set the 9th bit of DIP Switch on the back panel to the “OFF” position (Factory
default).
2) Plug in the power source, the equipment will self test for about 10 seconds.
3) Turn the Speed knob (left: max., right: min.) to adjust the speed that the
patterns will change.
zDMX 512 Mode
When the unit is operated in this mode, you can use a standard DMX512
controller to change laser colour, laser on/off, patterns, speed and so on. Please
follow the instructions below:
1. Put the 9th bit of DIP Switch on the rear panel up to the “ON” position.
2. Set the start address (1st -8th bit) of the equipment.
3. Connect to the DMX512 controller. There are five channels totally:
Channel Function
1
0 – 63 Blackout
64-127 Green On
128 – 191 Red On
192 – 255 Both On(red and Green)
2 Pattern Selection
3 Speed
4 Scanning Frequency
5 Pattern Reset (Rest Vaue:255)
4. Plug in the power source, the equipment will self test about 10 seconds. Then
you can change the patterns and speed through the DMX controller.
5. DMX Connectors use XLR connectors with three pins:
Pin 1: Ground
Pin 2: Negative Data –
Pin 3: Positive Data +
4
Service and repair
The DUO BEAM/RG has no major serviceable parts. Repair of electronic components
(transistors, ICs and Diodes) or changing other parts are not allowed by unauthorized service
centers. If there is a problem with the DUO BEAM/RG, it must be returned to the dealer that
you purchased the unit from.
WARNINGS
zVisible and invisible laser-light, direct beam can damage the human eye and the
eyes of animals. Do not look at any Laser light directly.
zDo not touch the laser aperture with the hand. When cleaning the laser aperture,
please use cotton with rubbing alcohol or camera lens cleaner.
zDo not take apart or modify the equipment. Fire or electrical shock may result.
zIf you hear unusual noises, see smoke, feel excessive heat or smell anything
unusual, immediately unplug the power source and contact your retailer.
Continued use may result in fire or electrical shock.
zDo not use flammable sprays near this equipment. Also do not spill water, liquids,
or flammable liquids on the equipment. If these fluids enter this equipment and
contact the electrical parts, fire or electrical shock may result. If anything enters
the equipment, immediately unplug the power supply and contact your retailer.
CAUTION
zDo not place the equipment in the following areas. Fire or electrical shock may
result.
-Areas with high humidity
-Areas subject to direct sunlight
-Areas with high temperatures
-Areas near flame sources
zDo not place the equipment on shaky stands, unstable surfaces or surfaces
subject to frequent vibrations. If the equipment falls, it may cause injuries.
zDo not place heavy object on the equipment. Objects may fall and cause injuries.
zWhen not in use for extended periods, unplug the power source for safety.
zWhen transporting the equipment, be extremely careful. Dropping it could cause
an injury.
