User’s Manual
IP Telephony Gateway
Model No.: SP5004P/SP5008/SP5018/SP5058
Website: http://www.micronet.info
1
TABLE OF CONTENTS
1. INTRODUCTION ................................................................................. 3
1.1 Key Features ....................................................................................................... 4
1.2 Physical Description .......................................................................................... 5
1.3 Application .......................................................................................................... 9
2. STARTUP...........................................................................................11
2.1 Login into the System ...................................................................................... 11
2.2 Network Configuration..................................................................................... 11
2.3 SIP/H323 Configuration.................................................................................... 22
3. BASIC OPERATIONS....................................................................... 27
3.1 Placing a phone call ......................................................................................... 27
3.2 CALL HOLD....................................................................................................... 29
3.3 CALL WAITING.................................................................................................. 29
4. WEB ADMINISTRATION .................................................................. 31
4.1 VoIP Function.................................................................................................... 31
4.2 Register Status.................................................................................................. 68
4.3 Auto Provision function ................................................................................... 70
4.4 Advance Setup.................................................................................................. 73
4.5 Application ........................................................................................................ 85
4.6 System............................................................................................................... 87
4.7 Route Function ................................................................................................. 96
4.8 Backup/Restore .............................................................................................. 119
4.9 Save Modification ........................................................................................... 123
2
5. SPECIFICATION............................................................................. 124
3
1. Introduction
Micronet SP5004P/SP5008/SP5018/SP5058 VoIP Gateways, with cutting-edge
VoIP technology, are designed to meet enterprise’s requirement in high-port
density: 4FXS + 4PSTN, 8FXS, 4FXS + 4FXO, and 8FXO. By integrating simple
VoIP device with telephone or legacy PABX, with advanced features, as PSTN
lifeline, dial plans, call routing, hunting group, VPN capability and etc. there is
no large expense to serve enterprise users with toll-saving solution.
The Gateway integrates a gateway, gatekeeper, border element, intelligent call routing,
and supports H.323/SIP and QoS all in one solution. A major advantage of VoIP is that it
place low-cost calls to regular phones all over the world from your gateway. So, your
savings are not limited to calls to other Micronet devices.
SP5004P provides:
●4 FXS port(s) for phone set, FAX machine, or PBX’s trunk
●4 PSTN port for PSTN lifeline that transceiver PSTN calls as backup even if VoIP
fails.
SP5008 provides:
●8 FXS port for phone set, FAX machine, or PBX’s trunk
SP5018 provides:
●4 FXS port for phone set, FAX machine, or PBX’s trunk
●4 FXO port for PSTN line or PBX’s extension to make communication between PSTN
and IP clients.
SP5058 provides:
●8 FXO port for PSTN line or PBX’s extension to make communication between PSTN
and IP clients
With built-in router function, they offer internet access sharing to co-located PCs.
4
1.1 Key Features
●Dual protocols: SIP & H.323 co-existing
●4/8 x RJ-11 FXS/FXO ports
●Provide 4 RJ-11 PSTN Lifelines (SP5004P)
●G.711A/µ-law, G.723.1, G.726 and G.729 codecs
●Support 4 service registrations
●Support multiple dial plans & call hunting group
●Support Call forward, Call hold and Call waiting
●Support Call transfer and 3-way conference (base on server)
●Transmit T.38 fax
●Power current drop and polarity reversal supervisory disconnect (SP5018/SP5058
only)
●Extensible by external IVR/CDR/Billing servers
●Support outbound proxy and STUN for NAT traversal
●Support advanced IVR for PSTN subscriber to dial in (SP5018 & SP5058 only)
●Support static IP, DHCP, PPPoE
●Provide VPN capability (PPTP / L2TP client) for secured Internet access and voice
communication
●Provide router functions and firewall security
●Support QoS by setting ToS (Type of Service) parameters of VoIP Packets
5
1.2 Physical Description

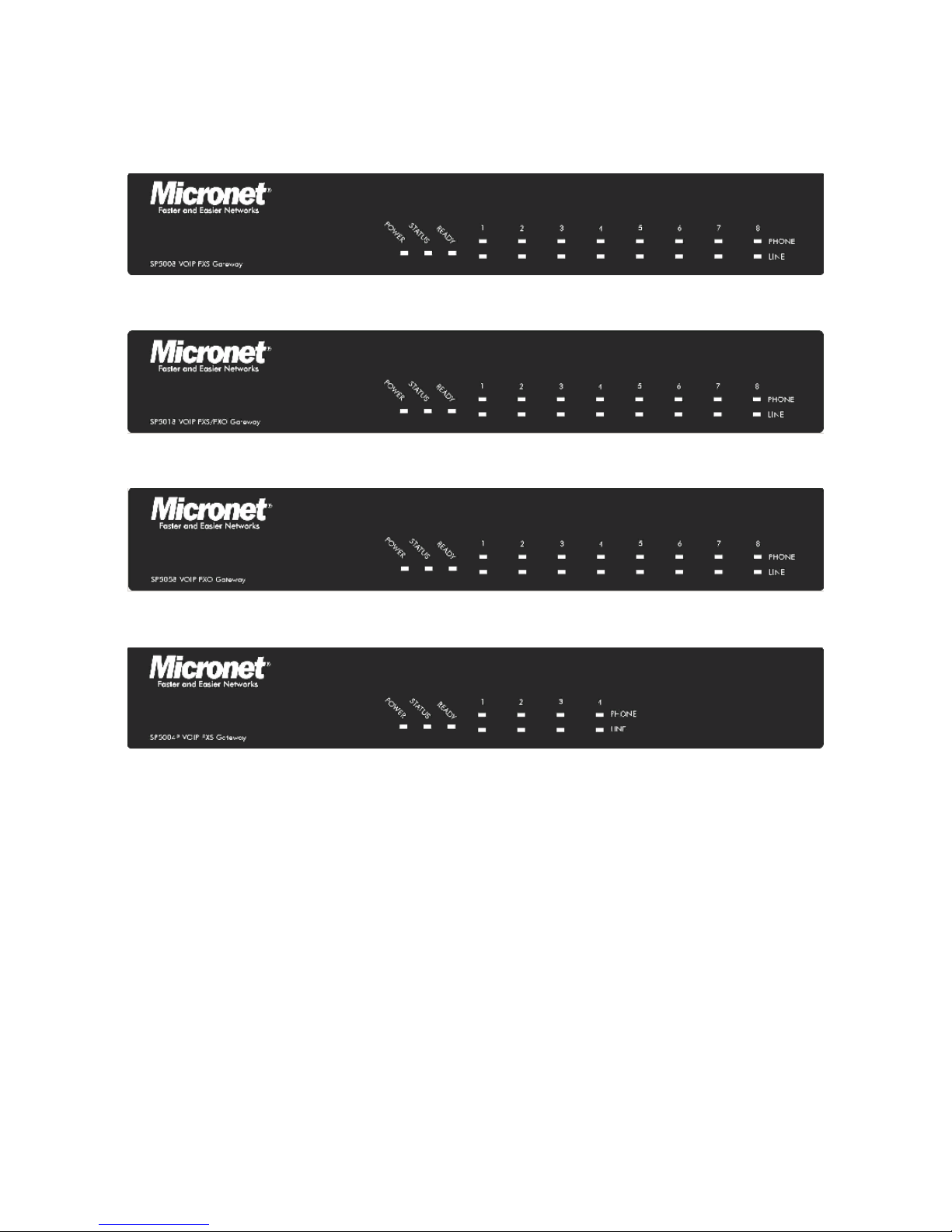

Front Panel
SP5008
SP5018
SP5058
SP5004P
6
LED Indicators
LED Status Indication
POWER On / Green The Power is on
STATUS Blink / Green Booting up for self test
Blink / Blue Gateway reg. failureREADY
Constant / Blue Gateway reg. successes
On / Green Busy / Off-hookPHONE
Off Available / On-hook
On / Green BusyLINE
Off Available
7

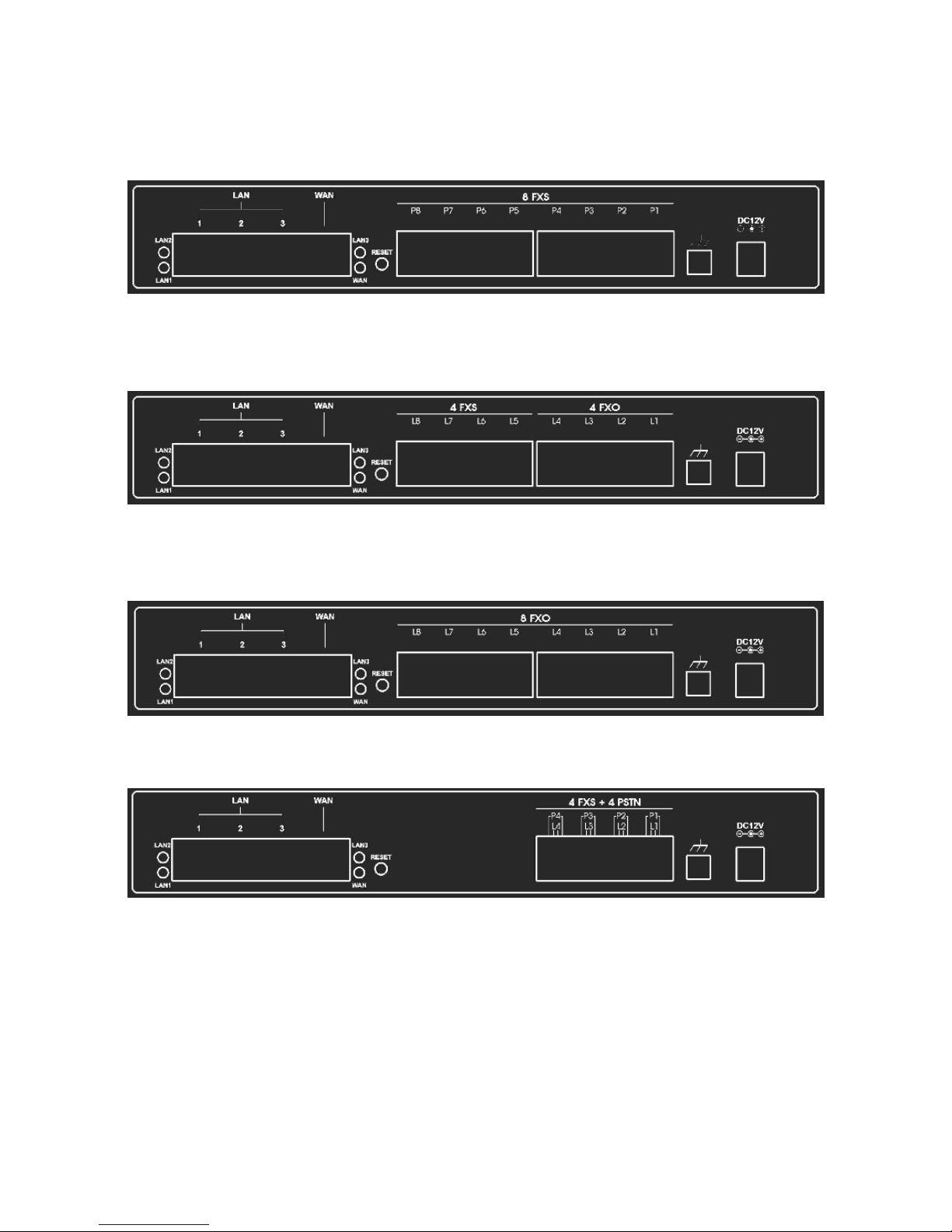

Rear Panel
SP5008
SP5018
SP5058
SP5004P
8
LAN Three of 10/100 dual-speed Ethernet port fitted with an RJ-45
connector used to connect the VoIP gateway to a LAN device.
WAN A 10/100 dual-speed Ethernet port fitted with an RJ-45 connector
used to connect the VoIP gateway to WAN device (usually a
router).
P1~P8
FXS / FXO RJ-11 ports.
SP5008: FXS=P1~P8
SP5018: FXS=P1~P4, FXO=P5~P8
SP5058: FXO=P1~P8
P1/L1~P4/L4
(SP5004P)
FXS / PSTN combo RJ-11 ports.
Note:
Please use 2-in-1 RJ-11 cable “C702” to connect to
PABX’s trunk and PSTN line respectively
RESET Clear all settings and restore them to the initial values present
when the device was purchased. After performing the reset, make
sure to redefine the IP settings for the device in the ‘Connection’.
DC 12V For the included power adapter. Be sure to use only the
12VDC/1.5A power adapter included with the product. Using the
wrong power adapter can damage the product and void the
warranty.
Earth Point
Earth Ground
9
1.3 Application
SP5004P/5008/5018/5058 can be used in some scenarios
Scenarios A,
FXS Gateway Configuration PBX Scenario, VoIP
Scenarios B,
FXO/FXS Gateway Configuration PBX Scenario, VoIP
Scenarios C,
FXO Gateway Configuration PBX Scenario, VoIP
