User’s Manual
Wireless LAN PCI Adapter
Model No.: SP906GK
http://www.micronet.info
CONTENTS
1INTRODUCTION...................................................................... 1
1.1 Features................................................................................................... 1
1.2 Specifications........................................................................................... 1
1.3 Package Contents.................................................................................... 2
2HARDWARE INSTALLATION.................................................. 3
3CONFIGURATION UTILITY ..................................................... 6
3.1 Site Survey .............................................................................................. 9
3.2 Profile....................................................................................................... 9
3.2.1 Configure the Profile ....................................................................11
3.2.1.1 Base Configuration...............................................................11
3.2.1.2 Wireless network security.....................................................12
3.2.1.3 802.1x Setting-Certification ..................................................16
3.2.1.4 802.1x Setting-CA Server.....................................................17
3.3 Advanced............................................................................................... 19
3.4 Status..................................................................................................... 21
3.5 Statistics................................................................................................. 22
3.6 Easy Config ........................................................................................... 22
3.7 Turbo Mode............................................................................................ 22
4TROUBLESHOOTING............................................................ 24
- 1 -
1 Introduction
Thank you for purchasing the SP906GK. It complies with IEEE 802.11g standard and
supports up to 54Mbps high-speed wireless network connections. It can also work
with IEEE 802.11b devices. When SP906GK is connected to 11b devices, the link
speed will be up to 11Mbps.
It enables higher data throughput than the IEEE 802.11g standard (up to 54Mbps) and
supports specific ways to increase the data transfer rate for a time by compressing the
data and decreasing the waiting time to send the next data to the Routers or APs in
Turbo Mode. When SP906GK is connected to the Routers or APs with the proprietary
Turbo Mode feature, the wireless network will be even more efficient.
For WLAN security issues, SP906GK supports 64/128-bit WEP data encryption that
protects your wireless network from eavesdropping. It also supports WPA (Wi-Fi
Protected Access) feature that combines IEEE 802.1x and TKIP (Temporal Key
Integrity Protocol) technologies. Client user authorization is required before accessing
to APs or AP Routers, and the data transmitted in the network is encrypted/decrypted
by a dynamically changed secret key. Furthermore, SP906GK supports AES function,
offering a stronger encryption mechanism, which is often required by corporate and
government users.
SP906GK power consumption is also very low. SP906GK has several levels of power
saving modes, allowing user to customize from portable or handheld devices the way
he/she wishes to save power.
With its various features and ability to support advanced technology, SP906GK is the
most cost-effective solution to build your wireless network.
- 1 -
1.1 Features
•Comply with the IEEE 802.11b and IEEE 802.11g standards.
•High-speed wireless transfer data rate - up to 54Mbps.
•Provide high level of security with 64/128-bit WEP, WPA (TKIP with IEEE
802.1x), WPA2 (AES with IEEE 802.1x) functions
•Provide automatic fallback for greater data security and reliability.
•Supports Windows 98SE/Me/2000/XP operating systems
•Supports 32-bit PCI interface.
1.2 Specifications
•Standard: IEEE 802.11b/g
•Interface: 32-bit PCI
•Frequency Band: 2.4000 ~ 2.4835GHz (Industrial Scientific Medical
Band)
•Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)
•BPSK, QPSK, CCK (11b)
•Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback
•Security: 64/128-bit WEP Data Encryption, WPA (TKIP with IEEE
802.1x), WPA2 (AES with IEEE 802.1x) Note: WPA2 is only enabled in
Windows 2000/XP.
•Antenna: Printed Antenna with Diversity System
•Drivers: Windows 98SE/Me/2000/XP
•LEDs: Link, Activity
•Transmit Power: 16dBm~18dBm
•Dimension: 8(H) x 118(W) x 54(D) mm
•Temperature: 32~131°F (0 ~ 55°C)
•Humidity: Max. 95% (NonCondensing)
•Certification: FCC, CE
- 2 -
1.3 Package Contents
Before you begin the installation, please check the items in your package. The package
should include the following items:
•Micronet SP906GK Wireless LAN PCI Adapter
•Driver and Manual CD
•Quick Installation Guide
•Detachable Antenna
If any of the above items is missing, contact your supplier as soon as possible.
- 3 -
2 Hardware Installation
Before you proceed with the installation, please read the following notes carefully:
Note1: Please do not install SP906GK into your laptop computer before installing the
software program from the CD.
Note2: The following installation was performed under Windows XP. (Procedures are
similar for Windows 98SE/Me/2000.)
Note3: If you have installed the SP906GK Wireless PCI Adapter driver & utility before,
please uninstall the old version first.

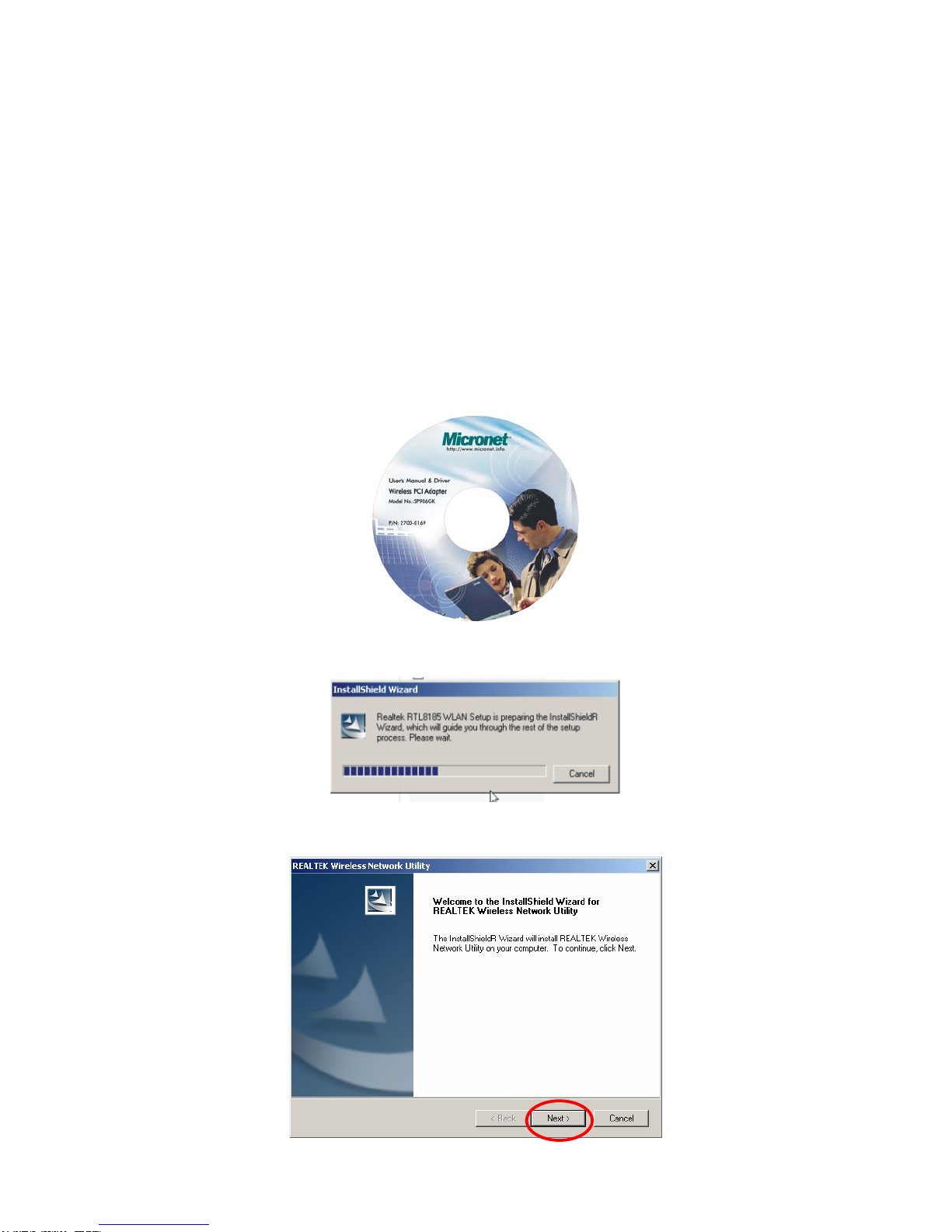

A. Insert the Installation CD to your CD-ROM Drive. Execute the “setup” program.
(/Utility and Driver/setup.exe)
B. The “Installshield Wizard” will start automatically.
C. Click “Next” to install utility.
- 4 -

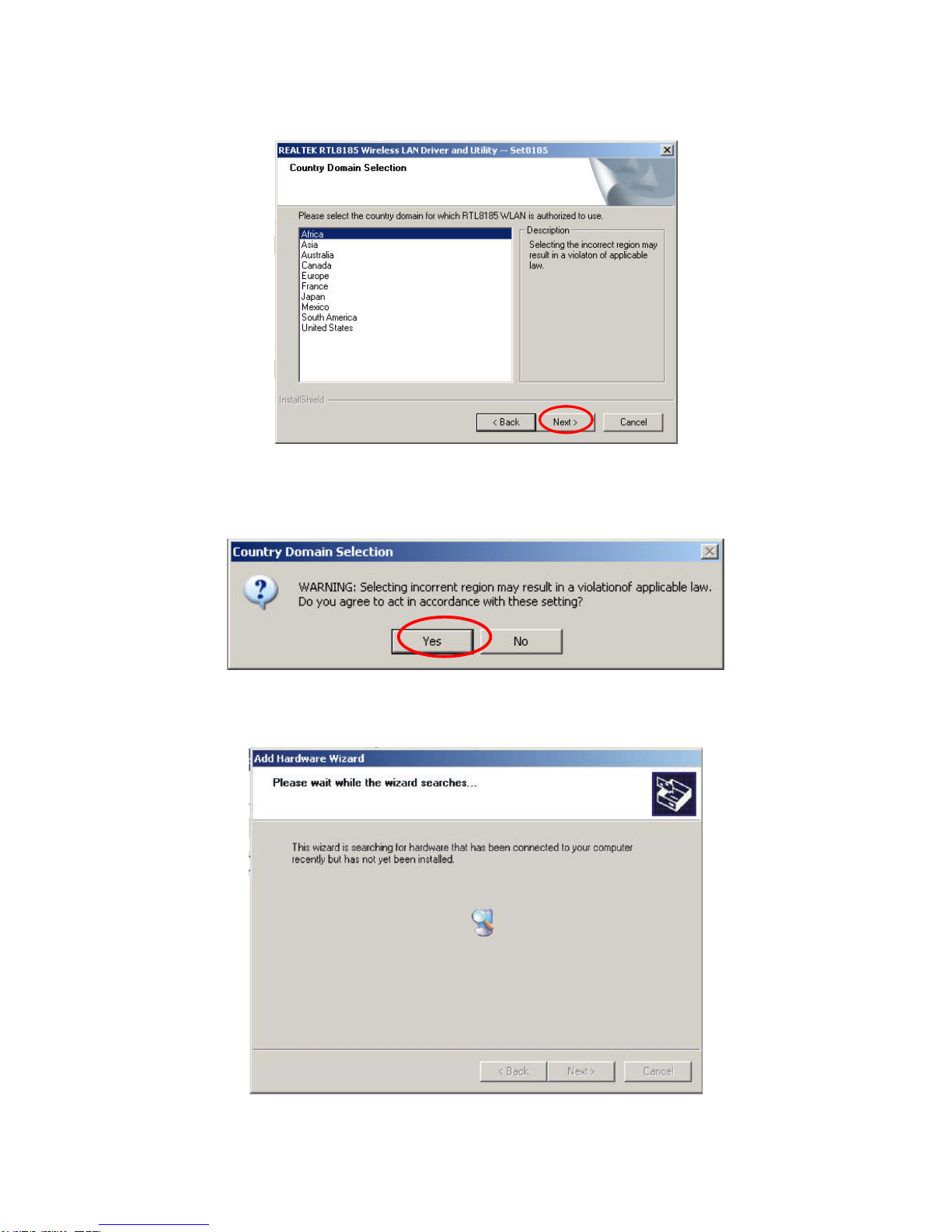

D. After selecting the country domain, click “Next” to process the installation..
E. Warning: Selecting incorrect region may result in a violation of applicable law
dialog window will pop-up. If you have selected the correct region, click “Yes”
continue the process.
F. The system will start to install the software of SP906GK . Follow the instruction of
the program and plug in SP906GK into the PCI slot of your desktop computer.
- 5 -

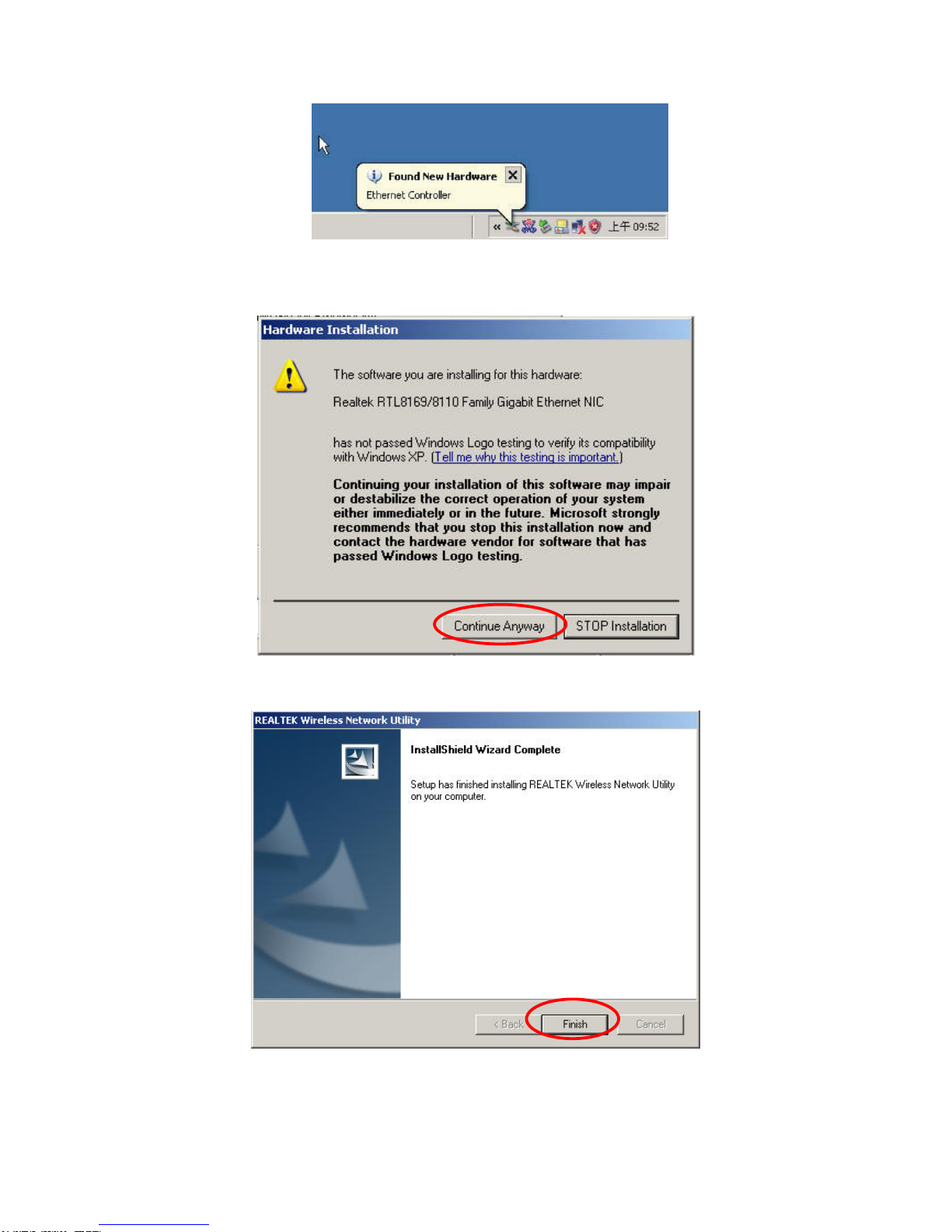

G. The system will automatically detect SP906GK and display the “Hardware
Installation” screen. Click “Continue Anyway” to continue.
H. Click “Finish” to complete the installation.
- 6 -
3 Configuration Utility

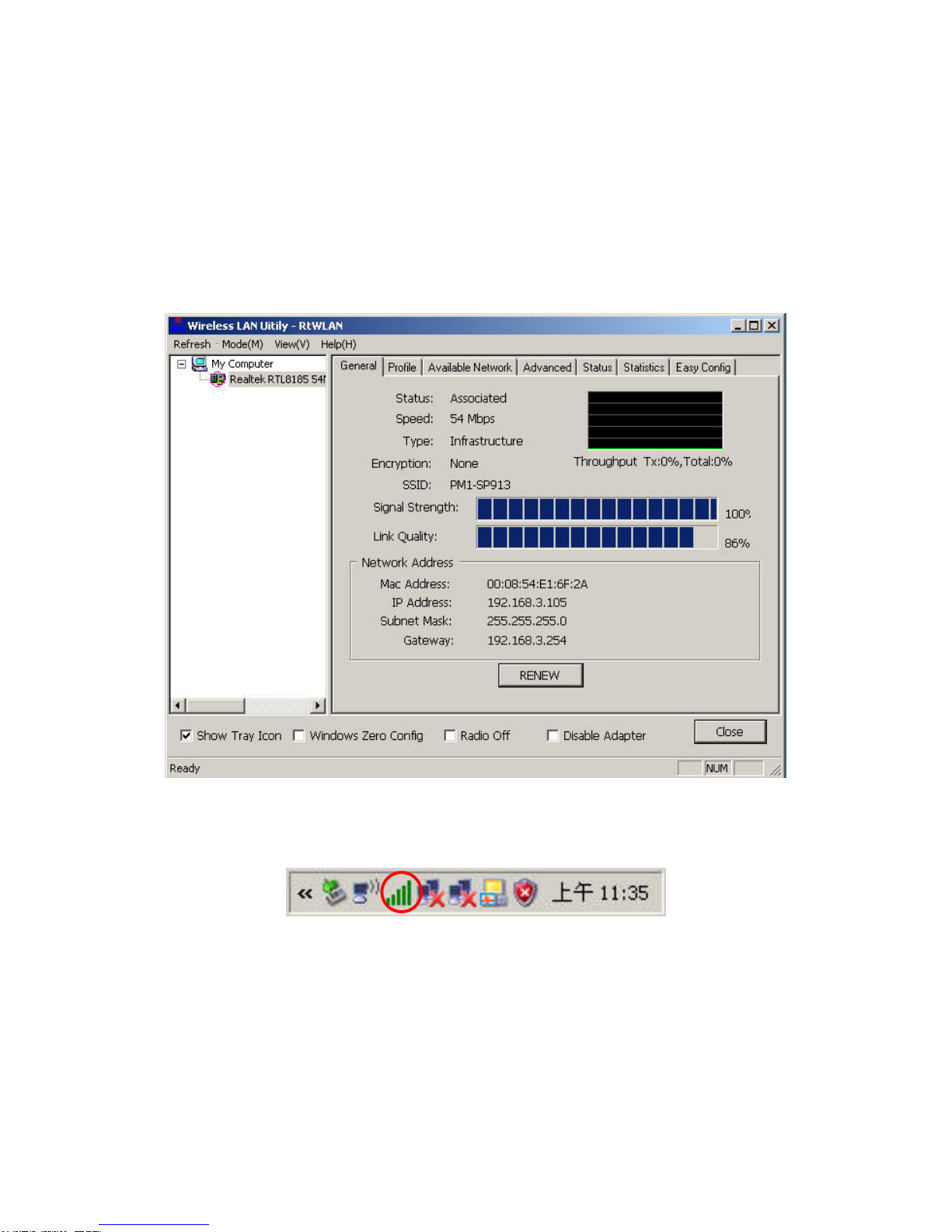

The Configuration Utility is a powerful application that helps you configure SP906GK and
monitor the link status and the statistics during the communication process.
If SP906GK is installed successfully, the configuration utility will automatically pop up. It
will automatically connect to the wireless device, which has better signal strength and no
wireless security setting.
The Configuration Utility appears as an icon on the system tray of Windows while
SP906GK is running. You can double-click on the icon to open the utility.
- 7 -

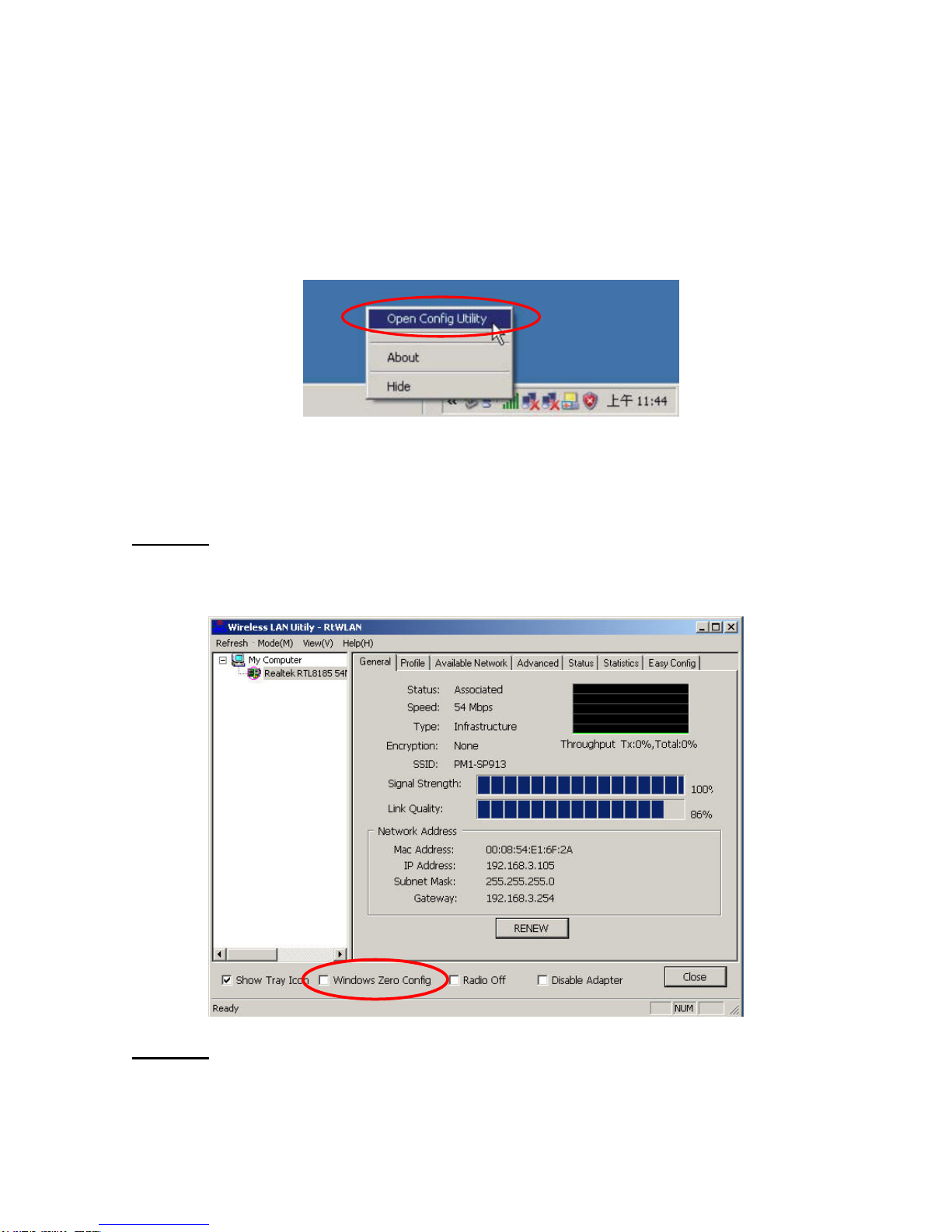

Right click the icon to find the items in configuration utility for you to perform.
zLaunch Config Utilities
Select “Open Config Utility” to open the Configuration Utility tool.
zUse Zero Configuration as Configuration Utility
zSelect “About” to describe the Wireless Card information.
zHide
Select “Hide” to hide the Configuration Utility tool.
In Windows XP, there is a “Windows Zero Configuration Tool” for you to set up
wireless clients. By default, this “Windows Zero Configuration Tool” is enabled. You
can use the Utility for the card by one of the following methods:
Method 1
Double click the icon in the system tray and disable “Window Zero Config”.
Method 2
A. Right-click the icon and select “View Available Wireless Networks”.
