Microsoft MN-730 Manuale utente

www.microsoft.com/broadbandnetworking

0603 Part No. X09-65826

Caution

For use with UL Listed, CSA and GS approved personal computers.

Not intended for use in machinery, medical or industrial applications.

Do not use onboard an aircraft or in hazardous locations such as a gas station or other explosive

environment.

For indoor use only.

Do not touch or re-orient the antenna while the device is transmitting

Device should be located at least 5 cm (2 inches) away from any human body in order to meet FCC

exposure limits. Exposure time should be limited if the distance is less.

Avertissement

N’utilisez qu’avec des composantes homologuées UL, CSA ou TUV.

Ne pas utiliser ce dispositif dans une application industrielle ou médicale.

Ne pas utiliser dans un avion ou en présence de vapeur explosive (station-service).

N’utiliser qu’à l’intérieur.

Ne touchez pas à l’antenne lorsque l’appareil est en fonction

Autre composantes: Ce dispositif doit être à plus de 5 cm (2 pouces) de toute personne sinon l’utilisateur

devrait limiter le temps d’exposition.

Information in this document, including URL and other Internet Web site references, is subject to change without notice.

Unless otherwise noted, the example companies, organizations, products, domain names, e-mail addresses, logos, people,

places, and events depicted herein are fictitious, and no association with any real company, organization, product, domain

name, e-mail address, logo, person, place, or event is intended or should be inferred. Complying with all applicable

copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be

reproduced, stored in, or introduced into a retrieval system, or transmitted in any form or by any means (electronic,

mechanical, photocopying, recording, or otherwise), or for any purpose, without the express written permission of Microsoft

Corporation.

Microsoft may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering

subject matter in this document. Except as expressly provided in any written license agreement from Microsoft, the

furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual

property.

Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.

UPnP is a trademark of UPnP Implementers Corp. Wi-Fi is a registered trademark and Wi-Fi Protected Access is a

trademark of Wi-Fi Alliance.

The names of actual companies and products mentioned herein may be the trademarks of their respective owners.

My Network Settings

Use this page to record your network settings.

Workgroup or domain name: ______________________________________

Base Station password: __________________________________________

(Default=admin)

Wireless Settings

Record the information used to configure a computer for wireless access to your

network here. All computers accessing your network with a wireless connection

need to use the same wireless settings.

Wireless network name (SSID): ____________________________________

WEP key or WPA passphrase: ______________________________________

Wireless channel (ad-hoc networks only): ____________________________

Wide Area Network Settings

Complete this section only if your network has a base station (gateway or router).

You can obtain this information from your Internet service provider (ISP). Your ISP

may not require all of the settings listed below.

Dynamic IP (DHCP) Settings

Complete this section only if your ISP uses a DHCP connection.

Host name: _____________________________________________________

Adapter MAC address: ____________________________________________

Static IP Address Settings

Complete this section only if your ISP has assigned you a specific IP address.

Static IP address: ________________________________________________

Subnet mask: ___________________________________________________

IP gateway address: ______________________________________________

Primary DNS server: ______________________________________________

Secondary DNS server: ___________________________________________

PPPoE Settings

Complete this section only if your ISP uses PPPoE.

User name: _____________________________________________________

Password: ______________________________________________________

Service name: ___________________________________________________

0703 Part No. X09-65826-03

contents

1 | Introduction: Welcome to Wireless-G..................................................................................1

About Your Wireless PCI Adapter...................................................................................1

About Wireless (Radio) Connections.............................................................................3

Types of Wireless Networks........................................................................................3

Placement of Wireless Components..........................................................................4

Adjusting the Antenna.................................................................................................5

Understanding Wireless Transmission Standards....................................................5

2 | Setup: Using the Setup Wizard.............................................................................................7

Step 1: Gather Components, Tools, and Information ...............................................7

Step 2: Run the Setup Wizard .................................................................................... 8

Step 3: Install the Adapter in Your Computer............................................................9

Step 4: Configure the Adapter..................................................................................10

Step 5: Test Your Network Connections ..................................................................11

3 | Network Activities: Sharing Resources and Joining Other Networks .......................... 13

Logging on to Your Network.........................................................................................14

Using an Internet Connection over a Network............................................................15

Using the Broadband Network Utility ..........................................................................15

Using Files and Folders over a Network......................................................................16

Step 1: Make your files and folders available to the network................................17

Step 2: Access shared files ......................................................................................18

Using a Printer over a Network....................................................................................19

Using Other Peripheral Devices over a Network.........................................................20

About Reading E-Mail Messages on a Network..........................................................20

Playing Games on Your Network and on the Internet ................................................20

Creating a Computer-to-Computer (Ad Hoc) Network ................................................21

Joining an Available Wireless Network........................................................................22

4 | Network Management: Understanding Network Maintenance and Security............. 23

Monitoring Your Network .............................................................................................23

View Status................................................................................................................23

View Network Devices...............................................................................................23

View Adapter Settings...............................................................................................24

Updating Software ........................................................................................................24

ii Microsoft Broadband Networking Wireless PCI Adapter User’s Guide

Making Your Network More Secure ............................................................................ 24

Help Protect Your Network from Computer Viruses ............................................... 24

Help Protect Your Network from Hackers ............................................................... 25

Help Protect Your Network from Unauthorized Access.......................................... 25

5 | Troubleshooting: Finding Answers to Common Problems............................................ 27

Setup and Hardware Problems................................................................................... 27

The Setup Wizard will not start or locks up when I run it on my computer........... 27

Setup does not recognize my wireless PCI adapter. .............................................. 28

After installing a new PCI adapter, my computer does not start........................... 28

Network and Internet Problems.................................................................................. 29

I can’t stay connected to my wireless network....................................................... 29

I can’t access the Internet from a computer on my wireless network. ................. 29

My network is slow. .................................................................................................. 31

I am having problems running a networked program or multiplayer game

on my network or the Internet. ................................................................................ 31

Printing and File Sharing Issues.................................................................................. 34

I can’t print to a networked printer.......................................................................... 34

I cannot access a shared file or folder from a computer on my network. ............ 35

I can open shared files or folders, but cannot write to or delete them................. 37

I can only access shared resources from certain computers or user accounts

on my network. ......................................................................................................... 37

Appendix A: Locating Your Internet and Network Settings.......................................... 39

Internet Connection Type ............................................................................................ 39

General Internet Settings ............................................................................................ 40

Dynamic IP (DHCP) Settings........................................................................................ 40

Host name................................................................................................................. 40

MAC Address............................................................................................................. 40

Static IP Settings.......................................................................................................... 41

PPPoE Settings............................................................................................................. 42

Workgroup Name ......................................................................................................... 42

Wireless Network Name .............................................................................................. 43

Wireless Security Settings........................................................................................... 43

Contents iii

Appendix B: Support and Technical Information........................................................... 44

Getting Help ..................................................................................................................44

Visit Us on the Web ...................................................................................................44

Click Help in the Broadband Network Utility............................................................44

Technical Support Options .......................................................................................44

Regulatory Information.................................................................................................45

United States Radio and TV Interference Regulations ...........................................45

Canadian Radiocommunication Regulations..........................................................45

Technical Specifications ..............................................................................................46

System Requirements..................................................................................................47

End-User License Agreement.......................................................................................48

Limited Warranty ..........................................................................................................50

Glossary................................................................................................................................. 55

Index ...................................................................................................................................... 61

introduction

Welcome to Wireless-G

Thank you for purchasing the Microsoft®Broadband Networking Wireless PCI Adapter.

This wireless adapter is up to five times faster than 802.11b adapters. You can use

your adapter to add a computer to a new or existing wireless network. This chapter

describes your wireless adapter and explains wireless (radio) connections.

Note For more information about 802.11g, see “Understanding Wireless Transmission

Standards” later in this chapter.

About Your Wireless PCI Adapter

Your wireless adapter comes with a Setup CD, User’s Guide, and Start Here guide, as

shown in the following illustration.

User's Guide and

Start Here Guide

Setup CD

Install This First!

Wireless PCI Adapter

(MN-730)

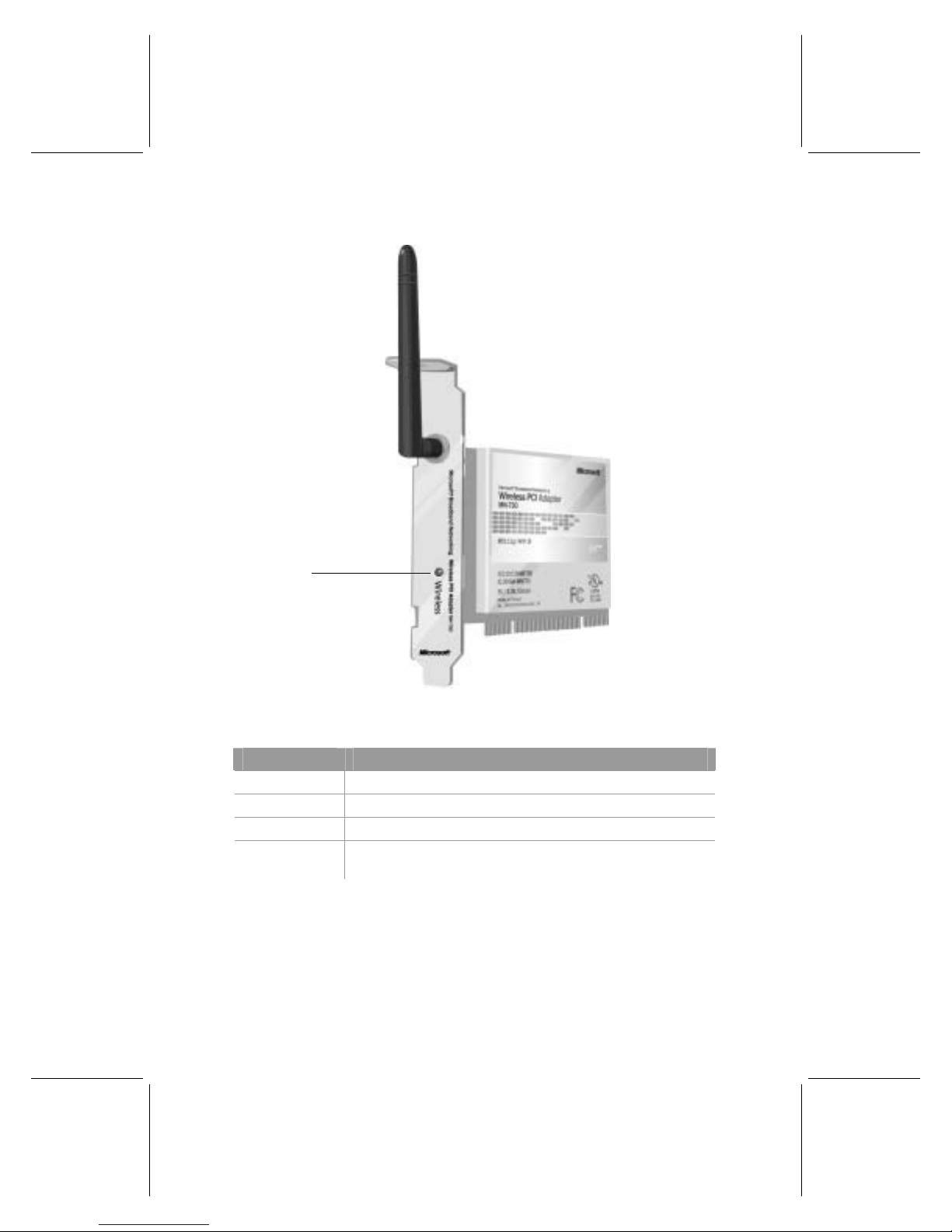

The Microsoft Wireless PCI adapter is installed in a PCI slot inside your computer, and

is secured by a metal mounting bracket and screw. The following illustration shows the

location of the status light and antenna on the adapter.

2 Microsoft Broadband Networking Wireless PCI Adapter User’s Guide

Antenna

Mounting bracket

Wireless light

The Wireless status light provides information about network connectivity and data

activity. The following table describes the behavior of the Wireless light.

When the light is… This means…

On The adapter has established communication with a wireless network.

Blinking quickly Data is being sent or received wirelessly.

Blinking slowly The adapter is trying to establish communication with a wireless network.

Off The adapter is not receiving power, is not recognized by Microsoft

Windows®, or is disabled.

Chapter 1: Introduction 3

About Wireless (Radio) Connections

Your adapter communicates by radio transmission. Radio waves travel in all directions,

and can be transmitted through walls and floors. This section on wireless connections

explains wireless network types and provides important information about wireless

performance.

Types of Wireless Networks

There are two types of wireless networks: infrastructure and ad hoc.

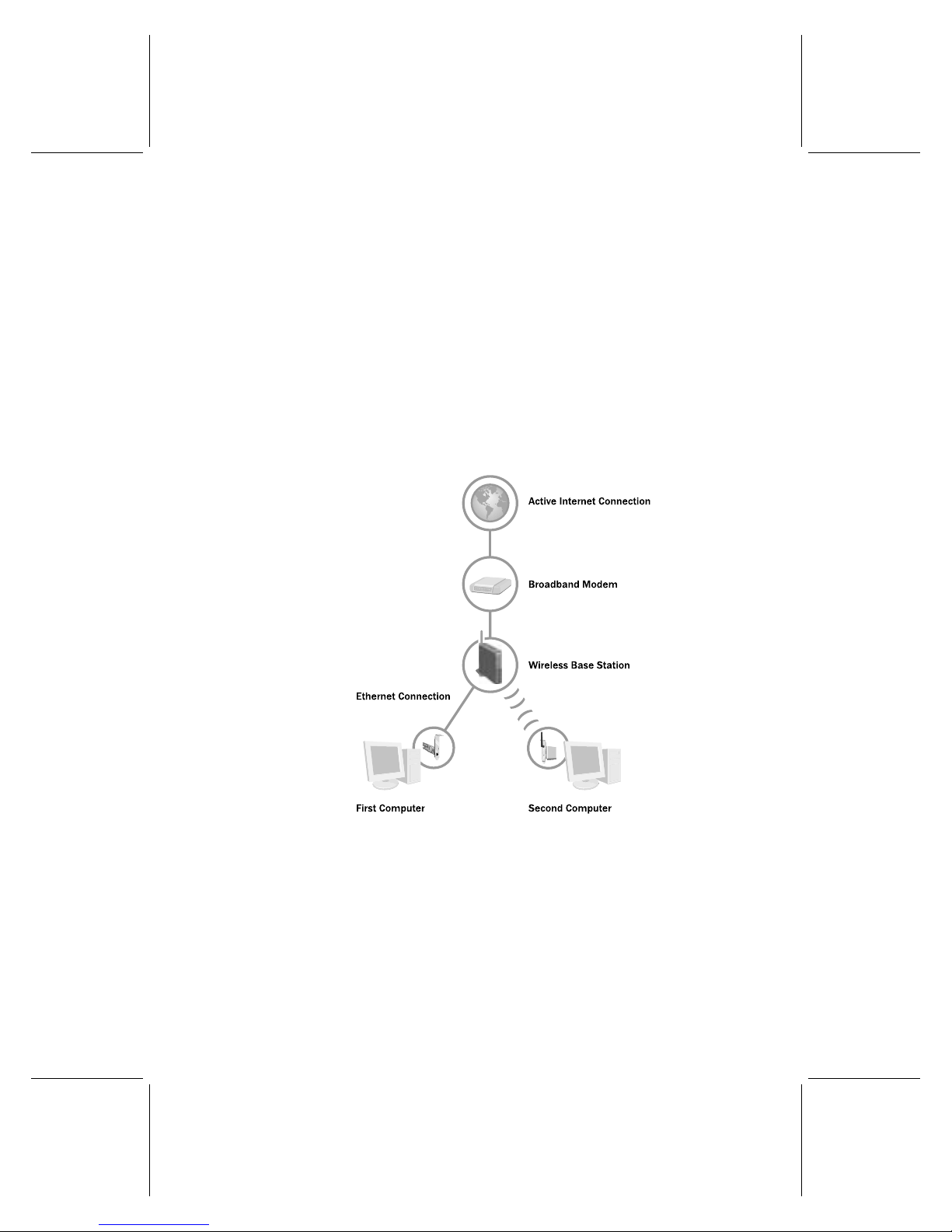

In an infrastructure network, a wireless adapter connects to a wireless network

through a central wireless access point, gateway, or router, such as a Microsoft

Wireless Base Station. This type of network is often used when a broadband Internet

connection will be shared among computers, or when there are more than two

computers or devices on a wireless network. The following illustration shows an

infrastructure network.

4 Microsoft Broadband Networking Wireless PCI Adapter User’s Guide

In an ad hoc network, a wireless adapter connects directly to wireless adapters that

are installed in other computers. This type of network is often used when only two

computers or devices are being connected, when a broadband Internet connection will

not be shared, or when the connection to another computer is intended to be

temporary. The following illustration shows an ad hoc network.

First computer Second computer

You can use the same adapter to join different wireless networks (and different types

of wireless networks) at different times. For example, you might use your adapter to

connect to an infrastructure network at home most of the time, but occasionally, you

might use your adapter to set up a temporary ad hoc network to share files with a

colleague who visits you at your home office.

The Microsoft wireless PCI adapter is very versatile. You can use it to join a network

that has a non-Microsoft router, gateway, or wireless access point. You can also

establish ad hoc connections to non-Microsoft adapters. When joining these types of

networks, you might need to choose or enter some wireless network settings manually.

Placement of Wireless Components

The following placement recommendations will help you achieve the best wireless

range, coverage, security, and connection speed from your wireless devices:

OPlace wireless components in direct line of sight to one another, if possible.

OPlace wireless components on desks or shelves when possible (instead of on the

floor) to avoid obstacles and achieve better reception on the upper stories of

buildings.

OAvoid placing wireless components in a way such that large, solid objects block the

direct path between them. Building components, such as fireplaces, concrete or

masonry walls and floors, metal framing, UV window film, and metallic paint will

reduce radio signal strength.

Note Radio waves will travel around your computer case when you send and receive

data wirelessly by using your PCI adapter. Make sure to place your computer a

reasonable distance away from other large metal objects or building materials.

OAvoid placing wireless components close to electromagnetic devices, especially

those with frequencies in the 2.4-gigahertz (GHz) range. Devices such as cordless

phones, microwave ovens, radios, and televisions can interfere with wireless

transmission.

OIf you notice poor connection speed in an area, try moving your wireless

components closer together. Connection speeds will be slower if your wireless

components are very far apart from each other on the network.

OBe aware that wireless signal range, speed, and strength can be affected by

interference from neighboring wireless networks and devices.

Indice

Altri manuali Microsoft Scheda PCI

Microsoft

Microsoft MN-130 Manuale utente

Manuali Scheda PCI popolari di altre marche

ERMA

ERMA SSI 1417 Manuale utente

SIIG

SIIG CyberSerial Dual PCI Istruzioni per il montaggio

Moxa Technologies

Moxa Technologies CP-102E Manuale utente

I-Bus

I-Bus IBC2602 Manuale utente

Exsys

Exsys EX-60102 Manuale utente

Chelsio Communications

Chelsio Communications T5 Series Manuale utente

Conrad Electronic

Conrad Electronic 97 46 71 Manuale utente

Micro Innovations

Micro Innovations USB650A Manuale utente

KTI Networks

KTI Networks KF-310 Manuale utente

Asus

Asus SpaceLink WL230 Manuale utente

SIIG

SIIG SC2475 Manuale utente

TRENDnet

TRENDnet TEW-703PI Manuale utente

Belkin

Belkin F5D7000F Manuale utente

Pericom

Pericom PI7C7100 Manuale utente

ADLINK Technology

ADLINK Technology cPCI-3548 Manuale utente

Digium

Digium TE200 Series Manuale utente

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuale utente

Western Digital

Western Digital FireWire PCI Adapter Manuale utente
