Microtek ArtixScan 1200DF Manuale di istruzioni

Step 2: Install Software

Step 1: Unpack Contents

Start Here

Installing your Microtek ArtixScan 1200DF

Unpack your scanner package and check

for major components.

1. ArtixScan 1200DF scanner

2. Power adapter

3. Black mat

4. Software CDs/DVDs

5. Power cord

6. Hi-Speed USB cable

Important: Do not remove the yellow

stickers from your scanner until you are

told to do so. You must install software

before connecting your scanner.

Always close any open programs and turn

off Anti-virus utilities before installing

software.

I49-004645 B, September 2013

A. Turn on your computer.

B. Place the Microtek Software CD/DVD into a drive, and follow the on-screen

instructions to install the scanner driver and software.

C. Restart your computer at the end of all software installation.

NOTE: If the Microtek Software Installer screen does not come up automatically, double-click the

following in succession: “My Computer”; the CD/DVD-ROM icon; then cdsetup.exe to start the

installer program.

To the ADF

Make sure the Automatic Document (ADF)

is properly installed, with its connector

securely connected to the scanner’s 15-pin

accessory port.

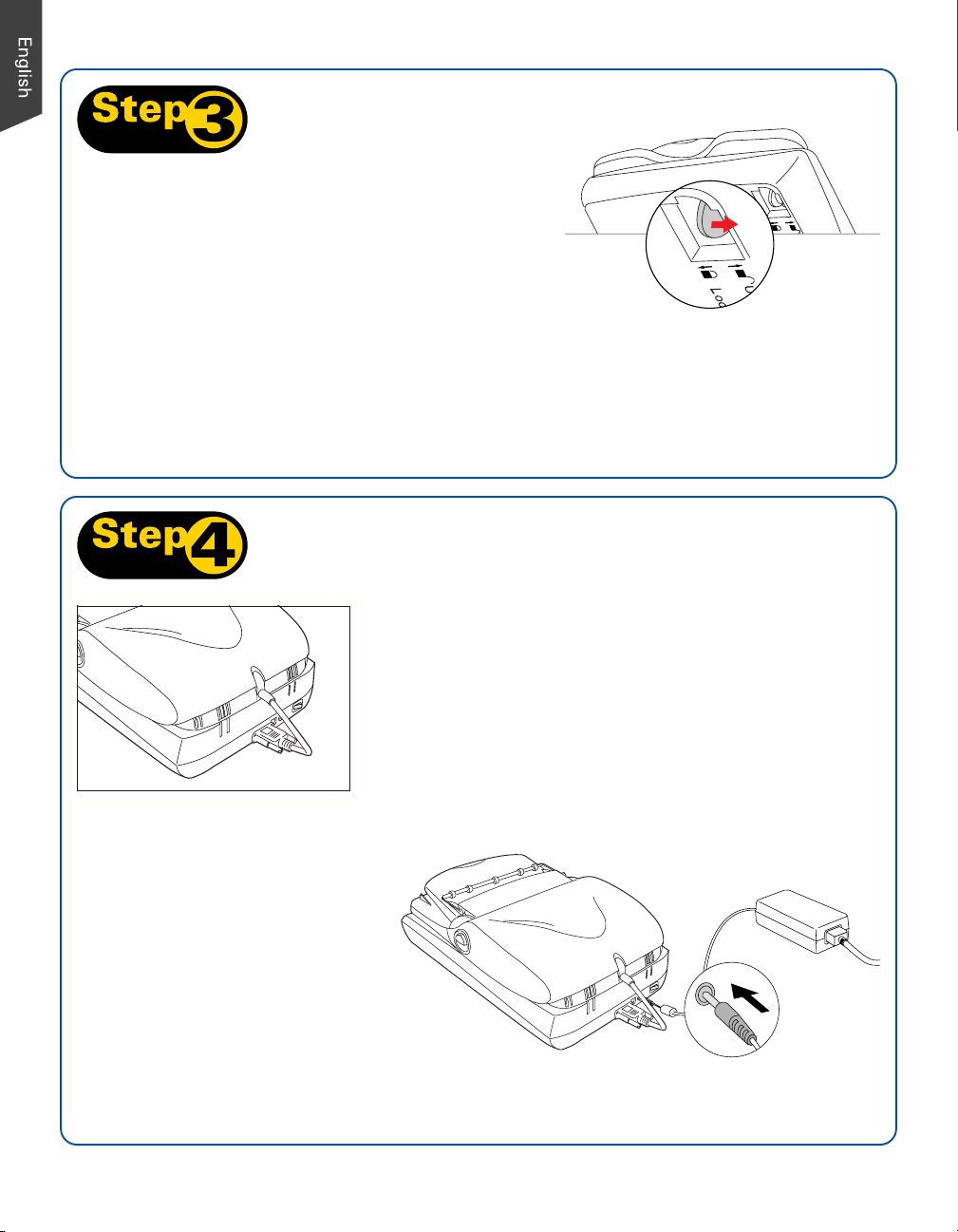

A. Remove the yellow “Step 3” sticker from your

scanner.

B. With the scanner power off, tilt the front right

corner of the scanner to see the locking switch

at the bottom.

C. Pull the carriage lock protector (ivory white in

appearance) out.

Unlock Scanner

Connect Scanner

To the power adapter

A. Remove the yellow “Step 4”

sticker from your scanner.

B. Connect the power adapter to

the back of the scanner.

C. Plug one end of the power cord

into the power adapter, and

plug the other end of the power

cord into a wall outlet or other

power source. B

D. Push the locking switch to the position as indicated in the graphic above, with the

icon on the lock showing as “unlocked”.

NOTE: To lock the scanner (for shipping and other reasons), refer to the ArtixScan 1200DF

User’s Manual.

Unlocked

To the Hi-Speed USB cable

D. Connect one end of the cable to

your computer.

E. Connect the other end of the

cable to the scanner’s USB port.

Step 4: Connect Scanner (cont.)

F. Turn the power switch at the back of

your scanner to “On”, and wait for the

light to stop blinking and stay on

steady.

The system will detect your scanner

automatically. Power switch

Customize the Function Buttons

The ArtixScan 1200DF is equipped with 3 programmable function buttons (F1, F2, and

F3) that can be customized to automate a number of predefined operations, such as

scanning to a file, sending an image to your printer, scanning for OCR, etc. Customizing is

done through the Save Settings to Function Button command in the ScanWizard DI, refer

to the ArtixScan 1200DF User’s Manual for more details.

3 programmable function buttons

•F1, F2, and F3: Customizes the

function buttons to perform your

preferred functions.

Off

F1 F2 F3

Position a Stack of Documents

A stack of up to 50 documents can be fed in the Document Feed Tray of the Automatic

Document Feeder (ADF). Document sizes can range from 4.14" x 5.83" (105 mm x 148

mm) to 8.5" x 25" (215.9 mm x 635 mm).

1. Raise the Scanner Lid, and remove the

ADF's protective film from the cover of

the scan area. Close the lid.

Guide Arms

2. Pull out the top Tray Extender for better

paper support if the length of the

originals exceeds 10 inches.

3. Open the top Tray Flap and load the

stack of originals on to the Document

Feed Tray, with the side to be scanned

facing up. Push the stack of papers into

the tray, until the paper's edges touch

the feeder rollers.

WARNING: The document feeder is not

designed for scanning photos; doing so may

damage your originals. Microtek accepts no

responsibility for damage that may arise

from misuse of equipment.

4. Align the material with the center of the

Document Feed Tray by sliding the two

Guide Arms toward the stacked sheets

if the width of the originals is less than

8.5 inches.

Protective Film

Tray Extender

Document Feed Tray

Document Output Tray

Tray Flap

Scan a Stack of Documents

1. Place the stack of documents to be scanned on the Document Feed Tray of the Auto

Document Feeder (ADF).

WARNING: Do not place photo paper or fragile sheets of paper on the feed tray, as doing this

will damage the original photo or frail papers during the feeding process. Always place frail

originals on the scanner glass surface, and choose “Flatbed” as your “scan source.”

2. Launch ScanWizard DI — either as a stand-alone by clicking the program icon, or by

using the File-Import or Scan command from an application program.

3. Specify your scanning requirements in the ScanWizard DI control panel.

a) Select ADF (Simplex) in the Scan Source drop-down menu as your image input

device.

b) Select the appropriate image type (e.g., Black & White) in the Scan Type drop-

down menu as your image output type.

– Select RGB Color (24 bits) to scan the image in color.

– Select Grayscale (8 bits) to scan the image in grayscale.

– Select Black & White (1 bit) to scan the image in black-and-white.

c) Select a dimension in the Paper Size drop-down menu as your preview image size.

d) Select a desired resolution in the Resolution drop-down menu for your image

output resolution.

e) If “Auto-crop & Auto-deskew” is selected, the scanner automatically detects the

size of the original image, crops the full scan frame to fit the image, and removes

unwanted black borders after the scan, as well as corrects the distorted image for

proper alignment.

4. If necessary, check “Auto Document Rotation”, “Smart Document Enhancement”,

“Remove Blank Page” or “Remove Punch Hole” to enhance the quality of the scanned

images.

5. Select the image type (e.g., Text) in the Attribute drop-down menu as your image

type.

– Select Line Art to scan line art images (images in one color or in black-and-white,

such as logos or mechanical blueprints).

– Select Photo to scan color prints.

– Select Text to scan text.

6. If necessary, adjust image quality by using the image correction tools.

7. Click the Scan or Scan To button to start multiple-sheet, automatic scanning.

If you want to scan both sides of the documents

through the ADF, follow the steps listed in the

ArtixScan 1200DF User’s Manual for details.

• If ScanWizard DI is launched from an image-

editing program, the scanned image is delivered

after the scan to your application, where the

image can be saved, printed, or modified further.

• If ScanWizard DI is launched as a stand-alone

program, the scanned image can be saved after

the scan to a file, opened in an image-editing

program, or sent to a printer.

Scan a Stack of Documents (cont.)

Scan frame

(enclosed by dotted lines and

labeled with the tag “Main”)

Preview window

Preview image (the enclosed

frame bordered in red)


correction

settings

Image type

Scanning

settings

Toolbox

NOTE: For details on other scanning scenarios applicable to the ArtixScan 1200DF, refer to the

ArtixScan 1200DF User’s Manual.

Fixing Paper Jams

1. Open the ADF cover by lifting the two

Earlobe Levers located on each side of

the cover.

Earlobe Levers

2. With the cover fully opened, pull out

the jammed document from the feeder.

If the paper is jammed in the first-stage

(paper feed) rollers, pull the paper in a

forward direction. If the paper is

jammed in the second-stage (scanning)

rollers, you may pull out the jammed

paper in either direction (forward or

backward).

3.You can also open the cover of the

scan sensor area at the bottom of the

ADF to pull out the jammed piece of

paper.

Problems?

The LED on the front panel of the scanner indicates the status of the scanner.

First, make sure that you have followed Steps 1 to 4 as described in this guide (unpack,

install, unlock, connect). Then if your problem is listed here, try the suggested solution.

1. No light comes on when the scanner is turned on.

Make sure your scanner is connected to your computer and plugged into a power

source.

2. The Add/Remove Hardware Wizard appears on your screen.

Click the “Cancel” button and close the ScanWizard DI Control Panel. Disconnect the

Hi-Speed USB cable from the back of your computer, and refer to the installation

instructions in this guide or the ArtixScan 1200DF User’s Manual.

3. When trying to scan, an error message appears on your screen that reads, “Can’t Find

Scanners”.

Make sure your scanner is unlocked (see Step 3).

Make sure your scanner is connected to your computer and plugged in to a power

source (see Step 4).

Uninstall and reinstall the ScanWizard DI software.

4. After clicking scan, a blank screen appears.

Make sure your scanner is unlocked (see Step 3).

Uninstall and reinstall the ScanWizard DI software.

5. When trying to scan with the ADF (Auto Document Feeder), an error message appears

on your screen that reads, “Code -206, ADF paper jam or roller failure.”

Click OK first; then open the ADF cover, as illustrated in the pervious section “Fixing

Paper Jams”.

• If the problem is occurring from a paper jam, follow the procedures laid out in the

“Fixing Paper Jams” section of this guide.

• If the problem is occurring from situations other than a paper jam, follow the

procedures laid out in the “Position a Stack of Documents” section.

Finally, close the ADF cover and restart scanning.

Ready to scan.

Flashing

Warming up of scanning.

Off

Scanner is off.

LED

Do You Need Assistance?

Manuals

If you have additional questions and need further instruction or information, we provide

electronic manuals for:

1. Using your ArtixScan 1200DF Scanner

2. Using the ScanWizard DI scanning software

To access the electronic manuals: Insert the scanner’s software CD/DVD into your

computer’s CD/DVD-ROM drive. Next, locate and click the “Manuals” option when the

software installer window appears on your screen. Finally, select and click the title of the

manual you wish to view.

Missing Items

If your package is missing items, please call the Microtek Customer Service Department.

Drivers & Software Upgrades

After you finish the installation of software, if you found that the installed drivers and

software cannot run your product or your computer system properly later, please go to

the Microtek Download Service site at ww7.microtek.com.tw/service.php to download

and install any updates you may require.

For additional information about Microtek products, please visit our website at

www.microtek.com.

ColoRescue are trademarks or registered trademarks of Microtek International,

Inc. All other trademarks or registered trademarks are the property of their

respective holders. Specifications, software and hardware bundles are subject

to change without notice. Delivery of technical support services subject to

change without notice. Not responsible for typographical errors.

Power Adapter

Use only power supplies (AC/DC adapters) listed below:

Voltage Manufacturer Model No.

100V to 240V WUXI HARD HDAD38W101

NOTE: Please make sure that the electrical outlet to where the scanner will be

connected is nearby and readily accessible.

Indice

Altri manuali Microtek Scanner

Microtek

Microtek ScanMaker 1000XL Manuale di istruzioni

Microtek

Microtek ScanMaker i460 Manuale del proprietario

Microtek

Microtek ScanMaker V6UPL Manuale utente

Microtek

Microtek ArtixScanDI 4020 Plus Manuale di istruzioni

Microtek

Microtek ScanMaker i300 Manuale utente

Microtek

Microtek ScanMaker 1000XL Plus Manuale utente

Microtek

Microtek ScanMaker series Manuale utente

Microtek

Microtek ArtixScan F2 Manuale di istruzioni

Microtek

Microtek Artix Scan1100 Manuale di installazione

Microtek

Microtek ObjectScan 1600 Manuale utente

Microtek

Microtek ScanMaker i900 Manuale utente

Microtek

Microtek ScanMaker i460 Manuale di istruzioni

Microtek

Microtek ArtixScan DI 2125c Manuale utente

Microtek

Microtek XT6060 Manuale di istruzioni

Microtek

Microtek ArtixScan DI 2020 Manuale utente

Microtek

Microtek Vantas 3000 Manuale utente

Microtek

Microtek ArtixScan 4500t Manuale utente

Microtek

Microtek Vantas 3100 Manuale utente

Microtek

Microtek LS-3800 Manuale utente

Microtek

Microtek ArtixScan 1800f Manuale utente

Microtek

Microtek ArtixScanDI 4020 Plus Manuale utente

Microtek

Microtek ScanMaker i2400 Manuale del proprietario

Microtek

Microtek ArtixScanDI 5230 Manuale utente

Microtek

Microtek ArtixScan M2 Manuale di istruzioni

Manuali Scanner popolari di altre marche

Plustek

Plustek Scanner Manuale utente

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuale utente

Renkforce

Renkforce DS100-5M Manuale utente

Image Access

Image Access WideTEK A2 Manuale utente

Canon

Canon imageFORMULA CR-120N Manuale utente

Fujitsu

Fujitsu FI-4860C2 Manuale utente

GeoSlam

GeoSlam ZEB Horizon Istruzioni per l'installazione

Kodak

Kodak i5800 Scanner Manuale utente

Kodak

Kodak i7300 Manuale utente

Revopoint

Revopoint POP Manuale utente

Fujitsu

Fujitsu fi-4860C Manuale utente

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuale utente

Faselase

Faselase F6 Manuale utente

Fujitsu

Fujitsu CardMinder Manuale utente

Uniden

Uniden BC340CRS Manuale utente

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuale utente

Mustek

Mustek PageExpress 4800 Pro Manuale utente

Optex

Optex 750830 Manuale utente
