The ADF-650/651 allows automatic scanning of up to 50 sheets of original scan

material from A6 size (4.14"x 5.83") up to legal size (8.5"x 14"). Sheets to be scanned

are fed from the feeder's top tray, guided and scanned as they pass the scanner's

image sensor, and then exit into the feeder's bottom tray.

The ADF-650/651 mounts onto the scanner in place of the scanner's document cover

or Transparent Media Adapter (TMA).

Checking the Package

The ADF-650/651 is packaged as an assembled unit, ready to be mounted on the

scanner. After unpacking the ADF-650/651, make sure that the following items are

included:

• ADF-650/651unit

• Warranty Card

•ADF-650/651 Installing and Getting Started document

Introduction

The ADF-650/651 is an optional sheet feeder accessory for the Microtek ScanMaker-

series of flatbed scanners. The ADF-650 is designed for the ScanMaker 5600,

ScanMaker 6700, and ScanMaker 6800, while the ADF-651 is designed for the

ScanMaker5800 and ScanMaker5900.

I49-0034 8 A, November 2002

Microtek ADF-650/651

Installing and Getting Started

his document describes the features of

the Automatic Document Feeder (ADF-650/

651) and provides information on how to

install the ADF-650/651.

rademarks

Microtek®, ScanMakerTM, and

ScanWizardTM are

trademarks or registered

trademarks of Microtek

International, Inc.

Macintosh® and Apple® are

registered trademarks of

Apple Computer, Inc.

Windows® is a registered

trademark of Microsoft

Corporation. All other

products or name brands are

trademarks of their

respective holders.

Important

Documents you scan may be

protected under copyright

law. The unauthorized use of

such documents could be a

violation of the rights of the

bears no responsibility for

the unauthorized use of

copyrighted materials.

ADF- 50 ADF- 51

2 Microtek ADF- 50/ 51 Installing and Getting Started

Installing the ADF-650/651

Follow these steps to install the ADF-650/651:

1. Make sure that your flatbed scanner model

has a built-in 15-pin accessory port that is

compatiblewith your ADF-650/651.

2. Make sure your scanner has been installed

and works properly.

3. Power off your scanner.

4. Remove the scanner cover. Open the cover until it stands vertically to the scanner,

then pull upward to remove.

5. Hold the ADF-650/651 firmly on both sides

in a vertical position, with its hinge studs

and connector at the bottom. With the

feeder vertically positioned on the scanner,

carefully align and insert the feeder studs

into the hinge slots originally used by the

scanner cover (or TMA).

Note: The ADF- 50/ 51 uses the same

connector as the Transparency Media

Adapter (TMA). If your scanner is equipped

with its own TMA (or document cover with

TMA combination), disconnect the TMA and

remove from the scanner before installing

the ADF- 50/ 51.

15-pin Accessory port

Microtek ADF- 50/ 51 Installing and Getting Started 3

6. Remove the protective film from the transparent cover of the scan sensor area,

thenlower the ADF-650/651.

7. Plug the feeder's connector into the 15-pin Accessory port at the back panel of the

scanner. Secure the connector by tightening the retaining screws.

8. Turn on your scanner, and wait for the light on the scanner’s front panel to stop

blinking and stay on steady. Your system will detect the scanner with ADF-650/

651 automatically, indicating that the ADF-650/651 is ready to scan.

15-pin

connector

Protective film

4 Microtek ADF- 50/ 51 Installing and Getting Started

Scanning ext Originals for OCR

1. Make sure you have ScanWizard 5 installed on your computer, and do not load

any material at this point.

2. Launch ScanWizard 5 in stand-alone mode.

Specify your own scan settings by clicking on the Tool buttons in the Standard

Control Panel (see settings below); or by selecting the appropriate setup items

from the Settings window in the Advanced Control Panel.

a) Click the Original

button, then select

Text Document as

your scan material

type.

b) Click the Scan Type

button, then select

Black & White as

your output image

type.

c) Click the Purpose

button, then select

OCR Text.

Tray Flap

Note: The ADF- 50/ 51 is not designed for

scanning photos. Doing so may damage

your originals. Microtek accepts no

responsibility for damages that may arise

from misuse of equipment.

Note: When scanning colored text originals, you must select “Photo” and use

either True Color/Web Color (unless B/W is the chosen output).

3. Place the stack of paper to be scanned on the document feed tray.

a) Open the top Tray Flap and load the stack of papers on the feed tray, with the

side to be scanned facing up. Push the paper stack into the tray, until the

edges of the paper touch the feeder rollers.

Microtek ADF- 50/ 51 Installing and Getting Started 5

b) Pull out the top tray extender for better paper support if the length of the

originals exceeds 10 inches.

Guide arms

Output tray extender

(ADF- 51 only)

c) Align the material with the center of the feed tray by sliding the two guide arms

in toward the stacked sheets if the width of the originals is less than 8.5

inches.

Note: To preview a single sheet only: Click the Preview button (Overview button

in Advanced Control Panel) to perform a preliminary view of the entire

document. The previewed sheet will then roll from the feed tray of the ADF-650/

651 to the output tray. Load the previewed sheet along with the paper stack on

the document feed tray. You are now ready to scan the stack.

4. Click and hold the Scan to button in the ScanWizard 5 software. When the

options menu appears, select OCR.

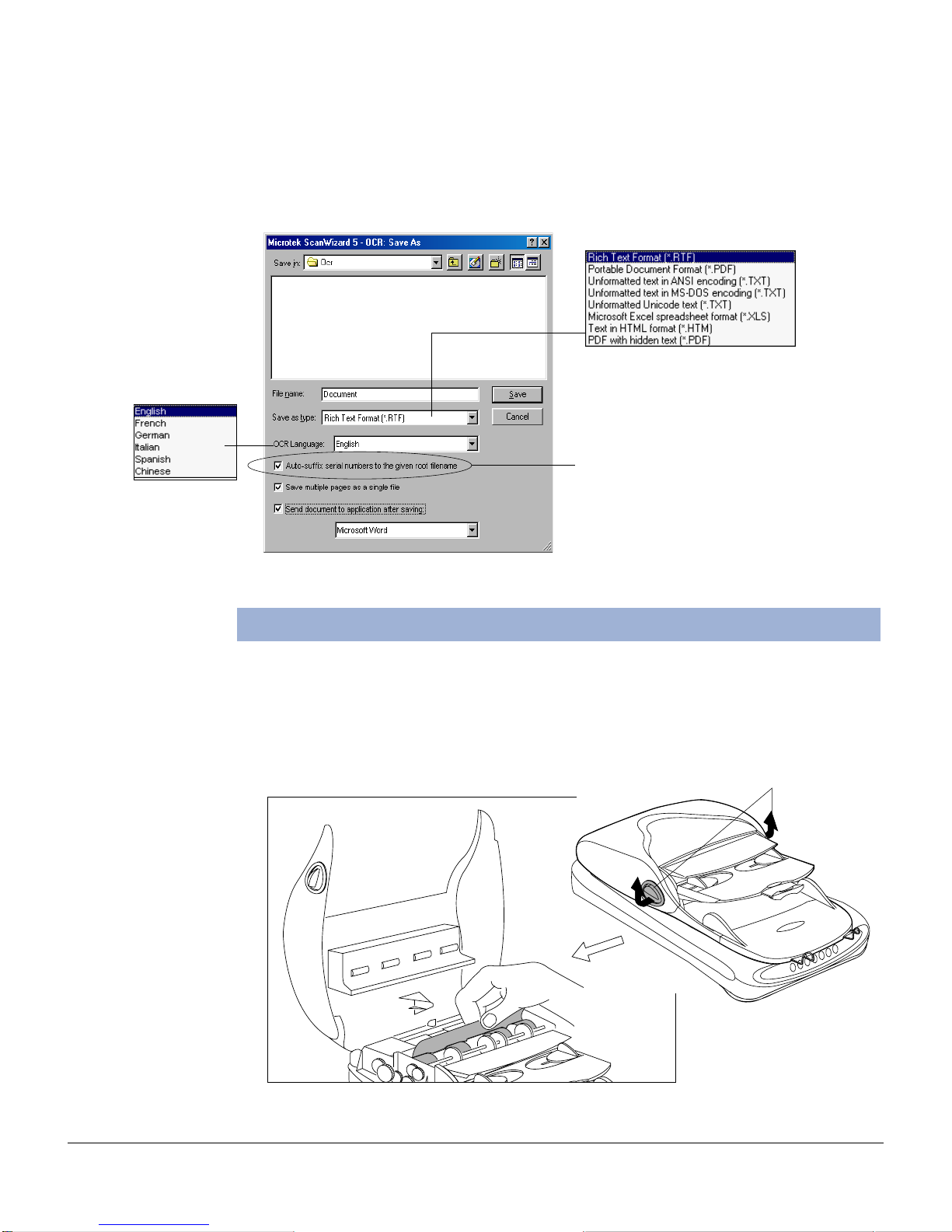

5. When the OCR: Save As dialog box appears, use the default “Document” file

name, or key in your preferred file name and select the export file format (.rtf, .txt,

.htm,.xls, or.pdf ) .

6. The default language for OCR is English. To change the language, select your

preferred language from the OCR Language options menu.

7. Click Save to start OCR scanning from the top sheet. The scanned document will

be saved to your chosen folder.

• If the check box “Send document to application after saving” is enabled, the

saved file is automatically opened to your designated application for further

editing.

Tray extender

Feed tray

Output tray

Microtek ADF- 50/ 51 Installing and Getting Started

Fixing Paper Jams

When a paper jam occurs, do the following:

1. Open the feeder cover by lifting the two Earlobe levers located on each side of the

cover.

Earlobe levers

• If the check box “Save multiple pages as a single file” is enabled, all pages of

the originals are scanned before they are saved under a single file name.

Take note that this will not work if the chosen output file format is PDF. This

file format can only be saved and assigned with individual file names for each

page.

Selecting this check box will create files

under the specified file name, and

numbers are added serially and in order

to generate multiple file names for the

scanned/saved documents.

For example, assuming the document is

saved as "Sample," the first document

will be Sample.001, followed by

Sample.002, Sample.003, etc.

Microtek ADF- 50/ 51 Installing and Getting Started 7

2. With the cover fully opened, pull out the jammed document from the feeder by

doing the following:

• Pull the paper in a forward direction if paper is jammed in the first stage (paper

feed)rollers.

• If the paper is jammed in the second stage (scanning) rollers , you may pull it

out in either direction (forward or backward).

• You can also open the transparent cover of the scan sensor area (at the bottom

of the feeder) to pull out the jammed paper.

Maintenance

Cleaning the Scan Sensor Cover

The transparent cover of the scan sensor area at the bottom of the feeder needs

regular cleaning to maintain its clear transparency for quality scanning. Use non-

abrasive lint-free cloth to gently wipe both surfaces of the cover. To remove stains,

use cotton swabs moistened with rubbing alcohol.

8 Microtek ADF- 50/ 51 Installing and Getting Started

Specifications

Capacity 50 sheets of copy bond paper (unfolded)

Paper Basis Weight 16to24lb.

PaperSize Min.A6(105mmx148mm)(4.14"x5.83")

Max.Legal(21.59cmx35.56cm)(8.5"x14")

Accuracy Paperskew:±1º

Paperlength:±1%

1failureper500pages

(Failure occurs in the form of no feeds, multiple feeds, or paper

jam)

Connector 15-pinsubminiatureD-shell

Physical Dimension:10.75"x18.79"(273mmx477.29mm)

Inputtrayheight:2.84"(72.11mm)

Weight 4.69lb.(2.13kg)

Power 12V <0.5A(continuous)

Consumption 6W

5V<0.1A

Operating 50ºFto95ºF(10ºCto35ºC)

Environment 10%to85%relativehumidity

Cleaning the Rollers

Prolonged use of the ADF-650/651 may result in accumulation of ink and other

residue on the feeder's rollers, affecting their efficiency. Check for residue on the

rollers if paper flow through the rollers becomes erratic. Open the feeder cover to

periodically clean the rollers with a lint-free cloth or a swab moistened with water.

Note: Do not attempt to turn the roller while cleaning, as this may damage the train

drive mechanism of the ADF-650/651.

RollerRoller
