Microtek ScanMaker i700 Manuale utente

I49-003656 B, June 2004

Installing your Microtek ScanMaker i700

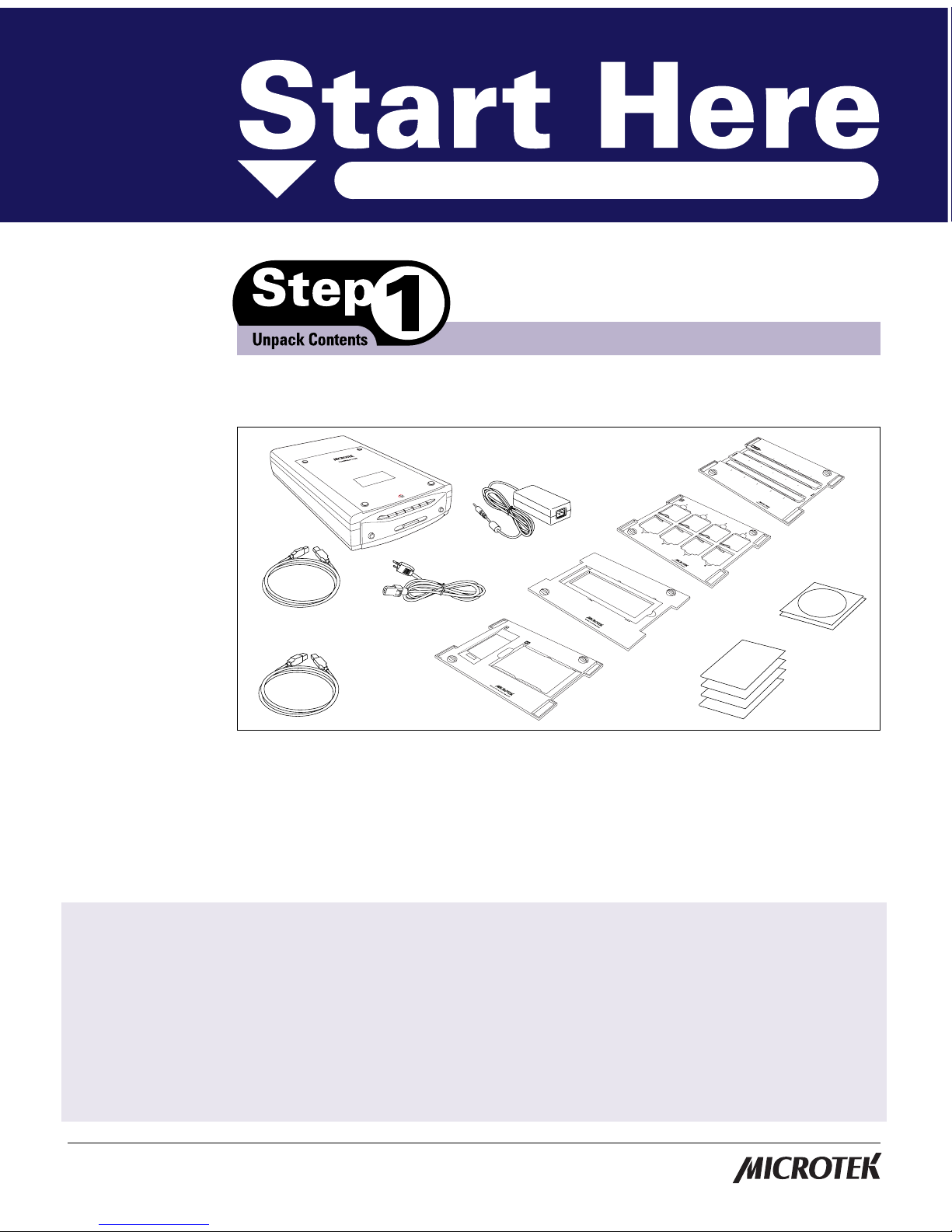

Open your scanner package and check the components. If any component is missing,

call Microtek Customer Service.

1. ScanMaker i700 scanner

2. FireWire cable

3. Hi-Speed USB cable (backward

compatible with USB 1.1)

4. Power adapter

5. Power cord

6. EZ-Lock 35mm Filmstrip Holder

7. EZ-Lock 35mm Slide Holder

8. EZ-Lock 6 x 17 cm (120) Panoramic

Film Holder

9. EZ-Lock 4" x 5" / 6 x 9 cm (120) Film Holder

10.Software CD-ROMs (Microtek & Adobe)

11. Documentation: Includes Start Here

Guide, ScanWizard 5 Quick Reference

Guide, and other inserts

Important: Do not

remove the yellow

stickers from your

scanner until you are

told to do so.You

must install software

before connecting

your scanner.

Contents

STEP 1: Unpack Contents ............................................................................ 1

STEP 2: Install Software .............................................................................. 2

STEP 3: Unlock Scanner .............................................................................. 3

STEP 4: Connect Scanner ............................................................................ 3

A. Power Connections ....................................................................... 3

B. Computer Connections ................................................................. 4

Scanning Scenarios ....................................................................................... 6

Scanning Regular, Non-Damaged Photos ................................................... 7

Scanning Damaged Photos .......................................................................... 8

Scanning Regular, Non-Damaged Film ...................................................... 10

Removing the Black Mat .................................................................. 10

Using the FilmView .......................................................................... 10

A. Using the EZ-Lock 35mm Filmstrip Holder ............................... 11

B. Using the EZ-Lock 35mm Slide Holder ..................................... 13

C. Using the EZ-Lock 6 x 17 cm (120) Panoramic Film Holder .... 14

D. Using the EZ-Lock 4" x 5" / 6 x 9 cm (120) Film Holder ........... 15

Scanning Damaged Film ............................................................................. 16

Getting to KnowYour ScanMaker i700 ...................................................... 18

Taking a Closer Look ..................................................................................... 19

How the Scanner Buttons Work .................................................................. 20

System Requirements ................................................................................. 21

Specifications ............................................................................................... 21

2 ScanMaker i700 Installing and Getting Started

For PC Users

1. Turn on your computer.

2. Place the Microtek CD-ROM into your CD-ROM drive. The Microtek Software

Installer screen should automatically come up.

Note: If the Microtek Software Installer screen does not come up automatically,

double-click the following in succession: “My Computer”; the CD-ROM icon;

and cdsetup.exe to start the installer program.

3. Click each software program in the order that it appears on the screen, and follow

the on-screen instructions to install. Do not turn off your computer during

software installation.

4. Click EXIT on the Microtek Software Installer screen when all the software has

been installed.

5. Place the Adobe CD-ROM into your CD-ROM drive, and install the software.

6. Restart your computer.

For Macintosh Users

1. Turn on your computer.

2. Place the Adobe CD-ROM into your CD-ROM drive, and install the software.

3. Place the Microtek CD-ROM into your CD-ROM drive and install all the

software components.

4. Restart your computer.

Note: After rebooting your computer (PC or Macintosh), the Microtek software will

attempt to locate your scanner on the system. Since this is your first install and you

have not yet connected the scanner, simply ignore the message that appears and

proceed to the next step.

Additional Documentation in the CD-ROM

Additional documentation is provided in the Microtek CD-ROM that contains

ScanWizard 5. If you experience problems with hardware or software, you can open

the file that you wish to view with Adobe Acrobat Reader or your browser, then read or

print the information.

ScanMaker i700 Installing and Getting Started 3

1. Remove the yellow "Step 3" sticker from the scanner.

2. With the scanner power off, tilt the back-left corner

to see the locking switch at the bottom of the scanner.

3. Push the locking switch (red) to the

“Unlocked” ( ) position.

Note: To lock the scanner (for shipping and

other reasons), push the locking switch to the

“Locked” ( ) position. Do not turn the scanner

upside down and attempt to lock the scanner this

way, as this may not work. Unlocked Locked

Note: Make sure no other cable is

connected to the scanner except the

power cord at this point.

3. Connect the power adapter and the power cord.

Plug one end of the power adapter assembly into the back of the scanner, and

plug the other end into a wall outlet or other power source.

A. Power connections

1. Remove the yellow "Step 4" sticker from

the scanner.

2. Check to make sure that the scanner lid

(Light Plate) is properly installed, with its

connector securely connected to the

scanner’s 15-pin accessory port.

4 ScanMaker i700 Installing and Getting Started

B. Computer connections

The ScanMaker i700 comes with FireWire (IEEE 1394) and Hi-Speed USB interfaces

built-in. You may choose either FireWire or Hi-Speed USB as the interface for

connection between the scanner and computer. (You can use only one interface at a time.)

Using the FireWire Cable

Check first to see if your computer system has a FireWire port. If FireWire is

present, connect the FireWire cable to the FireWire port. If your computer does not

have a FireWire port, install a FireWire card to make use of the FireWire port. For

more details on how to install a FireWire card in your computer, refer to the

documentation that came with your purchased FireWire card.

Follow the steps below to perform the FireWire connection.

For PC users

(with a built-in FireWire port

or FireWire card installed)

For Mac users

(with a built-in FireWire port)

The latest Macintosh

computers (i.e., G3, G4, G5,

etc.) are equipped with a

built-in FireWire port, usually

labeled with the “ ” logo.

Power

button

1. Connect one end of the FireWire cable to your computer, and connect the other

end of the cable to the scanner’s FireWire port.

2. Press the Power button on the front panel of

the scanner, and wait for the lights to stop

blinking and stay on steady.

The scanner will be detected by your system

automatically.

ScanMaker i700 Installing and Getting Started 5

Using the Hi-Speed USB Port

Check first to see if your computer system has Hi-Speed USB or USB 1.1 ports. If

both ports are present, connect the Hi-Speed USB cable to the Hi-Speed USB port

(not to the USB 1.1 port) to obtain faster scanning. If your computer does not have a

Hi-Speed USB port, install a Hi-Speed USB card to make use of the Hi-Speed USB

port; or as an alternative, use the USB 1.1 port instead. For more details on how to

install a Hi-Speed USB card in your computer, please refer to the documentation that

came with your purchased Hi-Speed USB card.

Follow the steps below to make the USB connection.

1. Connect one end of the Hi-Speed USB cable to your computer, and connect the

other end of the cable to the scanner’s USB port.

2. Press the Power button on the front panel of

the scanner, and wait for the lights to stop

blinking and stay on steady.

The scanner will be detected by your system

automatically.

For Mac users

(with a built-in USB port)

For PC users

(with a built-in USB port

or a Hi-Speed USB

card installed)

USB port usually labeled

with the “ ” logo.

Power

button

6 ScanMaker i700 Installing and Getting Started

Scanning Scenarios

The following pages provide various scenarios for scanning with the ScanMaker

i700, including the following:

• Scanning regular, non-damaged photos. This scenario can also be your first scan

in order to familiarize yourself with scanning basics, and makes use of the

Standard Control Panel in ScanWizard 5.

• Scanning damaged photos. This scenario makes use of the Advanced Control

Panel in ScanWizard 5, and utilizes DIGITAL ICE for correcting scratches, rips,

and tears that may be present in your photos.

• Scanning regular, non-damaged film. This scenario makes use of the Advanced

Control Panel in ScanWizard 5, and utilizes the various EZ-Lock Film Holders

to scan a variety of film, slides, and transparencies.

• Scanning damaged film. This scenario makes use of the Advanced Control

Panel in ScanWizard 5, and utilizes DIGITAL ICE for correcting flaws that may

be present in your negative and positive film and transparencies.

ScanMaker i700 Installing and Getting Started 7

Scanning Regular, Non-Damaged Photos

1. Raise the scanner lid, and place the photo to be

scanned face down on the scanner glass

surface.

The top end of the photo should be positioned

towards the back of the scanner.

Note: To accurately perform an auto-crop

preview of the photo loaded onto the scanner,

make sure the Black Mat is attached on the

scanner lid (Light Plate) before launching

ScanWizard 5.

Resize the scan

frame to adjust

the actual size of

your scan

• Allows you to switch to the

Advanced Control Panel

• Shows the scanner type,

model, and status

• Contains the built-in

ScanWizard 5 help

• Exits ScanWizard 5

• Minimizes ScanWizard 5

(Windows only)

Selections and options for

image settings

The Black Mat

comes

preattached to the

scanner lid.

2. Double-click the ScanWizard 5 icon ( ) on your desktop to launch the

ScanWizard 5 Standard Control Panel.

When ScanWizard 5 launches, it automatically performs a fast preview of the

material on your scanner glass surface and displays it in the preview area.

3. In the preview window, you can resize the scan frame (floating dotted line)

around the image by dragging on the edge or corner of the scan frame to

determine the final size of the actual scan.

4. Click the Original button, then select Photo.

5. Click the Scan to button to scan the image.

After the scan, the scanned and processed image can be saved as a file, opened in

an image-editing program, sent to a printer, attached in an e-mail, or uploaded to

a website.

8 ScanMaker i700 Installing and Getting Started

Scanning Damaged Photos

1. Raise the scanner lid, then place the damaged photo to be scanned face down on

the scanner glass surface. Center the top of the photo along the horizontal ruler

towards the back of the scanner.

Make sure the Black

Mat is attached to the

scanner lid.This will

ensure that uneven

photos lay as flat as

possible, which will

enhance the accuracy of

detecting surface

damage on photos.

2. Double-click the ScanWizard 5 icon ( ) on your desktop to launch the

ScanWizard 5 Standard Control Panel.

3. Click the Switch icon ( ) on the right corner of the Standard Control Panel to

switch to the Advanced Control Panel.

4. Click the Overview button to perform a preliminary view of the entire image.

When done, you will see an image appear in the preview window.

5. In the preview window, you can resize the scan frame (floating dotted line)

around the image by dragging on the edge or corner of the scan frame to

determine the final size of the actual scan.

6. Specify your scanning requirements in the Settings window when the ScanWizard

5 Advanced Control Panel appears.

a) Select RGB Colors/RGB Color (48-bit) or Grayscale/Grayscale (16-bit) in the

Type pull-down menu as your image output type.

b) Select a desired resolution in the Resolution pull-down menu for your image

output resolution. The recommended resolution for DIGITAL ICE for photos

is 600 dpi, and take note that the use of DIGITAL ICE will require additional

time in processing compared to regular scanning.

c) Adjust the scan frame settings if necessary.

Note: If the creases lie parallel to the

direction of the carriage motion, the

creases may not be detected by the

scanner.To fix this problem, position your

photo slightly skewed (min. 10°, max. 45°),

so that none of the creases are parallel to

the direction of the carriage movement.

Direction of

carriage motion

ScanMaker i700 Installing and Getting Started 9

Before

After

7. If necessary, adjust image quality using the image corrections tools (White/Black

Points, Tone Curve, Brightness/Contrast, Color Correction, Filter, and Descreen).

Important: The Descreen setting in the Settings window should be “None.”

Otherwise the “DIGITAL ICE” option in the next step will be dimmed and will

not be available for selection.

8. Choose the DIGITAL ICE option that

works best for you. Select from None,

Automatic Reconstruction, or Manual

Reconstruction. In Reflective mode,

DIGITAL ICE automatically removes

surface defects from your photos.

Note: To apply DIGITAL ICE settings automatically, choose the Automatic

Reconstruction setting. The Manual Reconstruction setting is a more advanced

procedure, and for more details, please refer to the ScanWizard 5 Online Help

feature.

9. If the colors in your photo are faded and need restoring, check the “Automatic

Color Restoration” box in the Settings window.

10.Click the Scan to button to scan the image. After the scan, defects such as dust,

scratches, cracks, creases, rips, folds and other artifacts on the original image

are all removed, resulting in an improved image.

Depending on your selection, the scanned and processed image can be saved to a

file, opened in an image-editing program, sent to a printer, attached in an e-

mail, or uploaded to a website.

10 ScanMaker i700 Installing and Getting Started

Removing the Black Mat

The Black Mat is designed to work with

reflective originals such as photos and printed

matter.It is not designed to work with slides,

negatives, and transparencies. During film

scanning, the Black Mat should be removed to

the reveal light source for film.

To remove the Black Mat: Raise the scanner

lid, and push to the side (1 in diagram) to

remove it from the scanner lid (2 in diagram).

Using the FilmView

The FilmView, a clear window located on the

top of the scanner lid (Light Plate), is designed

for previewing film or slides before they are

loaded onto the scanner bed. The FilmView

adds to your convenience in the selection and

verification of slides or film for scanning.

To select the film you wish to scan, make sure

that the FilmView is on, then place the film you wish to scan on the top of the

scanner lid (Light Plate), using the light source provided by the FilmView to preview

your film.

Note: If the light source of the FilmView is in the “Sleep” mode, press the scanner's

Custom button to exit or halt sleep mode. For more details on the Custom button, see

the online help of the Microtek Scanner Configuration (MSC).

Scanning Regular, Non-Damaged Film

The ScanMaker i700 allows you to perform auto-crop scanning on film such as

35mm slides, 35mm filmstrips, 6 x 9 cm (120) film, 6 x 17 cm (120) panoramic film,

and 4" x 5" film.

To scan various film sizes, you will need to use the holder that correctly matches the

film type to be scanned. Included in the scanner package are four EZ-Lock film

holders: EZ-Lock 35mm Slide Holder; EZ-Lock 35mm Filmstrip Holder; EZ-Lock 6

x 17 cm (120) Panoramic Film Holder; and EZ-Lock 4" x 5" / 6 x 9 cm (120) Film

Holder.

Before performing film scanning with the EZ-Lock Film Holders, take note of the

information presented in the two sections below.

To run auto-crop, the following conditions should all be met:

•The operating system is either Windows or Mac OS X.

•The correct EZ-Lock film holder is loaded and correctly aligned on the scanner surface.

•The scan material is Positive or Negative Film.

•In the Scan Job Queue window, the “Multiple Auto-crop for EZ-Lock Film Holder”

option is checked.

Altri manuali per ScanMaker i700

Indice

Altri manuali Microtek Scanner

Microtek

Microtek ScanMaker 4600 Manuale utente

Microtek

Microtek ScanMaker 1000XL Manuale utente

Microtek

Microtek TMA 1600 Manuale utente

Microtek

Microtek ScanMaker 3800 Manuale utente

Microtek

Microtek ScanMaker 4 Manuale utente

Microtek

Microtek LightLid 35 Manuale utente

Microtek

Microtek ScanMaker i800 Plus Manuale di istruzioni

Microtek

Microtek ScanMaker 3700 Manuale utente

Microtek

Microtek ArtixScan M2 Istruzioni per il montaggio

Microtek

Microtek ScanMaker 4800 Manuale utente

Microtek

Microtek ArtixScan DI 2020 Manuale utente

Microtek

Microtek ArtixScan DI 2020 Istruzioni per il montaggio

Microtek

Microtek ArtixScanDI 4020 Plus Manuale di istruzioni

Microtek

Microtek ScanMaker 9700XL Manuale utente

Microtek

Microtek ScanMaker s380 Manuale del proprietario

Microtek

Microtek ScanMaker i900 Manuale utente

Microtek

Microtek ScanMaker i900 Manuale utente

Microtek

Microtek ArtixScanDI 6240S Manuale utente

Microtek

Microtek ScanMaker 3750i Manuale utente

Microtek

Microtek Bio-5000 Plus Manuale del proprietario

Microtek

Microtek FileScan 3125c Manuale utente

Microtek

Microtek FileScan 3125c Manuale di istruzioni

Microtek

Microtek ArtixScan M2 Manuale di istruzioni

Microtek

Microtek ScanMaker i460 Manuale del proprietario

Manuali Scanner popolari di altre marche

Plustek

Plustek Scanner Manuale utente

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuale utente

Renkforce

Renkforce DS100-5M Manuale utente

Image Access

Image Access WideTEK A2 Manuale utente

Canon

Canon imageFORMULA CR-120N Manuale utente

Fujitsu

Fujitsu FI-4860C2 Manuale utente

GeoSlam

GeoSlam ZEB Horizon Istruzioni per l'installazione

Kodak

Kodak i5800 Scanner Manuale utente

Kodak

Kodak i7300 Manuale utente

Revopoint

Revopoint POP Manuale utente

Fujitsu

Fujitsu fi-4860C Manuale utente

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuale utente

Faselase

Faselase F6 Manuale utente

Fujitsu

Fujitsu CardMinder Manuale utente

Uniden

Uniden BC340CRS Manuale utente

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuale utente

Mustek

Mustek PageExpress 4800 Pro Manuale utente

Optex

Optex 750830 Manuale utente
