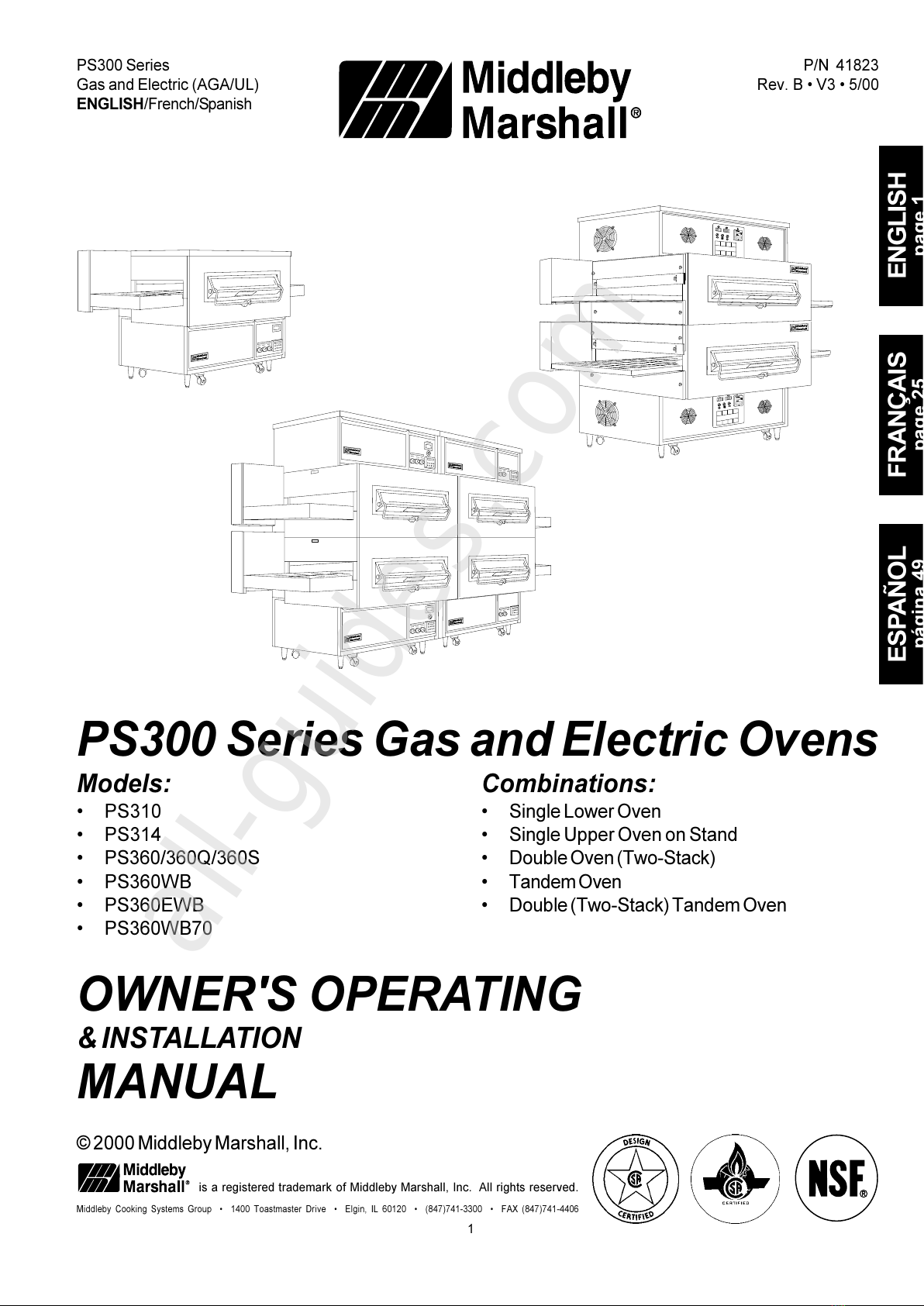

Middleby Marshall PS300 Series Manuale operativo

ENGLISHFRANÇAISESPAÑOL page 1page 25página 49

OWNER'S OPERATING

& INSTALLATION

MANUAL

PS300 Series Gas and Electric Ovens

PS300 Series

Gas and Electric (AGA/UL)

ENGLISH/French/Spanish

P/N 41823

Rev. B  V3  5/00

Models:

 PS310

 PS314

 PS360/360Q/360S

 PS360WB

 PS360EWB

 PS360WB70

Combinations:

 Single Lower Oven

 Single Upper Oven on Stand

 Double Oven (Two-Stack)

 Tandem Oven

 Double (Two-Stack) Tandem Oven

Middleby Cooking Systems Group  1400 Toastmaster Drive  Elgin, IL 60120  (847)741-3300  FAX (847)741-4406

All manuals and user guides at all-guides.com

all-guides.com

ENGLISH

MiddlebyCookingSystemsGroup1400ToastmasterDriveElgin,IL60120USA(847)741-3300FAX(847)741-4406

24-Hour Service Hotline: 1-(800)-238-8444

www.middleby.com

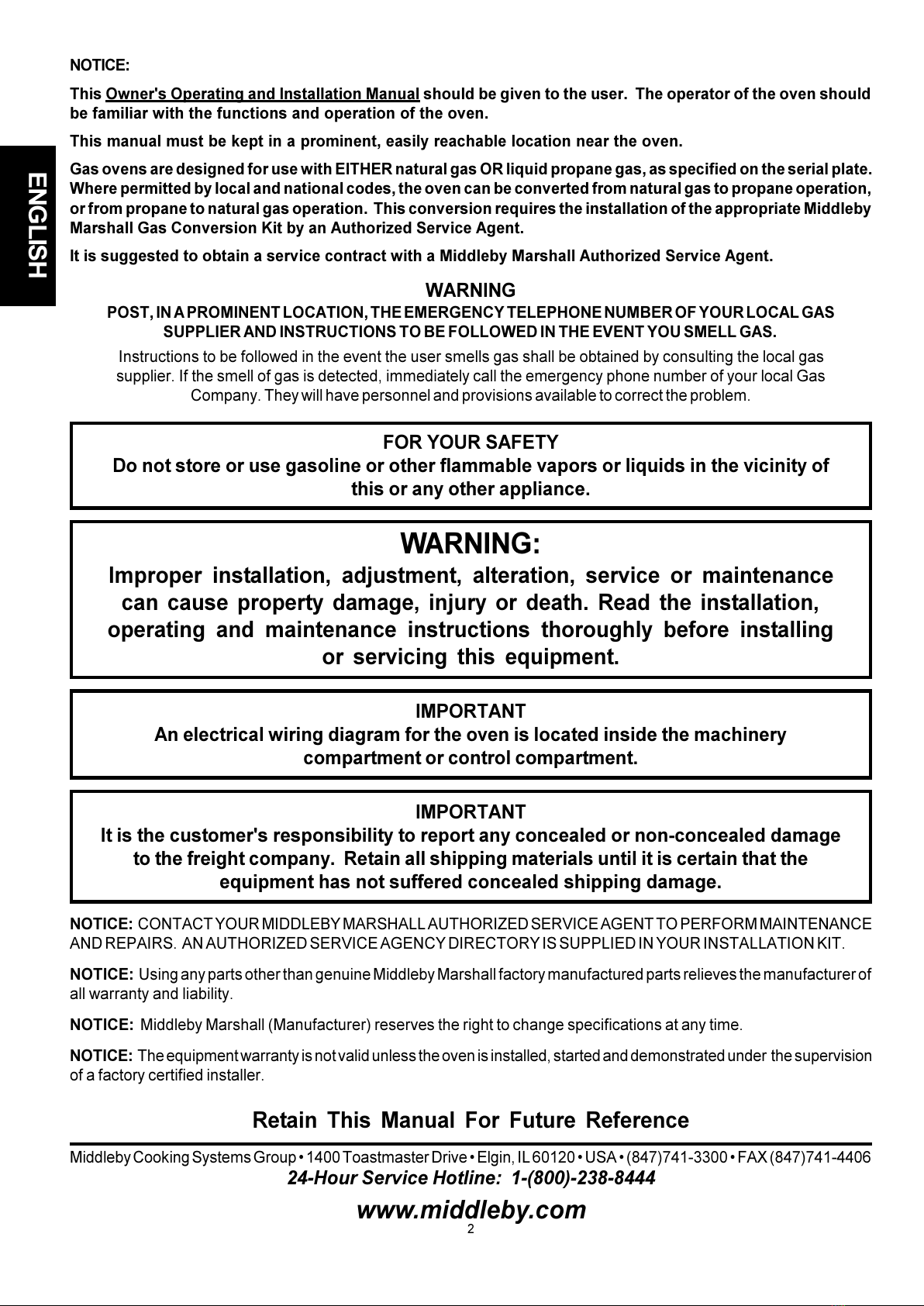

NOTICE:

This Owner's Operating and Installation Manual should be given to the user. The operator of the oven should

be familiar with the functions and operation of the oven.

This manual must be kept in a prominent, easily reachable location near the oven.

Gas ovens are designed for use with EITHER natural gas OR liquid propane gas, as specified on the serial plate.

Where permitted by local and national codes, the oven can be converted from natural gas to propane operation,

or from propane to natural gas operation. This conversion requires the installation of the appropriate Middleby

Marshall Gas Conversion Kit by an Authorized Service Agent.

It is suggested to obtain a service contract with a Middleby Marshall Authorized Service Agent.

WARNING

POST,IN A PROMINENT LOCATION, THE EMERGENCYTELEPHONE NUMBER OF YOUR LOCAL GAS

SUPPLIER AND INSTRUCTIONS TO BE FOLLOWED IN THE EVENT YOU SMELL GAS.

Instructions to be followed in the event the user smells gas shall be obtained by consulting the local gas

supplier. If the smell of gas is detected, immediately call the emergency phone number of your local Gas

Company. They will have personnel and provisions available to correct the problem.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors or liquids in the vicinity of

this or any other appliance.

WARNING:

Improper installation, adjustment, alteration, service or maintenance

can cause property damage, injury or death. Read the installation,

operating and maintenance instructions thoroughly before installing

or servicing this equipment.

NOTICE: CONTACTYOURMIDDLEBYMARSHALLAUTHORIZEDSERVICEAGENTTOPERFORMMAINTENANCE

AND REPAIRS. AN AUTHORIZED SERVICE AGENCY DIRECTORY IS SUPPLIED IN YOUR INSTALLATION KIT.

NOTICE: Using any parts other than genuine Middleby Marshall factory manufactured parts relieves the manufacturer of

all warranty and liability.

NOTICE: Middleby Marshall (Manufacturer) reserves the right to change specifications at any time.

NOTICE: Theequipmentwarrantyisnotvalidunlesstheovenisinstalled,startedanddemonstratedunder thesupervision

of a factory certified installer.

IMPORTANT

An electrical wiring diagram for the oven is located inside the machinery

compartment or control compartment.

IMPORTANT

It is the customer's responsibility to report any concealed or non-concealed damage

to the freight company. Retain all shipping materials until it is certain that the

equipment has not suffered concealed shipping damage.

Retain This Manual For Future Reference

All manuals and user guides at all-guides.com

ENGLISH

SECTION1-DESCRIPTION .................................................... 4

I. OVEN USES ............................................................. 4

II. OVEN COMPONENTS ............................................. 4

A. Crumb Pans ..................................................... 4

B. Conveyor Drive Motor ........................................ 4

C. Conveyor ........................................................... 4

D. End Plugs ......................................................... 4

E. Serial Plate ........................................................ 4

F. Window ............................................................. 4

G. Machinery Compartment Access Panel ........... 4

H. Control Compartment Access Panel ............... 4

I. Control Panel .................................................... 4

J. Eyebrows .......................................................... 4

K. Conveyor End Stop ........................................... 4

L. Gas Burner ........................................................ 4

M. Blowers ............................................................. 4

N. Air Fingers ......................................................... 4

III. OVENSPECIFICATIONS ......................................... 4

A. Dimensions ...................................................... 4

B. General Specifications ..................................... 5

C. Gas Orifice and Pressure Specifications ......... 5

D. Electrical Specifications - Gas Ovens .............. 5

E. Electrical Specifications - Electric Ovens ......... 5

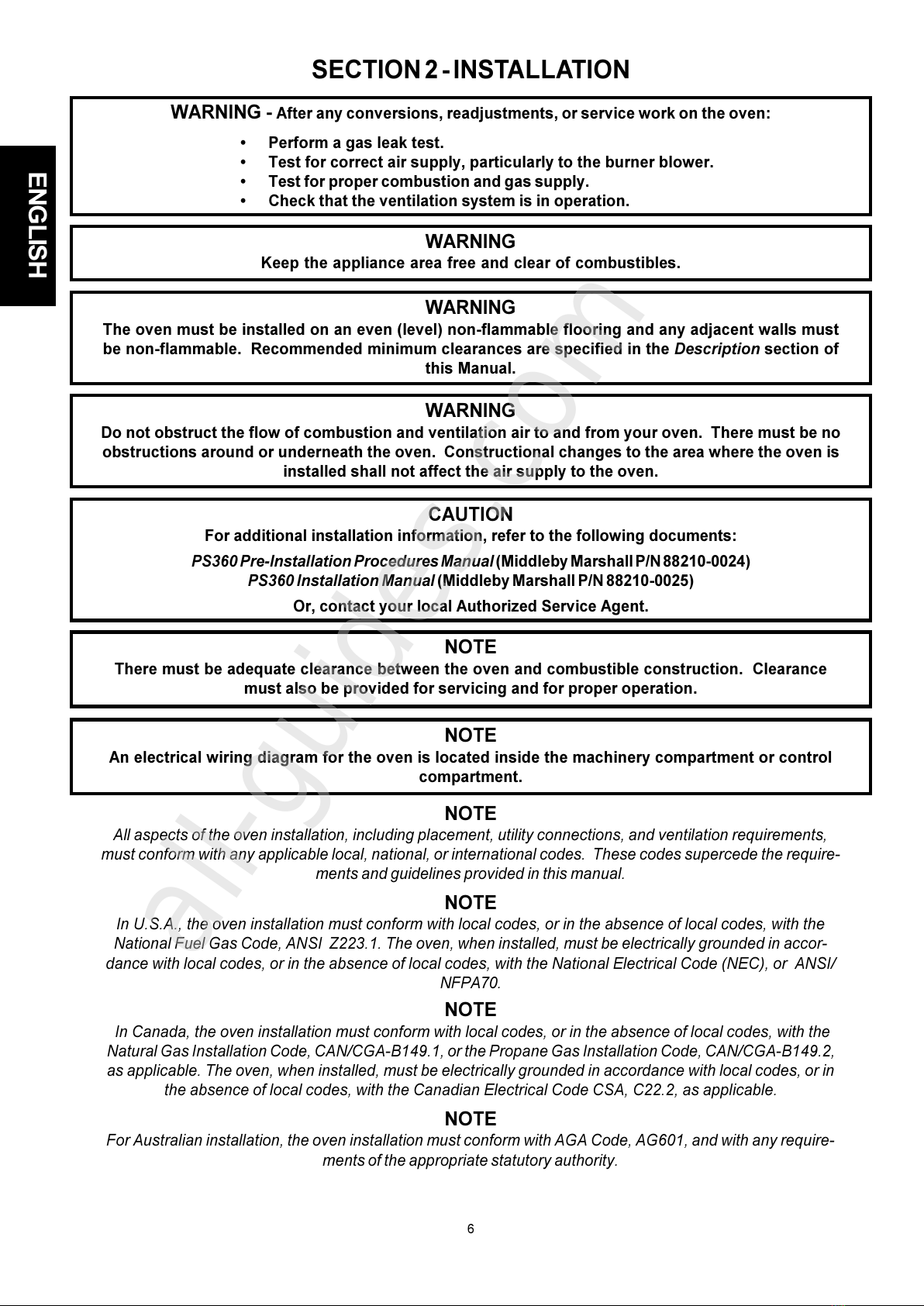

SECTION2-INSTALLATION .................................................. 6

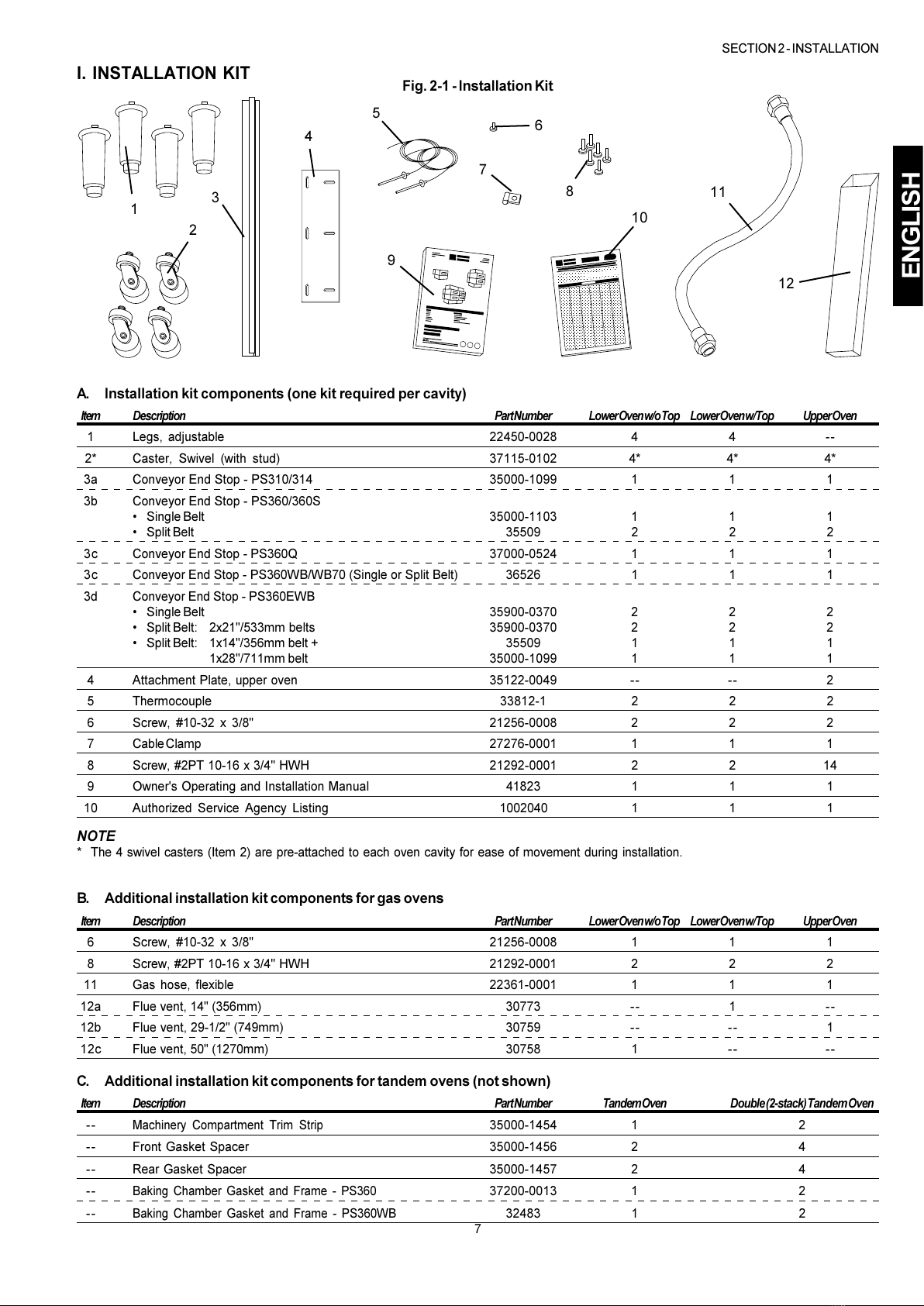

I. INSTALLATIONKIT .................................................. 7

A. Components ..................................................... 7

B. Additional Components - Gas Ovens .............. 7

C. Additional Components - Tandem Ovens........ 7

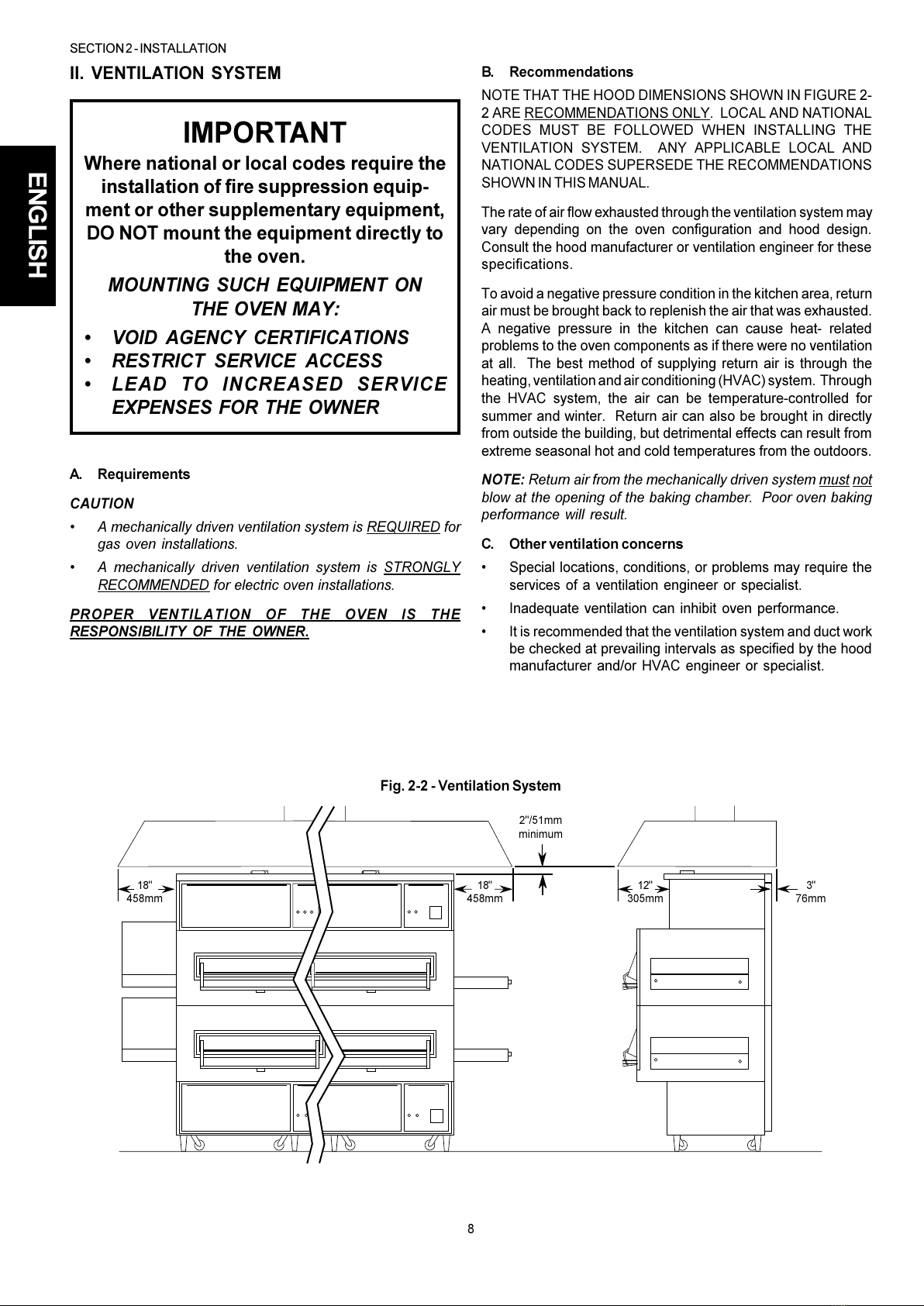

II. VENTILATION SYSTEM ............................................ 8

A. Requirements ................................................... 8

B. Recommendations ........................................... 8

C. Other Ventilation Concerns .............................. 8

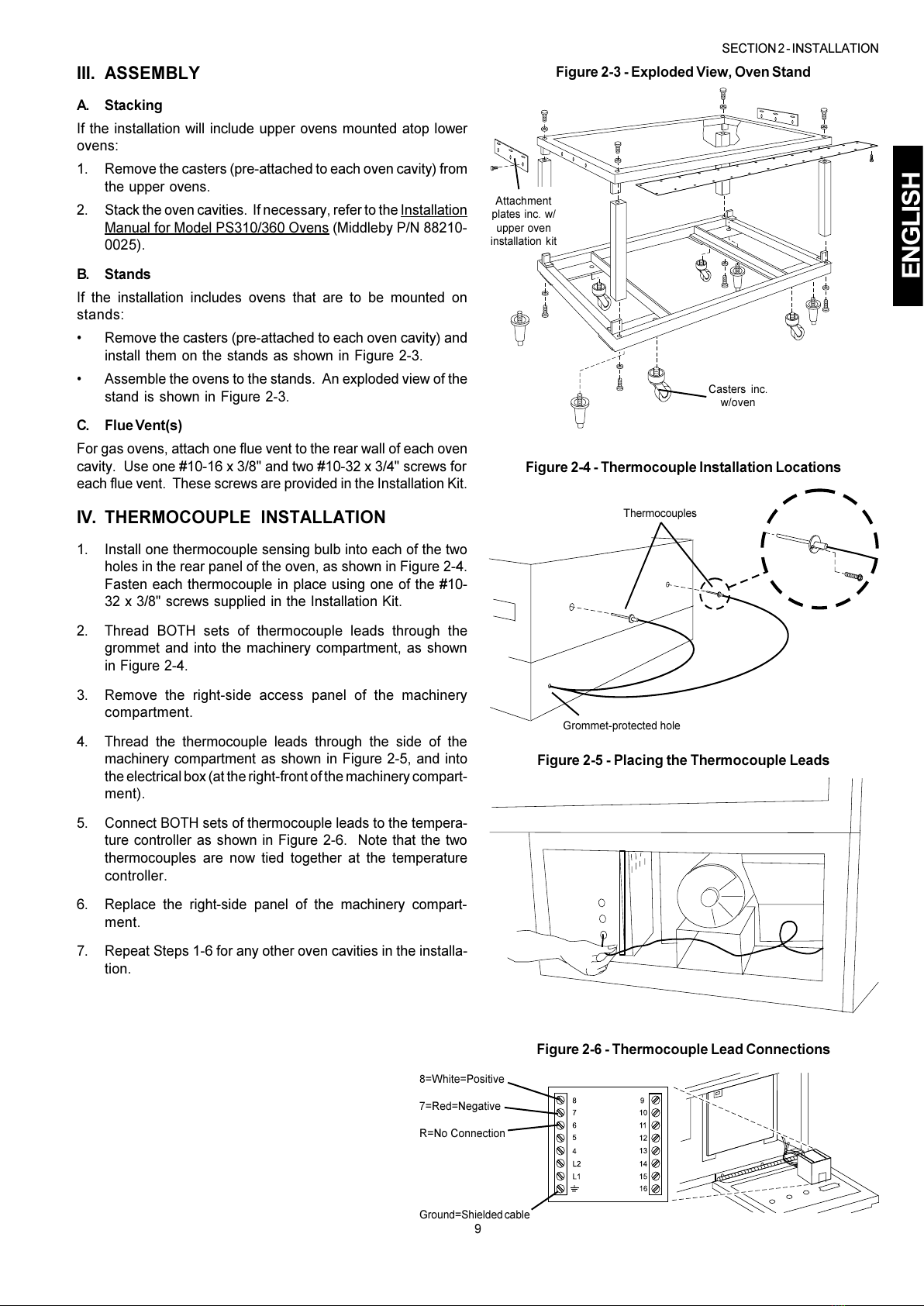

III. ASSEMBLY ............................................................... 9

A. Stacking ............................................................ 9

B. Stands ............................................................... 9

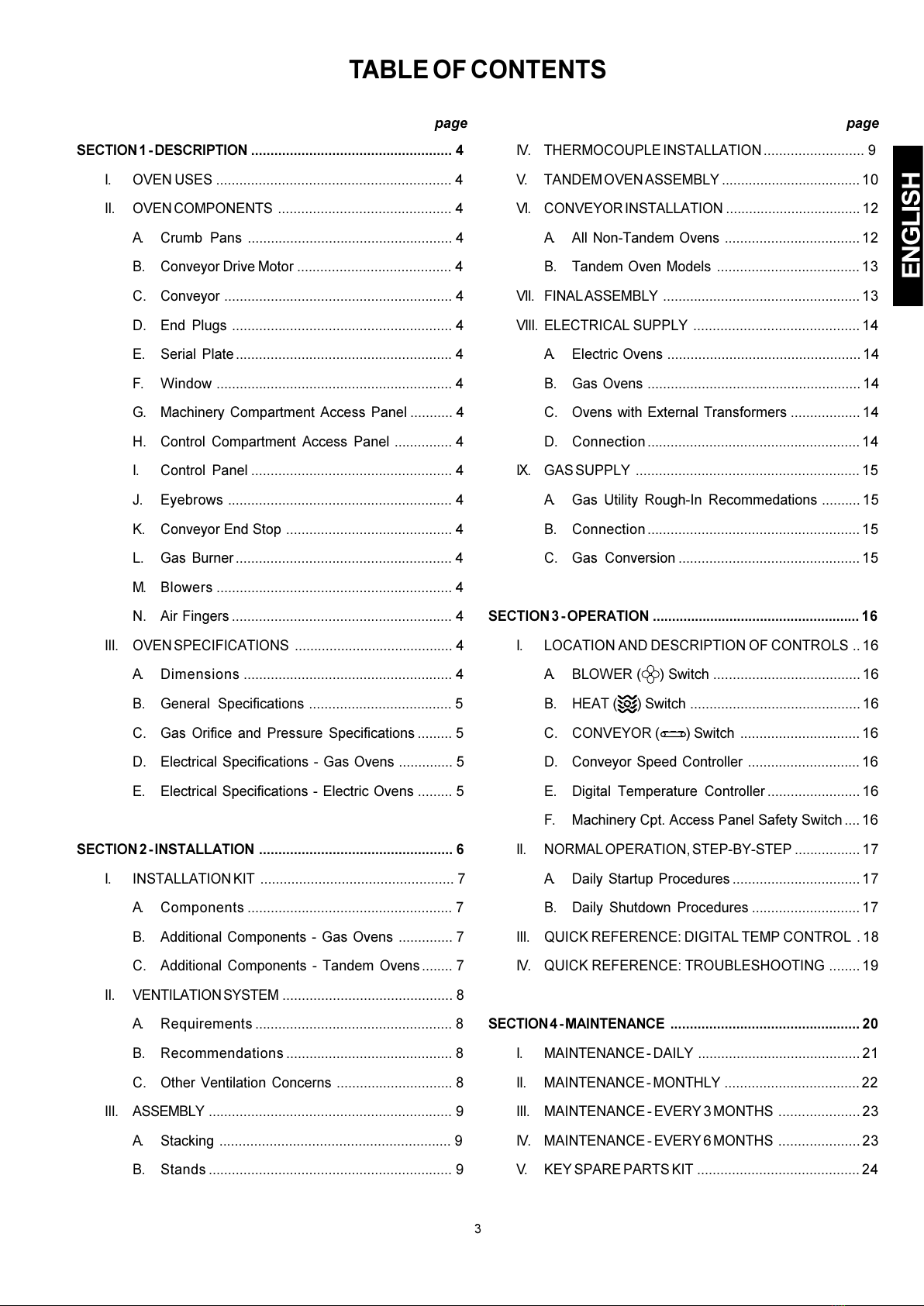

TABLE OF CONTENTS

IV. THERMOCOUPLE INSTALLATION .......................... 9

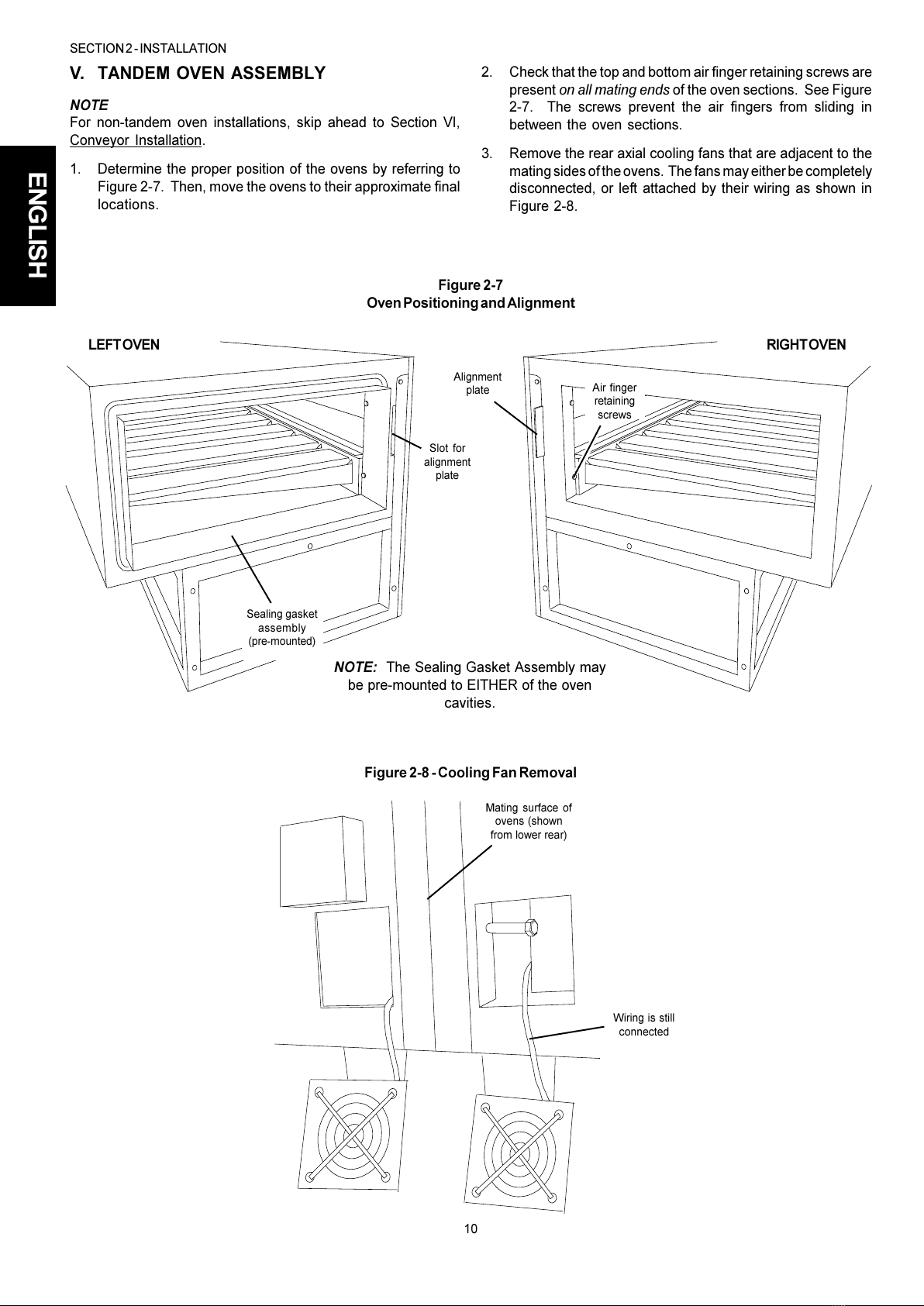

V. TANDEMOVENASSEMBLY .................................... 10

VI. CONVEYOR INSTALLATION ................................... 12

A. All Non-Tandem Ovens ................................... 12

B. Tandem Oven Models ..................................... 13

VII. FINALASSEMBLY ................................................... 13

VIII. ELECTRICAL SUPPLY ........................................... 14

A. Electric Ovens .................................................. 14

B. Gas Ovens ....................................................... 14

C. Ovens with External Transformers .................. 14

D. Connection....................................................... 14

IX. GAS SUPPLY .......................................................... 15

A. Gas Utility Rough-In Recommedations .......... 15

B. Connection....................................................... 15

C. Gas Conversion ............................................... 15

SECTION3-OPERATION ...................................................... 16

I. LOCATION AND DESCRIPTION OF CONTROLS .. 16

A. BLOWER ( ) Switch ...................................... 16

B. HEAT ( ) Switch ............................................ 16

C. CONVEYOR ( ) Switch ............................... 16

D. Conveyor Speed Controller ............................. 16

E. Digital Temperature Controller ........................ 16

F. Machinery Cpt. Access Panel Safety Switch .... 16

II. NORMAL OPERATION,STEP-BY-STEP ................. 17

A. Daily Startup Procedures ................................. 17

B. Daily Shutdown Procedures ............................ 17

III. QUICK REFERENCE: DIGITAL TEMP CONTROL . 18

IV. QUICK REFERENCE: TROUBLESHOOTING ........ 19

SECTION4-MAINTENANCE ................................................. 20

I. MAINTENANCE -DAILY .......................................... 21

II. MAINTENANCE - MONTHLY ................................... 22

III. MAINTENANCE - EVERY 3 MONTHS ..................... 23

IV. MAINTENANCE - EVERY 6 MONTHS ..................... 23

V. KEY SPARE PARTS KIT .......................................... 24

page page

All manuals and user guides at all-guides.com

ENGLISH

III. OVEN SPECIFICATIONS

A. Dimensions

PS310 PS314 PS360/360Q/360S PS360Tandem PS360WB PS360WBTandem PS360EWB PS360WB70

Overall Height

Lower oven,

45-1/2 45-1/2 45-1/2 45-1/2 45-1/2 45-1/2 45-1/2 45-1/2

with top & legs

1143mm 1143mm 1143mm 1143mm 1143mm 1143mm 1143mm 1143mm

Upper oven,

64-1/2" 64-1/2" 64-1/2" 64-1/2" 64-1/2" 64-1/2" 64-1/2" 64-1/2"

with stand and top

1638mm 1638mm 1638mm 1638mm 1638mm 1638mm 1638mm 1638mm

Double oven

82-1/4 82-1/4 82-1/4 82-1/4 82-1/4 82-1/4 82-1/4 82-1/4

(two-stack)

2089mm 2089mm 2089mm 2089mm 2089mm 2089mm 2089mm 2089mm

Overall Depth

nc. rear shrouds

39 39 47" 47" 55" 55" 60" 55"

and front window

991mm 991mm 1194mm 1194mm 1397mm 1397mm 1524mm 1397mm

inc. rear shrouds

36" 36" 44" 44" 52" 52" -- --

(no window)

914mm 914mm 1118mm 1118mm 1321mm 1321mm -- --

Overall Length

90-1/2" 70-3/4"

90-1/2" * 144-1/2" 90-1/2" 144-1/2" 90-1/2" 106"

2299mm 1797mm

2299mm * 3670mm 2299mm 3670mm 2299mm 2692mm

* NOTE: The PS314 and PS360Q dimensions do NOT include the optional end trays.

Conveyor Width

Single Belt

24" 24" 32" 32" 40" 40" 44" 40"

610mm 610mm 813mm 813mm 1016mm 1016mm 1118mm 1016mm

Split Belt,

-- -- 2x15" 2x15" 2x19" 2x19" 2x21" 2x19"

identical width

381mm 381mm 483mm 483mm 533mm 483mm

Split Belt,

-- -- -- -- 1x13"/330mm 1x13"/330mm 1x14"/356mm 1x13"/330mm

unequal width

AND AND AND AND

1x26"/660mm 1x26"/660mm 1x28"/711mm 1x26"/660mm

Recommended Minimum Clearances

Rear of oven (inc.

1" 1" 1" 1" 1" 1" 1" 1"

rear shrouds) to wall

25mm 25mm 25mm 25mm 25mm 25mm 25mm 25mm

Conveyor extension

0" 0" 0" 0" 0" 0" 0" 0"

to wall (both ends)

0mm 0mm 0mm 0mm 0mm 0mm 0mm 0mm

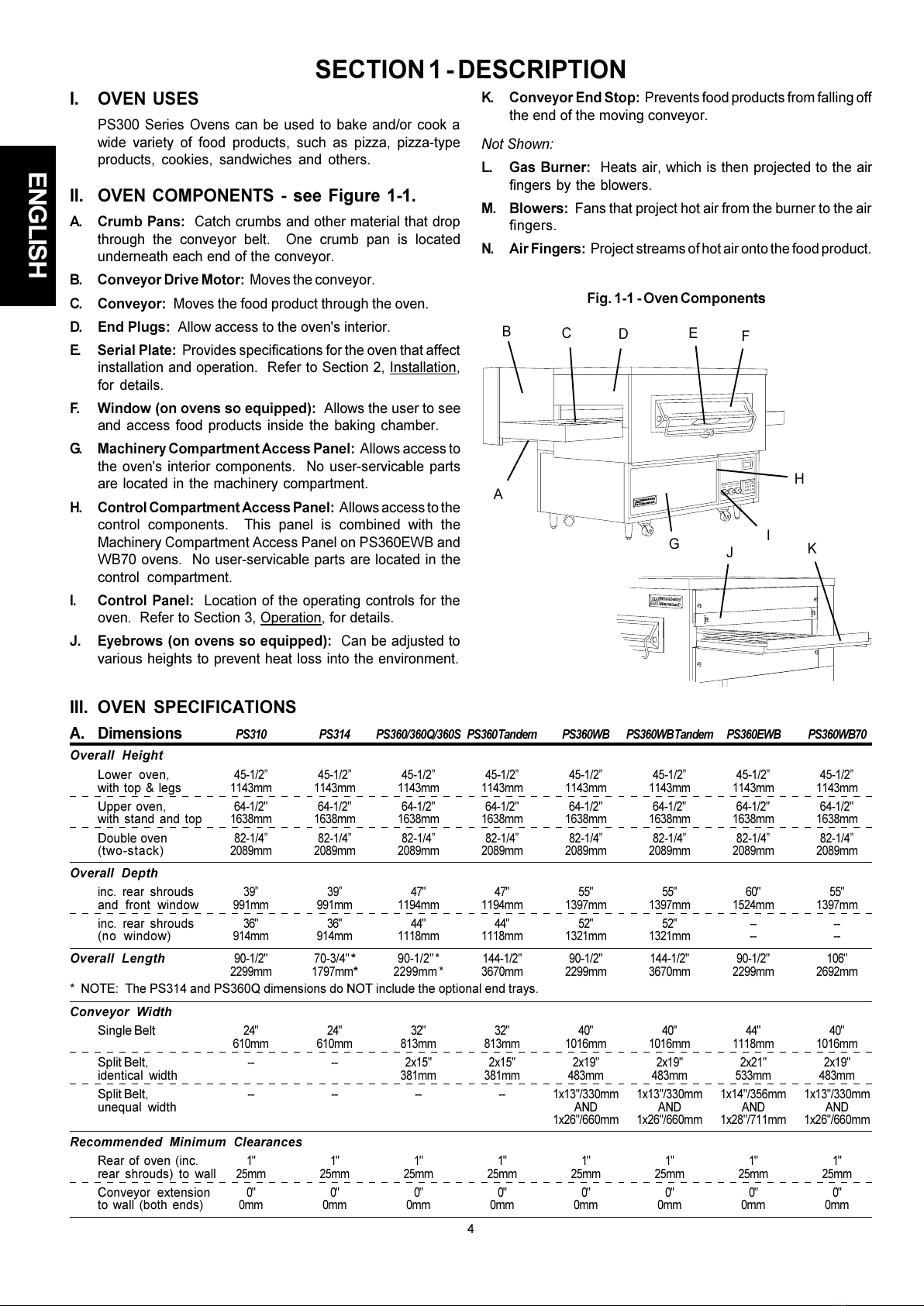

SECTION 1 - DESCRIPTION

I. OVEN USES

PS300 Series Ovens can be used to bake and/or cook a

wide variety of food products, such as pizza, pizza-type

products, cookies, sandwiches and others.

II. OVEN COMPONENTS - see Figure 1-1.

A. Crumb Pans: Catch crumbs and other material that drop

through the conveyor belt. One crumb pan is located

underneath each end of the conveyor.

B. Conveyor Drive Motor: Moves the conveyor.

C. Conveyor: Moves the food product through the oven.

D. End Plugs: Allow access to the oven's interior.

E. Serial Plate: Provides specifications for the oven that affect

installation and operation. Refer to Section 2, Installation,

for details.

F. Window (on ovens so equipped): Allows the user to see

and access food products inside the baking chamber.

G. Machinery Compartment Access Panel: Allows access to

the oven's interior components. No user-servicable parts

are located in the machinery compartment.

H. Control Compartment Access Panel: Allows access to the

control components. This panel is combined with the

Machinery Compartment Access Panel on PS360EWB and

WB70 ovens. No user-servicable parts are located in the

control compartment.

I. Control Panel: Location of the operating controls for the

oven. Refer to Section 3, Operation, for details.

J. Eyebrows (on ovens so equipped): Can be adjusted to

various heights to prevent heat loss into the environment.

K. Conveyor End Stop: Prevents food products from falling off

the end of the moving conveyor.

Not Shown:

L. Gas Burner: Heats air, which is then projected to the air

fingers by the blowers.

M. Blowers: Fans that project hot air from the burner to the air

fingers.

N. Air Fingers: Project streams of hot air onto the food product.

Fig. 1-1 - Oven Components

All manuals and user guides at all-guides.com

ENGLISH

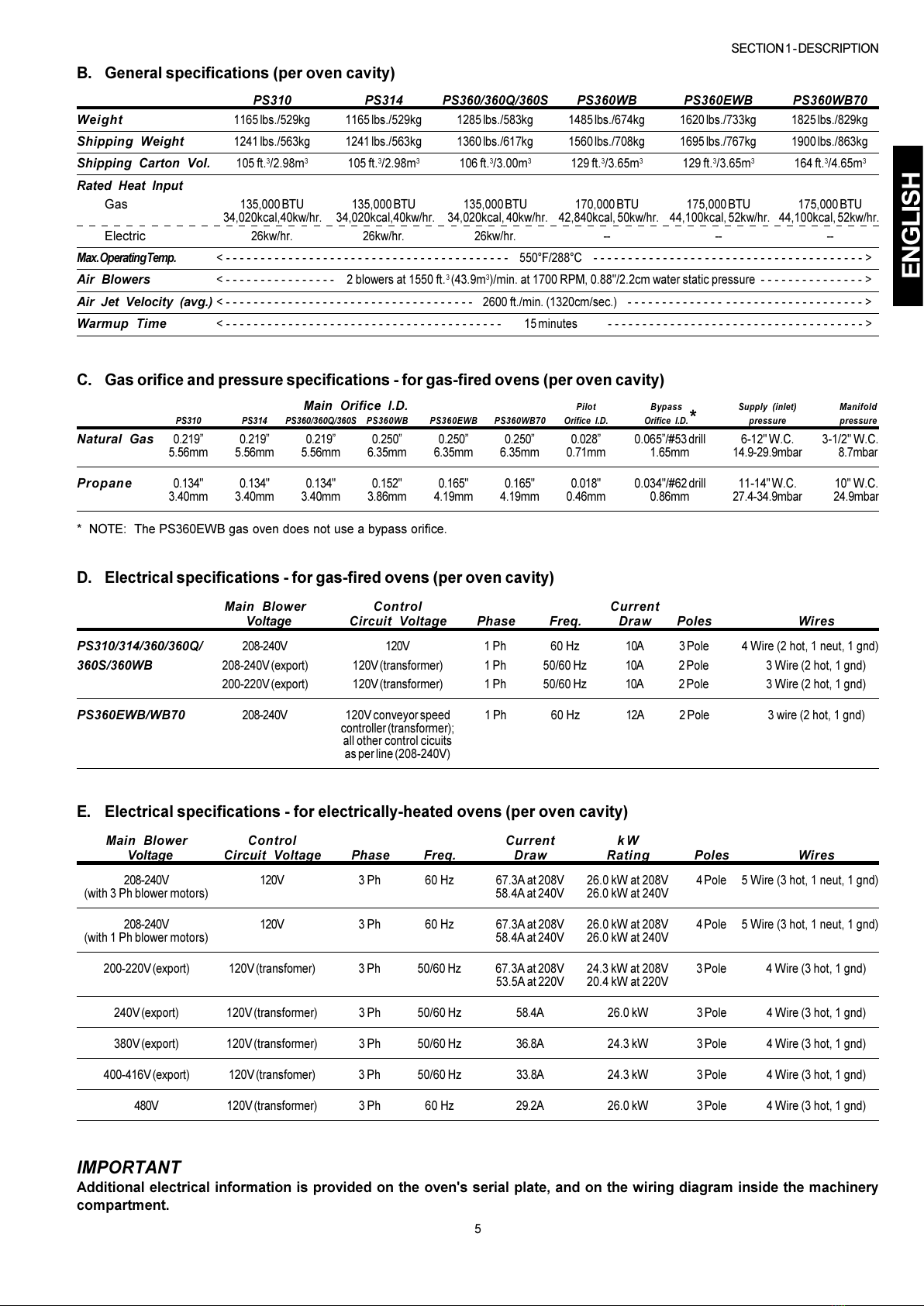

B. General specifications (per oven cavity)

PS310 PS314 PS360/360Q/360S PS360WB PS360EWB PS360WB70

Weight

1165lbs./529kg 1165 lbs./529kg 1285lbs./583kg 1485 lbs./674kg 1620lbs./733kg 1825 lbs./829kg

Shipping Weight

1241lbs./563kg 1241 lbs./563kg 1360lbs./617kg 1560 lbs./708kg 1695lbs./767kg 1900 lbs./863kg

Shipping Carton Vol.

105 ft.

/2.98m

105 ft.

/2.98m

106 ft.

/3.00m

129 ft.

/3.65m

129 ft.

/3.65m

164 ft.

/4.65m

Rated Heat Input

Gas

135,000 BTU 135,000 BTU 135,000 BTU 170,000 BTU 175,000 BTU 175,000 BTU

34,020kcal,40kw/hr. 34,020kcal,40kw/hr. 34,020kcal, 40kw/hr. 42,840kcal, 50kw/hr. 44,100kcal, 52kw/hr. 44,100kcal, 52kw/hr.

Electric

26kw/hr. 26kw/hr. 26kw/hr. -- -- --

Max.OperatingTemp. < - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 550°F/288°C - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - >

Air Blowers

< - - - - - - - - - - - - - - - - 2 blowers at 1550 ft.

(43.9m

)/min. at 1700 RPM, 0.88"/2.2cm water static pressure - - - - - - - - - - - - - - - >

Air Jet Velocity (avg.)

< - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2600 ft./min. (1320cm/sec.) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - >

Warmup Time

< - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 minutes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - >

C. Gas orifice and pressure specifications - for gas-fired ovens (per oven cavity)

Main Orifice I.D.

Pilot Bypass Supply (inlet) Manifold

PS310 PS314 PS360/360Q/360S PS360WB PS360EWB PS360WB70 Orifice I.D. Orifice I.D.

pressure pressure

Natural Gas

0.219 0.219 0.219 0.250 0.250 0.250 0.028 0.065/#53drill 6-12" W.C. 3-1/2" W.C.

5.56mm 5.56mm 5.56mm 6.35mm 6.35mm 6.35mm 0.71mm 1.65mm 14.9-29.9mbar 8.7mbar

Propane

0.134" 0.134" 0.134" 0.152" 0.165" 0.165" 0.018" 0.034"/#62 drill 11-14" W.C. 10" W.C.

3.40mm 3.40mm 3.40mm 3.86mm 4.19mm 4.19mm 0.46mm 0.86mm 27.4-34.9mbar 24.9mbar

* NOTE: The PS360EWB gas oven does not use a bypass orifice.

D. Electrical specifications - for gas-fired ovens (per oven cavity)

Main Blower Control Current

Voltage Circuit Voltage Phase Freq. Draw Poles Wires

PS310/314/360/360Q/

208-240V 120V 1 Ph 60 Hz 10A 3 Pole 4 Wire (2 hot, 1 neut, 1 gnd)

360S/360WB

208-240V(export) 120V(transformer) 1 Ph 50/60 Hz 10A 2 Pole 3 Wire (2 hot, 1 gnd)

200-220V(export) 120V(transformer) 1 Ph 50/60 Hz 10A 2 Pole 3 Wire (2 hot, 1 gnd)

PS360EWB/WB70

208-240V 120V conveyorspeed 1 Ph 60 Hz 12A 2 Pole 3 wire (2 hot, 1 gnd)

controller(transformer);

all other control cicuits

as per line (208-240V)

E. Electrical specifications - for electrically-heated ovens (per oven cavity)

Main Blower Control Current k W

Voltage Circuit Voltage Phase Freq. Draw Rating Poles Wires

208-240V 120V 3 Ph 60 Hz 67.3A at 208V 26.0 kW at 208V 4 Pole 5 Wire (3 hot, 1 neut, 1 gnd)

(with 3 Ph blower motors) 58.4A at 240V 26.0 kW at 240V

208-240V 120V 3 Ph 60 Hz 67.3A at 208V 26.0 kW at 208V 4 Pole 5 Wire (3 hot, 1 neut, 1 gnd)

(with 1 Ph blower motors) 58.4A at 240V 26.0 kW at 240V

200-220V(export) 120V(transfomer) 3 Ph 50/60 Hz 67.3A at 208V 24.3 kW at 208V 3 Pole 4 Wire (3 hot, 1 gnd)

53.5A at 220V 20.4 kW at 220V

240V(export) 120V (transformer) 3 Ph 50/60 Hz 58.4A 26.0 kW 3 Pole 4 Wire (3 hot, 1 gnd)

380V(export) 120V (transformer) 3 Ph 50/60 Hz 36.8A 24.3 kW 3 Pole 4 Wire (3 hot, 1 gnd)

400-416V(export) 120V(transfomer) 3 Ph 50/60 Hz 33.8A 24.3 kW 3 Pole 4 Wire (3 hot, 1 gnd)

480V 120V(transformer) 3 Ph 60 Hz 29.2A 26.0 kW 3 Pole 4 Wire (3 hot, 1 gnd)

IMPORTANT

Additional electrical information is provided on the oven's serial plate, and on the wiring diagram inside the machinery

compartment.

SECTION1-DESCRIPTION

All manuals and user guides at all-guides.com

ENGLISH

SECTION2-INSTALLATION

WARNING

Keep the appliance area free and clear of combustibles.

WARNING

Do not obstruct the flow of combustion and ventilation air to and from your oven. There must be no

obstructions around or underneath the oven. Constructional changes to the area where the oven is

installed shall not affect the air supply to the oven.

CAUTION

For additional installation information, refer to the following documents:

PS360 Pre-Installation Procedures Manual (MiddlebyMarshallP/N88210-0024)

PS360 Installation Manual (Middleby Marshall P/N 88210-0025)

Or, contact your local Authorized Service Agent.

NOTE

There must be adequate clearance between the oven and combustible construction. Clearance

must also be provided for servicing and for proper operation.

NOTE

An electrical wiring diagram for the oven is located inside the machinery compartment or control

compartment.

NOTE

All aspects of the oven installation, including placement, utility connections, and ventilation requirements,

must conform with any applicable local, national, or international codes. These codes supercede the require-

ments and guidelines provided in this manual.

WARNING

The oven must be installed on an even (level) non-flammable flooring and any adjacent walls must

be non-flammable. Recommended minimum clearances are specified in the Description section of

this Manual.

WARNING - After any conversions, readjustments, or service work on the oven:

 Perform a gas leak test.

 Test for correct air supply, particularly to the burner blower.

 Test for proper combustion and gas supply.

 Check that the ventilation system is in operation.

NOTE

In U.S.A., the oven installation must conform with local codes, or in the absence of local codes, with the

National Fuel Gas Code, ANSI Z223.1. The oven, when installed, must be electrically grounded in accor-

dance with local codes, or in the absence of local codes, with the National Electrical Code (NEC), or ANSI/

NFPA70.

NOTE

In Canada, the oven installation must conform with local codes, or in the absence of local codes, with the

Natural Gas Installation Code, CAN/CGA-B149.1, or the Propane Gas Installation Code, CAN/CGA-B149.2,

as applicable. The oven, when installed, must be electrically grounded in accordance with local codes, or in

the absence of local codes, with the Canadian Electrical Code CSA, C22.2, as applicable.

NOTE

For Australian installation, the oven installation must conform with AGA Code, AG601, and with any require-

ments of the appropriate statutory authority.

All manuals and user guides at all-guides.com

all-guides.com

ENGLISH

Fig. 2-1 - Installation Kit

I. INSTALLATION KIT

SECTION2 -INSTALLATION

A. Installation kit components (one kit required per cavity)

Item Description PartNumber LowerOvenw/oTop LowerOvenw/Top UpperOven

1 Legs, adjustable 22450-0028 4 4 --

2* Caster, Swivel (with stud) 37115-0102 4* 4* 4*

3a Conveyor End Stop - PS310/314 35000-1099 1 1 1

3b Conveyor End Stop - PS360/360S

 Single Belt 35000-1103 1 1 1

 Split Belt 35509222

3c Conveyor End Stop - PS360Q 37000-0524 1 1 1

3c Conveyor End Stop - PS360WB/WB70 (Single or Split Belt) 36526111

3d Conveyor End Stop - PS360EWB

 Single Belt 35900-0370 2 2 2

 Split Belt: 2x21"/533mm belts 35900-0370 2 2 2

 Split Belt: 1x14"/356mm belt + 35509111

1x28"/711mm belt 35000-1099 1 1 1

4 Attachment Plate, upper oven 35122-0049 -- -- 2

5 Thermocouple 33812-1 2 2 2

6 Screw, #10-32 x 3/8" 21256-0008 2 2 2

7 CableClamp 27276-0001 1 1 1

8 Screw, #2PT 10-16 x 3/4" HWH 21292-0001 2 2 14

9 Owner's Operating and Installation Manual 41823111

10 Authorized Service Agency Listing 1002040 1 1 1

NOTE

* The 4 swivel casters (Item 2) are pre-attached to each oven cavity for ease of movement during installation.

B. Additional installation kit components for gas ovens

Item Description PartNumber LowerOvenw/oTop LowerOvenw/Top UpperOven

6 Screw, #10-32 x 3/8" 21256-0008 1 1 1

8 Screw, #2PT 10-16 x 3/4" HWH 21292-0001 2 2 2

11 Gas hose, flexible 22361-0001 1 1 1

12a Flue vent, 14" (356mm) 30773 -- 1 --

12b Flue vent, 29-1/2" (749mm) 30759 -- -- 1

12c Flue vent, 50" (1270mm) 30758 1 -- --

C. Additional installation kit components for tandem ovens (not shown)

Item Description PartNumber TandemOven Double(2-stack) TandemOven

Machinery Compartment Trim Strip

35000-1454 1 2

-- Front Gasket Spacer 35000-1456 2 4

-- Rear Gasket Spacer 35000-1457 2 4

Baking Chamber Gasket and Frame - PS360

37200-0013 1 2

Baking Chamber Gasket and Frame - PS360WB

32483 1 2

All manuals and user guides at all-guides.com

ENGLISH

18"

458mm

18"

458mm

12"

305mm

76mm

2"/51mm

minimum

B. Recommendations

NOTE THAT THE HOOD DIMENSIONS SHOWN IN FIGURE 2-

2 ARE RECOMMENDATIONS ONLY. LOCAL AND NATIONAL

CODES MUST BE FOLLOWED WHEN INSTALLING THE

VENTILATION SYSTEM. ANY APPLICABLE LOCAL AND

NATIONAL CODES SUPERSEDE THE RECOMMENDATIONS

SHOWN IN THIS MANUAL.

The rate of air flow exhausted through the ventilation system may

vary depending on the oven configuration and hood design.

Consult the hood manufacturer or ventilation engineer for these

specifications.

To avoid a negative pressure condition in the kitchen area, return

air must be brought back to replenish the air that was exhausted.

A negative pressure in the kitchen can cause heat- related

problems to the oven components as if there were no ventilation

at all. The best method of supplying return air is through the

heating, ventilation and air conditioning (HVAC) system. Through

the HVAC system, the air can be temperature-controlled for

summer and winter. Return air can also be brought in directly

from outside the building, but detrimental effects can result from

extreme seasonal hot and cold temperatures from the outdoors.

NOTE: Return air from the mechanically driven system must not

blow at the opening of the baking chamber. Poor oven baking

performance will result.

C. Other ventilation concerns

 Special locations, conditions, or problems may require the

services of a ventilation engineer or specialist.

 Inadequate ventilation can inhibit oven performance.

 It is recommended that the ventilation system and duct work

be checked at prevailing intervals as specified by the hood

manufacturer and/or HVAC engineer or specialist.

A. Requirements

CAUTION

 A mechanically driven ventilation system is REQUIRED for

gas oven installations.

 A mechanically driven ventilation system is STRONGLY

RECOMMENDED for electric oven installations.

PROPER VENTILATION OF THE OVEN IS THE

RESPONSIBILITY OF THE OWNER.

II. VENTILATION SYSTEM

IMPORTANT

Where national or local codes require the

installation of fire suppression equip-

ment or other supplementary equipment,

DO NOT mount the equipment directly to

the oven.

MOUNTING SUCH EQUIPMENT ON

THE OVEN MAY:

 VOID AGENCY CERTIFICATIONS

 RESTRICT SERVICE ACCESS

 LEAD TO INCREASED SERVICE

EXPENSES FOR THE OWNER

Fig. 2-2 - Ventilation System

SECTION2 -INSTALLATION

All manuals and user guides at all-guides.com

ENGLISH

IV. THERMOCOUPLE INSTALLATION

1. Install one thermocouple sensing bulb into each of the two

holes in the rear panel of the oven, as shown in Figure 2-4.

Fasten each thermocouple in place using one of the #10-

32 x 3/8" screws supplied in the Installation Kit.

2. Thread BOTH sets of thermocouple leads through the

grommet and into the machinery compartment, as shown

in Figure 2-4.

3. Remove the right-side access panel of the machinery

compartment.

4. Thread the thermocouple leads through the side of the

machinery compartment as shown in Figure 2-5, and into

the electrical box (at the right-front of the machinery compart-

ment).

5. Connect BOTH sets of thermocouple leads to the tempera-

ture controller as shown in Figure 2-6. Note that the two

thermocouples are now tied together at the temperature

controller.

6. Replace the right-side panel of the machinery compart-

ment.

7. Repeat Steps 1-6 for any other oven cavities in the installa-

tion.

8=White=Positive

7=Red=Negative

R=No Connection

Ground=Shieldedcable

Figure 2-4 - Thermocouple Installation Locations

Figure 2-5 - Placing the Thermocouple Leads

Figure 2-6 - Thermocouple Lead Connections

III. ASSEMBLY

A. Stacking

If the installation will include upper ovens mounted atop lower

ovens:

1. Remove the casters (pre-attached to each oven cavity) from

the upper ovens.

2. Stack the oven cavities. If necessary, refer to the Installation

Manual for Model PS310/360 Ovens (Middleby P/N 88210-

0025).

B. Stands

If the installation includes ovens that are to be mounted on

stands:

 Remove the casters (pre-attached to each oven cavity) and

install them on the stands as shown in Figure 2-3.

 Assemble the ovens to the stands. An exploded view of the

stand is shown in Figure 2-3.

C. Flue Vent(s)

For gas ovens, attach one flue vent to the rear wall of each oven

cavity. Use one #10-16 x 3/8" and two #10-32 x 3/4" screws for

each flue vent. These screws are provided in the Installation Kit.

Figure 2-3 - Exploded View, Oven Stand

Attachment

plates inc. w/

upper oven

installation kit

SECTION2 -INSTALLATION

Casters inc.

w/oven

Thermocouples

Grommet-protected hole

All manuals and user guides at all-guides.com

ENGLISH

Figure 2-8 - Cooling Fan Removal

V. TANDEM OVEN ASSEMBLY

NOTE

For non-tandem oven installations, skip ahead to Section VI,

Conveyor Installation.

1. Determine the proper position of the ovens by referring to

Figure 2-7. Then, move the ovens to their approximate final

locations.

Figure 2-7

OvenPositioningand Alignment

Alignment

plate

Slot for

alignment

plate

LEFTOVEN

NOTE: The Sealing Gasket Assembly may

be pre-mounted to EITHER of the oven

cavities.

RIGHTOVEN

Air finger

retaining

screws

Sealing gasket

assembly

(pre-mounted)

2. Check that the top and bottom air finger retaining screws are

present on all mating ends of the oven sections. See Figure

2-7. The screws prevent the air fingers from sliding in

between the oven sections.

3. Remove the rear axial cooling fans that are adjacent to the

mating sides of the ovens. The fans may either be completely

disconnected, or left attached by their wiring as shown in

Figure 2-8.

Mating surface of

ovens (shown

from lower rear)

Wiring is still

connected

SECTION2 -INSTALLATION

All manuals and user guides at all-guides.com

Altri manuali per PS300 Series

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Middleby Marshall Forno

Middleby Marshall

Middleby Marshall TCO21140035 Manuale operativo

Middleby Marshall

Middleby Marshall PS570S Manuale operativo

Middleby Marshall

Middleby Marshall PS536GS Manuale utente

Middleby Marshall

Middleby Marshall PS536GS Manuale operativo

Middleby Marshall

Middleby Marshall Oven Manuale utente

Middleby Marshall

Middleby Marshall PS745 Series Manuale operativo

Middleby Marshall

Middleby Marshall PS360-L Manuale operativo

Middleby Marshall

Middleby Marshall PS536ES Manuale operativo

Middleby Marshall

Middleby Marshall PS638 Series Manuale operativo

Middleby Marshall

Middleby Marshall PS314SBI Manuale operativo

Middleby Marshall

Middleby Marshall PS740G Manuale utente

Middleby Marshall

Middleby Marshall PS540G SERIES Manuale utente

Middleby Marshall

Middleby Marshall PS520E Manuale utente

Middleby Marshall

Middleby Marshall PS310 series Manuale utente

Middleby Marshall

Middleby Marshall PS314SBI Manuale operativo

Middleby Marshall

Middleby Marshall CTX DZ33T Series Manuale operativo

Middleby Marshall

Middleby Marshall PS528G Manuale operativo

Middleby Marshall

Middleby Marshall PS300 Series Manuale operativo

Middleby Marshall

Middleby Marshall PS770G GAS Manuale operativo

Middleby Marshall

Middleby Marshall PS670 Manuale operativo

Middleby Marshall

Middleby Marshall Model PS536 Manuale operativo

Middleby Marshall

Middleby Marshall PS540 (Double) Manuale operativo

Middleby Marshall

Middleby Marshall PS555 series Manuale utente

Middleby Marshall

Middleby Marshall X70G Series Manuale operativo

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente
