Midea MV6-252WV2GN1 Manuale utente

Commercial Air Conditioners

R410A

Series

MV6-252WV2GN1

MV6-280WV2GN1

MV6-335WV2GN1

MV6-400WV2GN1

MV6-450WV2GN1

MV6-500WV2GN1

MV6-560WV2GN1

MV6-615WV2GN1

MV6-670WV2GN1

MV6-730WV2GN1

MV6-785WV2GN1

MV6-850WV2GN1

MV6-900WV2GN1

Service

Manual

V6 VRF 50/60Hz

CONTENTS

Part 1 General Information............................................................................ 3

Part 2 Components Layout and Refrigerant Circuits .................................. 11

Part 3 Control ............................................................................................... 33

Part 4 Field Settings..................................................................................... 49

Part 5 Electrical Components and Wiring Diagrams .................................. 55

Part 6 Diagnosis and Troubleshooting......................................................... 69

V6 VRF 50/60Hz

Midea V6 Series Service Manual

V6 VRF 50/60Hz

Part 1 - General Information

Part 1

General Information

1Indoor and Outdoor Unit Capacities .................................................. 4

2External Appearance ............................................................................ 6

3Outdoor Unit Combinations ................................................................ 8

4Combination Ratio ............................................................................... 9

V6 VRF 50/60Hz

Midea V6 Series Service Manual

1Indoor and Outdoor Unit Capacities

1.1 Indoor Units

1.1.1 Standard indoor units

Table 1-1.1: Standard indoor unit abbreviation codes

Abbreviation

code Type

Abbreviation

code Type

Q1 One-way Cassette T1 High Static Pressure Duct

Q2 Two-way Cassette G Wall-mounted

Q4C Compact Four-way Cassette DL Ceiling & Floor

Q4 Four-way Cassette F Floor Standing

T2 Medium Static Pressure Duct Z Console

Table 1-1.2: Standard indoor unit capacity range

Capacity Capacity

index Q1 Q2 Q4C Q4 T2 T1 G DL F Z

kW HP

1.8 0.6 18 18 —————————

2.2 0.8 22 22 22 22 —22 —22 —22 22

2.8 1 28 28 28 28 28 28 —28 —28 28

3.6 1.25 36 36 36 36 36 36 —36 36 36 36

4.5 1.6 45 45 45 45 45 45 —45 45 45 45

5.6 2 56 56 56 —56 56 —56 56 56 —

7.1 2.5 71 71 71 —71 71 71 71 71 71 —

8.0 3 80 ———80 80 80 80 80 80 —

9.0 3.2 90 ———90 90 90 90 90 ——

10.0 3.6 100 ———100 ——————

11.2 4 112 ———112 112 112 —112 ——

14.0 5 140 ———140 140 140 —140 ——

16.0 6 160 ———160 160 160 —160 ——

20.0 7 200 —————200 ————

25.0 9 250 —————250 ————

28.0 10 280 —————280 ————

40.0 14 400 —————400 ————

45.0 16 450 —————450 ————

56.0 20 560 —————560 ————

1.1.2 Fresh air processing unit

Table 1-1.3: Fresh air processing unit capacity range

Capacity 12.5kW 14kW 20kW 25kW 28kW 45kW 56kW

Capacity index 125 140 200 250 280 450 560

Table 1-1.4: Small airflow rate fresh air processing unit capacity range

Capacity 14kW 22.4kW 28kW

Capacity index 140 224 280

1.2 Heat recovery ventilator

Table 1-1.5: Heat recovery ventilator capacity range

Airflow rate 200m3/h 300m3/h 400m3/h 500m3/h 800m3/h 1000m3/h 1500m3/h 2000m3/h

V6 VRF 50/60Hz

Part 1 - General Information

1.3 Outdoor Units

Table 1-1.6: Outdoor unit capacity range

Capacity

Model Name

Combination Type

8HP

MV6-252WV2GN1

10HP

MV6-280WV2GN1

12HP

MV6-335WV2GN1

14HP

MV6-400WV2GN1

16HP

MV6-450WV2GN1

18HP

MV6-500WV2GN1

20HP

MV6-560WV2GN1

22HP

MV6-615WV2GN1

24HP

MV6-670WV2GN1

26HP

MV6-730WV2GN1

28HP

MV6-785WV2GN1

30HP

MV6-850WV2GN1

32HP

MV6-900WV2GN1

34HP

MV6-950WV2GN1

12HP+22HP

36HP

MV6-1015WV2GN1

14HP+22HP

38HP

MV6-1065WV2GN1

16HP+22HP

40HP

MV6-1120WV2GN1

12HP+28HP

42HP

MV6-1175WV2GN1

20HP+22HP

44HP

MV6-1230WV2GN1

22HP+22HP

46HP

MV6-1285WV2GN1

22HP+24HP

48HP

MV6-1345WV2GN1

22HP+26HP

50HP

MV6-1400WV2GN1

22HP+28HP

52HP

MV6-1460WV2GN1

26HP+26HP

54HP

MV6-1515WV2GN1

26HP+28HP

56HP

MV6-1570WV2GN1

28HP+28HP

58HP

MV6-1635WV2GN1

28HP+30HP

60HP

MV6-1685WV2GN1

28HP+32HP

62HP

MV6-1750WV2GN1

30HP+32HP

64HP

MV6-1800WV2GN1

32HP+32HP

66HP

MV6-1850WV2GN1

12HP+22HP+32HP

68HP

MV6-1915WV2GN1

14HP+22HP+32HP

70HP

MV6-1965WV2GN1

16HP+22HP+32HP

72HP

MV6-2020WV2GN1

12HP+28HP+32HP

74HP

MV6-2075WV2GN1

20HP+22HP+32HP

76HP

MV6-2130WV2GN1

22HP+22HP+32HP

78HP

MV6-2185WV2GN1

22HP+24HP+32HP

80HP

MV6-2245WV2GN1

22HP+26HP+32HP

82HP

MV6-2300WV2GN1

22HP+28HP+32HP

84HP

MV6-2360WV2GN1

26HP+26HP+32HP

86HP

MV6-2415WV2GN1

26HP+28HP+32HP

88HP

MV6-2470WV2GN1

28HP+28HP+32HP

90HP

MV6-2535WV2GN1

28HP+30HP+32HP

92HP

MV6-2585WV2GN1

28HP+32HP+32HP

94HP

MV6-2650WV2GN1

30HP+32HP+32HP

96HP

MV6-2700WV2GN1

32HP+32HP+32HP

Notes:

1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also available.

V6 VRF 50/60Hz

Midea V6 Series Service Manual

2External Appearance

2.1 Indoor Units

2.1.1 Standard indoor units

Table 1-2.1: Standard indoor unit appearance

One-way Cassette

Two-way Cassette

Compact Four-way Cassette

Four-way Cassette

Q4C

Medium Static Pressure Duct

High Static Pressure Duct

Wall-mounted

Ceiling & Floor

Floor Standing

Console

2.1.2 Fresh air processing unit

Table 1-2.2: Fresh air processing unit appearance

Fresh Air Processing Unit Small Airflow Rate Fresh Air Processing Unit

2.2 Heat Recovery Ventilator

Table 1-2.3: Heat recovery ventilator appearance

Heat Recovery Ventilator

V6 VRF 50/60Hz

Part 1 - General Information

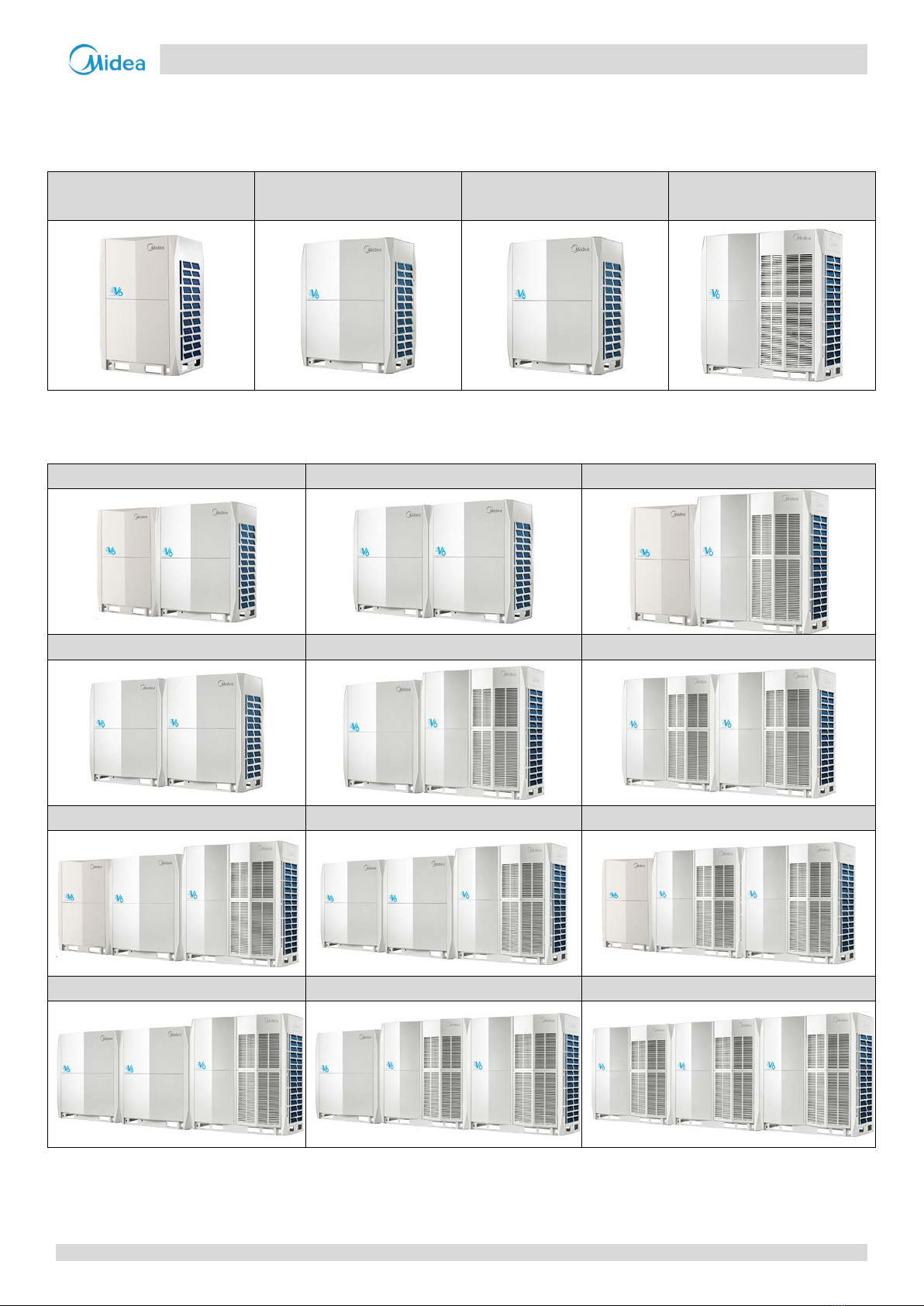

2.3 Outdoor Units

2.3.1 Single units

Table 1-2.4: Single outdoor unit appearance

8/10/12HP

(with single fan)

14/16HP

(with single fan)

18/20/22HP

(with dual fans)

24/26/28/30/32HP

(with dual fans)

2.3.2 Combinations of units

Table 1-2.5: Combination outdoor unit appearance

34HP 36/38HP 40HP

42/44HP 46/48/50HP 52/54/56/58/60/62/64HP

66HP

68/70HP

72HP

74/76HP

78/80/82HP

84/86/88/90/92/94/96HP

V6 VRF 50/60Hz

Midea V6 Series Service Manual

3Outdoor Unit Combinations

Table 1-3.1: Outdoor unit combinations

System capacity

Number

of units

Modules

Outdoor branch

joint kit

25.2

●

—

28.0

●

33.5

●

40.0

●

45.0

●

50.0

●

56.0

●

61.5

●

67.0

●

73.0

●

78.5

●

85.0

●

90.0

●

95.0

●

FQZHW-02N1E

101.5

●

106.5

●

112.0

●

117.5

●

123.0

●●

128.5

●

134.5

●

140.0

●

146.0

●●

151.5

●

157.0

●●

163.5

●

168.5

●

175.0

●

180.0

●●

185.0

●

FQZHW-03N1E

191.5

●

196.5

●

202.0

●

207.5

●

213.0

●●

●

218.5

●

224.5

●

230.0

●

236.0

●●

●

241.5

●

247.0

●●

●

253.5

●

258.5

●

●●

265.0

●

●●

270.0

●●●

Notes:

1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also available.

2. For systems with two or more outdoor units, outdoor branch joints (sold separately) are required.

V6 VRF 50/60Hz

Part 1 - General Information

4Combination Ratio

Table 1-4.1: Indoor and outdoor unit combination ratio limitations

Type Minimum

combination ratio

Maximum combination ratio

Standard indoor

units only

Fresh air processing

units only

Fresh air processing units and

standard indoor units together

V6 Series outdoor units

50%

130%

100%

100%1

Notes:

1. When fresh air processing units are installed together with standard indoor units, the total capacity of the fresh air processing units must not exceed 30%

of the total capacity of the outdoor units and the total combination ratio must not exceed 100%.

Table 1-4.2: Combinations of indoor and outdoor units

Outdoor unit capacity

Sum of capacity indexes of

connected indoor units (standard

indoor units only)

Sum of capacity indexes of connected indoor

units (fresh air processing units and standard

indoor units together)

Maximum number of

connected indoor

units

kW HP

Capacity

index

25.2

252

126 to 327.6

126 to 252

28.0

280

140 to 364

140 to 280

33.5

335

167.5 to 435.5

167.5 to 335

40.0

400

200 to 520

200 to 400

45.0

450

225 to 585

225 to 450

50.0

500

250 to 650

250 to 500

56.0

560

280 to 728

280 to 560

61.5

615

307.5 to 799.5

307.5 to 615

67.0

670

335 to 871

335 to 670

73.0

730

365 to 949

365 to 730

78.5

785

392.5 to 1020.5

392.5 to 785

85.0

850

425 to 1105

425 to 850

90.0

900

450 to 1170

450 to 900

95.0

950

475 to 1235

475 to 950

101.5

1015

507.5 to 1319.5

507.5 to 1015

106.5

1065

532.5 to 1384.5

532.5 to 1065

112.0

1120

560 to 1456

560 to 1120

117.5

1175

587.5 to 1527.5

587.5 to 1175

123.0

1230

615 to 1599

615 to 1230

128.5

1285

642.5 to 1670.5

642.5 to 1285

134.5

1345

672.5 to 1748.5

672.5 to 1345

140.0

1400

700 to 1820

700 to 1400

146.0

1460

730 to 1898

730 to 1460

151.5

1515

757.5 to 1969.5

757.5 to 1515

157.0

1570

785 to 2041

785 to 1570

163.5

1635

817.5 to 2125.5

817.5 to 1635

168.5

1685

842.5 to 2190.5

842.5 to 1685

175.0

1750

875 to 2275

875 to 1750

180.0

1800

900 to 2340

900 to 1800

185.0

1850

925 to 2405

925 to 1850

191.5

1915

957.5 to 2489.5

957.5 to 1915

196.5

1965

982.5 to 2554.5

982.5 to 1965

202.0

2020

1010 to 2626

1010 to 2020

207.5

2075

1037.5 to 2697.5

1037.5 to 2075

213.0

2130

1065 to 2769

1065 to 2130

218.5

2185

1092.5 to 2840.5

1092.5 to 2185

224.5

2245

1122.5 to 2918.5

1122.5 to 2245

230.0

2300

1150 to 2990

1150 to 2300

236.0

2360

1180 to 3068

1180 to 2360

241.5

2415

1207.5 to 3139.5

1207.5 to 2415

247.0

2470

1235 to 3211

1235 to 2470

253.5

2535

1267.5 to 3295.5

1267.5 to 2535

258.5

2585

1292.5 to 3360.5

1292.5 to 2585

265.0

2650

1325 to 3445

1325 to 2650

270.0

2700

1350 to 3510

1350 to 2700

Combination ratio = Sum of capacity indexes of the indoor units

Capacity index of the outdoor units

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Midea Condizionatore d'aria

Midea

Midea MDV-V80W/DN1 Manuale utente

Midea

Midea MW120WWBA2RC1 Manuale utente

Midea

Midea VRF Series Manuale utente

Midea

Midea MFA-18HRDN1-Q Manuale utente

Midea

Midea MSV1I-09HRDN1 Manuale operativo

Midea

Midea MSE-09CRN1-BQ8W Manuale utente

Midea

Midea MAC-107AR Manuale utente

Midea

Midea MS11M-09HRN1 Manuale utente

Midea

Midea M thermal Mono Series Guida alle dimensioni

Midea

Midea MRC-36CWN1-V10 Manuale utente

Midea

Midea MVW22A-VA1 Manuale utente

Midea

Midea MSX-09HRDN1QC2 Manuale utente

Midea

Midea MDV-V105W/DVN1 Manuale utente

Midea

Midea MTI-24FNXD0 MOU-24FN1-QD0 Manuale utente

Midea

Midea MHC-96HWD1N1 Manuale utente

Midea

Midea MOU-18FN8-QD0 Manuale utente

Midea

Midea Blanc Series Manuale utente

Midea

Midea ABSEU-A4-1511 Manuale utente

Midea

Midea MSG-07CRN2 Manuale utente

Midea

Midea ODMFI-E-2110 Manuale utente

Midea

Midea V5 X VRF Series Manuale operativo

Midea

Midea MCA3U-09HRFN1-M(C) Manuale utente

Midea

Midea MCA3U-18HRFNX-QRD0W Manuale utente

Midea

Midea MCAC-RTSM-2013-04 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
