Midea V6R Series Manuale utente

MV6-R252WV2GN1

MV6-R280WV2GN1

MV6-R335WV2GN1

MV6-R400WV2GN1

MV6-R450WV2GN1

MV6-R500WV2GN1

MV6-R560WV2GN1

Engineering Data

Series VRF

Commercial Air Conditioners

R410A

V6R VRF 50/60Hz

CONTENTS

Part 1 General Information............................................................................ 3

Part 2 Outdoor Unit Engineering Data ....................................................... 21

Part 3 System Design and Installation...................................................... 119

V6R VRF 50/60Hz

Midea V6R Series Engineering Data Book

V6R VRF 50/60Hz

Part 1 - General Information

Part 1

General Information

1 Indoor and Outdoor Unit Capacities........................................................... 4

2 External Appearance .................................................................................. 6

3 Outdoor Unit Combinations ..................................................................... 10

4 Nomenclature .......................................................................................... 11

5 Combination Ratio ................................................................................... 13

6 Selection Procedure ................................................................................. 15

V6R VRF 50/60Hz

Midea V6R Series Engineering Data Book

1Indoor and Outdoor Unit Capacities

1.1 Indoor Units

1.1.1 VRF indoor units

Table 1-1.1: VRF indoor unit abbreviation codes

Abbreviation

code

Type

Abbreviation

code

Type

One-way Cassette

High Static Pressure Duct

Two-way Cassette

Wall-mounted

Q4C

Compact Four-way Cassette

Ceiling & Floor

Four-way Cassette

Floor Standing

Medium Static Pressure Duct

Console

Table 1-1.2: VRF indoor unit1 capacity range

Capacity

index

Q4C

1.8

0.6

—

2.2

0.8

—

2.8

—

3.6

1.25

—

4.5

1.6

—

5.6

—

7.1

2.5

—

8.0

—

9.0

3.2

—

10.0

3.6

100

—

100

—

11.2

112

—

112

—

112

—

14.0

140

—

140

—

140

—

16.0

160

—

160

—

160

—

20.0

200

—

200

—

25.0

250

—

250

—

28.0

280

—

280

—

Notes:

1. V6R series outdoor units are compatible with the 2nd generation DC VRF indoor unit and 2nd generation AC VRF indoor units (which will be released soon).

1.1.2 Fresh air processing unit

Table 1-1.3: Fresh air processing unit capacity range

Capacity

12.5kW

14kW

20kW

25kW

28kW

Capacity index

125

140

200

250

280

Notes:

1. V6R series outdoor units are compatible with the 2nd generation DC fresh air processing unit.

1.2 Heat Recovery Ventilator

Table 1-1.4: Heat recovery ventilator capacity range

Capacity

200m3/h

300m3/h

400m3/h

500m3/h

800m3/h

1000m3/h

1500m3/h

2000m3/h

Notes:

1. V6R series outdoor units are compatible with the DC type heat recovery ventilator.

V6R VRF 50/60Hz

Part 1 - General Information

1.3 High Temperature Hydro Module

Table 1-1.5: High temperature hydro module capacity range

Capacity

14kW

Capacity index

140

1.4 Outdoor Units

Table 1-1.6: Outdoor unit capacity range

Capacity

Model Name

Combination Type

8HP

MV6-R252WV2GN1

10HP

MV6-R280WV2GN1

12HP

MV6-R335WV2GN1

14HP

MV6-R400WV2GN1

16HP

MV6-R450WV2GN1

18HP

MV6-R500WV2GN1

20HP

MV6-R560WV2GN1

22HP

MV6-R615WV2GN1

12HP+10HP

24HP

MV6-R670WV2GN1

14HP+10HP

26HP

MV6-R730WV2GN1

14HP+12HP

28HP

MV6-R785WV2GN1

16HP+12HP

30HP

MV6-R850WV2GN1

18HP+12HP

32HP

MV6-R900WV2GN1

16HP+16HP

34HP

MV6-R950WV2GN1

18HP+16HP

36HP

MV6-R1015WV2GN1

18HP+18HP

38HP

MV6-R1065WV2GN1

20HP+18HP

40HP

MV6-R1120WV2GN1

20HP+20HP

42HP

MV6-R1175WV2GN1

16HP+14HP+12HP

44HP

MV6-R1230WV2GN1

16HP+16HP+12HP

46HP

MV6-R1285WV2GN1

16HP+16HP+14HP

48HP

MV6-R1345WV2GN1

16HP+16HP+16HP

50HP

MV6-R1400WV2GN1

18HP+16HP+16HP

52HP

MV6-R1460WV2GN1

18HP+18HP+16HP

54HP

MV6-R1515WV2GN1

18HP+18HP+18HP

56HP

MV6-R1570WV2GN1

20HP+18HP+18HP

58HP

MV6-R1635WV2GN1

20HP+20HP+18HP

60HP

MV6-R1685WV2GN1

20HP+20HP+20HP

Notes:

1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.

V6R VRF 50/60Hz

Midea V6R Series Engineering Data Book

2External Appearance

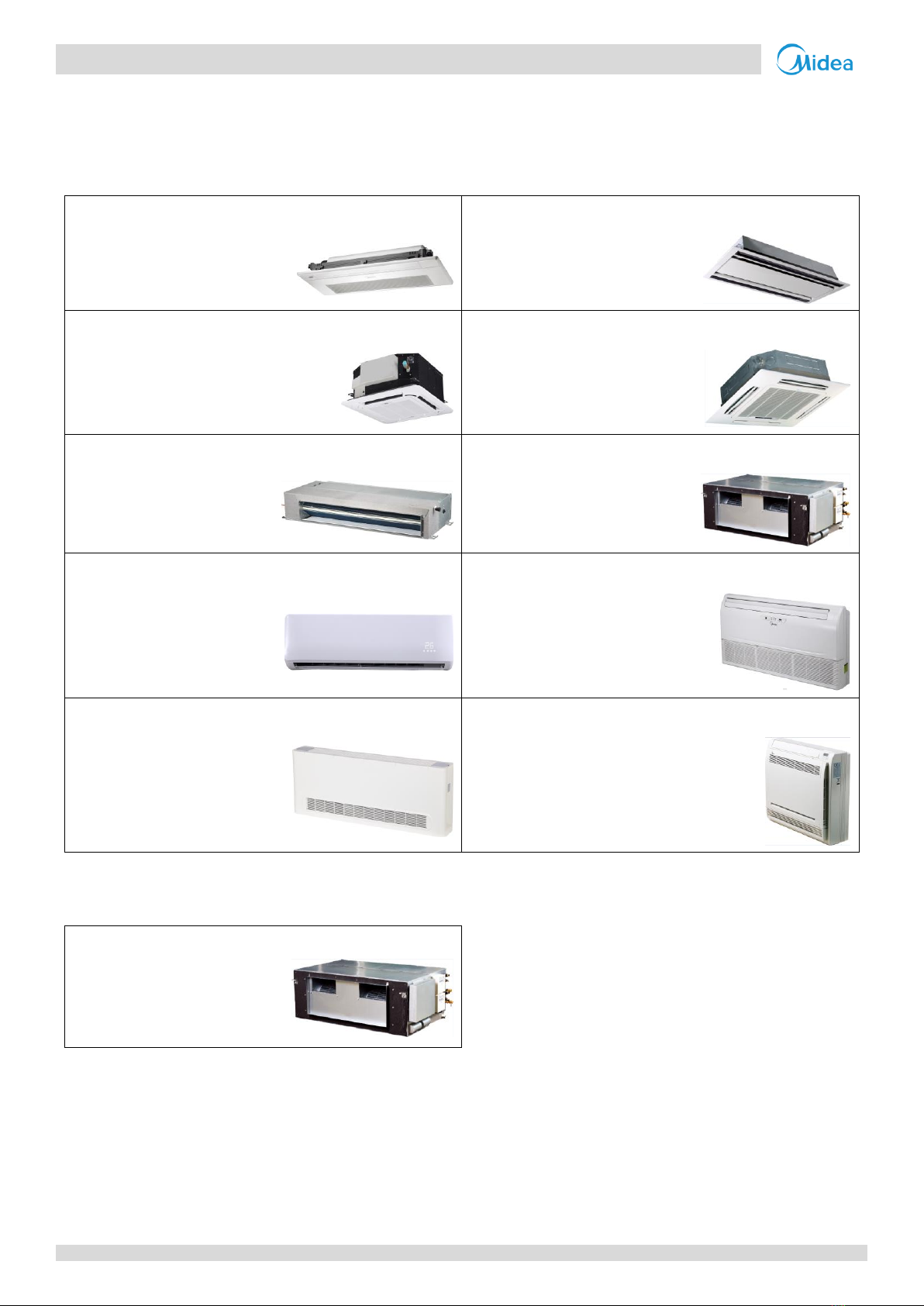

2.1 Indoor Units

2.1.1 VRF indoor units

Table 1-2.1: VRF indoor unit appearance

One-way Cassette

Two-way Cassette

Compact Four-way Cassette

Four-way Cassette

Q4C

Medium Static Pressure Duct

High Static Pressure Duct

Wall-mounted

Ceiling & Floor

Floor Standing

Console

2.1.2 Fresh air processing unit

Table 1-2.2: Fresh air processing unit appearance

Fresh Air Processing Unit

V6R VRF 50/60Hz

Part 1 - General Information

2.2 Heat Recovery Ventilator

Table 1-2.3: Heat recovery ventilator appearance

Heat Recovery Ventilator

2.3 High Temperature Hydro Module

Table 1-2.4: High temperature hydro module appearance

High Temperature Hydro Module

V6R VRF 50/60Hz

Midea V6R Series Engineering Data Book

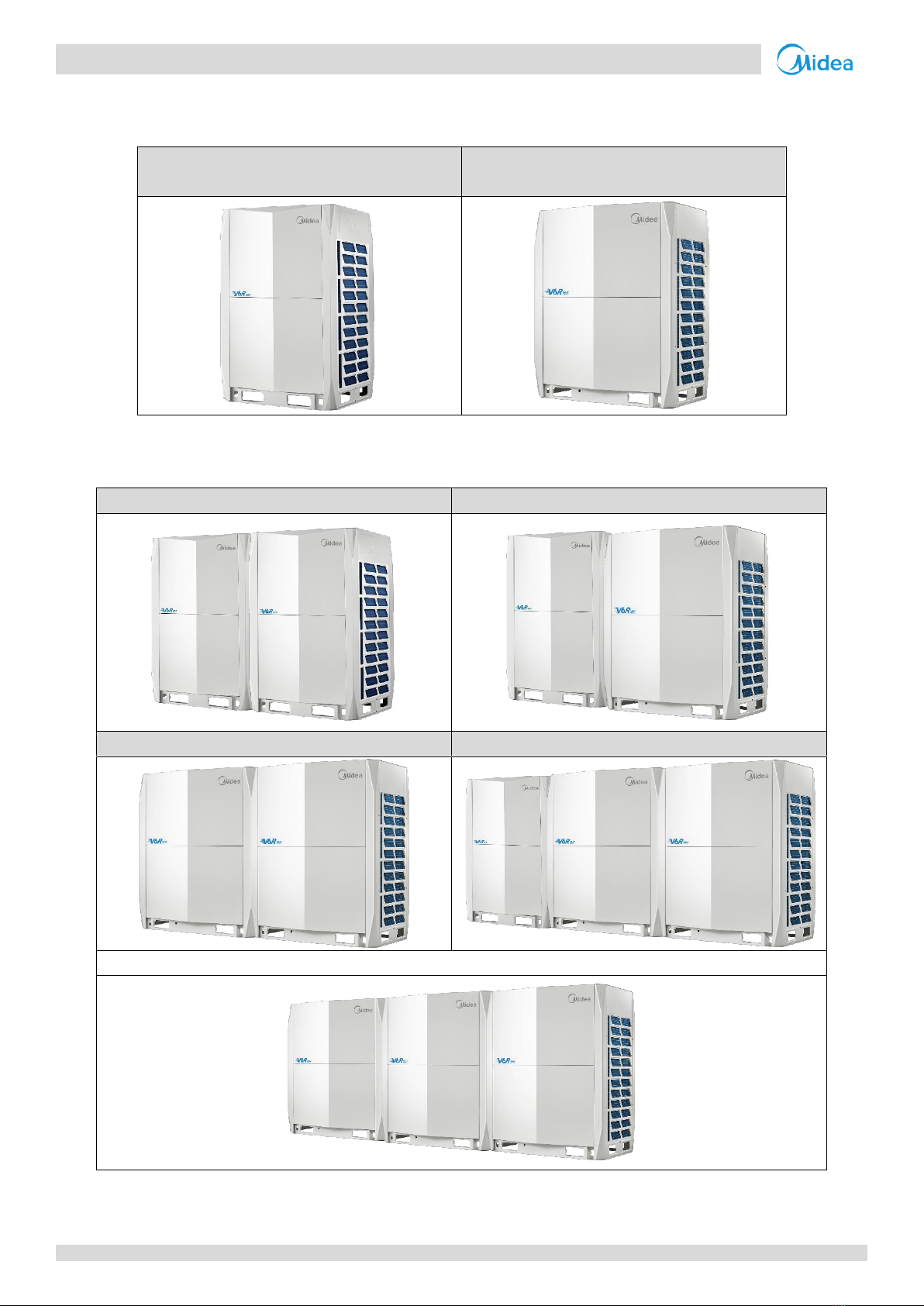

2.4 Outdoor Units

2.4.1 Single units

Table 1-2.5: Single outdoor unit appearance

8/10/12HP

(with single fan)

14/16/18/20HP

(with dual fan)

2.4.2 Combinations of units

Table 1-2.6: Combination outdoor unit appearance

22HP

24/26/28/30HP

32/34/36/38/40HP

42/44HP

46/48/50/52/54/56/58/60HP

V6R VRF 50/60Hz

Part 1 - General Information

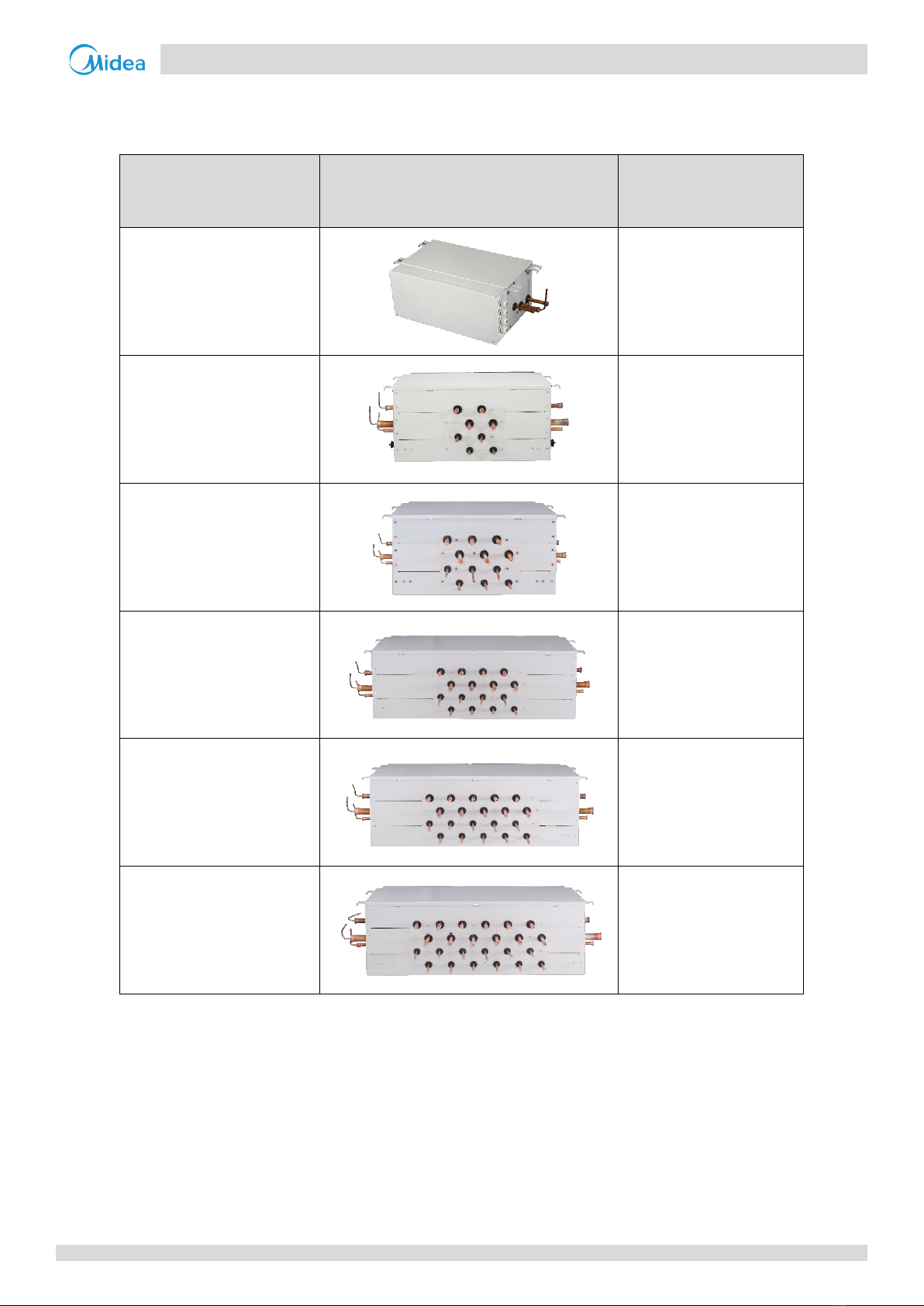

2.5 Mode Selection Box

Table 1-2.7: MS box appearance

Model name

Appearance

Max. number of

downstream indoor

units

MS01/N1-D1,2

MS04/N1-D

MS06/N1-D

MS08/N1-D

MS10/N1-D

MS12/N1-D

Notes:

1. MS01 can be ceiling-suspended installed and wall-mounted installed.

2. Low temperature cooling operation and leakage detection function are available in MS01.
