OWNER’S MANUAL

PANEL HEATER

MODEL: NDK15-12K

READ AND SAVE THESE INSTRUCTIONS

Version 1.0 2016

GD Midea Environment Appliances MFG. Co. Ltd.

Attention: Pictures in the IM are for reference only.

No.28, Dong Fu Road, HeSui East Industrial Area, Dong Feng Town,

ZhongShan, GuangDong, China.

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should

always be followed, including the following:

1. To ensure familiarity with the controls, safety features, and operation

of your heater -Read all instructions before using.

2. Do not insert foreign objects through the intake or discharge grilles.

3. This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

4. Disconnect the cord from the outlet before cleaning. A heater should

never be used under conditions where it may be immersed, or come

in contact with water. Similarly do not plug in your heater if its

surfaces are damp.

5. Do not use the appliance on the same socket or electric circuit with

other electrical appliances so as to prevent the circuit from being

overloaded, which will cause ﬁre. Please do not extend the power

cords by yourself or use extension cords or power boards.

6. Unplug heater by grasping plug and pulling it from the outlet. NEVER

PULL ON CORD.

7. If the supply cord is damaged, it must be replaced by its service agent

or a similar qualify person in order to avoid hazard.

8. Do not use in locations when the heater will be left unattended for long

periods of time. (for example - several weeks in an unoccupied

summer cottage)

9. Do not use attachments not recommended and sold by MIDEA

distributor.

10. Loose connections between the heater plug and the electrical outlet

may cause the plug to overheat.

11. Ensure no other appliances are plugged into the same circuit as

your heater. A circuit overload could occur resulting in dimmed lights,

blown fuses, tripped circuit breakers, or ﬁre hazard.

12. The heater is intended for household indoor use only.

13. The heater must not be located immediately below a socket-outlet.

14. Warning: In order to avoid overheating, do not cover the heater.

15. Do not use this heater in the immediate surroundings of a bath, a

shower or a swimming pool.

16.Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8

years shall only switch on/off the appliance provided that it has been

placed or installed in its intended normal operating position and they

have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in,

regulate and clean the appliance or perform user maintenance.

17. CAUTION — Some parts of this product can become very hot and

cause burns. Particular attention has to be given where children and

vulnerable people are present.

18. The heater must not be located in front of a socket-outlet.

19.

Correct Disposal of this product:

This marking indicates that this product should not be

disposed with other household wastes. To prevent

possible harm to the environment or human health from

uncontrolled waste disposal, recycle it responsibly to

promote the sustainable reuse of material resources. To

return your used device, please use the return and

collection systems or contact the retailer where the

product was purchased. They can take this product for

environmental safe recycling.

WARNING: IN ORDER TO AVOID OVERHEATING, DO NOT COVER

THE HEATER.

CAUTION

1. Never use the unit in places where ﬂoors are not even or unstable.

2. Do not insert and pull out the plug with wet hand, as this may cause

electrical shock.

3. The heater must only be used in the upright position. Never use when

the unit is fallen over.

4. The unit should be far away from the objects that are ﬂammable.

5. Avoid damaging the paint surface as this may cause rust.

6. Unit surface temperature of the ﬂanges is high, thus do not touch it

except handle, knobs.

7. Don't heat wet clothing etc. on the surface of the control chamber.

8. It is not recommended to use an extension cord.

WARNING

1. The surface temperature of the ﬂanges is high during use, thus

closely supervise any children in the area of this appliance.

2. Do not use on a wet place to prevent electrical shock.

3. Do not use out of the house.

4. If malfunctions happen during operation please take to appointed

service center with the purchase receipt. Never disassemble it by

yourself.

5. Be sure to pull out the plug from an outlet when not in use and before

cleaning.

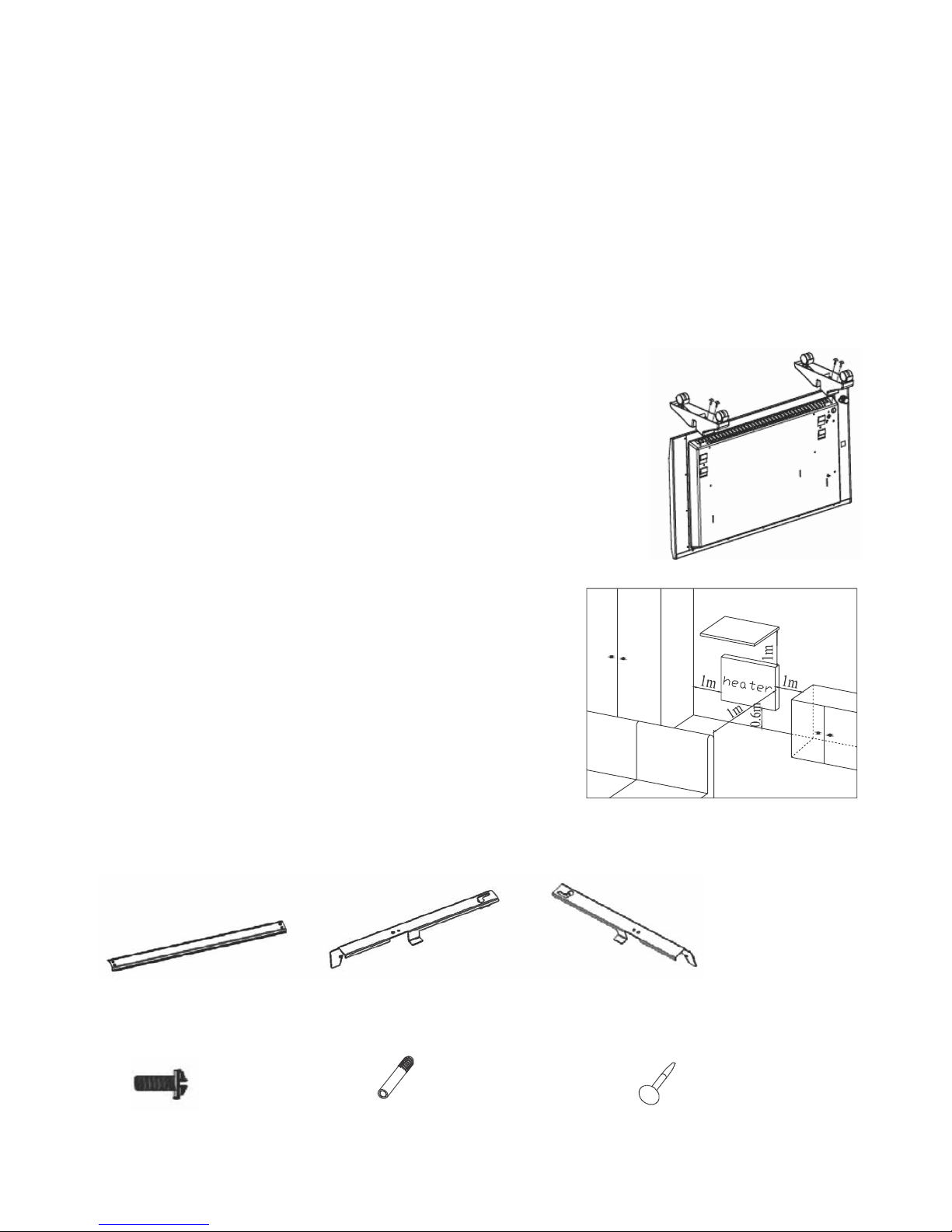

INSTALLATION INSTRUCTION

CHOOSE THE LOCATION

1. The heater is an appliance which can be portable or be mountable.

2. Do not locate the heater near any furniture, curtains or other

appliances. Keep the heater at least 1 metre away from other objects

such as furniture, drapes, or plants.

3. Do not locate the heater in corners.

4. Make sure to position the heater away from doors and windows.

Fig 1.

INSTALLATION INSTRUCTION

Warning! Before you install your heater, please make sure the heater is

in Off position and is disconnected from power supply.

A. For free-standing use

Accessories for free-standing use:

ŸInsert pic

ŸWheel plates: 2pcs

ŸShort screws: 4pcs

1) Turn the heater body upside down.

2) Fix the two wheel plates to the heater with the

four screws supplied.

3) Turn the heater to its normal position and put it

in an even and stable place.

4) The heater is ready to use as free-standing

now.

B. For wall mounted use

When mounting the heater on the wall,

make sure the minimum distance (1m to

the wall and 0.6m below the ﬂoor) as

speciﬁed in Fig 1 should be available.

Accessories for wall mounted:

Screw D x6 Expansion bolts H x2 Long bolts I x2

Bracket A x1 Bracket B x1 Bracket C x1

638

Please follows below steps to install as a wall mounted heater:

1. Take the brackets A, B and C and assemble

them together with four screws (D), see Fig

2. Insert the bracket assembly into the back

holes (E) of the heater body, see Fig 3 and

then slide the assembly up to match the

inclined plane of the back cover.

3. Fix the bracket assembly to the heater body

with 2 screws (D), see Fig 4.

4. Drill 2 holes with a distance of 638mm

between (G) with a diameter of 8 mm;

insert 2 expansion bolts (H) and 2 long bolts

(I) into the hole. The explored length of the

long bolts should be over 5mm, see Fig 5.

Warning! When drilling holes, always check

to ensure there is no wiring, pipe work, etc

in the area to be drilled.

5. Hang the product on the 2 bolts and slide it

to a stable position. See Fig 6.

Fig 3.

Fig 4.

Fig 2.

Fig 5.

Display & function ON/OFF

Heating mode: HIGH/LOW

Timer setting

Temperature/timer increase

Temperature/timer decrease

Fig 6.

Main power switch

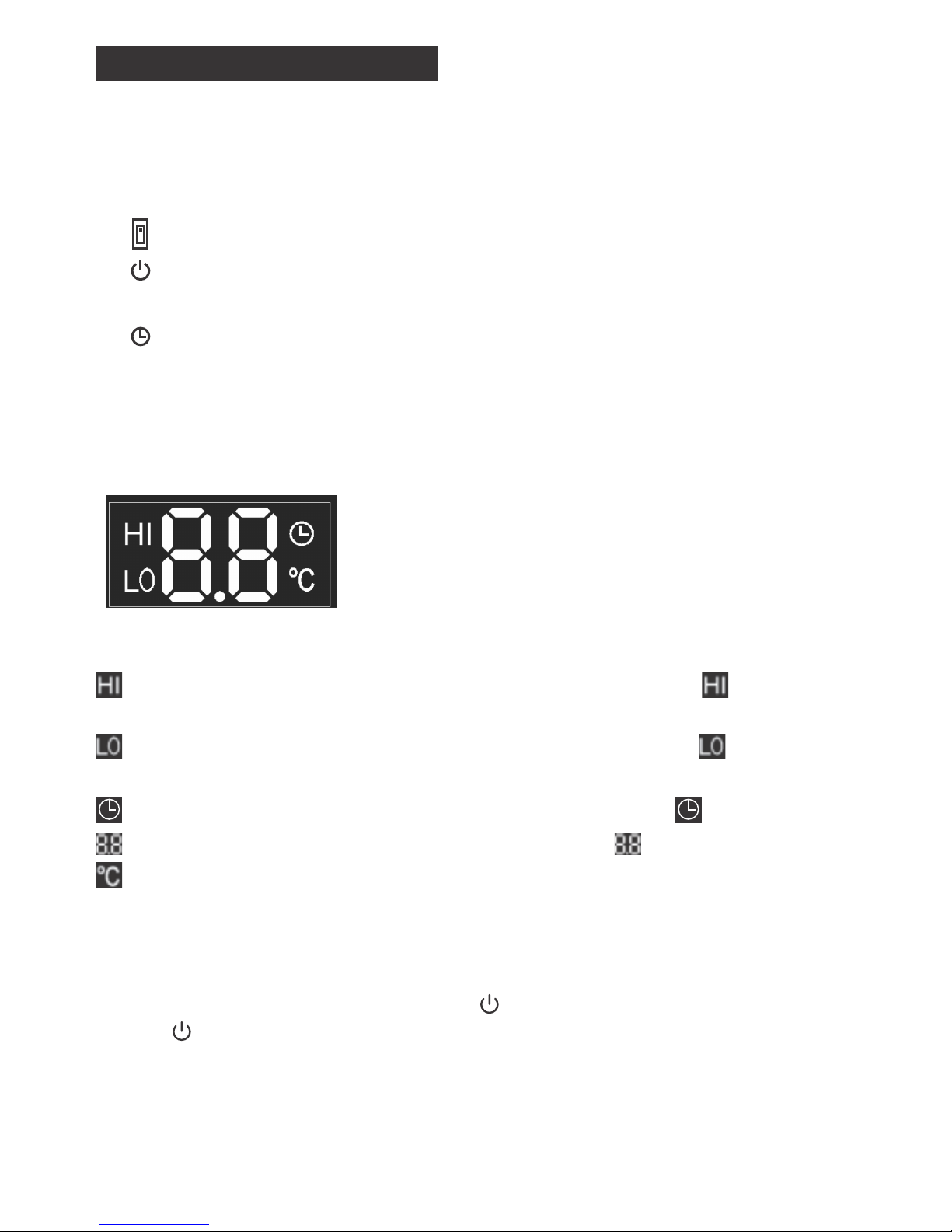

OPERATING INSTRUCTION

There are 6 function buttons on the side of the heater (see Fig 6),

function are as follows:

SYMBOL FUNCTION

Main power switch “I/0”

Display & function ON/OFF

M Heating mode: HIGH/LOW

Timer setting

+ Increase the temperature and timer setting

- Decrease the temperature and timer setting

PRODUCT DIGITAL DISPLAY OVERVIEW

Description of each symbol

: High setting: when the high setting is selected, the “ ” digit in the

display will illuminate.

: Low setting: when the low setting is selected, the “ ” digit in

the display will illuminate.

: Timer: when the ON/OFF timer is set to ON, the will illuminate.

: When setting the temperature or timer, the digits will ﬂash.

: Displays the current room temperature.

Turning on the heater

Plug the heater into the mains supply; press the main “I /0” switch to the

" I " position, then press the button to turn the heater ON. Press the

button again to turn the heater OFF.

Setting the heating mode

There are two heat settings on this heater (the default setting is High),

press the “M” button to select the heating setting.

1. High: 1500W, will illuminate.

2. Low: 750W, will illuminate.

Setting the temperature

In order to set the temperature, the heater has to be working at heating

mode: High or Low. Press the "+" or "-" button, the temperature digit

will ﬂash, continue to press the "+" or "-" button to set the desired

temperature (temperature range: 5 - 35 °C). After about 5 seconds

without pressing, the display will show the current temperature, now the

desired temperature is set.

NOTE: If the current temperature is higher than the set temperature, the

heater will stop working, for example, you set 20°C, but room

temperature is 25°C, the heater will not work.

Timer setting

A: Setting the timer to turn heater ON automatically

In order to set this function, the heater must be turned off ﬁrstly. Press

the timer button , will illuminate and “0” will ﬂash on the display.

Press “+” or “-“button to set the desired time (0 - 24hrs) for the heater to

turn on automatically. After the time is set, the room temperature will

show on the display.

B: Setting the timer to turn heater OFF automatically

In order to set this function, heater must be in working status. Press the

timer button , will illuminate and “0” will ﬂash on the display. Press

“+” or “-“button to set the desired time (0 - 24hrs) for the heater to turn off

automatically. After the time is set, the room temperature will show on

the display.

C: Cancelling a timer setting

When the timer indicator is illuminated, pressing the button will cancel

the timer setting.

D: Checking the ON/OFF time

When the ON/OFF timer is set, press the to check the time setting.

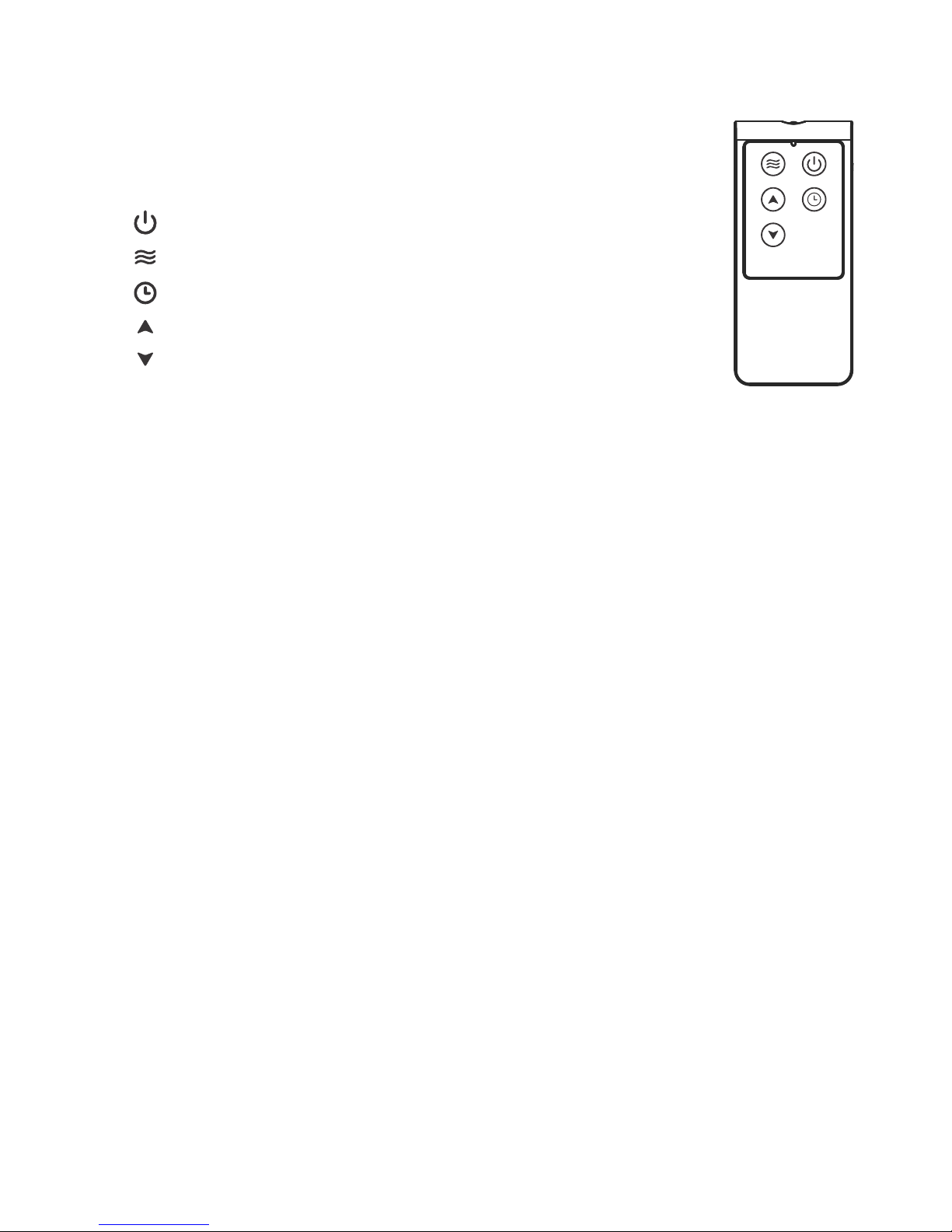

Using the remote control

There are ﬁve function buttons on remote control, function are as

follows:

SYMBOL FUNCTION

Display & function ON/OFF

Heating mode: HIGH/LOW

Timer setting

Increase the temperature and timer setting

Decrease the temperature and timer setting

The remote control function is same as the button on the heater body, it

allows you to operate easily. When using remote control, it should be

aimed at receiving window of the unit, effective distance is around 6

meters.

If the remote control does not operate the unit when pointed directly at it,

replace the battery.

a) Open the cover, remove the old battery and replace with the same

battery type. Always observe the correct polarity when installing the

battery.

b) Do not mix new and old batteries.

c) Replace a battery immediately once it is exhausted to prevent

leakage.

d) Remove the battery if the remote control is not used for long periods.

e) Do not attempt to recharge non-rechargeable battery.

f) Do not dispose of the battery in a ﬁre as they may explode.

TROUBLE SHOOTING

If your heater fails to operate, please follow these instructions:

1. Ensure that your circuit breaker or fuse is working properly.

2. Be sure the heater is plugged in and that the electrical outlet is

working properly.

3. Check for any obstruction. If you ﬁnd any obstruction, turn the heater

off. Unplug the heater and wait a few minutes for it to cool down.

Carefully remove the obstruction.

4. Plug the heater in and turn it on again by referring to the OPERATING

INSTRUCTION.

CLEANING AND MAINTENANCE INSTRUCTION

Warning! Always disconnect the mains power supply and allow it to cool

completely before cleaning the unit.

The outside can be cleaned by wiping it over with a soft damp cloth.

Wipe dry with a clean cloth before operating the heater. Do not use

abrasive cleaning powder or solvents.

This heater requires no particular maintenance.

To store your product in the off-season, we recommend using the

original (or appropriately sized) box. It is important to keep it in a safe,

dry location.

REMEMBER - portable electric heaters are designed for spot heating,

or as a supplementary heat source. They are not intended to be main

sources of heat during the normal heating season.

Note: There may be trace of smoke or odour when unit is ﬁrst operated.

Do not be alarmed. This indicates that a drop of oil fell on the heating coil

during the manufacturing process. It will quickly evaporate, and should

not re-occur.

TECHNICAL SPECIFICATIONS

Model No.

NDK15-12K

Voltage

220-240V AC

Frequency

50Hz

Power

Low 750W / High 1500W

Indice

Altri manuali Midea Stufa

Midea

Midea NY2009-20M Manuale utente

Midea

Midea NY2311-20MR Manuale utente

Midea

Midea NY2513-20M Manuale utente

Midea

Midea HO-0279 Manuale utente

Midea

Midea NF20-16BA Manuale utente

Midea

Midea NF20-18URB Manuale utente

Midea

Midea NF15-16D Manuale utente

Midea

Midea NY1506-18SRA Manuale utente

Midea

Midea NY1507-17LA Manuale utente

Midea

Midea NDK20-21AE Manuale utente

Midea

Midea NTH20-17BR Manuale utente

Midea

Midea Eco NTY15-19CA Manuale utente

Midea

Midea NY1507-20M Manuale utente

Midea

Midea PHO15A2AGB Manuale utente

Midea

Midea NTH21R Manuale utente

Midea

Midea NTH20-20JRA Manuale utente

Midea

Midea NTH15-22GR Manuale utente

Midea

Midea NY2311-20ME Manuale utente

Midea

Midea NY23ECF-13L Manuale utente

Midea

Midea NTY15-19CAE Manuale utente

Midea

Midea NTH15-18MR Manuale utente

Midea

Midea NYERF Manuale utente

Midea

Midea NT20-22E Manuale utente

Midea

Midea NTY15-22EA Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
