Midea NTH15-20AR Manuale utente

Product Model

NTH15-20AR

Product No.

22057014001339

Revision No.

D. 1

Version Date

April 20, 2020

Version Page

Heater NTH15-20AR Type Maintenance Manual

Prepared by: LI Chaoliang

Countersigned by: Luo Jin, Qin Jiesen

Approved by: Tan Chengbo

1. Preparation (structural engineer) → countersignature (electronic control, domestic sale/export market support)

→ approval (development leader)

2. For products of any development level, the process must be started to output the maintenance manual

3. The preparation purpose of the Manual is to guide the market maintenance after the new product is launched,

and the using objects are pre-sales and after-sales maintenance outlets.

Pre-sales disposal of defective products by the agent: Including product packaging, appearance, structure,

performance fault

Consumer after-sales service maintenance: Mostly product appearance, structure, performance fault

4. The mobility of market service outlets and personnel is higher, and even the maintenance personnel have never

contacted the products in the earlier stage and completely rely on the Manual in the process, so the accuracy and

completeness of the information must be ensured.

5. When the PLM process of the Maintenance Manual is started, please attach the following decryption annexes, as

shown at right:

Manual PDF documents (Daily Maintenance Manual + Quick Start Manual, or Operating Instruction)

Exploded view PDF documents + Exploded view source file (source file format: dwg or svg)

Circuit diagram PDF documents (control board + power panel)

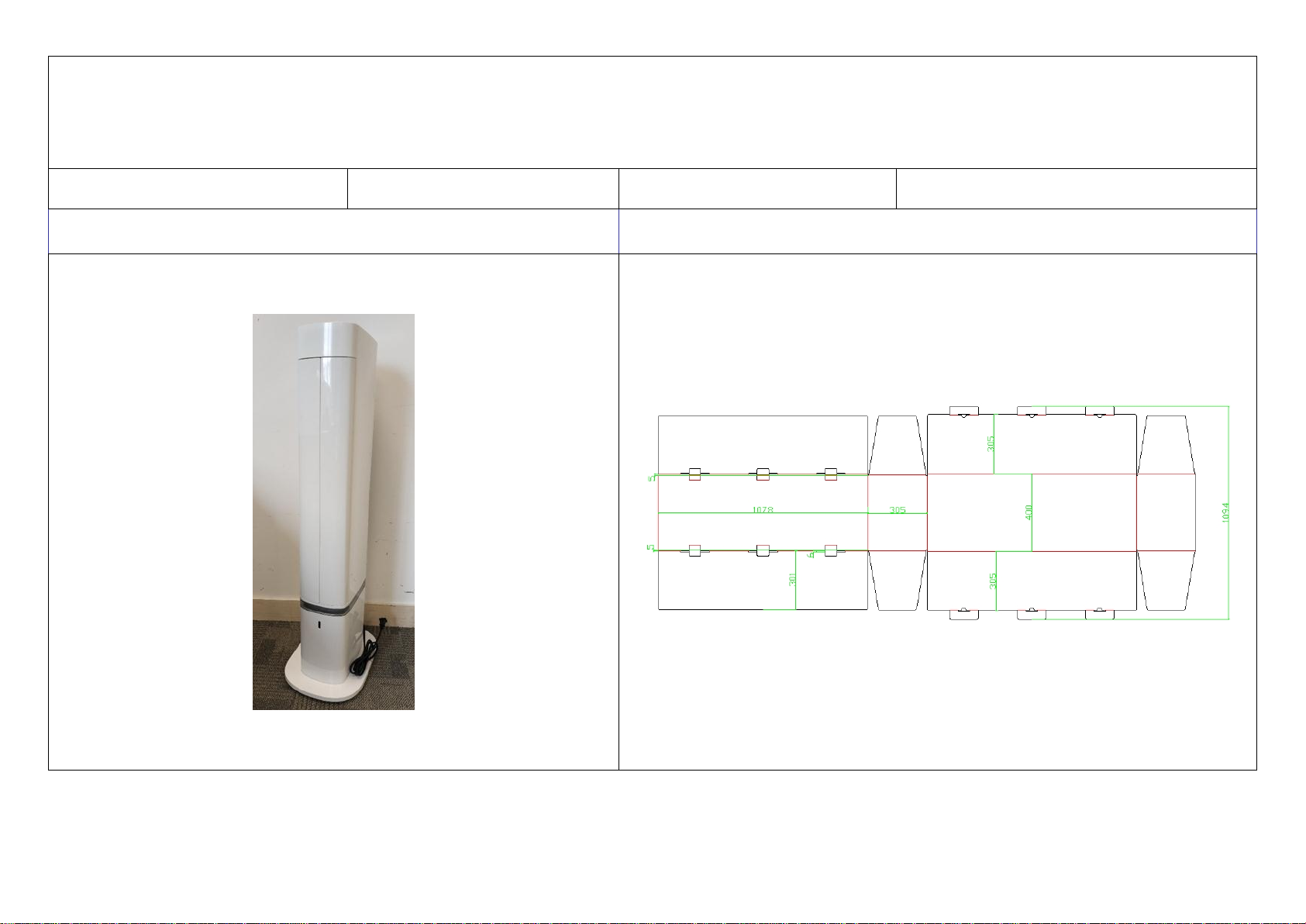

I. Picture of the Whole Machine of the Product

Product model

NTH15-20AR

Product code

Picture of the whole machine

Packaging picture

II. Product Manual

III. Components List

Position

number

of the

exploded

view

Part code

Name of parts

Description of part materials

Picture of parts

Number

of parts

used

Procurement

attribute

Whether it is

the sample

confirmation

Remarks

(Optional)

17456000000035

Fan capacitor

CBB61-P2 ，IEC/EN 60252-1:

2010+A1UL810 5,0µF, AC 250

50/60Hz P2

Yes

12157000009072

Panel

Panel NTH15-20AR_SJ-10

REACH, RoHS FRPC transparent,

painted, silk screen, white /

MDW030

12157000007379

Top shell

Top shell HFY22ES_SJ-09

REACH, RoHS FRABS Black/

MDB001

17457000003384，

Fan capacitor

Fan capacitor TF. C2M RoHS,

REACH CQC, 4,0µF, AC 250 V,

50/60Hz P2

17156000011205

Control

circuit board

Control circuit board NYCB207

REACH, RoHS NTH15-20AR

GB/GS/UL, Self-made

12157000007131

Decorative

parts

Decorative parts HFY22ES_SJ-16

REACH, RoHS ABS Silver

12157000007052

Water tank

Water tank HFY22ES_15 RoHS

Transparent PE with pin

components

12157000009070

Top cover

Top cover NTH15-20AR_SJ-02

RoHS FRPC, Transparent, Back

silk screen and paint spraying,

power lamp ring laser engraving

V0 for European standard machine

17401203020233

Wiring

harness

Harness NTH22-RDX-01 REACH,

RoHS PVC UL2651 The terminal

model and plastic shell color are

described according to the drawing

26AWG, Gray wiring, Harness

sleeve wire, a total of 6 pieces

12157000007377

Filter screen

Filter screen HFY22ES_SJ-28

REACH, RoHS PP

17156000011206

Control

circuit board

Control circuit board NYCB206

REACH, RoHS NTH15-20AR

GB/GS/UL Keyboard plate

(Self-made), Self-made
