Service Manual

Vacuum Cleaner

V20U01ADS2NA

Contents

1Specifications…………………………………………………………1-2

2 Electrical Diagram…………..…………………………….…………..2

3 Schematic Diagram……………………………..…………………….3

4 Repair of Main Parts…………………………………….……………4

5 Trouble Shooting Chart………………………………………..…….5

6 Replacement Parts List……………………………… ………… ….6

7 Packing Instruction………… ……… ……………………… …….…7

Follow caution information wherever you see this symbol.

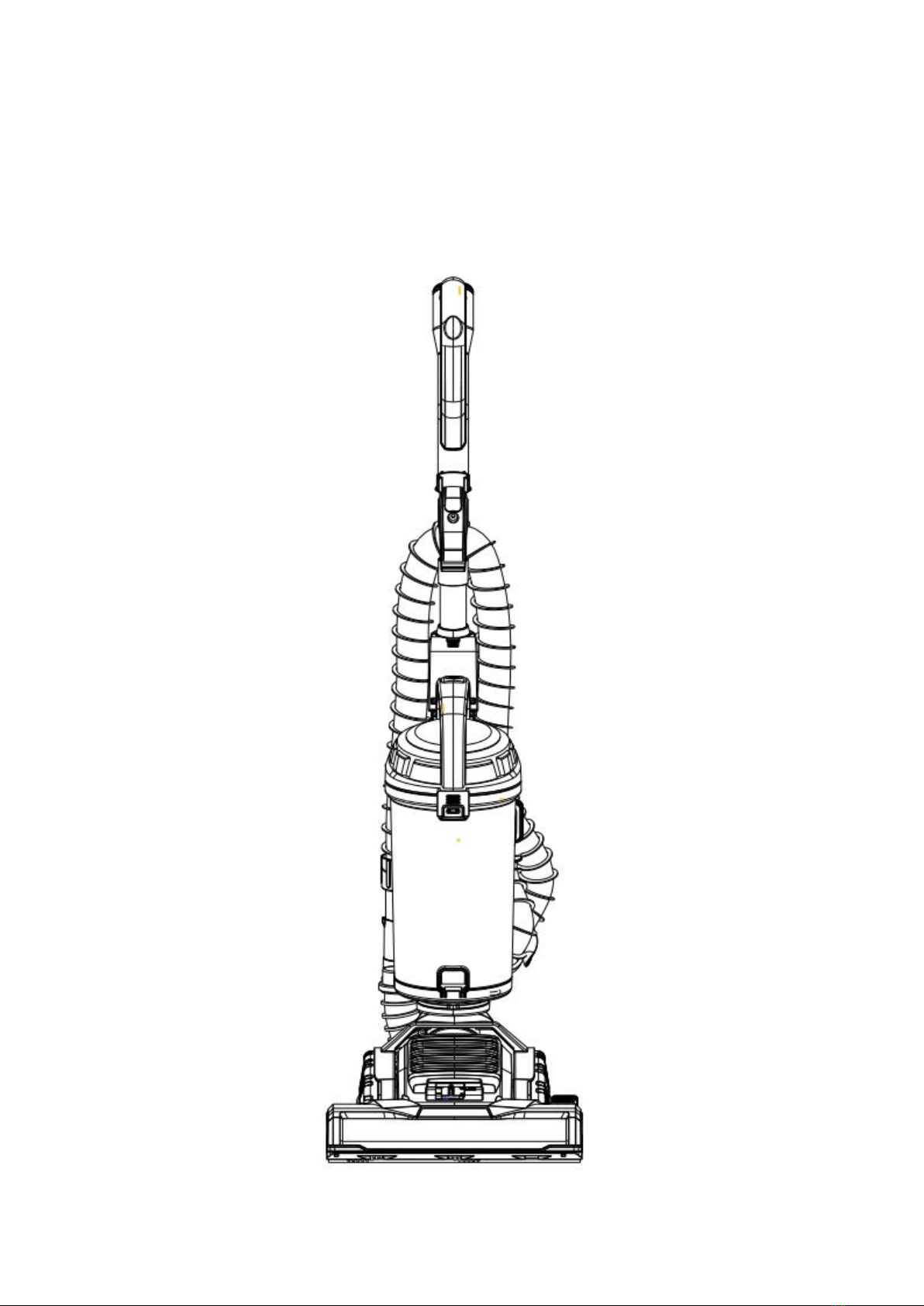

1 Spcifications

Model

V20U01ADS2NA

Power Source

AC120V,60Hz

Motor Power Max.

960W

Air Power

95W

Dust Capacity

2.1L

Cord Length

9meter

Weight(Main Body)

4.8kg

Mimension(WxLxH)

315*320*1100

Attachments

Crevice Tool/Brush tool/PET brush

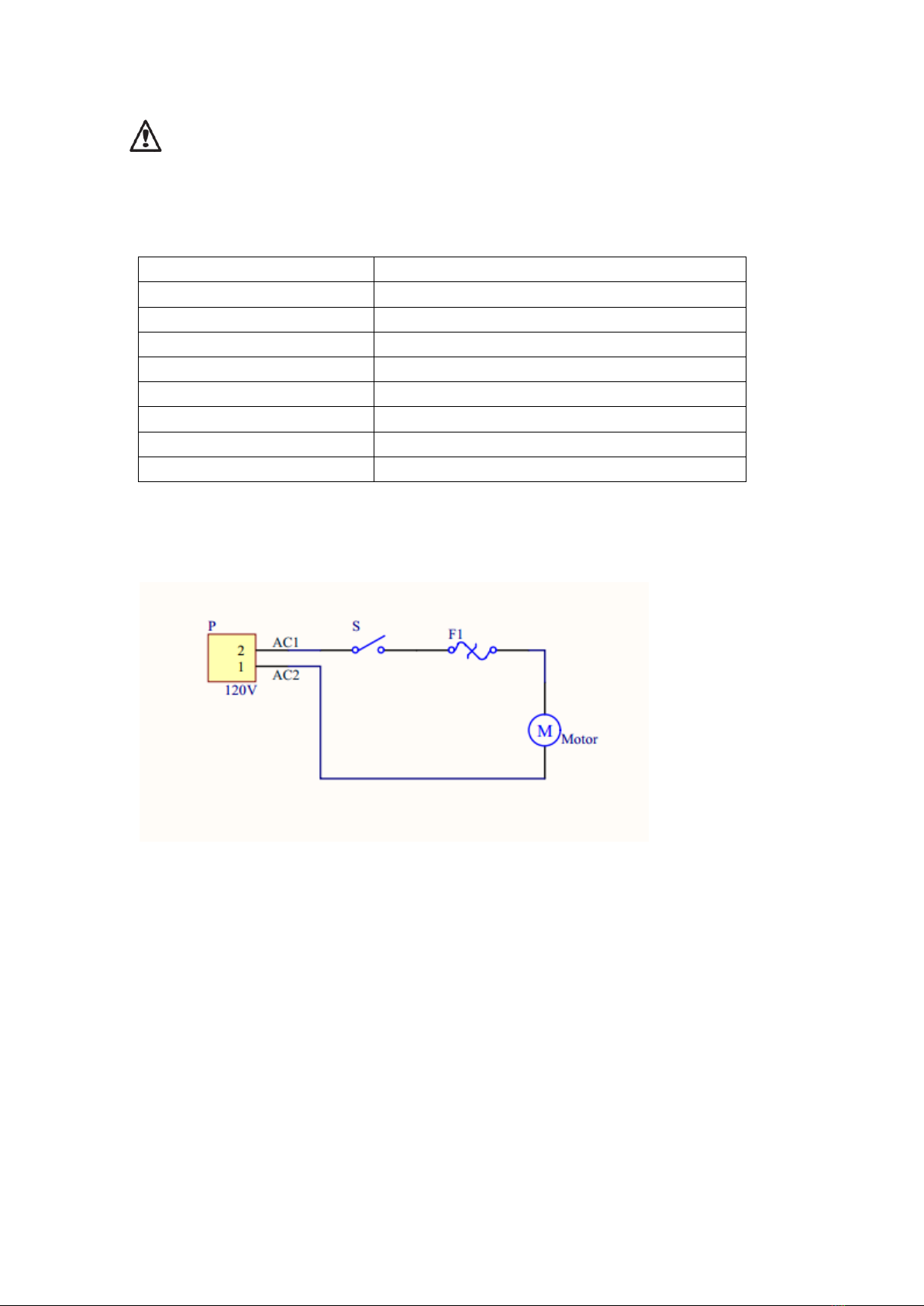

2 Electrical Diagram

3 Schematic Diagram

4 Repair of Main Parts

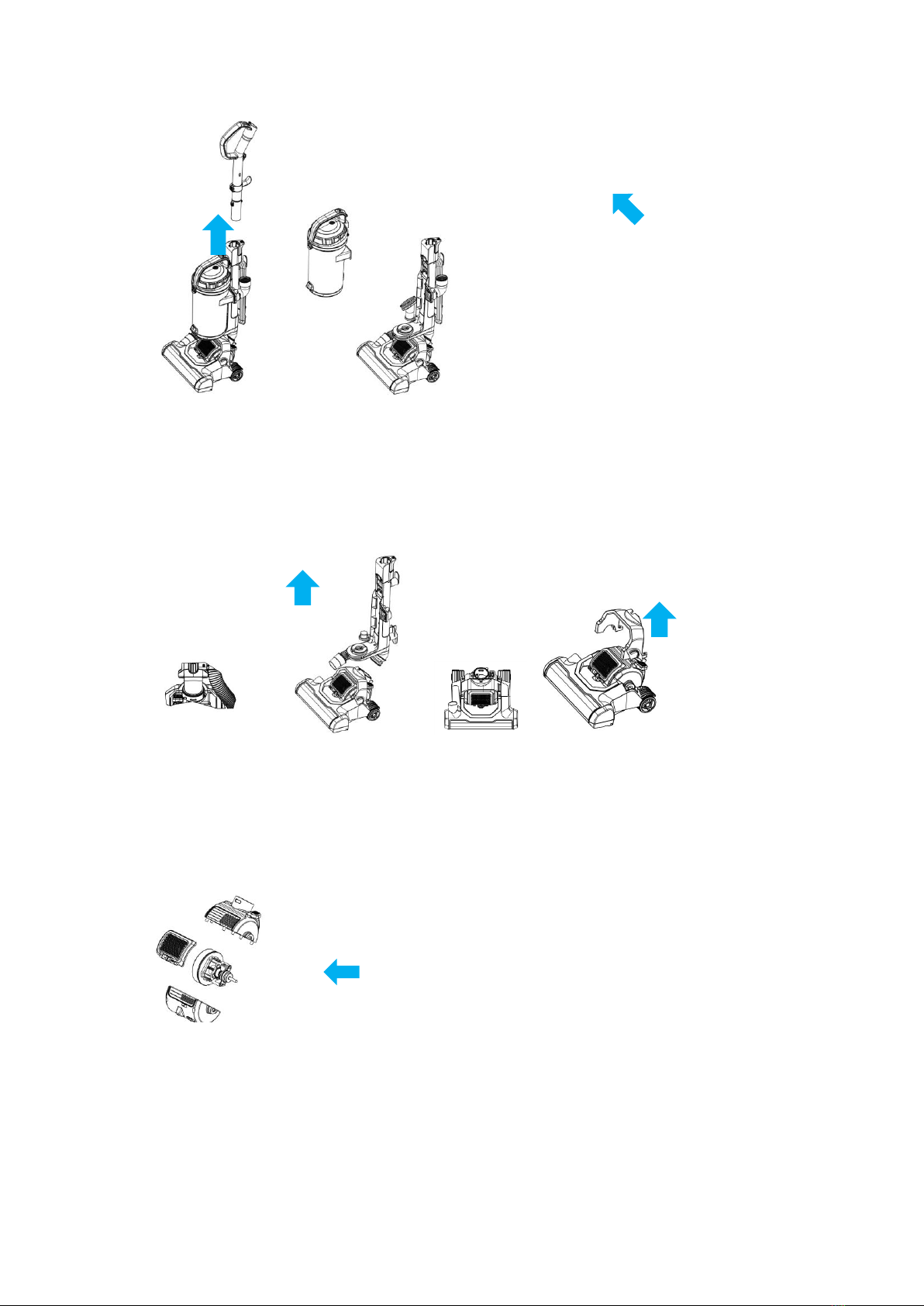

Removing

5 Trouble Shooting Chart

Press the handle release button and

remove the handle assembly.

Press the dust cup release

button and remove the dust

cup assembly.

Remove the screws shown above. Take

the upper body away from the machine

gently.

Remove the screws shown above.

Take the nozzole away from the

machine gently.

Remove the screws. Remove the

front motor cover.

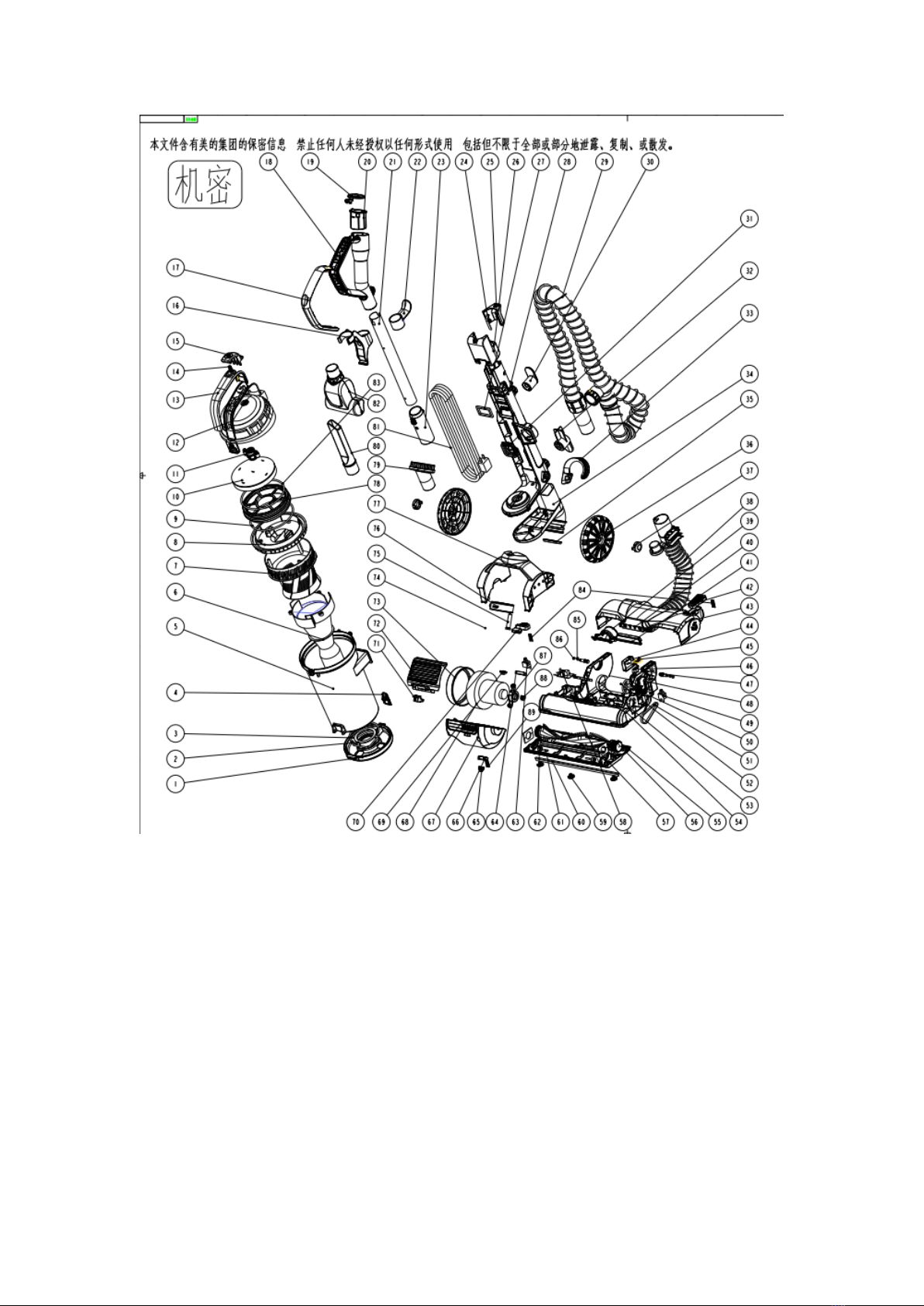

6 Replacement Parts List

No.

Part Name

Part Code

Specs.

QTY

Handle Assembly

12175000086861

L:179

W:47

H:538

Dust cup Assembly

12175000086815

L:167.5

W:150.5

H:390.5

Filter

12475000003027

D:φ109

H:22

Crevice Tool

12175000042829

L:38

W:38

H:184

Brush tool

12175000042828

L:101

W:49.5

H:75

Hose Assembly

12175000086858

D:φ35

L:380

PROBLEM

POSSIBLE

PROBLEM

Countermeasure

The vacuum cleaner is

plugged in but does not work

Power cord/ plug

damage

Check the power cord and plug for signs

of damage.

Switch is not

turned on

Press the on/off switch

The suction is decreasing and

the vacuum is not picking up

dirt

Dust container

Check if the dust container is full, if so,

empty it.

Hose get jammed

Clean the hose.

Filters are dirty

Clean the filters.

Leak ash of dust cup

Seal rubber is not

installed

Reinstall the seal rubber

Filter cover has ash sprayed

The dust cup filter

is not installed

Reinstall the dust cup filter.

The dust cup filter

is broken

Change the dust cup filter.

After turning on the unit, the

motor runs but brush doesn't

rotate

Brush get jammed

Without plug in and clean the brush,

please refer the manual for details how to

clean

Check if the belt

broken or not

Apply replacing the belt

The air coming out of the

vacuum cleaner smells

Filters are dirty

Clean the ﬁlters.

Filters are not dry

Ensure the ﬁlters have been left to

dry for 24 hours before reﬁtting back into

the vacuum cleaner and using.

Belt

12175000086829

Pet brush

12175000086813

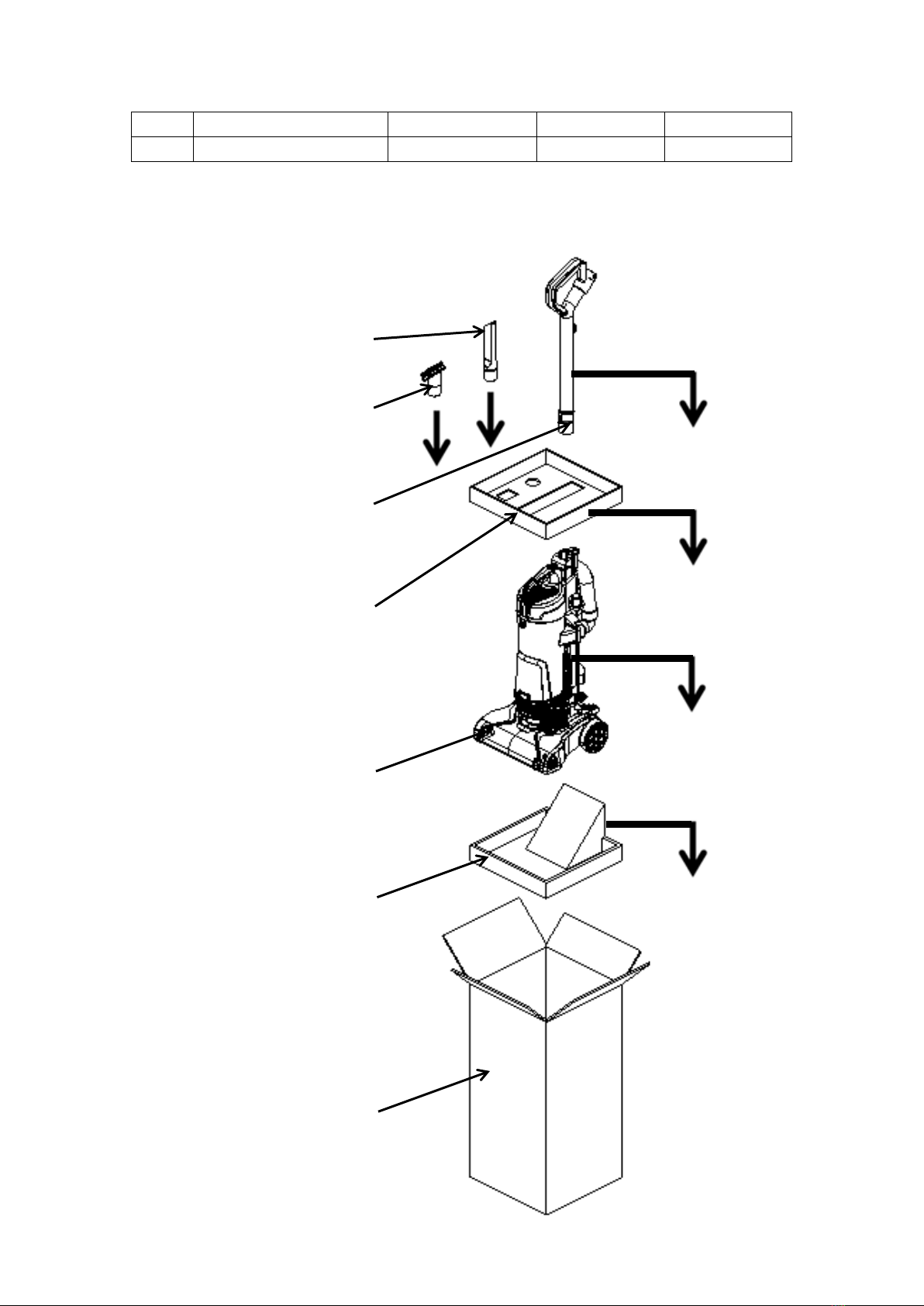

7 Packing Instruction
