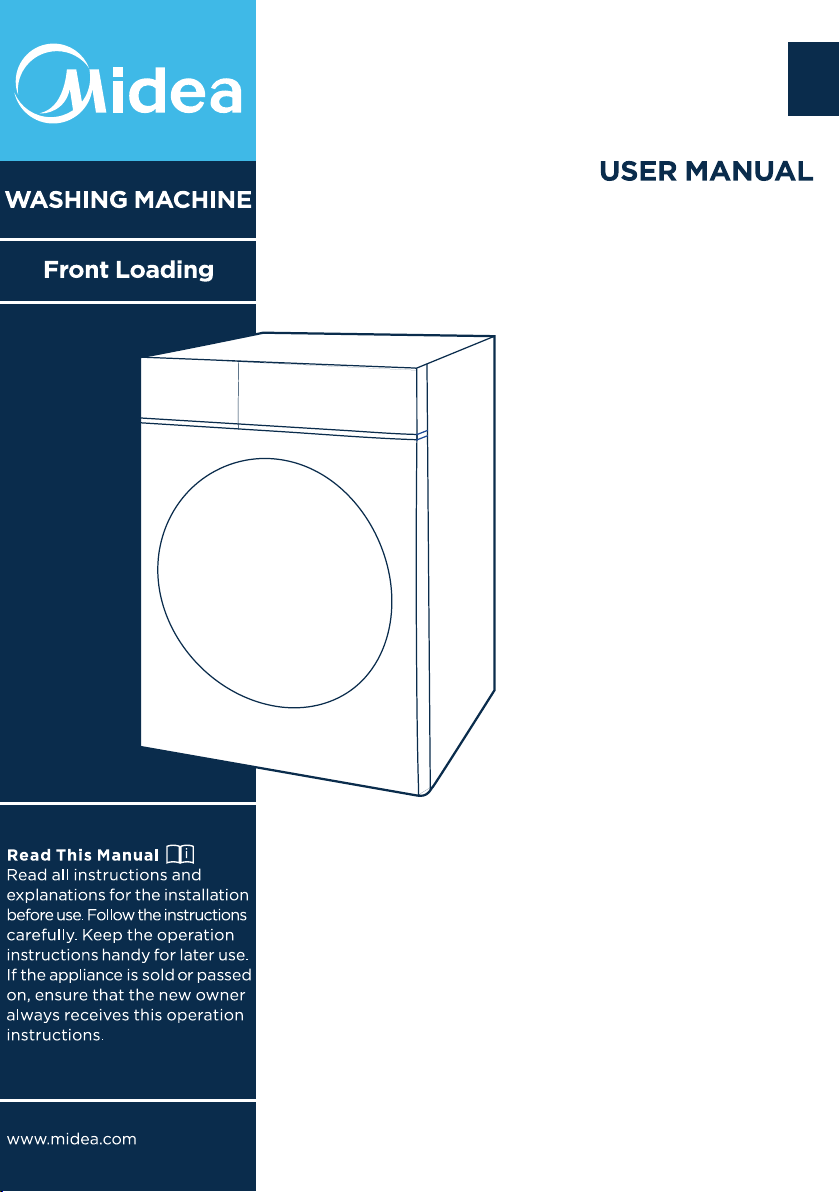

Midea MF200W90WB Series Manuale utente
Read all instructions and explanations for
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
appliance is sold or passed on, ensure
that the new owner always receives this operation instructions.
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual.
MODEL:
MF200W90WB Series
MF200W100WB Series
EN
1
Congratulations to your new machine !
This user manual will help you discover all the benefits of your machine and use
it the way you want.
We strongly recommend that you read this manual carefully before using
the washing machine for the first time.It contains important safety instructions
and information relating to the installation, operation and maintenance.Proper
handling contributes to efficient, environmentally friendly and safe use and
minimises energy consumption during operation. Please always keep the proof
of purchase to preserve any warranty claims.
This manual includes instructions for setting up your SmartHome App
“MSmartHome” as well.
These instructions for use are in general terms. This means: Certain functions
apply to your machine, while others do not. We are continuously working on
the further development and improvement of our unit types and models.
Therefore, we reserve the right to make changes to the design, features and
accessories of all types and models without prior notice.
On our website www.midea.com you can also download the user manual in
digital form and discover other products. We hope you enjoy using your
machine.
Danger
This symbol indicates that there are dangers to the life and health
of persons due to extremely fammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Explanation of symbols
Warning
The signal word indicates a hazard with a medium level of risk which,
if not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which,
if not avoided, may result in minor or moderate injury.
Notice
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
Notes with this symbol indicate that you should read the operating
instructions carefully.
Observe instructions
This symbol indicates that a service technician should only operate
and maintain this appliance in accordance with the operating
instructions.
CONTENTS
2
4 MAINTENANCE .......................................
4.1 Cleaning and Care ...............................
Cleaning the Cabinet...........................
Cleaning the Drum ..............................
Cleaning the Door Seal and Glass..
Cleaning the Inlet Filter .....................
Cleaning the Detergent Dispenser..
Cleaning the Drain Pump Filter........
Emergency Door Release..................
4.2 Trouble Shooting..................................
4.3 Customer service..................................
5 TECHNICAL SPECIFICATION ................
6 TESTING METHODS ...............................
7 SMART FUNCTION .................................
INSTRUCTIONS
Safety Instructions ................
INSTALLATION
Product Description ............
2.2 Installation ...........................
3 OPERATION
Quick Start ..............................
3.2 Before Each Washing ..........
3.3 Detergent Dispenser ..........
Control Panel .........................
3.5 Display .....................................
3.6 Programmes............................
1 SAFETY .................
1.1 .........
2 ......................................
2.1 ..........
Accessories ......................................
............
Installation area ..............................
Unpacking the machine................
Remove transport bolts ...............
Levelling the machine....................
Connect the water supply hose
Drain Hose ........................................
Acoustic Sponge ............................
......................................
3.1 .........
.........
...........
Detergent Recommendation .....
3.4 ..........
.........
..........
3.7 Option..................................................
3
3
11
11
11
12
12
13
13
14
14
14
15
16
16
19
20
21
22
23
24
27
32
32
32
32
32
33
34
35
36
37
38
39
40
41
Please read the following safety information
thoroughly and follow it strictly to minimize the
risk of fire or explosion, electric shock and to
prevent property damage, personal injury or
loss of life. Failing to follow these instructions
shall void any warranty.
1 SAFETY INSTRUCTIONS
1.1 Safety Instructions
3
INTENDED USE
The product is intended only for home use and for textiles in household
amounts suitable for washing. This appliance is for indoor use only and
not intended for built in use. Only use according to these instructions.
The appliance is not intended for commercial use.
Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
This appliance is intended to be used in household and similar
applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes.
•
Warning!
This combination of symbol and signal word
indicates a potentially dangerous situation
which may result in death or serious injuries
unless it’s avoided.
indicates a potentially dangerous situation
which may result in slight or minor injuries.
This combination of symbol and signal word
Caution!
This combination of symbol and signal word
indicates a potentially dangerous situation
which may result in slight or minor injuries or
damage to property and the environment.
Note!
1 SAFETY INSTRUCTIONS
4
ELECTRIC SHOCK HAZARD
Warning!
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid
a hazard.
If the machine is damaged, it must not be
operated unless repaired by the manufacturer,
its service agent or similarly qualified persons.
Risk of electric shock!
The appliance can be used by children aged
from 8 years and above and persons with
reduced physical,sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
Children should be supervised that they do not
play with the appliance.
Children 3 years and under shall be kept away
from the appliance or continuously supervised.
Animals and children may climb into the
machine. Check the machine before every
operation.
Do not climb or sit on the appliance.
•
•
•
•
•
•
•
•
1 SAFETY INSTRUCTIONS
5
INSTALLATION LOCATION AND
SURROUNDING
All washing and additional substances are to
be kept in a safe place out of the reach of
children.
Do not install the machine on a carpet floor.
The obstruction of the openings by a carpet
can damage the machine.
Keep the appliance clear from heating sources
and direct sunlight to avoid plastic and rubber
parts to corrode.
Do not use the appliance in humid
environments or rooms containing explosive or
caustic gas. In case of water leakage or water
splashes let the appliance dry in the open air.
The appliance must not be installed behind a
lockable door, a sliding door or a door with a
hinge on the opposite side to that of the
washing machine .
Do not operate the machine in rooms with a
temperature of below 5°C. This can cause
damages to parts of it. If it is unavoidable,
make sure to drain the water completely from
the appliance after every use (see
“Maintenance - Cleaning of drain pump filter”)
to avoid damages caused by frost.
Never use flammable sprays or substances in
the immediate proximity of the appliance.
•
•
•
•
•
•
•
•
1 SAFETY INSTRUCTIONS
6
INSTALLATION
Remove all packaging material and transport
bolts before using the appliance. Otherwise,
serious damage may result.
This appliance is equipped with a single inlet
valve and can be connected to the cold water
supply only.
Mains plug must be accessible after installation.
Before washing clothes for the first time, the
product shall be operated once throughout all
the procedures without any clothes inside.
Before using the washing machine, the product
shall be calibrated.
Do not put any excessively heavy objects on
the appliance, like water containers or heating
devices.
The new hose-sets supplied with the appliance
are to be used and that old hose-sets should
not be reused.
Max. Inlet water pressure 1 MPa. Min. inlet water
pressure 0.05 MPa.
•
•
•
•
•
•
•
ELECTRICAL CONNECTION
Make sure the supply cable is not trapped by
the machine, it can get damaged.
Connect the product to a grounded outlet
protected by a fuse complying with the values
in the “ Technical specifications” table. The
grounding installation has to be made by a
qualified electrician. Ensure that the machine is
installed in accordance with the local
•
•
7
1 SAFETY INSTRUCTIONS
Don´t use multiple plugs or extension cords.
The appliance must not have an external
switching device such as a timer or
connected to a circuit that is regularly
switched on and off.
Do not pull the plug out of the mains outlet
if there is flammable gas around.
Never pull out power plug with wet hands.
Always pull at the plug, not at the cable.
Always unplug the appliance if it is not being
used.
Warning!
•
•
•
•
•
•
regulations.
Water and electrical connections must be
carried out by a qualified technician in
accordance with the manufacturer’s
instructions and local safety regulations.
•
WATER CONNECTIONS
Check the connections of the water inlet tubes,
the water tap and the outlet hose for possible
problems due to changes of water pressure. If
the connections loosen or leak, close the water
tap and get it repaired.
Do not use the appliance before the pipes and
hoses are installed properly by qualified
persons.
Glass door may become very hot during the
operation. Keep children and pets far away
from the machine while it is operating.
The water inlet and outlet hoses have to be
safely installed and remain undamaged.
Otherwise, water leakage can occur.
•
•
•
•
8
1 SAFETY INSTRUCTIONS
OPERATION AND MAINTENANCE
Do not remove the drain pump filter while there
is still water in the appliance. Big quantities of
water can leak out, and there is a risk of
scalding due to hot water.
•
Never use any flammable, explosive or toxic
solvents. Do not use gasoline and alcohol etc.
as detergents. Only select detergents that are
suitable for machine washing.
Make sure that all pockets are emptied. Sharp
and rigid items such as coins, brooches, nails,
screws, stones etc. may cause serious
damages to this machine.
Remove all objects from pockets such as
lighters and matches before use the appliance.
Thoroughly rinse items that have been washed
by hand.
Items that have been soiled with substances
such as cooking oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, wax and
wax removers should be washed in hot with an
extra amount of detergent before being dried
in the appliance.
Items containing foam rubber (latex foam),
shower caps, water proof textiles, rubber
backed articles and clothes or pillows fitted
with foam rubber pads should not be washed
in the machine.
Fabric softeners or similar products should be
used are recommended in their instructions.
Never try to open the door forcefully.
•
•
•
•
•
•
9
1 SAFETY INSTRUCTIONS
The door will unlock shortly after the end of a
cycle.
Please do not close the door with excessive
force. If it is found difficult to close the door,
please check if the clothes are properly
inserted and distributed.
Always unplug the appliance and close the
water tap before cleaning and maintenance
and after each use.
Never pour water over the appliance for
cleaning purpose. Risk of electric shock!
Repairs shall only be carried out by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
The producer will not be responsible for
damages caused by the intervention of not
authorized persons.
•
•
•
•
•
•
•
TRANSPORT
• Before Transport:
-Bolts shall be reinstalled to the machine by a
specialized person;
- Accumulated water shall be drained out of
the machine.
• This appliance is heavy. Transport with care.
Never hold any protruding part of the machine
when lifting. The machine door can not be
used as a handle.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Midea Rondella
Midea
Midea MA100W75 Manuale utente
Midea
Midea MA500W150 Series Manuale utente
Midea
Midea MF700S Manuale utente
Midea
Midea MLV47C4AWW Manuale
Midea
Midea FP-92LFC100GMTH-W2 Manuale utente
Midea
Midea MFW-1250MV2 Manuale utente
Midea
Midea MTE150-P2004S Manuale utente
Midea
Midea MFW-1655CV Manuale utente
Midea
Midea MTW55 Manuale utente
Midea
Midea FP-90LST060GMTL-N Manuale utente
Midea
Midea MLV45N1B Series Manuale
Midea
Midea MFL80-DU1403B/C14E-EU Manuale utente
Midea
Midea MF200W85B Series Manuale utente
Midea
Midea MFWG7514 Manuale utente
Midea
Midea MFW-EC850 Manuale utente
Midea
Midea MAD160-A2801GPS Manuale utente
Midea
Midea G06 Manuale utente
Midea
Midea MLV45N1BWWC Manuale
Midea
Midea MAC160-S2802TPS/FM Manuale utente
Midea
Midea MTWM80 Manuale utente
