Installation instructions

Information is subject to change. Please refer to our website to obtain the most

current product specification, technical & warranty information.

The installation steps are described in the enclosed "Installation Diagram".

Leave these instructions with the appliance for the consumer/user.

Information is subject to change. Please refer to our website to obtain the most

current product specification, technical & warranty information.

Disposal of packing material

The cardboard box and packing

materials protect the appliance during

shipping. They have been designed to

be biodegradable and recyclable.

Please recycle.

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of children.

Danger of suffocation!

Disposal of an old appliance

Old appliances may contain materials

that can be recycled. Please contact

your local recycling authority about the

possibility of recycling these materials.

Ensure that the appliance presents no

danger to children while being stored

for disposal. Before discarding an old

appliance, unplug it from the outlet, cut

off its power cord and remove any

doors to prevent hazards.

Caring for the environment

The machine must be connected to

the water supply in accordance with

local and national regulations.

Disconnect the machine from the

electrical supply before connecting

it to the water supply.

Turn off the water supply before

connecting the coffee machine to

the plumbing.

–All units and systems used to deliver

the water to the coffee system must

conform with the requirements of the

respective country.

– Only connect the machine to the

cold water supply.

– The machine can be connected

without a non-return valve.

– The on-site water line must have a

water shut-off valve to turn the water

off if needed. If not present, have a

water valve installed by a licensed

plumber.

–The water faucet must be accessible

after installation.

–Water pressure on-site:

Minimum: 14.5 psi

Maximum: 145 psi, if higher, install a

pressure reduction valve.

–Suitable 1/4" tubing or copper piping

must be supplied for plumbing.

–To ensure the best coffee quality, the

maximum length of the tubing or

copper pipe should not exceed 4 ft.

11" (1.5 m). If too much water

remains in the tubing the coffee

quality could be affected.

Make sure that the shut-off valve is

accessible after the unit has been

installed.

Parts must only be replaced with

original Miele spare parts, available

from Miele.

Plumbing

Installing the stainless steel

tubing in the unit

Make sure the stainless steel tube is

not kinked or damaged. Do not trim

stainless steel tube.

^Remove the water connection cover

at the lower rear side of the coffee

machine.

^Take the angled side of the stainless

steel tube and check whether the

sealing ring is in place. If necessary,

insert it.

^Place the union nut of the stainless

steel tube onto the screw thread.

^Make sure the fittings are tight.

Connection to the water

supply

Disconnect the machine from the

electrical supply before connecting

it to the water supply.

A faucet with a 3/4" connection thread

is required for the connection.

^Check whether the sealing ring is in

place. If necessary, insert it.

^Connect the stainless steel tube to

the shut-off valve.

You must only use the stainless steel

tube supplied. Old or used tubes

must never be connected to the

coffee machine.

^Make sure the fittings are tight.

^Slowly open the shut-off valve to the

water supply and check for leaks.

If necessary, check whether the

sealing ring and fittings are tight.

You can now continue with the

installation of the unit (see "Installation").

Plumbing

This product is tested and certified by the WQA against ORD0902 for California

"lead free" compliance.

Miele & Cie KG

Carl-Miele-Straße 29

D-3332 Gütersloh

Lead free certificate

Make sure that the power to the

machine is OFF before installing or

performing maintenance or repairs.

All electrical work should be

performed by a qualified electrician

in strict accordance with national

and local safety regulations.

Installation, repairs and other work

by unqualified persons could be

dangerous.

Verify that the voltage, load and circuit

rating information found on the data

plate match the household electrical

supply before installing the coffee

system.

Do not connect the appliance to a

power inverter or directly to power

produced outside of the normal

electrical grid (i.e. direct solar or wind

power source).

Direct connection to such power

sources can cause power surges and

tripped breakers when the appliance is

turned on, and could damage the

appliance.

Do not connect the appliance to energy

saving plugs or outlets. The reduction

of power to the appliance caused by

these devices will cause the appliance

to run hot and may damage it and/or

shorten its usable life.

If there is any question concerning the

electrical connection of this appliance

to your power supply, please consult a

licensed electrician or contact Miele’s

Technical Service Department. See

back page for contact information.

WARNING:

THIS APPLIANCE MUST BE

GROUNDED

Important

The coffee system comes equipped

witha6ft(1.8 m) power cord with a

NEMA 5-15P molded plug for

connection to a 120 V, 15 A, 60 Hz

power supply.

Electrical connection

Installation and combination options

The system is designed to be built into cabinetry.

Installation

It is also possible to combine it with other built-in Miele appliances. If the coffee

system is to be built in above another appliance, there must be a full-width, closed

shelf between them (exception: installation with a built-in warming drawer).

Installation

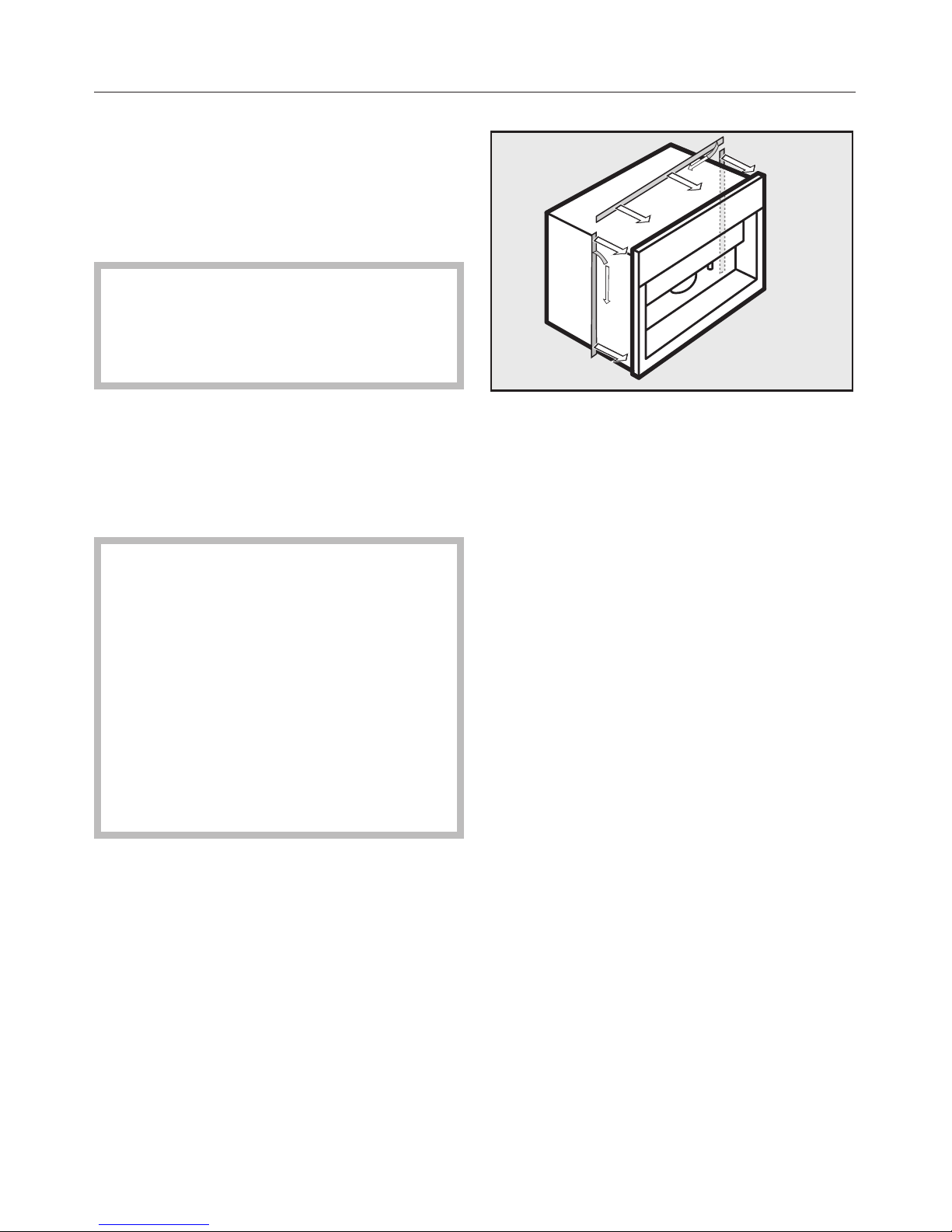

Ventilation

When installing the coffee system,

make sure that it is sufficiently

ventilated at the back so that steam

and hot air can escape.

The ventilation openings in the

surrounding cabinets and the space

below the ceiling must be at least

78 3/4"² (200 cm²).

Otherwise condensation can form,

causing damage to the coffee system

or the surrounding cabinets.

Installation

Make sure no power is supplied to

the unit. The same applies in the

event of disassembly!

When built into cabinetry, only use

the coffee machine in ambient

temperatures between +50°F/10°C

and +100°F/38 °C.

You will need two Allen wrenches

size 3 and 5 for the installation.

To align the unit door flush with the

kitchen cabinetry, there must be a

sealing strip around the installation

recess; otherwise, a sealing strip must

be put in place around the unit.

^If there is no sealing strip around the

installation recess, stick the Miele

sealing strip onto the unit from the

back before putting it into the recess.

The sealing strip is available from

Miele.

Installation

Tip: A place to set down the coffee

machine at the level of the installation

recess is helpful. This makes it easier

for you to install the unit's electrical and

water connections.

^Unscrew the four feet on the

underside of the unit by about 1/16"

(2 mm) using the larger Allen wrench.

The feet can be unscrewed by up to

3/8" (10 mm).

^Connect the unit to the water supply

(see "Plumbing").

^Connect the unit to the electrical

supply.

^Insert the coffee machine all the way

into the installation recess.

When inserting the unit into the

recess, make sure the electrical and

water supply connections are not

damaged.

^Check if the coffee machine is

centered and straight in the

installation recess. If not, align the

unit using the four feet.

The coffee machine is delivered with

four M5 Allen head screws that you can

use to align and fasten the unit in the

installation recess.

^Open the door and partially tighten

the screws.

^Align the unit by carefully adjusting

the lower Allen head screws until the

unit is centered in the installation

recess.

^To secure the unit in the cabinet,

tighten the upper Allen head screws

by hand.

Installation
