Miele KM 360 G Manuale utente

Installation Instructions

Gas cooktop

KM 360 G

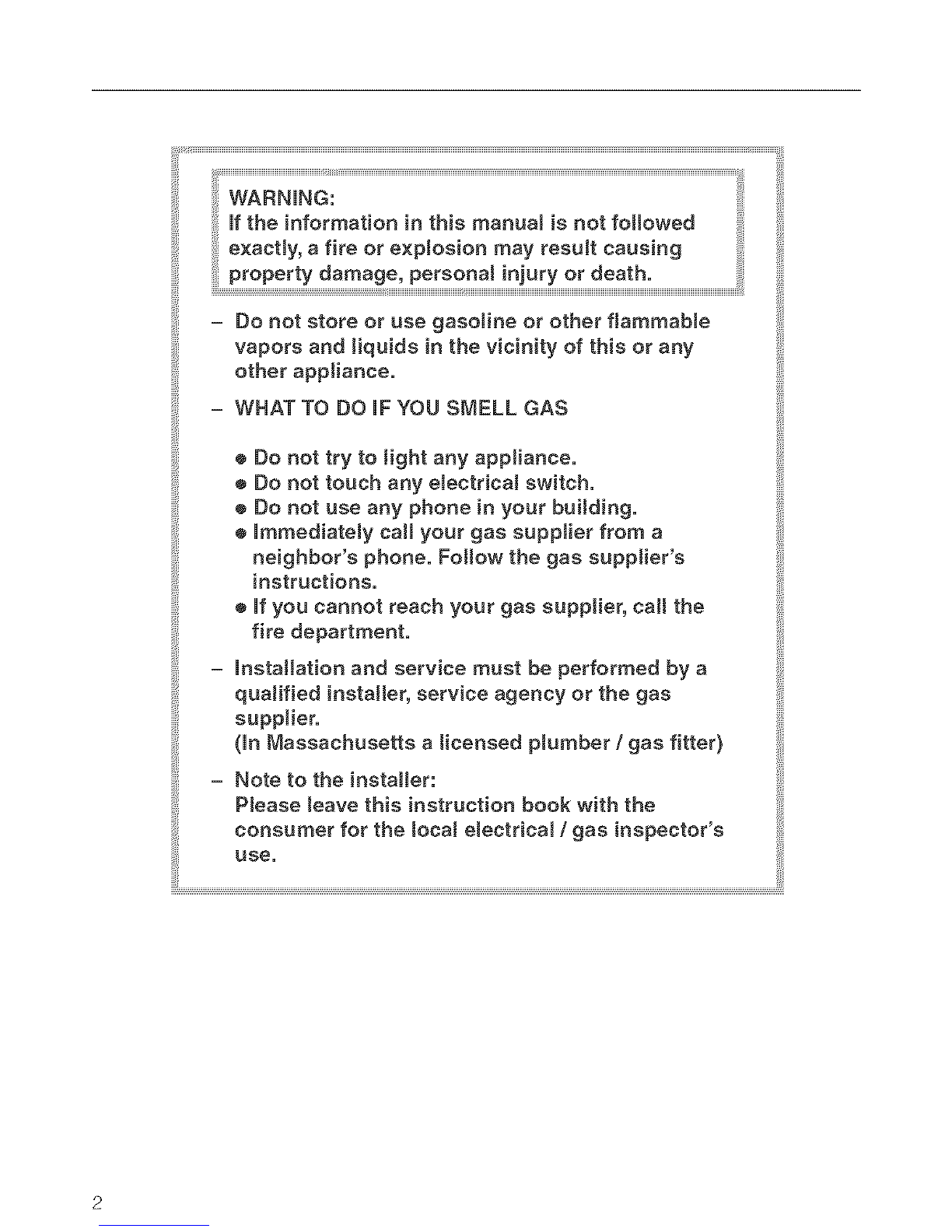

To prevent accidents and

machine damage,

read these instructions

before installation or use, M-Nr, 06 390 460

= Donotstoreorusegasolineorotherflammable

vaporsandJiquidsinthevicinityof thisorany

otherappliance.

=WHAT TO DO iF YOU SMELL GAS

® Do not try to Jight any appliance.

® Do not touch any etectricaJ switch.

® Do not use any phone in your building.

®immediately call your gas supplier from a

neighbor's phone. Follow the gas supptier's

instructions.

®mfyou cannot reach your gas supplier, call the

fire department.

mnstaHationand service must be performed by a

qualified installer, service agency or the gas

supplier.

(ranMassachusetts a ticensed plumber /gas fitter)

Note to the installer:

PJease teave this instruction book with the

consumer for the tocat electrical / gas inspector's

use,

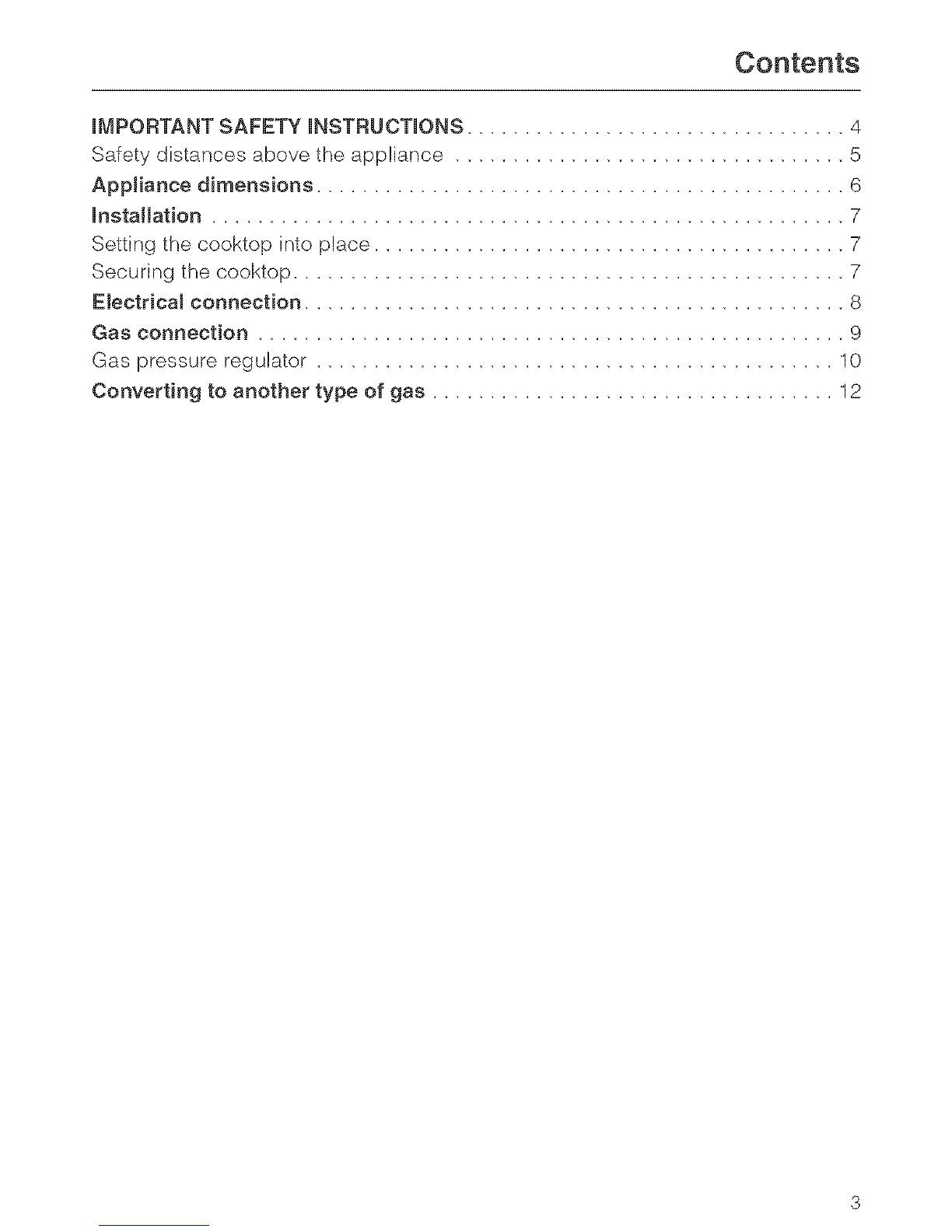

Contents

_iii}ii_i_i_i_iiiiiii_i_ii_i_i_i_ii_i_i`_`i_J_i_iii_iiiiiiiiiiiiiH_iiHiiiiii_i_i_i_`ii_i_iii_iii:_:_:_i_i_i!_ii_iii:iii_i_`_ii`iiiiii_i_iii_i_ii_i_i`i`i_i_iii_i_i_iii_HHiiiii_iii!_i_ii_i_i_i_iii_iii_i_ii:ii_i_iiii_iiiiiiii!i!ii_i_`i_i_`Xi`iiiiiii_i_i_i_ii_ii`ii_i_ii_i_ii_ii:i_iii`i_i_iii_i_iii_i_iii_i_ii_i_i`ii_iiiiiiiii!i_i!i_ii!i_iii`iii_i_i_i_iii!_i_i!_i!_iii!_i_ii_ii_i_`_ii`ii_i_iiiHii_iiii!iiii_i_iii_iiiiiii!_i!_i_:i_ii_:iii!`i_!_iiii_i_i_:ii_iii_`iii_i_i_i_i_i_i_:ii_iiiiiiiii_i_iii_ii_:_i_i_iii_

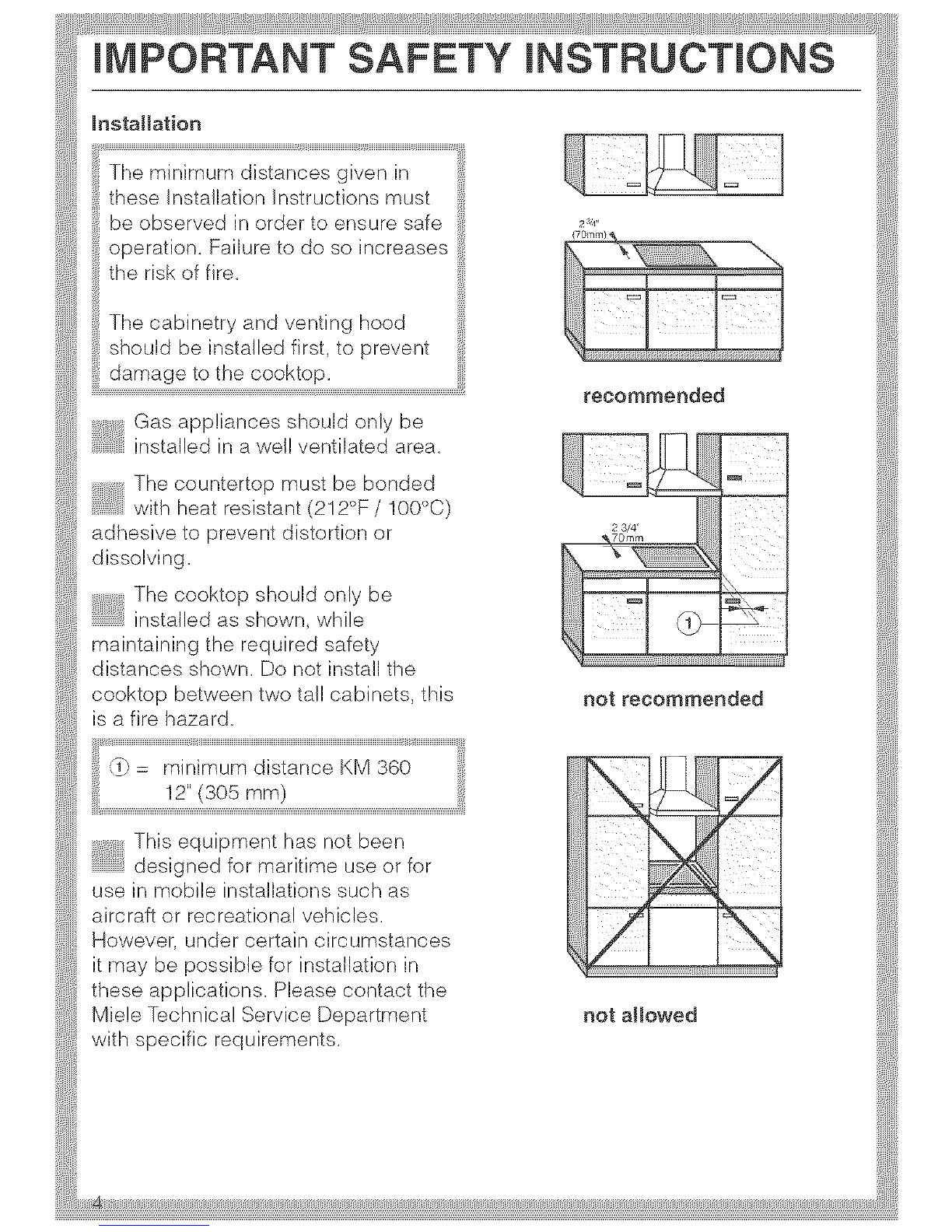

_MPORTANT SAFETY _NSTRUCT_ONS

installation

these Installation Instructions must

be observed in order to ensure safe

operation, Failure to do so increases

the risk of fire,

The cabinetry and venting hood

should be installed first, to prevent

damage to the cooktop.

Gas appliances should only be

}installed in a well ventilated area,

Theoountertopmustbebonded

with heat resistant (212°F/100°C)

adhesive to prevent distortion or

dissolving,

The cooktop should only be

,nstalledasshown,while

maintaining the required safety

distances shown, Do not install the

cooktop between two tall cabinets, this

is a fire hazard.

This equipment has not been

designed for maritime use or for

use in mobile installations such as

aircraft or recreational vehicles,

However, under certain circumstances

it may be possible for installation in

these applications, Please contact the

Miele Technical Service Department

with specific requirements,

2:W'

recommended

i i_ii:i_iiI

2 3/4

not recommended

not allowed

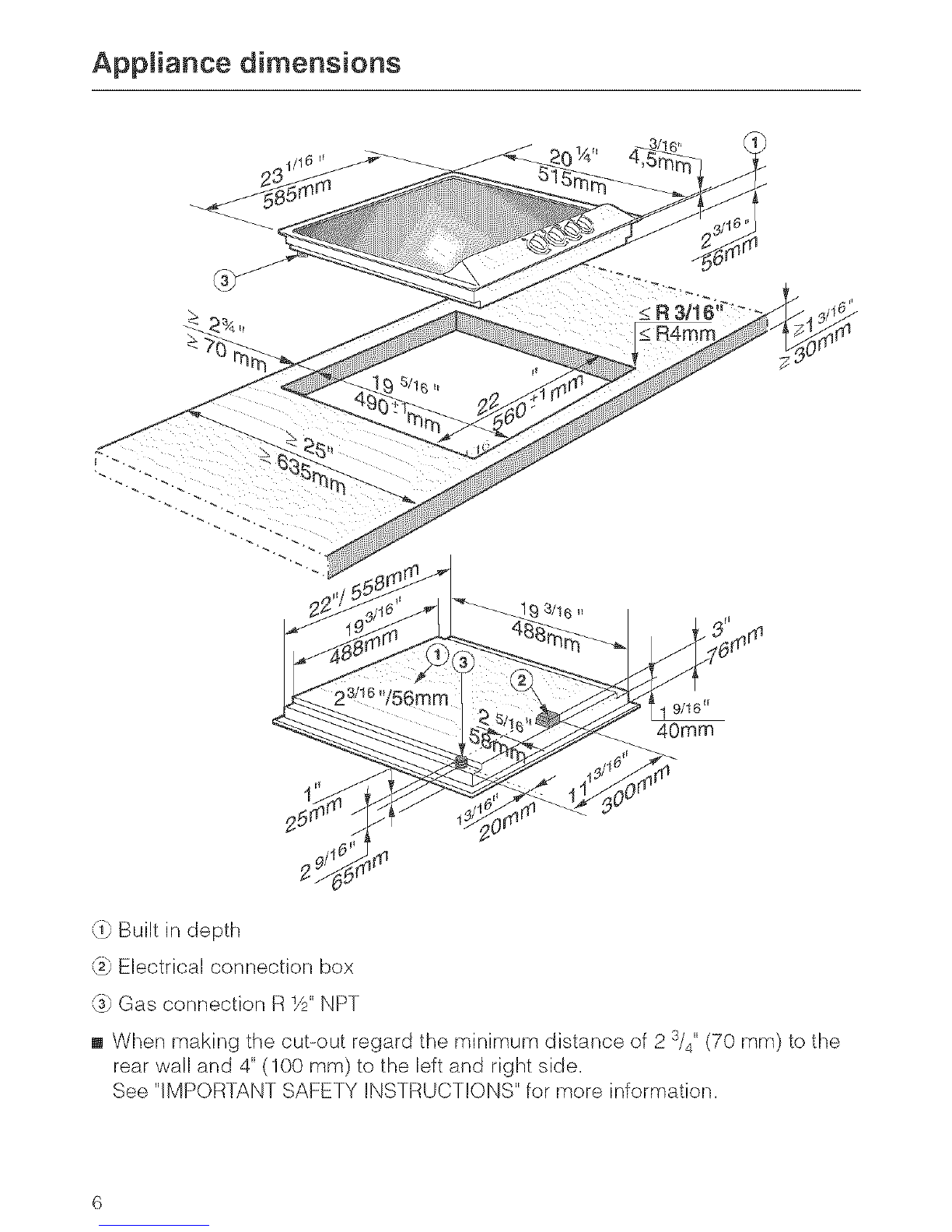

Appliance dimensions

40mm

(_ Built in depth

'_#Electrical connection box

,:s}Gas connection R 1//,NPT

[] When making the cut-out regard the minimum distance of 2 s/4"(70 mm) to the

rear wall and 4" (100 mm) to the left and right side,

See "IMPORTANT SAFETY INSTRUCTIONS" for more information,

installation

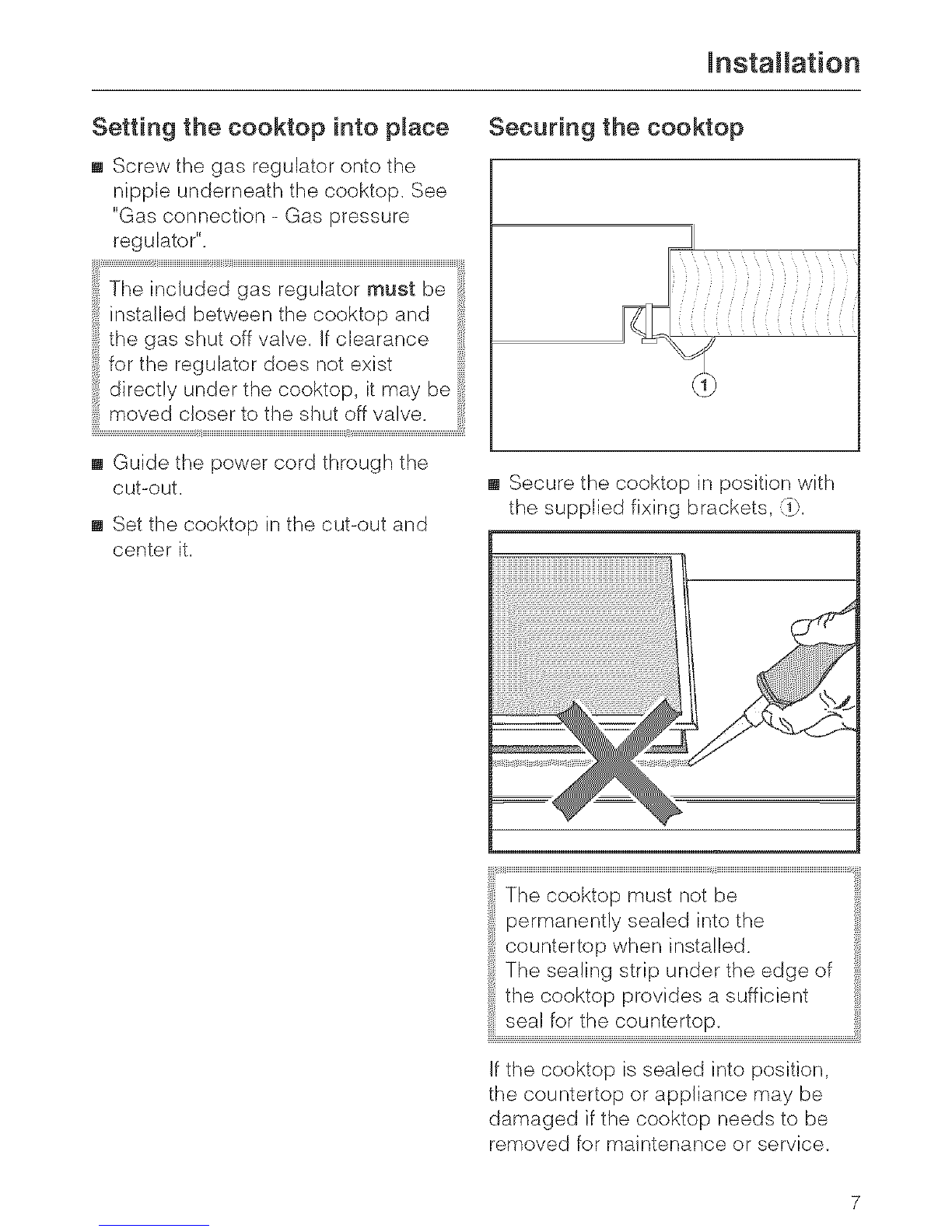

Setting the cooktop into p_ace

[] Screw the gas regulator onto the

nipple underneath the cook,top. See

"Gas connection - Gas pressure

regulator".

Securing the cooktop

i for the regulator does not exist ......

directly under the cook,top, it may be

moved closer to the shut off valve.

[] Guide the power cord through the

cut-out.

[] Set the cook,top in the cut-out and

center iL

[] Secure the cooktop in position with

the supplied fixing brackets, (_.

The cook,top must not be

permanently sealed into the

countertop when installed. !:

The sealing strip under the edge of

the cook,top provides a sufficient !i

seal for the countertop.

If the cooktop is sealed into position,

the countertop or appliance may be

damaged if the cook,top needs to be

removed for maintenance or service.

Electrical connection

three-prong grounding plug to

prevent shock hazards. It should be i:

plugged directly into a properly

grounded outleL Do not cut or

z_WARNING

Disconnect the appliance from the

main power supply before

installation or service. To reduce the

risk of electric shock, make sure that

the appliance is properly grounded

after installation.

Power supply

The automatic ignition requires that the

cooktop be connected to a 120 VAC,

60 Hz power supply. The supply line

should be protected by a 15 A breaker.

Actual power consumption (during

ignition only) is 25 W.

This appliance is equipped with a 4.5 ft.

(1.4 m) long power cord that is ready

for connection to the appropriate outlet.

Please place the power outlet so that it

is accessible after the appliance has

been installed in the countertop.

requirement be met. If there is any

doubt, have the electrical system of

the house checked by a qualified

electrician.

The manufacturer cannot be held

i responsible for damages caused by

the lack, or inadequacy, of an ............

Note to the installer

Please leave these instructions with the

consumer or the appliance.

Gas connection

This appliance must be installed

with its own shut off valve and the

included gas pressure regulator.

Both the valve and the regulator

must be easily accessible to the

consumer to turn on or shut off the

gas supply after the appliance is

installed.

This appliance and its individual

shut off valve must be disconnected

from the gas supply during any

pressure testing of the system

performed in excess of _' psi

(3.5 kPa). The machine must be

isolated from the gas supply line by

closing its individual manual shut off

valve at test pressures equal to or

less than _' psi (3.5 kPa).

Any pipe connections must be made

using a thread sealant approved for

gas connections. Failure to correctly

install these items could lead to a

......gas leak and subsequent explosion.

ANSI Z 21.1 for the USA

- the current Can/CGA

i Interim #58-M95

and _2Insta!lation Codes for gas

.........................................c a................

Make sure that the maximum gas

supply pressure, before the gas

pressure regulator, is never more than _/-

psi (3.5 kPa) for natural gas or LP gas.

The minimum supply pressure to get

the required gas input is

4"w.c. for natural gas

10"w.c. for LP gas.

Gas connection

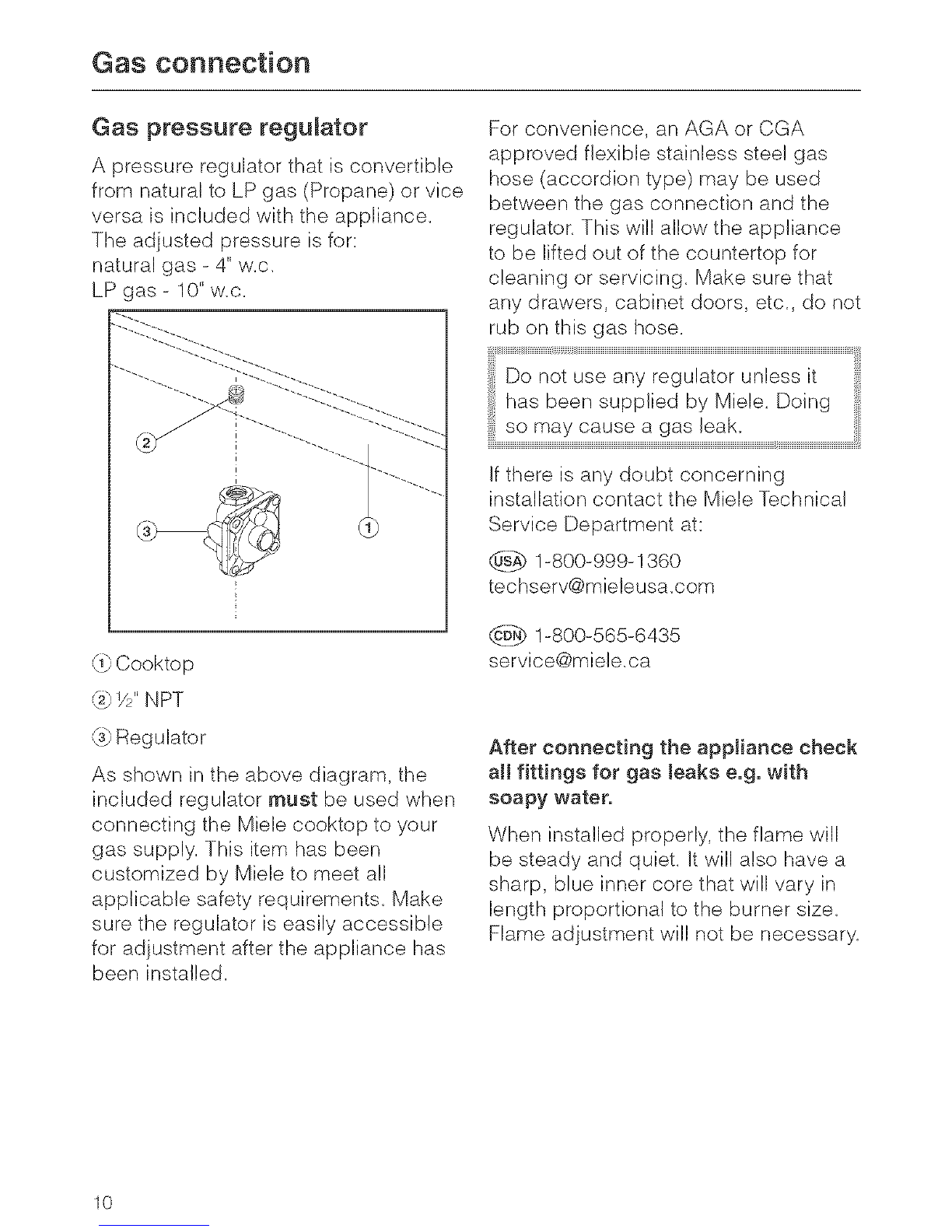

Gas pressure regulator

A pressure regulator that is convertible

from natural to LP gas (Propane) or vice

versa is included with the appliance.

The adjusted pressure is for:

natural gas - 4" w.c.

LP gas - 10"w.c.

For convenience, an AGA or CGA

approved flexible stainless steel gas

hose (accordion type) may be used

between the gas connection and the

regulator. This will allow the appliance

to be lifted out of the countertop for

cleaning or servicing. Make sure that

any drawers, cabinet doors, etc., do not

rub on this gas hose.

'_ Regulator

As shown in the above diagram, the

included regulator must be used when

connecting the Miele cooktop to your

gas supply. This item has been

customized by Miele to meet a!l

applicable safety requirements. Make

sure the regulator is easily accessible

for adiustment after the appliance has

been installed.

so may cause a gas leak.

If there is any doubt concerning

installation contact the Miele Technical

Service Department at:

1-800-999-1360

[email protected]

!-800-565-6435

[email protected]

After connecting the appJJance check

aH fittings for gas leaks e.g. with

soapy water.

When installed properly, the flame will

be steady and quiet. It will also have a

sharp, blue inner core that will vary in

length proportional to the burner size.

Flame adiustment will not be necessary,
