Operating and Installation

Instructions

Ceramic Cooktop

KM 5676

To prevent accidents and

appliance damage,

read these instructions

before

installation or use. M.-Nr. 06 611 230

en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Guide to the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Heat the cooktop ..................................................11

Resetting the touch controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Turning on the cooktop .............................................13

Turning on a burner ................................................13

Variable/Extended burner ...........................................13

Settings .........................................................14

Cooking with Auto-heat .............................................15

Cooking without Auto-heat...........................................16

Turning off a burner ................................................17

Turning off the cooktop .............................................17

Residual heat indicator .............................................17

Selecting cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Setting the timer...................................................20

Setting the timer to turn off a burner automatically ........................21

Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Child Safety Lock..................................................22

Stop and Go......................................................23

Safety cut-out feature...............................................24

Overheating protection .............................................25

Cooktop Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Contents

READ THE OPERATING

INSTRUCTIONS CAREFULLY

BEFORE USING THE

COOKTOP

WARNING -

This appliance is only intended for

residential cooking.

When using your appliance follow

basic safety precautions including

the following:

Installation

~Be certain your appliance is

properly installed and grounded by a

qualified technician in accordance with

national and local safety regulations.

~Do not connect the appliance to the

main electrical supply using an

extension cord. Extension cords do not

meet the safety requirements of this

appliance.

~Before servicing, disconnect the

appliance from the main power supply.

~To guarantee the electrical safety of

this appliance, continuity must exist

between the appliance and an effective

grounding system. It is imperative that

this basic safety requirement be met. If

there is any doubt, have the electrical

system of the house checked by a

qualified electrician.

~Only for frame/facet cooktops:

A small gap will be visible between

cooktop and countertop for the first

days after installation. The gap will

decrease as the cooktop is used. The

electrical safety of your appliance is

warrantied despite the small gap.

Use

~Do not use the appliance until it has

been properly installed in the

countertop.

~This appliance is equipped with an

overheating protection feature. See

"Overheating protection" for more

information.

~Never use the appliance to heat a

room. Due to the high temperatures

radiated, objects left near the appliance

could catch fire.

~When the cooktop is turned on for

an extended period of time, the control

panel may get warm. This is not a

malfunction.

IMPORTANT SAFETY INSTRUCTIONS

Injury prevention

~Children should not be left

unattended in an area where the

cooktop is in use. Never allow children

to sit or stand on any part of the

cooktop.

Caution: Do not store items of interest

to children in cabinets above the

cooktop. Children climbing on the

cooktop to reach these items could be

injured.

~Use the Safety Lock to prevent

children from turning on the cooking

zones or changing the settings. See

"Safety lock" for more information.

~Keep all pots and pans out of the

reach of children. Danger of burning or

scalding. Special cooktop/stove guards

are available from retail outlets.

~DO NOT TOUCH THE COOKING

AREA OR THE VICINITY AROUND THE

COOKING AREA - During operation,

the cooking area and its surroundings

will get hot and can cause burns. When

the cooktop is shut off, the surface may

remain hot enough to cause harm

although the glow is not visible through

the dark glass. During and after use, do

not touch or let clothing or other

flammable materials contact the

cooking area or the vicinity around the

cooking area until they have had

sufficient time to cool. As long as the

surface temperature is high enough to

cause a burn, the Residual Heat

Indicator will remain lit. Once sufficient

time has passed the indicator will go

out and the surface is safe to touch.

~Protect your hands with insulated

gloves or potholders when using the

appliance. Use only dry, heat resistant

potholders. Moist or damp potholders

used on hot surfaces can result in

steam burns. Do not let the potholder

touch the hot heating elements. Do not

use towels or other bulky items near the

appliance.

~Be aware of loose fitting or hanging

garments when operating the cooktop,

they may present a fire hazard.

~Use the proper pan size. Select

cookware with flat bottoms large

enough to cover the heating element.

Using undersized cookware will expose

a portion of the heating element and

may result in ignition of clothing or

handles becoming hot. The proper size

pot or pan will also improve efficiency.

~Pot and pan handles should be

turned inward and not extend over the

countertop to reduce the risk of burns,

ignition of flammable materials, and

spills.

IMPORTANT SAFETY INSTRUCTIONS

~Never leave a cooktop unattended

at high settings or when cooking with oil

or fat. Overheated oil could ignite.

Always heat oil slowly, monitoring it as it

heats.

~Do not use water on grease fires.

Smother or use a dry chemical or

foam-type extinguisher on any fire or

flame.

~When frying food make sure that the

food is as dry as possible before

placing it in oil. Moisture can cause hot

oil to splatter and boil over. At high

settings, be cautious of splattering

grease or boiling over liquids which

may produce smoke.

~Do not flambé under an exhaust

hood. Flames could be drawn up into

the hood by the suction and the grease

filters may ignite.

~Do not heat unopened containers.

Built-up pressure may cause the

container to burst and result in injury.

~Before removing pots and pans be

sure to turn off the burners.

~To prevent burns and breathing

difficulty, allow the cooktop to cool

before cleaning. Some cleaners may

produce toxic fumes if applied to a hot

surface.

~When wiping spills on a hot cooktop

with a wet sponge or cloth, be careful

to avoid steam burns.

~Do not let flammable materials,

i.e. cooking grease, accumulate on the

appliance.

~Never cover the cooktop with a

cloth. A fire may result.

~Do not store items on the cooktop

when not in use. Items could melt or

catch fire from residual heat or if the

cooktop is turned on inadvertently.

~Flammable materials should not be

stored on or near the appliance.

~If there is a drawer directly

underneath the appliance without a

wooden base in between, ensure that

no aerosols, combustible liquids or

other easily flammable materials are

kept in it. If cutlery inserts are to be

placed in the drawer, these must be

made of a heat-resistant material.

IMPORTANT SAFETY INSTRUCTIONS

Damage protection

~Never place hot pots or pans over

the touch controls, this may damage

the electronics.

~Do not drop anything on the ceramic

surface of the cooktop. Even

lightweight objects may cause damage.

~Do not use pots or pans with

pronounced edges or ridges on the

ceramic cooktop. These could scratch

the cooktop permanently. See

"Selecting cookware" for more

information. Grains of salt and sand can

cause scratches. Make sure that the

bases of any pots and pans are clean,

free of any fat or oils and are dry.

~To prevent damage to the cooktop

do not use pots and pans with thin

bases on the cooktop. Never heat an

empty pan unless the pan manufacturer

states that you can do so.

~Before using glass, glass/ceramic,

ceramic, earthenware or other glazed

cookware verify that they can be used

on a cooking surface.

~Do not allow either solid or liquid

sugar, pieces of plastic or foil to fall on

the burners when they are hot. If these

residues are allowed to cool on the

ceramic surface pitting or even

cracking may occur.

~Any spills should be removed as

quickly as possible to prevent them

from burning on and becoming difficult

to remove.

~Do not use a steam cleaner to clean

this appliance. Steam could penetrate

electrical components and cause a

short circuit.

IMPORTANT SAFETY INSTRUCTIONS

Appliance safety

~In the event of any damage to the

appliance, it must be turned off

immediately and disconnected from the

main power supply. Call Miele’s

Technical Service Department.

Do not use the appliance until it has

been repaired. Ensure power is not

supplied to the appliance until repair

work is completed.

~Do not cook on a broken cooktop.

Any breakages or cracks in the ceramic

surface of the appliance are defects

and must be treated as such. If the

cooktop should break, cleaning

solutions and spills may penetrate the

broken cooktop and create a risk of

electric shock. Do not use the

appliance until it has been repaired.

~Repairs should only be performed

by qualified technicians to ensure

safety. Repairs and other work by

unqualified persons could be

dangerous. Under no circumstances

open the outer casing of the appliance.

~While the appliance is under

warranty repairs should only be

performed by an authorized service

technician. Otherwise the warranty is

void.

Further safety notes

~Make certain that the power cords of

small appliances do not come in

contact with the cooktop. The insulation

of the cable could become damaged.

Danger of electric shock!

~Do not use plastic or aluminum.

They will melt at high temperatures. Fire

hazard!

~If a pet gets on the cooktop a touch

control sensor could be activated

turning on a burner. Keep pets away

from the cooktop at all times and

activate the Safety Lock.

SAVE THESE INSTRUCTIONS

AND REVIEW THEM

PERIODICALLY

IMPORTANT SAFETY INSTRUCTIONS

Burners

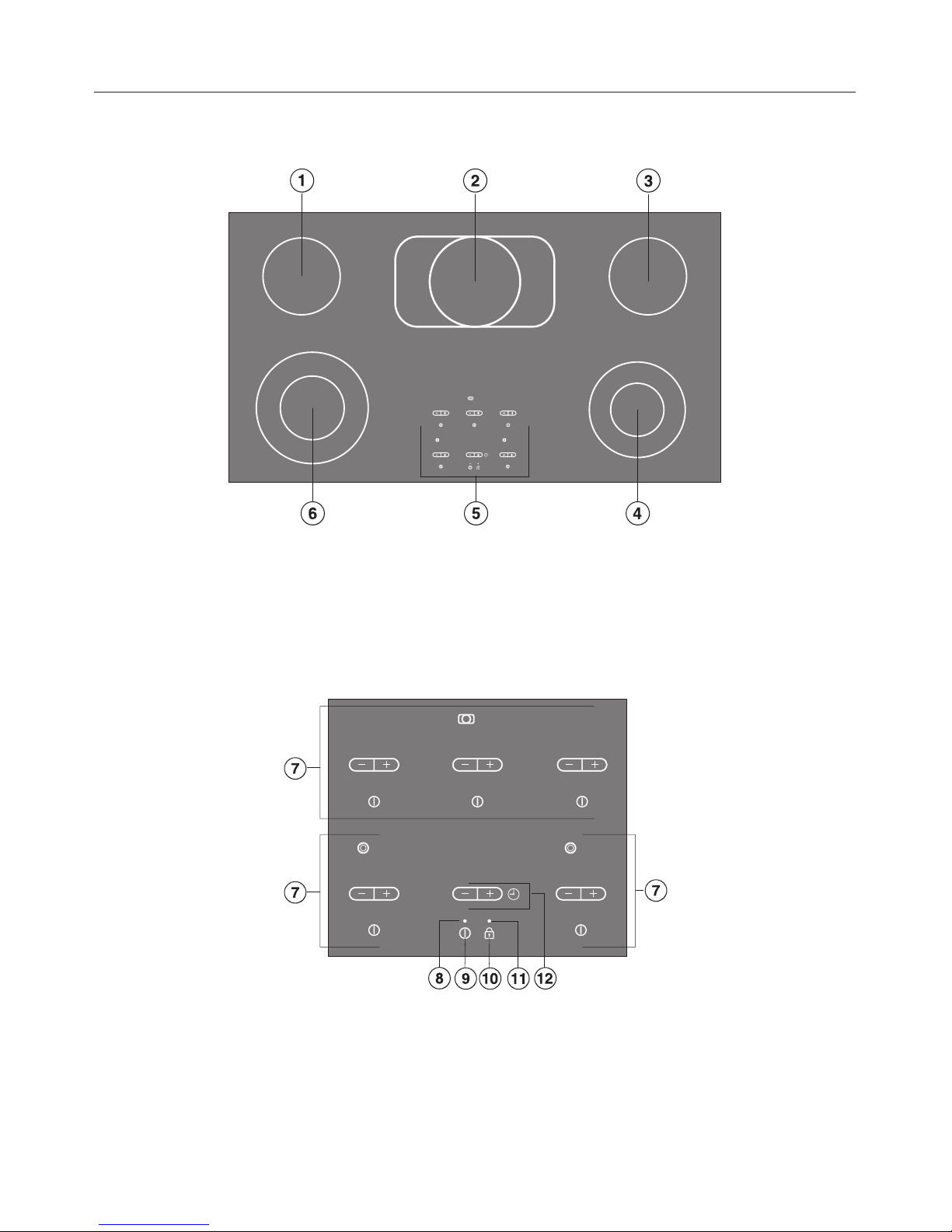

ac Single burners

bExtended burner

Touch controls/Indicators

gBurner controls

hCooktop ON/OFF Indicator

iCooktop ON/OFF

df Variable burners

eControls

jChild Safety Lock

kLock Indicator

lTimer (see "Timer controls and

display")

Guide to the cooktop

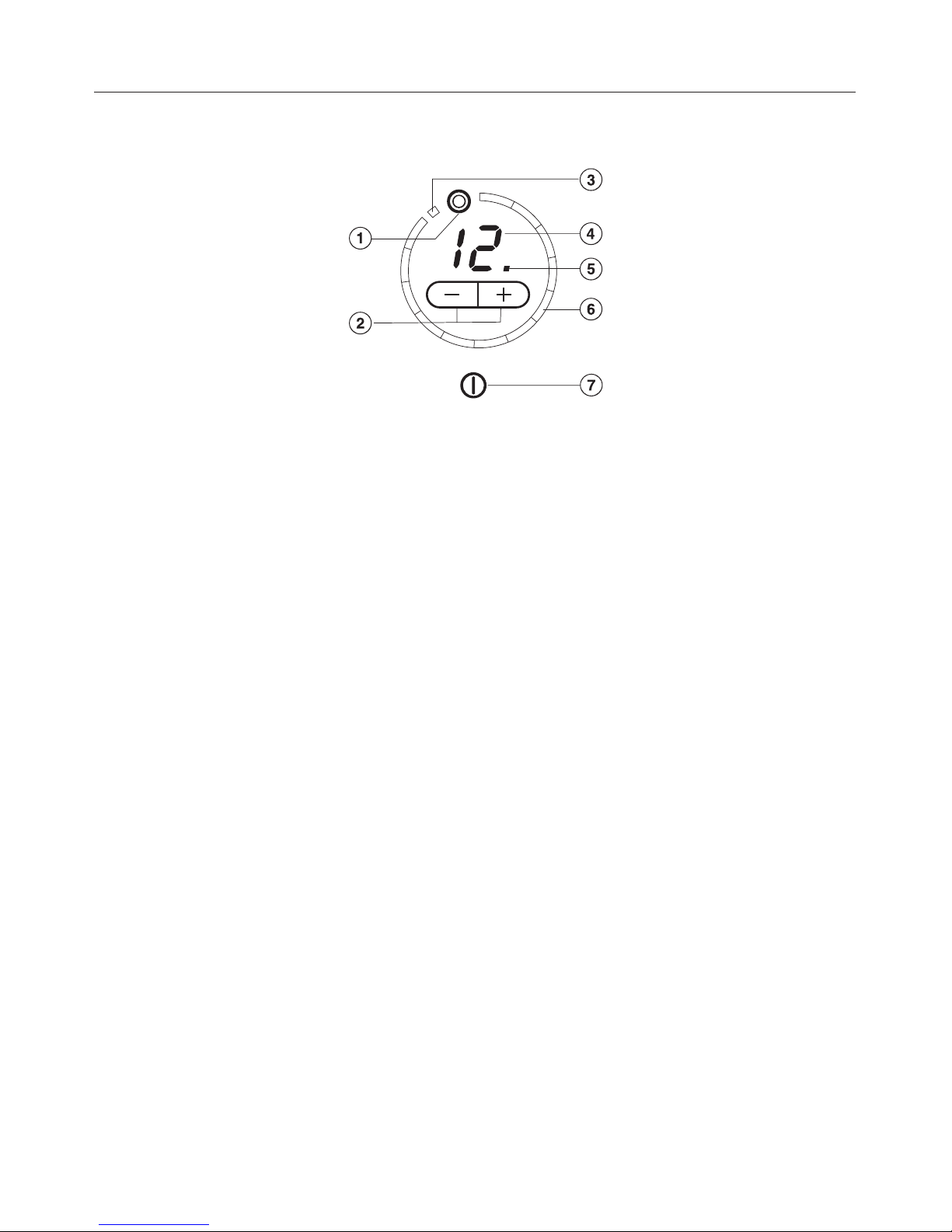

Burner controls and display

aExtended burner touch control

bPower level touch controls

cExtended burner indicator

dDisplay:

- = Burner is ready for use

0= Burner is turned on

1to 12 = Power level

#= Residual heat

F= Fault (see "Safety cut-out feature")

A= Auto-heat with extended range of power level

P0 etc. = Program (see "Cooktop Settings")

S0 etc. = Status (see "Cooktop Settings")

eIndicator for extended power level (see "Cooktop Settings")

fLighting circle

The number of segments lit corresponds with the selected power setting

(exception: see "Cooking with Auto-heat").

gBurner On/Off touch control

Guide to the cooktop

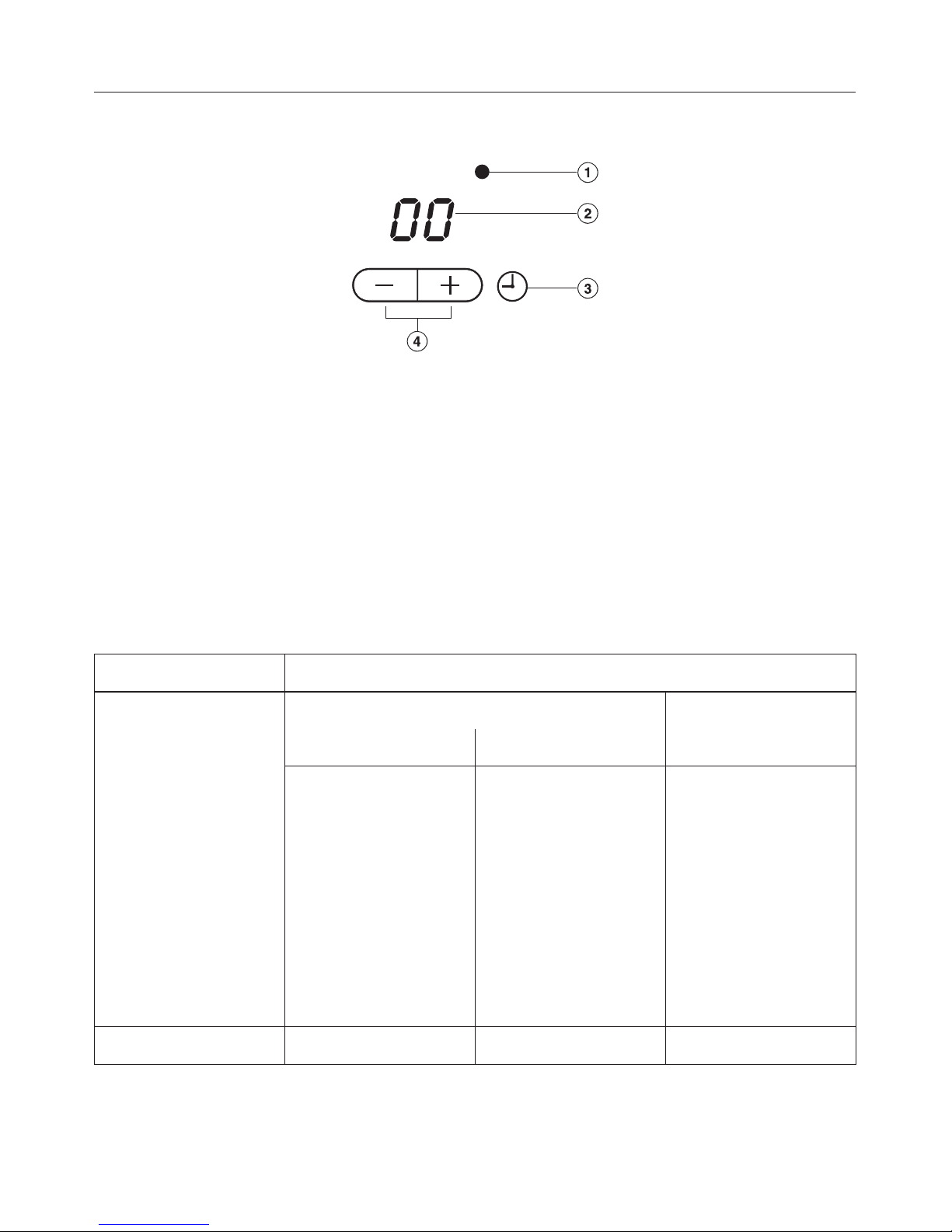

Timer controls and display

aAuto turn off indicator, e.g. rear right burner

bTime display

cTouch control to turn the timer on/off, switch between functions and select a

burner for auto turn off

dTouch control for setting the time

Burner data

Burner KM 5676

diameter in Watts

inches cm

y511/16

91/16

14.5

1100

2500

w511/16 14.5 1200

b611/16

611/16 x117/16

17x29

1500

2500

x5½14 1200

z43/4

71/16

700

1800

All burners 9200

Guide to the cooktop

Altri manuali per KM 5676

Indice

Altri manuali Miele Piano cottura

Manuali Piano cottura popolari di altre marche

Bonnet

Bonnet OPTIMUM 700 Manuale del proprietario

Jenn-Air

Jenn-Air JGCP430 Manuale utente

Frigidaire

Frigidaire FES367FCC Guida rapida

Ztove

Ztove EZ2 DUO Manuale utente

Kleenmaid

Kleenmaid cooking GCTK9011 Guida all'installazione

Casselin

Casselin CSASRE24 Manuale utente

Jenn-Air

Jenn-Air JGC2536EB00 Manuale utente

Waldorf

Waldorf RN8603E-B Manuale di istruzioni

Whirlpool

Whirlpool SMP658CNEIXL Manuale utente

Wolf

Wolf CI243C/B Manuale utente

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuale utente

GE JP389 Manuale utente

Wells

Wells WV-2HFG Manuale utente

IKEA

IKEA Lagan HGA4K Manuale utente

Samsung

Samsung NA36N9755 Manuale utente

Lacor

Lacor 69562 Scheda tecnica

Keating Of Chicago

Keating Of Chicago MG-2 Manuale utente

Jenn-Air

Jenn-Air CCE1400 Manuale utente
