Miele HG01 Manuale utente

Installation instructions

Dishwasher

To prevent accidents and

machine damage, UV

read these

instructions before

installation or use. M.-Nr. 05 620 650

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Disposal of an old machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product and Cut out Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1. Install the steam deflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2. Install the mounting brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3. Install the slide skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4. Install the dishwasher under the countertop . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5. Level the legs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

6. Install the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7. Align the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

8. Install the custom door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

9. Secure the dishwasher to the countertop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

10. Adjust the door springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

11. Make the plumbing connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

11. Make the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

13. Test the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

14. Install the toekick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

Installation

Installation, repair and mainte-

nance work should be by a Miele

authorized service technician. Work by

unqualified persons could be danger-

ous and could void the warranty.

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans or air-

craft. However, under certain conditions

it may be possible for an installation in

these applications. Please contact the

nearest Miele dealer or the Miele Tech-

nical Service Department with specific

requirements.

Inspect the dishwasher for ship-

ping damage. Do not install or op-

erate a damaged unit. Contact the

place of purchase.

This dishwasher must be installed

under a continuous countertop se-

cured to adjacent cabinetry.

Do not install this dishwasher be-

neath a cooking surface or oven.

Do not, under any circumstances,

cut the intake hose or submerge in

liquid. This hose contains electrical

components that could cause injury or

property damage if cut or submerged.

If there is any doubt concerning in-

stallation contact the Miele Techni-

cal Service Department.

USA 1-800-999-1360

[email protected]

CDN 1-800-565-6435

[email protected]

,During the installation process,

please be careful of sharp edges

that can cause harm.

IMPORTANT SAFETY INSTRUCTIONS

Electrical safety

Before installation, make sure that

the voltage and frequency listed on

the data plate correspond with the

household electrical supply. This data

must correspond to prevent injury and

machine damage. Consult a qualified

electrician if in doubt.

To guarantee the electrical safety

of this appliance, continuity must

exist between the appliance and an ef-

fective grounding system. It is impera-

tive that this basic safety requirement

be met. If there is any doubt, have the

electrical system of the house checked

by a qualified electrician. The manufac-

turer cannot be held responsible for

damages caused by the lack, or inade-

quacy of, an effective grounding sys-

tem

Before installation or service, dis-

connect the power supply to the

work area by unplugging the unit, re-

moving the fuse or "tripping" the circuit

breaker.

Do not use an extension cord to

connect this appliance to electric-

ity. Extension cords do not guarantee

the required safety of the appliance,

(e.g. danger of overheating).

Child safety

Ensure that any plastic wrappings,

bags etc. are disposed of safely

and kept out of the reach of babies and

young children. Danger of suffocation!

If the appliance is removed from its

installation and will not be used,

the door to the wash cabinet should be

removed to prevent children from being

locked in the machine.

When discarding an old dish-

washer, unplug it from the power

outlet, remove the door to the wash

cabinet and cut off the power cord.

IMPORTANT SAFETY INSTRUCTIONS

Disposal of the packing

material

The transport and protective packing

are environmentally friendly for dis-

posal. Please recycle.

Disposal of an old machine

Old machines contain materials which

can be recycled. Please contact your

local recycling authority about potential

recycling.

Caring for the environment

G 600 Series Dishwashers

Full size models G 636 G 698

Removing the leg extensions

The black leg extensions can be re-

moved to reduce the height of the ma-

chine to 32 1/4" - 33" (819 - 838 mm)

(see Inset).

A = Black leg extension (removable)

B = White leg (must be installed on

machine).

^After removing the black leg exten-

sions, screw the white legs onto the

dishwasher.

Machine heights of 33 1/4" - 34" (845-

864 mm) are not possible using the

supplied legs.

For this height range, or for heights

greater than 34 7/8" (886 mm), ex-

tended legs (part # 02 702 601) are

necessary.

Contact the Miele Technical Service

Department for the appropriate legs.

Product and Cut out Dimensions

G 800 Series Dishwashers

Full size models G 836 G 898

Slimline models G 801 G 832

Machine heights of 35" - 37" (889 -

940 mm) can be obtained if the sup-

plied legs are removed and ex-

tended legs are attached.

Contact the Miele Technical Service

Department for the appropriate legs

(part # 02 702 601).

Product and Cut out Dimensions

Prefinished models Machine heights between 35" and

37" can be obtained if the supplied

legs are removed and extended legs

are attached. Please contact the

Miele Technical Service Department

for the appropriate legs

(part # 02 702 601).

,To ensure stability, this dish-

washer should only be installed un-

der a continuous countertop and se-

curely fastened.

Product and Cut out Dimensions

1.Install the steam deflector

A stainless steel steam deflector is sup-

plied to protect the countertops from

steam and condesation when the dish-

washer is opened. If the countertop is

made of Corian®, granite, marble or

other solid, waterproof material, the

steam deflector is not required.

If the counter is made of different

materials, the steam deflector

should be positioned so that it cov-

ers the edge where the materials are

joined. Countertops with wood or

laminate edging should be tacked

through the rear holes of the steam

deflector.

^Squeeze a bead of silicone sealant

from the supplied tube into the ridge

formed by the curved edge, a, of the

steam deflector.

^Line up the steam deflector, b, with

the lower front edge of the countertop

and use the supplied tacks to secure.

^Wipe off any excess silicone with a

rag.

The "Extended drying" feature can

be activated to further protect the

counter from condensation. See the

Operating instructions / Additional

features.

Installation

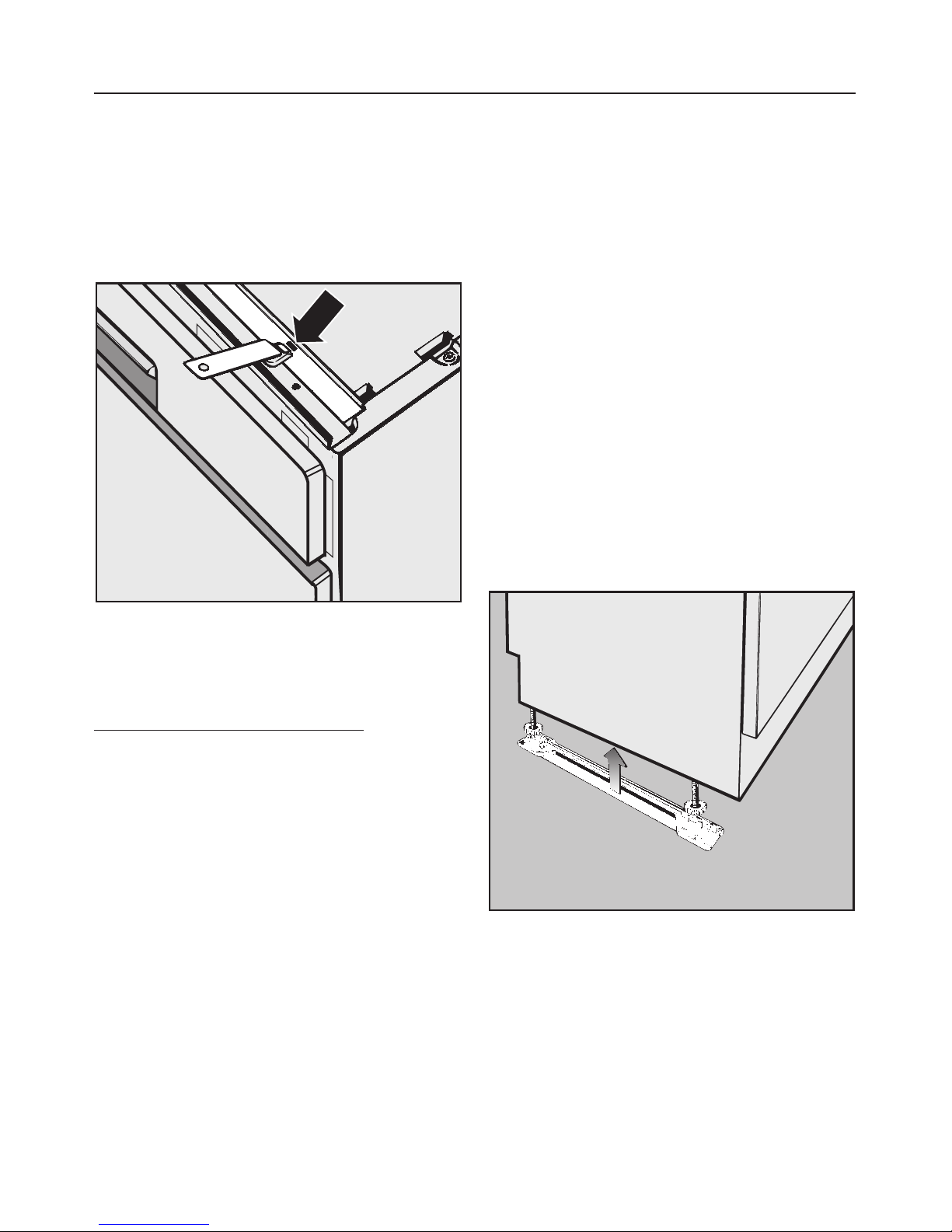

2.Install the mounting brackets

To ensure stability, this dishwasher

should be securely attached to the

countertop with the two mounting

brackets included.

^Insert the tab of each bracket into the

guide holes on the top of the dish-

washer.

Stone or marble countertops:

The dishwasher must be secured to the

adjacent cabinets with fixing angles

(part # 03 341 080), available from

Miele’s Technical Service Department.

3. Install the slide skis

Two slide skis are included and should

be installed on the feet of the dish-

washer before the machine is pushed

under the countertop. This will allow the

machine to slide easier, protect the

floor, and allow adjustment of the rear

leveling legs from the front of the ma-

chine.

^First, adjust the height of the legs so

that the top of the dishwasher is

roughly 1/8" (3 mm) below the

countertop.

Tipping the machine slightly to the rear,

if possible, will make adjusting the front

legs easier. Make sure the machine is

level when adjustments are complete.

^Place the skis, with the ratchet at the

rear, under the dishwasher legs.

Installation
