Miele PT 7135 C Manuale utente

Operating and Installation

Instructions

Condenser Dryer

PT 7135 C

To prevent accidents

and machine damage

read these instructions

before

installation or use. M.-Nr. 10 037 980

en-US

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Guide to the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control panel ......................................................6

Display function .................................................7

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Fabric care labels .................................................10

Drying tips .......................................................10

Coin mechanism ..................................................14

Canceling a program...............................................14

Adding/removing laundry during a drying program .......................14

Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Selecting/Changing a Favorite .....................................19

Low temp. .....................................................21

Saving a Favorite ...............................................21

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cleaning the lint filters ..............................................22

Cleaning the exterior and the control panel .............................24

Cleaning the heat exchanger ........................................25

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Optional accessories ...............................................34

INSTALLATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

External drainage of the condensed water ..............................41

Electrical connection ...............................................42

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Settings J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Opening the menu Settings .......................................46

Language J......................................................47

Settings - Supervisor level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Contents

,WARNING - To reduce the risk of

fire, electric shock, or injury to

persons when using your appliance,

follow basic precautions, including

the following:

~It is essential to read all instructions

before using this appliance.

,This machine conforms to

current safety requirements.

However, inappropriate installation

and use can lead to personal injury

and property damage. Read the

operating and installation

instructions carefully before using

this machine.

The manufacturer cannot be held

responsible for damage caused by

non-observance of these Important

Safety Instructions.

Keep these operating instructions in

a safe place and pass them on to

any future user.

~The tumble dryer is only intended for

drying fabrics washed in a water

solution. Check fabric care labels to

verify materials can be machine dried.

~Before maintenance, or cleaning

and care disconnect the dryer from the

electrical supply pulling the plug or

tripping the circuit breaker.

~Make sure that no unattended

children can access the machine.

There is a potential danger that children

can be trapped in the drum. This may

cause major injuries or the death of the

child.

~Do not reach into the dryer if the

drum is moving.

~Do not install or store this appliance

where it will be exposed to the weather.

~Do not tamper with the controls.

~Do not repair or replace any part of

the appliance or attempt any servicing

unless specifically recommended in

these operating instructions. Repairs to

electrical appliances should only be

performed by qualified personnel.

Incorrectly repaired machines may

pose a considerable risk to the user.

~Clean the lint filter before or after

each load.

~Keep the area around the exhaust

opening (toe-kick) and adjacent

surrounding areas free of lint, dust and

dirt.

~The interior of the machine and

exhaust duct should be cleaned

periodically by qualified personnel.

~Only use genuine Miele accessories

and replacement parts. If other parts

are used, warranty, performance and

product liability claims may become

void.

IMPORTANT SAFETY INSTRUCTIONS

~To prevent the risk of fire, the

following articles must not be dried in

this tumble dryer:

–items which have not been washed.

–items, such as workwear, which have

not been thoroughly cleaned and are

still soiled with grease, oil or other

substances (such as cosmetics,

lotions, etc.).

If items have not been thoroughly

cleaned there is a danger that they

could ignite when heated, even after

they have been removed from the

dryer at the end of the program.

– items that have been previously

cleaned, washed, soaked or spotted

with gasoline, dry-cleaning solvents,

wax, wax remover, chemicals for

buffing (e.g. mops and floor cloths)

or other flammable or explosive

substances. They may give off

vapors that could ignite or explode.

– items which have been spattered

with hair spray, nail polish remover or

similar substances.

~When washing heavily soiled items

ensure that you use sufficient detergent

and select a high temperature. If in

doubt, wash the items several times.

~To prevent the risk of fire, the

following articles or items must not be

dried in this tumble dryer:

–fabrics which contain a large amount

of rubber, foam rubber or rubber-like

materials. For example, products

made from latex, shower caps,

waterproof textiles, rubberized

articles, and items of clothing and

pillows with foam rubber filling, or

similarly textured rubber-like

materials.

–which contain padding or fillings

(e.g. pillows, jackets). If these were

damaged the filling could get out

with the risk of igniting in the dryer.

~In many programs, the heating

phase is followed by a cooling down

phase to ensure that the items are not

too hot to handle when you remove

them (this also avoids the danger of the

laundry self-igniting). The program is

not finished until the cooling down

phase is complete.

Always wait until the end of the

program before removing the laundry.

~Warning: Do not switch the tumble

dryer off before the end of the drying

program. If this was done and the

laundry was then removed immediately

it could give off a great amount of heat.

~Do not use fabric softeners or

products to eliminate static unless

recommended by the manufacturer of

the fabric softener or product.

IMPORTANT SAFETY INSTRUCTIONS

~GROUNDING INSTRUCTIONS

This appliance must be grounded. In

the event of a malfunction or

breakdown, grounding will reduce the

risk of electric shock by providing a

path of least resistance for electric

current.

This appliance is equipped with a cord

having an equipment-grounding

conductor and a grounding plug. The

plug must be inserted into an

appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

,WARNING – Improper

connection of the equipment

grounding conductor can result in a

risk of electric shock. Contact a

qualified electrician if you are in

doubt as to whether the appliance is

properly grounded.

~Do not modify the plug provided

with the appliance: if it will not fit the

outlet, have a proper outlet installed by

a qualified electrician.

~Before this appliance is removed for

service or discarded, remove the door

to the drying compartment.

SAVE THESE

INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

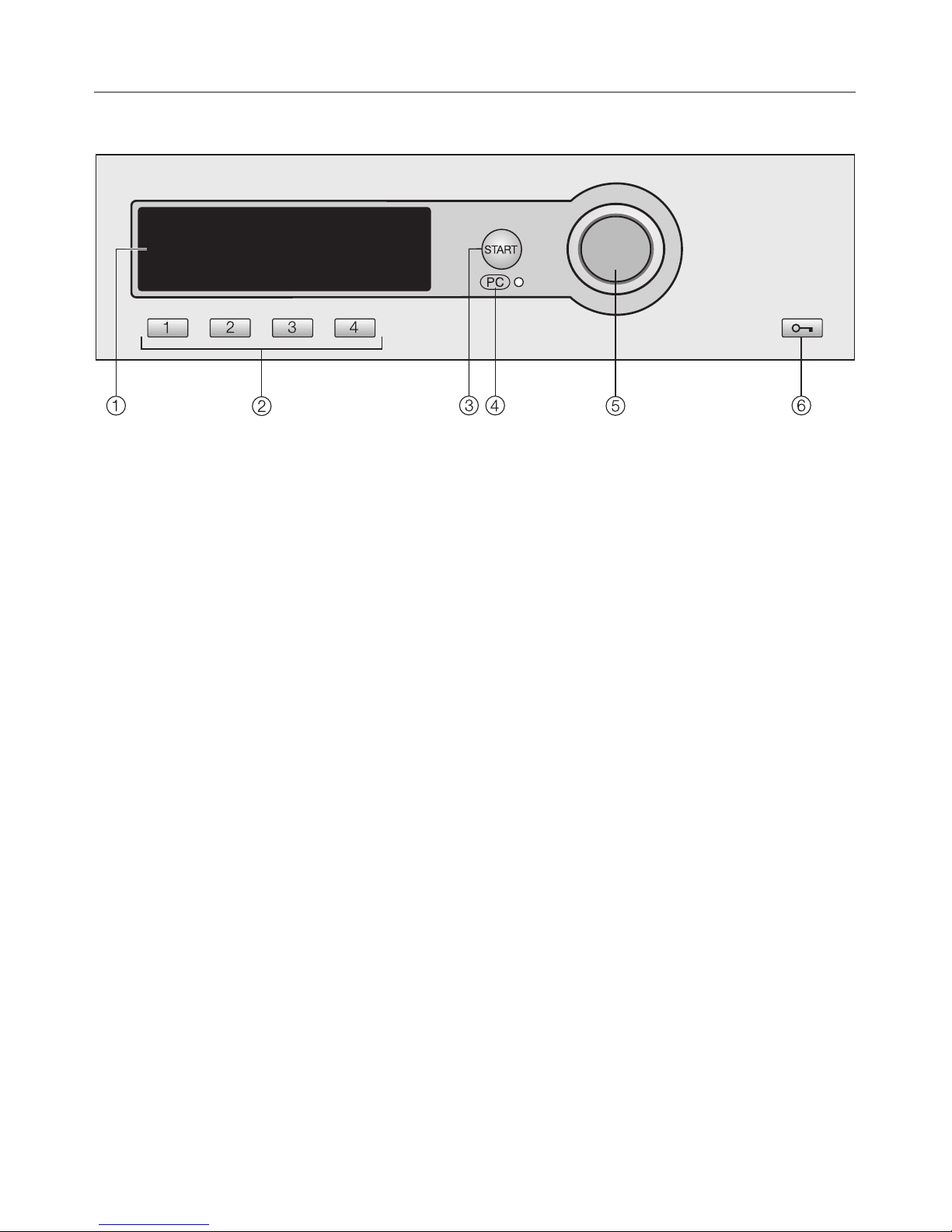

Control panel

aDisplay*

See the following pages for more

information

bDirect select buttons

To select a drying program directly.

You can also save "Favorite" drying

programs on these buttons.

c"Start" button

dOptical interface PC

Allows a service technician to check

and update the drying programs

eJog shuttle

Turn to select

Press to confirm the selection

fabutton

To open the drum door.

*Contents in the display will vary with program offering.

Guide to the dryer

Display function

Contents in the display will vary with program offering.

Main menu

1 Cottons Program selection ...

2 Minimum iron Settings F...

3 Woollens handcare

4 Smoothing 10:00

The display shows the main menu (with factory default

settings). "Program selection" is highlighted.

If the display is dark (in Stand-by mode) turn the jog shuttle.

Jog shuttle

Turn the jog shuttle to select a program or setting.

Press the jog shuttle to confirm the selection.

Direct select buttons

The first four programs shown in the display on the left are the

"Favorites". They can be selected with the direct select

buttons.

The Favorites can be individually set to your desire. See

"Favorites" for more information.

The direct select buttons have different functions in the other

menus. In these menus an arrow His displayed above the

respective button with the function description of the button.

Program selection possibility

–Possibility 1 Select and confirm the menu "Program

selection" in the display with the jog shuttle.

–Possibility 2 Press one of the direct select buttons

D E F G and access directly the basic menu of

the program.

Guide to the dryer

Menu Program selection

Program

selection

Back A

Cottons

Minimum iron

Woollens handcare H

^All pre-set programs can be selected with the jog shuttle.

Depending on the direction the jog shuttle is turned the

highlighter moves up or down.

The arrows e- at the right side of the display show that more

selections are available.

^Press the jog shuttle to open the basic menu of the

selected program.

Basic menu of a drying program

Cottons Normal

Duration 1:16 h

Low temp.

Timer Y

Save

Back A

^The "Drying level" or "Program" can be selected by turning

the jog shuttle.

– The selected component is highlighted. Press the jog

shuttle to select or adjust the component.

–Select "Low temp." or "Timer" by pressing D-E.

–Press Gto get back to the Basic menu.

All components can also be selected and confirmed using

only the jog shuttle.

Settings J

The "Settings J" menu allows you to adjust the dryer to

individual needs. See "Settings J" for more information.

Guide to the dryer

,The appliance must be correctly

installed and connected before the

first use. Please see the "Installation

instructions."

Welcome screen

The Welcome screen shows when the

dryer is turned on for the first time.

Once the total use time of the dryer

exceeds one hour the welcome

screen will not show again.

The display then shows the language

selection.

Language J

Select the desired language and

confirm with "OK".

Set the time of day

^Set the hour by turning the jog

shuttle, press to confirm.

^Repeat to set the minutes and

confirm.

^Press again to save the time of day.

Before using for the first time

Fabric care labels

Before drying, check fabric care labels

for special drying instructions.

q= Drying with normal temperature

r= Drying with low temperature

s= Do not dry in a tumble dryer

Drying tips

–Observe the maximum loads, see the

"Program guide".

Overloading the dryer will result in

poor drying and wrinkling.

– Do not place dripping wet items in

the dryer. Spin the laundry after the

wash for at least 30 seconds.

– Dry delicate fabrics (with the fabric

care symbol r) with the "Low

temperature" option.

–Open jackets to allow even drying.

–Starched laundry can be dried in

the tumble dryer. The amount of

starch should be doubled during the

wash.

–Wash new, colored items before

drying for the first time and do not

dry with light-colored items. These

fabrics can "bleed" (also onto plastic

parts of the dryer). Colored lint may

also get on the light colored items.

–Wool and wool blends tend to felt

and shrink. Dry wool and wool

blends in the "Woollen handcare"

program.

–The fine fabric of down filled items

tend to shrink. Dry these items in the

"Smoothing" program.

–Dry pure linen items only if it is

recommended on the fabric care

label. The surface of the fabric may

become "rough". Dry these items in

the "Smoothing" program.

–Knitted fabrics (e.g. T-Shirts and

underwear) tend to shrink when

washed and dried for the first time.

Do not overdry these fabrics.

–Permanent press and delicate

fabrics tend to crease more the

bigger the load size.

For better drying results reduce the

load size or select the "Shirts"

program.

Use

Altri manuali per PT 7135 C

Indice

Altri manuali Miele Asciugatrice

Miele

Miele T 9822 VENT ED DRYER - OPERATING Manuale utente

Miele

Miele T 640 Manuale utente

Miele

Miele TKB 350 WP Manuale utente

Miele

Miele T 8812 C Manuale utente

Miele

Miele T 4462 C Manuale utente

Miele

Miele T 8007 WP SUPERTRONIC Manuale utente

Miele

Miele TOUCHTRONIC T 1303 Manuale utente

Miele

Miele TCB140 WP Manuale utente

Miele

Miele T 442 C Manuale utente

Miele

Miele T 1039C CONDENSER DRYER - OPERATING Manuale utente

Miele

Miele TXI 680 WP Manuale utente

Miele

Miele PT 7136 Vario OS Manuale utente

Miele

Miele WWR860WPS Manuale utente

Miele

Miele T 8428 C Manuale utente

Miele

Miele PT 7186 Vario Manuale utente

Miele

Miele TOUCHTRONIC T 9820 Manuale elenco delle parti

Miele

Miele TCR 860 WP Manuale utente

Miele

Miele T 8822 C Manuale utente

Miele

Miele Novotronic T 560 C Manuale utente

Miele

Miele T 4123 Manuale utente

Miele

Miele PT 7135 C Manuale utente

Miele

Miele Touchtronic T 1403 Manuale utente

Miele

Miele TKR650 WPS Finish Eco XL Manuale utente

Miele

Miele TEJ 665 WP Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
