Miele T 1322 C Manuale utente

Operating Instructions

Condenser Dryer

T 1322 C

To prevent accidents

and machine damage

read these instructions

before

installation or use.

M.-Nr. 06 002 850

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Before loading the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

U ing the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1. Turn on the dryer and load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2. Select a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3. Select a drying option (if needed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4. Select the dryness level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. Select the buzzer (if desired). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Start the program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7. At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Canceling or changing a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Adding or removing laundry during a program. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Dryer care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the exterior and the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Emptying the condensed water container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Dryer care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning the condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Frequently a ked que tion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

In tallation in truction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Wa her / Dryer Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

In tallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installation tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Leveling the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

External water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Content

,WARNING - To reduce the risk of

fire, electric shock, or injury to

persons when using your appliance,

follow basic precautions, including

the following:

Read all instructions before using

the appliance.

Do not dry articles that have been

previously cleaned, washed,

soaked or spotted with gasoline,

dry-cleaning solvents or other

flammable or explosive substances.

They may give off vapors that could

ignite or explode.

Do not allow children to play on or

in the appliance. Close supervision

is necessary when the appliance is

used near children. Always close the

door after use to prevent child hazards.

Before this appliance is removed

for service or discarded, remove

the door to the drying compartment.

Do not reach into the dryer if the

drum is moving.

Do not install or store this

appliance where it will be exposed

to the weather.

Do not tamper

with the controls.

Do not repair or replace any part of

the appliance or attempt any

servicing unless specifically

recommended in these operating

instructions. Repairs to electrical

appliances should only be performed

by qualified personnel. Incorrectly

repaired machines may pose a

considerable risk to the user.

Do not use fabric softener sheets

to eliminate static in this dryer. Best

results are achieved when a liquid

softener is used in the washer.

Do not use heat to dry articles

containing foam rubber or similarly

textured rubber-like materials, or items

containing hair spray, nail polish

remover or similar substances.

Clean the lint filter before or after

each load.

Keep the area around the air intake

(toekick) and adjacent surrounding

areas free from lint, dust and dirt.

The interior of the machine should

be cleaned periodically by

qualified personnel.

Do not place items exposed to oils

in your dryer. Items contaminated

with oils may contribute to a chemical

reaction that could cause the laundry to

catch fire.

Thi dryer i intended for

re idential u e only!

IMPORTANT SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded.

In the event of malfunction or

breakdown, grounding will reduce the

risk of electric shock by providing a

path of least resistance for electric

current.

This appliance is equipped with a cord

having an equipment grounding

conductor and a grounding plug. The

plug must be plugged into an

appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

WARNING – Improper connection

of the equipment-grounding

conductor can result in a risk of electric

shock. Contact a qualified electrician if

you are in doubt as to whether the

appliance is properly grounded.

Do not modify the plug provided

with the appliance: if it will not fit

the outlet, have a proper outlet installed

by a qualified electrician.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

ae- "PROGRAMS" button

For selecting a drying program.

b"OPTIONS" button

For selecting a drying option.

c"DRYNESS" button

For selecting the dryness level of

finished laundry.

d"STATUS" di play

Shows the current cycle of the drying

program.

e"Buzzer" button

When selected, a buzzer will sound

at the end of a program.

f"FAULT" indicator

An illuminated indicator will alert you

if the child lock has been activated

or if a fault occurred.

g"Start/Stop" button T

Starts and stops a program.

Interrupts a program when pressed.

Flashes during program selection

and lights once the program starts.

h"Door" button

Opens the door when the program

has finished. If the dryer is on, the

drum interior will light when the door

is opened. If the door is left open, the

light will go off after a few minutes to

save energy.

i"On/Off" button

Turns power to the machine on and

off.

Control panel

The dryer must be correctly installed

and connected before the first use.

Please refer to the "Installation

Instructions".

^Before using for the first time clean

the drum with a cloth.

Before drying, check fabric care

labels for special drying instructions.

qDry with normal temperature

rDry with low temperature

(select "Gentle" option)

sDo not dry in a tumble dryer

– Do not overload the drum!

Overloading the dryer will result in

poor drying results and wrinkling.

–Knitted fabric and flannel tend to

shrink when washed and dried for

the first time. Do not overdry these

fabrics.

–To prevent discoloration, do not dry

new, dark-colored fabric with

light-colored items.

–Close zippers and tie up fabric belts

and apron ties to prevent tangles

and damage to clothing.

–Do not dry items that may melt or

ignite in the dryer, such as plastics,

rubber or sneakers.

Program recommendation

Normal

–Cottons and Permanent Press blends

Wrinkle-free

–Permanent Press:

select the Hand Iron dryness and

reduce the load size for best drying

results

–Delicate fabrics, such as polyester:

select the Gentle option to reduce

creasing

– Pure linen and down filled items

Woolen

– Wool and wool blends

Smooth

– Linen

– Permanent Press (cottons, blends

and synthetics)

Sturdy

–Durable Cottons and Permanent

Press

Fluff / 20 min / 30 min

–All fabric types

Before loading the dryer

1. Turn on the dryer and load

the laundry

^Press the "On/Off" button to turn on

the dryer.

^Press the "Door" button to open the

door.

^Load the laundry loosely into the

drum.

^Make sure the lint filters are in place.

^Close the door with a firm swing - do

not push it shut.

For best results use liquid fabric

softener when washing laundry.

Fabric softener sheet may clog the

filters and cause the dryer to

overheat.

To prevent fabric damage, check

that laundry will not be caught in the

closed door.

2. Select a program

^Press the eor -button until the

desired program indicator lights.

U ing the dryer

Program Fabric Note

Normal Available drying option : Turbo, Gentle, Anti-crea e

Extra Dry Multi-layer fabrics, mixed loads of

sturdy cottons, e.g. jeans, towels.

The "Extra dry" program should not be

selected for jersey materials.

Item may hrink.

More Dry Uniform loads of cotton, e.g. sheets,

underwear, socks. -

Normal Knitted cotton fabrics that may shrink,

e.g. jersey material or lightweight

cottons.

If items are still damp, dry again using

"More Dry".

Le Dry Cotton or linen fabrics to be left damp

for ironing. -

Hand Iron If fabrics are too damp for ironing, dry

again using "Less Dry".

Rotary Iron Cotton or linen fabrics which will be

ironed with a rotary iron.

To prevent moisture loss, roll up the

laundry until ironing.

Wrinkle-free Available drying option : Turbo, Gentle, Anti-crea e

More Dry Synthetic permanent press items,

e.g. pants and shirts. -

Normal Permanent press and blended fabrics,

e.g. cotton/synthetic.

Le Dry Permanent press and blended fabrics

requiring an ironed finish.

Reduce load size for fabrics that wrinkle

easily.

Special Program Available drying option : Anti-crea e only available in

Fluff, Sturdy

Woolen Delicate items which allow machine

drying.

Remove items immediately after the end

of the program while still slightly damp.

Allow items to air dry.

Smooth Program for reducing creasing of

cotton, linen or permanent press

fabrics made of cotton, blends or

synthetics.

Sturdy For mixed loads of cotton and

permanent press items. -

Fluff Individual items to be freshened and

fluffed with cool air.

Reduce load size.

TIMED CYCLES Available drying option : Gentle, Anti-crea e

20 min Individual items or very small loads,

e.g. beach towels, swimsuits. -

30 min

U ing the dryer

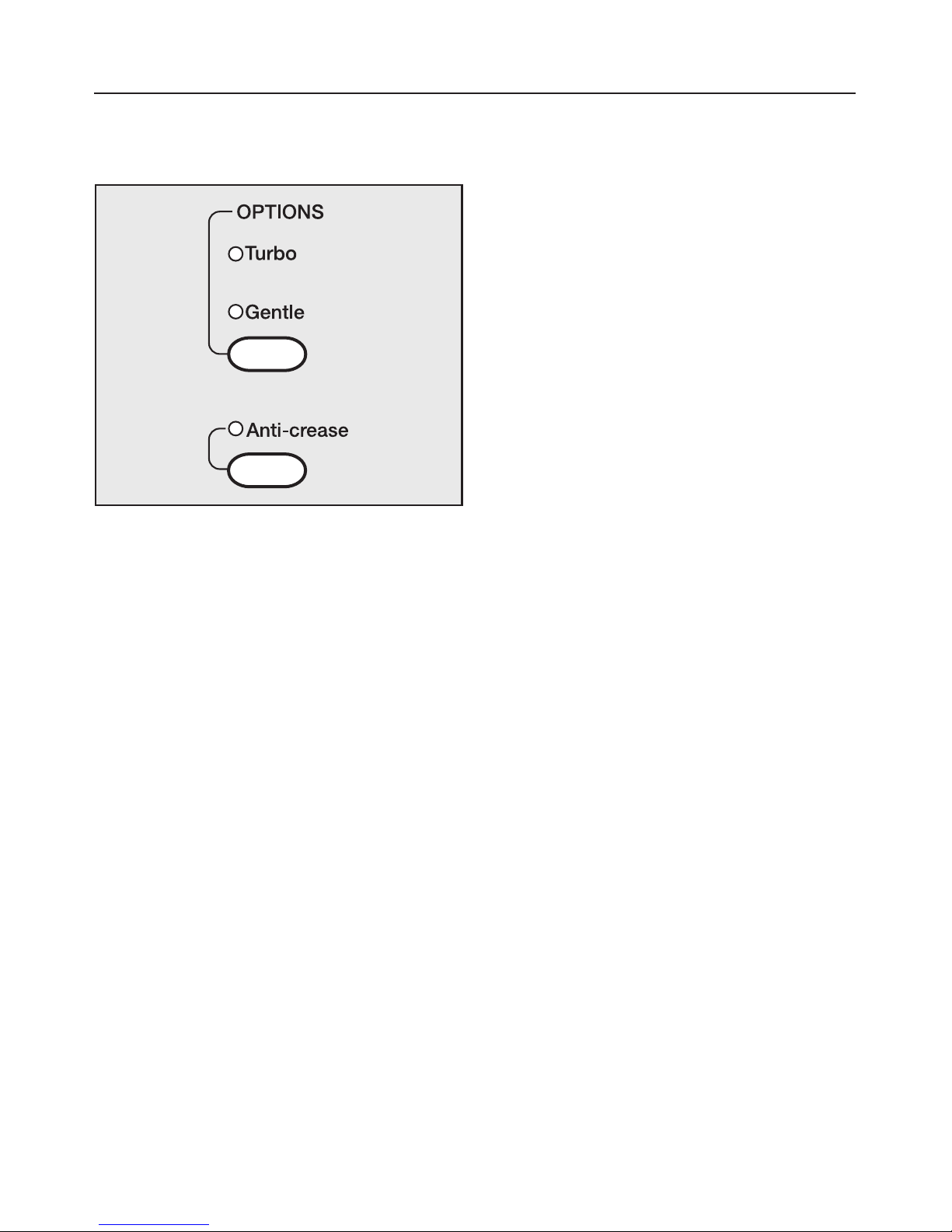

3. Select a drying option

(if needed)

^A drying option can be selected or

deselected with each press of the

button.

OPTIONS

Turbo

Fast drying for sturdy fabrics with

increased temperature and a reduced

program length.

Gentle

For drying delicate fabrics slowly at a

lower temperature.

Anti-crea e

Prevents wrinkles if laundry is not

removed immediately after the end of a

program. The drum periodically rotates

for about 1 hour.

U ing the dryer

4. Select the dryne level

The dryness level can be selected in

the "Normal" and "Wrinkle-free"

programs. (The dryness level of the

other programs cannot be adjusted.)

^Press the selection button until the

desired indicator illuminates.

In the "Wrinkle-free" program, only

"More Dry", "Normal" and "Less Dry" can

be selected.

5. Select the buzzer (if de ired)

^Press the "Buzzer" button to have a

tone beep at the end of the program.

Indicator light:

on = buzzer selected

off = buzzer not selected

Adju ting the buzzer volume:

–the dryer must be on

–the door closed

– a program selected

– if the "Buzzer" indicator is lit, press

the "Buzzer" button so its indicator

light goes out.

^Press and hold the "Buzzer" button

until its indicator lights and you hear

the desired volume and tone.

U ing the dryer

Indice

Altri manuali Miele Asciugatrice

Miele

Miele T 8947 WP Manuale utente

Miele

Miele TDB130WP Eco Manuale utente

Miele

Miele PDR 908 HP EL Manuale utente

Miele

Miele Touchtronic T 1329 C Manuale utente

Miele

Miele T 1515 Manuale

Miele

Miele TKG840 WP S Manuale utente

Miele

Miele T 6251 Manuale utente

Miele

Miele PT 7186 EL Manuale utente

Miele

Miele PDR 307 EL CC Manuale utente

Miele

Miele PT 7135 C Manuale utente

Miele

Miele T 8002 VENT ED DRYER - OPERATING AND Scheda tecnica

Miele

Miele T 1520i Manuale utente

Miele

Miele T442C Manuale utente

Miele

Miele PT 8257 WP Manuale utente

Miele

Miele T 4672 C Manuale utente

Miele

Miele T 586 C Manuale utente

Miele

Miele T 8164 WP Manuale utente

Miele

Miele T 8433 C Manuale utente

Miele

Miele PDR 944 EL Manuale utente

Miele

Miele TMB340 WP ECO Manuale utente

Miele

Miele PDR 514 Manuale utente

Miele

Miele TCR780WP Manuale utente

Miele

Miele TOUCHTRONIC T 8012 C Manuale utente

Miele

Miele TWF 720 WP Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
