Operating instructions

for condenser tumble dryer

T 699 C

It is essential to read these

operating instructions before Q\

installing or using the machine

to avoid the risk of accident,

or damage to the machine. M.-Nr. 04 943 440

Contents

Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to dry correctly

Hints on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching on and loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Selecting additional options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

After drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Altering a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Electronic system lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programmable functions

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Activating and storing in the memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

Cleaning and care

Cleaning the fluff filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Emptying the condensed water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Problem solving guide

What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

After sales service

Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Future updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Installation

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Fitting or changing the decor panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Fitting the plinth facia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Contents

Guide to the appliance

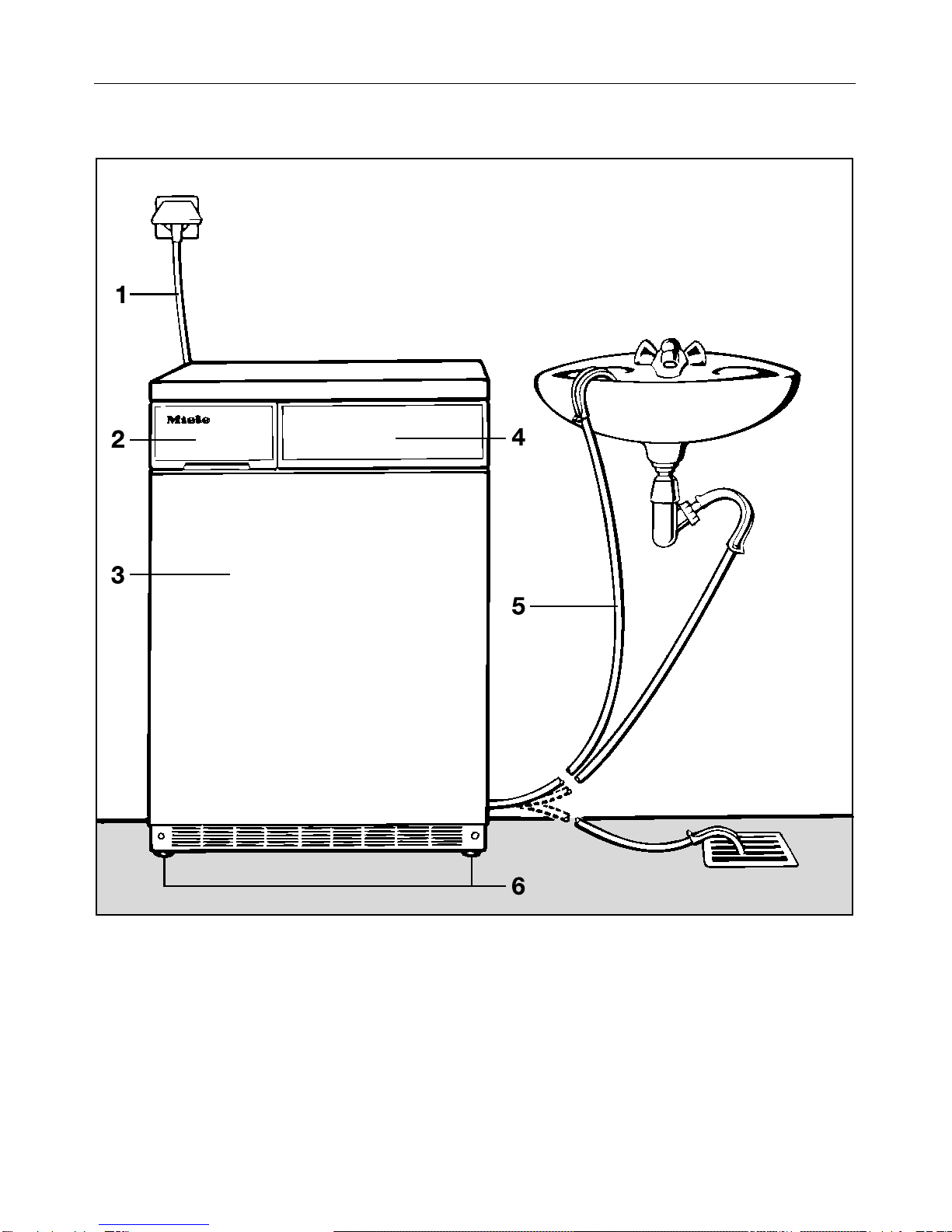

General view

1Supply cable for electrical connection

2Condensed water container

3Door

4Control panel

5Drain hose for condensed water (if fitted)

6Four height-adjustable screw feet

Guide to the appliance

Control panel

b“I-On/0-Off”button

to switch the appliance on and off.

When the machine is switched on, the

drum light will come on as you open

the door.

c“Door” button

to open the door/cancel a programme.

This button does not stay pushed in.

dCHECK LIGHTS

See the section “Problem solving” for

an explanation of the check lights.

eProgramme selector buttons

Indicator light: on= programme selected

off= programme not selected

fADDITIONAL OPTION buttons

Indicator light: on= option selected

off= option not selected

gSEQUENCE indicator lights

show the stage the drying programme

has reached.

hDisplay

performs several functions:

– shows how long the programme still

has to run;

– shows the time set for the pro-

gramme to begin when using the

“Delay start” option;

– shows the programmable functions

called up.

i“START”button

starts a drying programme.

The indicator light:

– flashes to indicate that the pro-

gramme can be started;

– remains on once the programme has

commenced.

j“Buzzer” button

k“Delay start” button

The start of the programme can be de-

layed for up to 24 hours.

l_buttons

for keying in:

– the time for the Delay start option

– the programme length for timed drying

Guide to the appliance

Caring for the environment

Disposal of packing

The transport and protective packing

has been selected from materials

which are environmentally friendly for

disposal and can normally be recycled.

Rather than just throwing these ma-

terials away, please ensure they are of-

fered for recycling.

Disposal of your old

machine/appliance

Old machines/appliances contain ma-

terials which can be recycled. Please

contact your dealer, your local waste

collection centre or scrap merchant

about potential recycling schemes. En-

sure that the machine/appliance pres-

ents no danger to children while being

stored for disposal. See the appropri-

ate advice in the “Warning and safety”

instructions.

Caring for the environment

Warning and safety instructions

Please read the operating instruc-

tions before using the tumble dryer

for the first time. They contain im-

portant information about the safety,

use and maintenance of the

machine. This will avoid the risk of

accidents and damage to the ma-

chine. Keep these operating in-

structions in a safe place and en-

sure that new users are familiar with

the content. Pass them on to any fu-

ture owners of the machine.

Correct usage

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution and are

marked on the manufacturer’s wash

care label as being suitable for tumble

drying.

Any other applications may be dan-

gerous. The manufacturer is not liable

for damage resulting from improper

use or operation.

Do not let small children play with

the machine and its controls or

operate it. Please supervise its use by

the elderly or infirm.

Technical safety

Check for visible external damage

before installation.

Do not install or operate a damaged

machine or appliance.

Before connecting the machine, en-

sure that the connection data on

the data plate (fusing, voltage and fre-

quency) matches the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this ma-

chine can only be guaranteed

when continuity is complete between

the appliance and an effective earthing

system which complies with local and

national regulations. It is most import-

ant that this basic safety requirement is

regularly tested by a qualified electri-

cian. The manufacturer cannot be held

responsible for the consequences of an

inadequate earthing system.

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for which

the manufacturer cannot accept respon-

sibility. Repairs should only be under-

taken by a Miele approved engineer.

In the event of a fault, or for clean-

ing purposes, the machine is only

completely isolated from the electricity

supply when:

– the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn.

Warning and safety instructions

For safety reasons, do not use an ex-

tension cable. There is a danger of

overheating.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the ma-

chine be guaranteed.

Use

Do not install the machine in a

room where the temperature may

drop below freezing, as temperatures

below zero could damage the machine.

Frozen condensed water in the pump,

hose and condensed water container

could also lead to damage.

If the water is drained externally

through the drain hose instead of

being collected in the condensed

water container, make sure the drain

hose is securely attached if you hang it

in a sink or basin to avoid the hose slip-

ping and the water causing damage.

Condensed water is not drinking

water. It can cause health prob-

lems in people and animals.

Always close the door after use to

avoid the danger of:

– someone leaning on the door which

could cause the machine to tip;

– children climbing into the machine or

hiding objects in it.

There is a danger of fire with fab-

rics which:

– contain rubber, foam rubber or rub-

ber-like materials;

– have been treated with inflammable

cleaning agents;

– have been splashed with hair lac-

quer, hair spray, nail varnish remover

or similar;

– also padded items (eg cushions,

jackets) which have been damaged,

as the padding could fall out and

catch fire.

Warning and safety instructions

Using accessories

Accessory parts may only be fitted

when expressly approved by

Miele. If other parts are used, guaran-

tee, performance and product liability

claims may be invalidated.

Disposing of your old machine

Before discarding an old machine,

unplug it and render the plug use-

less. Cut off the cable directly behind

the appliance to prevent misuse.

In countries where there are areas

which may be subject to infesta-

tion by cockroaches or other vermin,

pay particular attention to keeping the

appliance and its surroundings in a

clean condition at all times. Any dam-

age which may be caused by cock-

roaches or other vermin will not be

covered by the appliance guarantee.

Warning and safety instructions

Brief instructions

Brief description

When the machine is switched on, the

indicator lights for all programmes will

come on. Programmes are selected by

pressing the appropriate button and

can be supplemented by pressing the

additional option buttons. The indicator

lights show which programmes/options

have been selected and the lights for

the other programmes will go out.

Press the “START” button to begin the

programme.

The sequence indicator lights show

which stage has been reached in the

drying programme.

The Sensitive system automatically ad-

justs drying to suit the water quality

and ensure more precise results.

The Novotronic controls measure and

and compensate for variations to

achieve a uniform residual moisture

level.

The automatic reversing action turns

the drum clockwise and anti-clockwise

to loosen the laundry and prevent

uneven drying, ensuring good results.

Once the required degree of dryness is

achieved, the laundry is allowed to cool

down.

At the end of the programme the anti-

crease action period begins. The drum

turns intermittently to reduce the forma-

tion of creases and folds.

Programmable functions can be used

to select or de-select some of the addi-

tional options and introduce further

functions. These combinations can be

stored in the machine’s memory and

called up.

Please read the sections on “Warn-

ing and safety” and “Notes on

laundry care”.

1Switching the machine on and

loading the laundry

Switch on by pressing the “I-On/0-

Off” button.

Press the “Door” button to open the

door.

Place the laundry loosely in the drum.

Swing the door shut but do not slam

it. Do not push on the door to shut it.

2Selecting a programme

Press the appropriate touch pad to

select a programme.

If selecting a timed drying pro-

gramme, use the _buttons to

enter the drying time.

3Selecting additional options

Press the buttons to switch addi-

tional options on or off as required.

If required, press the “Delay start”

button and enter the number of

hours using the _buttons.

4Starting the programme

Press the “START” button.

Brief instructions

Indice

Altri manuali Miele Asciugatrice

Miele

Miele T 294 C Manuale utente

Miele

Miele TEF 765 WP Manuale utente

Miele

Miele TCE530 WP Active Plus Manuale utente

Miele

Miele PDR 914 HP Manuale utente

Miele

Miele TOUCHTRONIC T 9820 Manuale elenco delle parti

Miele

Miele T442C Manuale utente

Miele

Miele TOUCHTRONIC T 9820 Manuale utente

Miele

Miele PDR 908 EL Marine Manuale utente

Miele

Miele T 4659 Ci Manuale utente

Miele

Miele TCF 640 WP Manuale utente

Miele

Miele T 8861 WP Manuale utente

Miele

Miele TMB340 WP ECO Manuale utente

Miele

Miele heat pump dryer Manuale utente

Miele

Miele PT 6185 Manuale utente

Miele

Miele PDR 914 HP Manuale utente

Miele

Miele TKR850 WP S Manuale utente

Miele

Miele T 7644 C Manuale utente

Miele

Miele TKB540 WP Eco Manuale utente

Miele

Miele TOUCHTRONIC T 1312 Manuale utente

Miele

Miele T 8001 WP SUPERTRONIC Manuale utente

Miele

Miele T 230 C Manuale utente

Miele

Miele PDR 514 Manuale utente

Miele

Miele PT 8257 WP Manuale utente

Miele

Miele PT 5135 C EL Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
