Miele T 7734 Manuale utente

Operating instructions

for vented tumble dryer

T 7734

To avoid the risk of accidents

or damage to the machine

it is essential to read these

instructions before it is installed

and used for the first time.

M.-Nr. 06 737 060

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old appliance

Electrical and electronic appliances

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your appliance.

Please do not therefore dispose of it

with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre and ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or disconnected

from the mains electricity supply by a

competent person. The plug must be

rendered useless and the cable cut off

directly behind it to prevent misuse.

See the "Warning and Safety" section of

this booklet for further details.

Energy saving tips

To avoid unnecessarily long drying

times and high consumption of energy:

–Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

– Load according to the optimum

amount of laundry recommended for

the programme being used (see

"Programme chart").

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

– Make sure the room in which the

dryer is located is well ventilated.

–Make sure the fluff filter is clean

before using the dryer.

–Check all parts of the ventilation

system on a regular basis and

remove any build up of fluff etc.

–The vent ducting should be as short,

straight and smooth as possible to

minimise any resistance to the air

throughflow.

This helps to reduce running times

and energy consumption levels.

Caring for the environment

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating the tumble dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Delay start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing a programme while it is running . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cancelling a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 19

Electronic system lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cleaning the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cleaning the grilles in the door opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Check and fault messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Other problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Future updates (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Contents

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 31

Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Room ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Installation - venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Calculating the effective duct length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Installation to the rear, left or right side of the machine . . . . . . . . . . . . . . . . . . . . . 36

Venting systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

aFlexible ducting hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

bPlastic piping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

cConnect directly to a wall vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Washer-dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Extending the range of the drying levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Altering the volume of the buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Extending the cooling down time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Clean out airways indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Keypad tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Adjusting the dryer's electronics for very soft water . . . . . . . . . . . . . . . . . . . . . . . 51

Contents

To avoid the risk of accidents and

damage to the machine please read

these instructions carefully before

using it for the first time. They

contain important information on its

safety, installation, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner of the

machine.

Correct use

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, marked on

the manufacturer's care label as being

suitable for tumble drying.

"Dry cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and

follow the instructions provided on the

packaging.

Any other applications may be

dangerous. The manufacturer is not

liable for damage resulting from

improper use or operation.

Technical safety

Before setting up the machine,

check it for any externally visible

damage.

Do not install or use a damaged

machine.

Before connecting the machine,

ensure that the connection data on

the data plate match the mains

electricity supply. If in any doubt,

consult a qualified electrician.

The electrical safety of this

machine can only be guaranteed

when continuity is complete between it

and an effective earthing system which

complies with local and national safety

regulations. It is most important that this

basic safety requirement is present and

regularly tested, and where there is any

doubt the household wiring system

should be inspected by a qualified

electrician. The manufacturer cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

Do not connect the machine to the

mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

Warning and Safety instructions

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in

unforeseen dangers for the user, for

which the manufacturer cannot accept

liability. Repairs should only be

undertaken by a Miele approved

technician.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the machine guarantee.

Warning and Safety instructions

In the event of a fault or for

cleaning purposes, the machine is

only completely isolated from the

electricity supply when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn, or

–the screw-out fuse is removed (in

countries where this is applicable).

Use

This equipment may only be used

in mobile installations such as

ships, caravans, aircraft etc. if a risk

assessment of the installation has been

carried out by a suitably qualified

engineer.

This dryer must not be:

– connected to a chimney or vent flue

which is in use.

–used without exhaust ducting.

–used without the fluff filter in place or

if the fluff filter is damaged in any

way.

Check all parts of the extraction

system on a regular basis (e.g. wall

vent, external grille, bends in the

ducting etc.) and make sure they are all

free of any hindrance. A build-up of fluff

will prevent a free-flow of air through the

system. If the dryer is to be connected

to an existing ducting system this must

be checked for suitability beforehand.

Adequate ventilation is essential to

avoid the danger of asphyxia and

toxic fumes where another appliance

which also uses the room air (e.g. gas,

oil or coal fired heater, continuous flow

or other water heater) is installed in the

same or an adjacent room.

To ensure safe operation, and to

prevent gases given off by these

appliances being drawn back into the

room, an underpressure of 0.04 mbar is

the maximum permissible.

–Ventilation can be maintained by air

inlets which cannot be blocked, in

windows, doors and outside wall

vents, or by fitting a window contact

switch which ensures that the tumble

dryer can only be operated when the

window is opened wide enough.

If in doubt, the advice of a competent

builder, or for gas, a "Corgi" registered

installer (in the UK) must be sought.

The exhaust air must not be vented

into a chimney or vent flue which is

in use, nor should it be connnected to

ducting which ventilates rooms with

fireplaces. It would be dangerous if

smoke or exhaust fumes were drawn

back into the room.

Do not install the machine in a

room where there is a risk of frost

occurring. At temperatures around

freezing point the machine may not be

able to operate properly.

The ambient room temperature should

be between +2°C and +35°C.

Warning and Safety instructions

To prevent the risk of fire the

following textiles must not be

dried in this machine:

–fabrics which contain a large

proportion of rubber, foam rubber or

rubber like materials.

–items which contain damaged

padding or fillings (e.g. pillows,

jackets).

–items which have been treated with

inflammable cleaning agents.

–items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

– items which have been soiled with

oils or residues containing grease

(kitchen oils, cosmetics etc.).

– items soiled with wax or other

chemicals (e.g. mops and floor

cloths).

– items which have not been

thoroughly cleaned and which are

still soiled with grease or oil, e.g.

workwear. Such clothing may require

a heavy duty detergent to get them

clean. If necessary consult the

detergent manufacturer for advice.

Do not let anyone sit or lean on the

door, as this can cause the

machine to tip up.

Always close the door after use.

This way you will avoid the danger

of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

Safety with children

This machine is not a toy. To avoid

the risk of injury keep children

away from the machine at all times and

supervise them whilst you are using it.

Do not allow children to play on or near

it or to play with its controls. Supervise

its use by the elderly or infirm.

Using accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If non-Miele parts are used with this

machine, guarantee, performance and

product liability claims may be

invalidated.

Disposal of your old machine

Before discarding an old machine,

switch it off at the wall socket and

unplug it. Render the plug useless and

cut off the cable directly behind the

machine. This should be done by a

competent person.

The manufacturer cannot be held

liable for damage caused by

non-compliance with these Warning

and Safety instructions.

Warning and Safety instructions

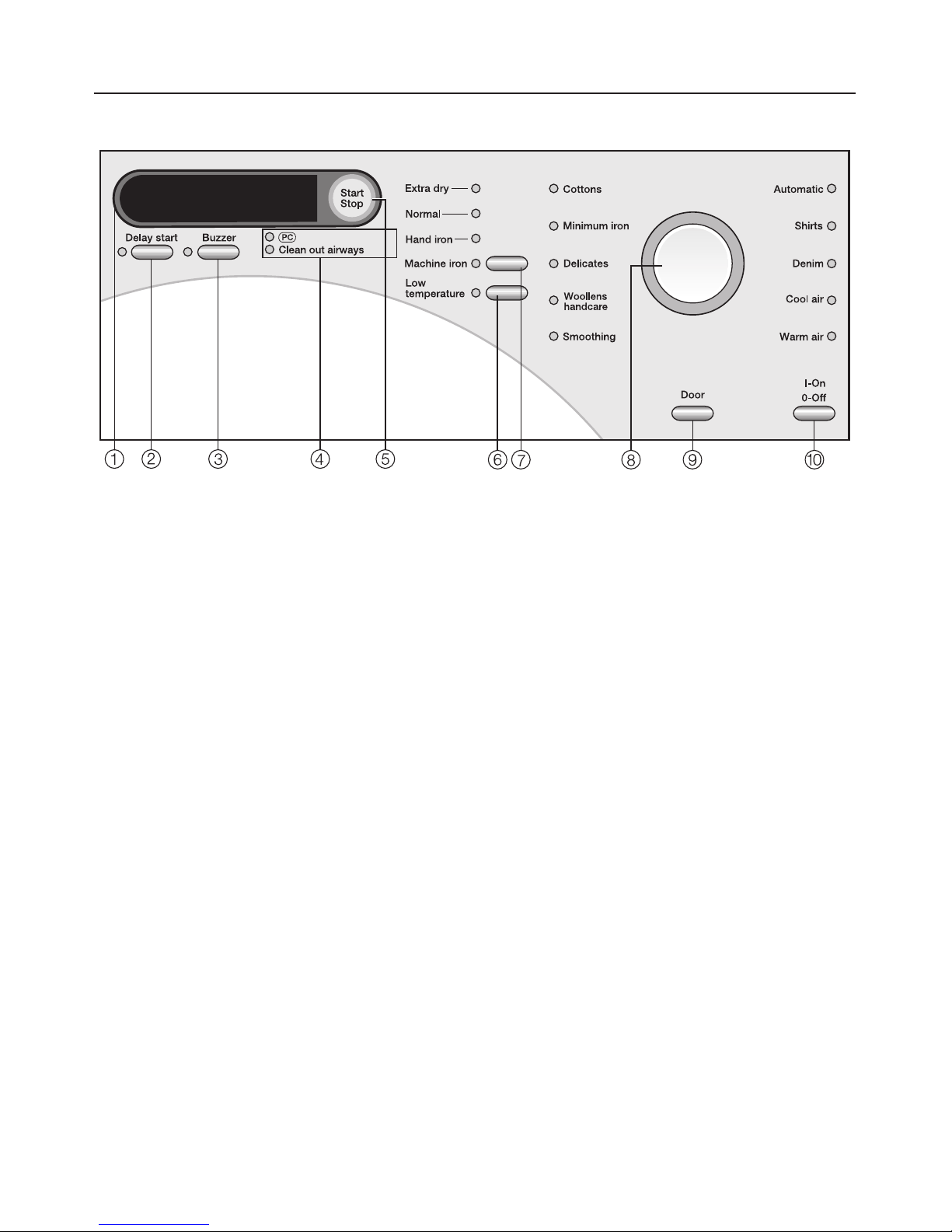

Control panel

aDisplay

bDelay start button

This button is used for:

- Selecting the duration of the

Warm air

and

Cool air

programmes

- Delaying the start of a programme

cBuzzer button

An audible tone sounds at the end of

the programme.

dCheck lights

These indicator lights have various

functions. See "Problem solving

guide" / "After sales service" for

details.

eStart/Stop button

For starting the programme selected

and cancelling a programme once it

has started.

The button flashes while a

programme is being selected and

then is on constantly when the

programme has started.

fLow temperature button

Delicate fabrics are dried at a lower

temperature.

gDrying level button

with indicator lights

hProgramme selector

with indicator lights

iDoor button

Pressing this button will open the

door even when the machine is

switched off at the mains.

jI-On/0-Off button

For switching the dryer on and off.

Operating the tumble dryer

Display

The following are selected via the

display:

–Delay start

–Duration of the Cool air and Warm air

programmes

–Programmable functions

The display also shows:

–Programme duration

–Programme stage

Drying

Cooling down

Finish

– Check and fault messages

Programme duration / Estimated time

remaining

When a programme is selected, the

estimated duration (time remaining) will

appear in the display. Please be aware

that it is only an estimate!

The following factors all affect the

estimated time remaining: residual

moisture content after spinning; type of

fabric; size of load; room temperature;

fluctuations in power supply.

The electronics continually assess

conditions in the machine and adjust

the estimated time remaining for a more

accurate reading. Because of this, the

time displayed can alter during the

course of a programme.

In the same way, the Woollens

handcare and Smoothing programmes

can finish earlier than expected if a

certain temperature is reached. This

can happen with particularly fine

fabrics, very small loads or if items

were partly dry beforehand.

Delay start

The delay start time selected will

appear in the display.

After the Start/Stop button has been

pressed, the delay start time will start

counting down.

Once the delay start time has elapsed,

the programme will begin and the

estimated programme duration will

appear in the display.

Programmable functions

The programmable functions can be

used to tailor drying programmes to suit

your individual requirements. In

programming mode, the display will

show the function selected.

Operating the tumble dryer

Altri manuali per T 7734

Indice

Altri manuali Miele Asciugatrice

Miele

Miele TWL 780 WP Manuale utente

Miele

Miele TMB340 WP ECO Manuale utente

Miele

Miele T 430 Manuale utente

Miele

Miele PDR 922 EL Manuale utente

Miele

Miele T 270 C Manuale utente

Miele

Miele PDR 516 SL EL Manuale utente

Miele

Miele PDR 514 Manuale utente

Miele

Miele T 8861 WP Manuale utente

Miele

Miele T 8422 C Manuale utente

Miele

Miele T 640 Manuale utente

Miele

Miele TOUCHTRONIC T 9820 Manuale elenco delle parti

Miele

Miele T 284 Manuale utente

Miele

Miele T 699 C Manuale utente

Miele

Miele TWH620WP Manuale utente

Miele

Miele T 4839 Ci Manuale utente

Miele

Miele T 5205 C Manuale utente

Miele

Miele T 8685 C Manuale utente

Miele

Miele Novotronic T 560 C Manuale utente

Miele

Miele Eco&Steam&9kg TCR 780 WP Manuale utente

Miele

Miele T 7634 Manuale utente

Miele

Miele PT 7136 Vario OS Manuale utente

Miele

Miele 11 892 110 Manuale utente

Miele

Miele TOUCHTRONIC T 1312 Manuale elenco delle parti

Miele

Miele PT 5136 OS Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario
