NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010905
Product and Cutout Dimensions
70cm Warming Drawers
ESW4710 / ESW4720
24" min.
22 15/16"
27 3/8"
1"
10 7/8"
O
10 1/8"
26 - 26 1/4"
5 foot - 120 Volt - 15Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
E -
O -
Location Codes
25 15/16"
E
• All installations must be done in
accordance with local codes.
Notes
9 3/4" 1"
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010905
Product and Cutout Dimensions
70cm Warming Drawers

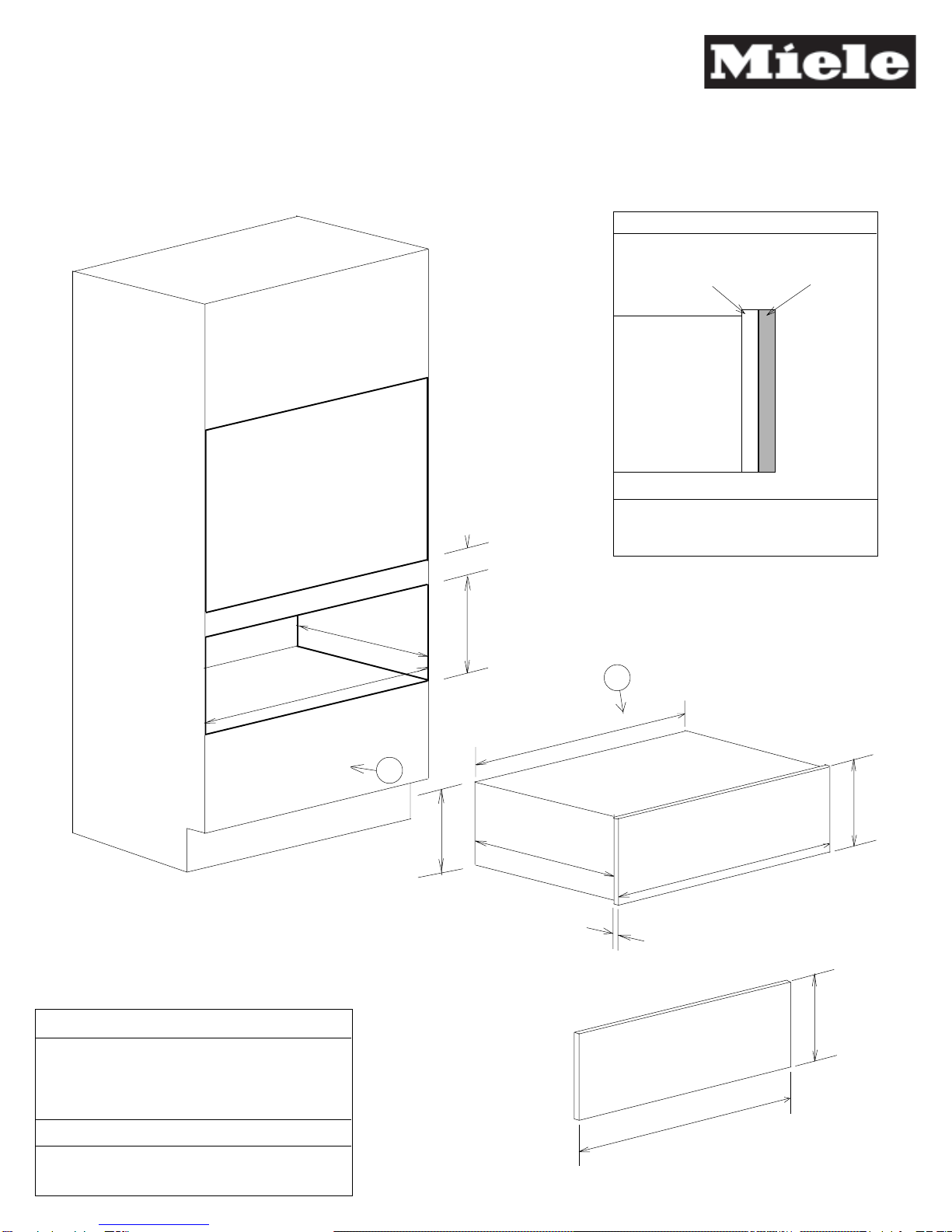

ESW4700 FB
24" min.
22 15/16"
27 3/8"
1"
10 7/8"
O
10 1/8"
26 - 28 1/2"
25 15/16"
E
9 3/4" 1"
Must accept a custom front panel
27 3/8" - 27 7/16"
10 7/8"
custom front panel
3/4" Thick
Profile Detail
Unit
Housing
Unit
Frame Custom
Panel
Note:
Custom front panel will stand
proud of the unit frame by 3/4"
5 foot - 120 Volt - 15Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
E -
O -
Location Codes
• All installations must be done in
accordance with local codes.
Notes
