Miele F 1903 Vi Manuale utente
Fully Integrated
36” Freezer
F 1913 Vi / F 1903 Vi
8mieleusa.com
FOR FLUSH INSTALLATION
F 1913 Vi / F 1903 Vi
Page 2 of 6

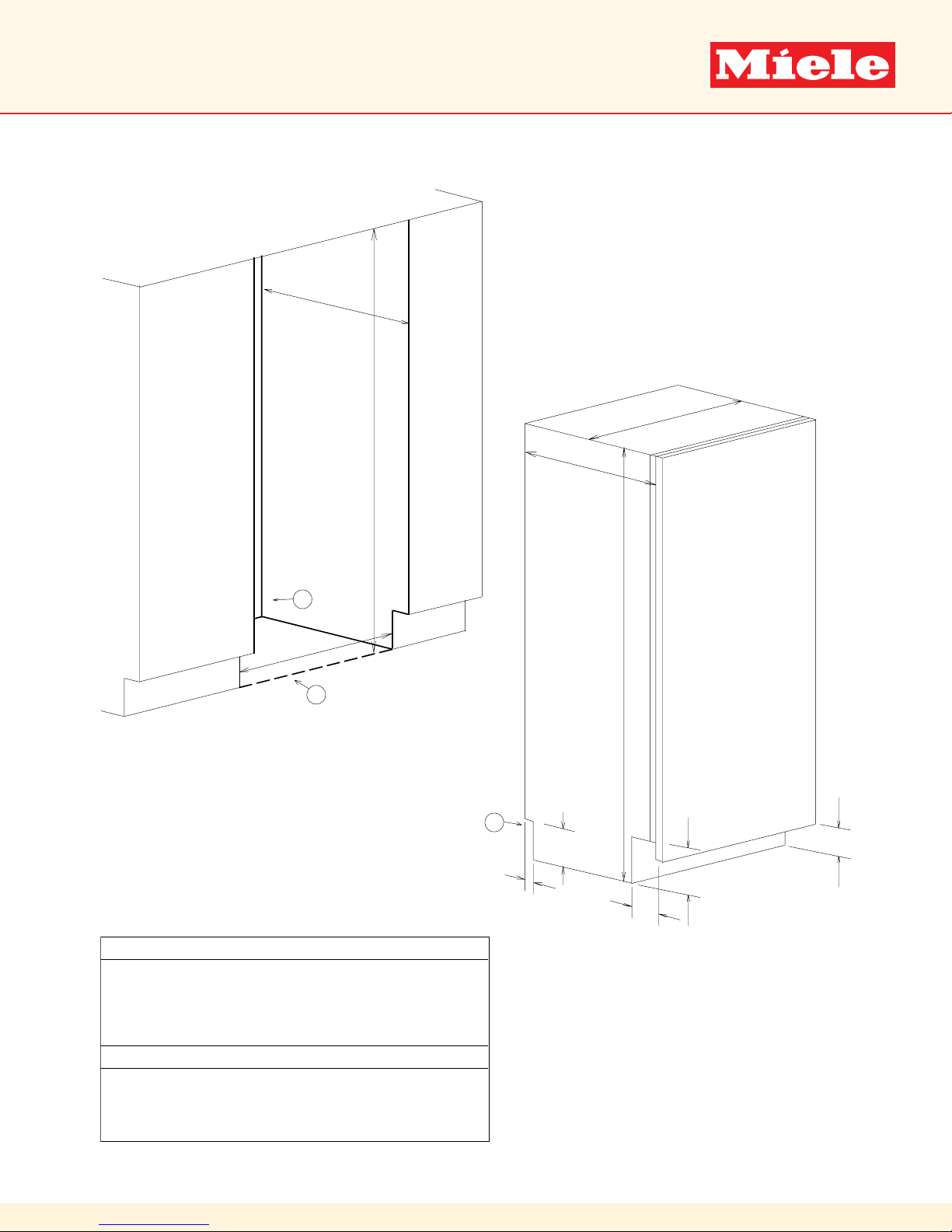

Fully Integrated 36” Freezer
F 1913 Vi / F 1903 Vi
30"
25" min.*
29 3/4"
83 1/2" - 85 3/8"
10 1/4
24 5/8"
"8/38-"2
4 1/8"
84"
1 1/8"
E
UNIT ACCEPTS
A CUSTOM
FRONT PANEL
"2/18-"8/56
O
W
Notes
5 foot - 120 Volt - 15 Amp 3-wire molded plug power
supply connects lower left rear
Standard NEMA 5-15 Duplex Outlet - locate less than
9" above finished floor
1/4" flexible water line - tape to floor
E -
O -
W -
• All Installations must be done in accordance with local codes
• Sides of adjoining cabinets should be filled (flush to frame) to
insure proper fit and finish
Location Codes
• For Proud Installation - please adjust accordingly
* Depth assumes a 3/4” panel, please adjust according to
custom panel thickness
35 3/4”
36”
Fully Integrated 36” Freezer
F 1913 Vi / F 1903 Vi
F 1913 Vi / F 1903 Vi
Page 3 of 6
CUSTOM PANEL INSTALLATIONS
Width: 29 3/4" in all cases
Thickness:Minimum 3/4" outside frame
Height: Determined using the following calculation:
Panel Height = HOC - TKH
HOC= Total height of cabinet or side panel
TKH= Toe-kick height
Note: Finish back side of panels to insure
appearance
Panel may extend above unit. This is not
considered in height calculation
Maximum panel weight: 105.8 Pounds
Miele
Fully Integrated
Freezer
TKH
HOC
Panel Height
These units do not come equipped with a front panel. They are designed to accept a custom door panel supplied by
the
cabinet maker. Miele has a unique panel integration system which allows the panels to align with the surrounding
cabinets
.
Panel
size is determined in the following manner:
Panel Notes
If
the adjoining cabinets are taller than the height of machine (HOM) - the front panel may be extended accordingly.
Simply
maintain the toekick height and extend the panel the needed distance.
Adjoining cabinet
Machine
Extended Panel
35 3/4” in all cases
81.6 Pounds
Fully Integrated 36” Freezer
F 1913 Vi / F 1903 Vi
F 1913 Vi / F 1903 Vi
Page 4 of 6
HINGING DETAILS
0-1/8"
Front Panel
1"
1-1/4"
1-1/2"
0-3/4"
0-3/4"
1-1/4"
1-1/2"
1-3/4"
2"
1"
Cabinet Front
0-3/4"
1"
1-1/4"
1-1/2"
0-1/8"
Front Panel
0-3/4"
1-1/4"
1-1/2"
1-3/4"
1"
Cabinet Front
rooD°511rooD°09
snoitpossenkcihTsnoitpossenkcih
T
Door
Swing
32 11/16"
7/16"
Door Swing
14 3/8"
MAX
NOTE
: Additional space needed depending on the thickness
of front panels and handle used.
Freezer units cannot be stop pinned at 90°
NOTE: Additional space needed depending on the thicknes
s
of front panels and handle used.
Freezer units cannot be stop pinned at 90°
Fully Integrated 36” Freezer
F 1913 Vi / F 1903 Vi
F 1913 Vi / F 1903 Vi
Page 5 of 6
HINGING DETAILS
0-1/8"
Front Panel
1"
1-1/4"
1-1/2"
0-3/4"
0-3/4"
1-1/4"
1-1/2"
1-3/4"
2"
1"
Cabinet Front
0-3/4"
1"
1-1/4"
1-1/2"
0-1/8"
Front Panel
0-3/4"
1-1/4"
1-1/2"
1-3/4"
1"
Cabinet Front
rooD°511rooD°09
snoitpossenkcihTsnoitpossenkcihT
Door Swing
NOTE: Additional space needed depending on
thickness of front panels and handle used
38 11/16"
7/16"
Door Swing
16 7/8"
MAX
NOTE: Additional space needed depending on
thickness of front panels and handle used
3”(76.2mm)
13/4”(44.5mm)
13/8”(35mm)
11/6” (29.6mm)
1/4”(6.4mm)
17/24” (18mm)
21/24”(52mm)
21/3” (59mm)
25/8” (67mm)
Fully Integrated 36” Freezer
F 1913 Vi / F 1903 Vi
F 1913 Vi / F 1903 Vi
Page 6 of 6
HINGING DETAILS FOR INSTALLATION
WITH APPLIANCE/OBJECT ON HINGE
SIDE
0-1/8"
Front Panel
1"
1-1/4"
1-1/2"
0-3/4"
0-3/4"
1-1/4"
1-1/2"
1-3/4"
2"
1"
Cabinet Front
0-3/4"
1"
1-1/4"
1-1/2"
0-1/8"
Front Panel
0-3/4"
1-1/4"
1-1/2"
1-3/4"
1"
Cabinet Front
rooD°511rooD°09
snoitpossenkcihTsnoitpossenkcihT
Door Swing
NOTE: Additional space needed depending on
thickness of front panels and handle used
38 11/16"
7/16"
Door Swing
16 7/8"
MAX
NOTE: Additional space needed depending on
thickness of front panels and handle used
7/16”
(11 mm)
13/16”
(30mm)
17/16”
(36.5mm)
111/16”
(43mm)
115/16”
(49.2mm)
Handle or object that is
NOT flush with Cabinet
Front.
**When installing hing side next to an appliance or object that is within range of the door panel, limit the
door opening angle to 90O. This is done by installing the banking pin as illustrated. Insert the banking
pin through the holes and drive in with a hammer.
