Operating and Installation instructions

Ceramic hobs

KM 520

KM 523

To avoid the risk of accidents or

damage to the appliance it is

essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 06 464 850

en-GB

Description of the appliace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

KM520...........................................................3

KM523...........................................................4

Cooking zones .....................................................5

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

How the cooking zones work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switching on and off ...............................................15

Residual heat indicators ............................................15

Settings .........................................................16

Switching on an extended area .......................................17

Pans ............................................................18

Tips on saving energy .............................................19

Overheating protection .............................................20

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

To test the power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

After sales service, data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Safety instructions for installation .....................................28

Building-in dimensions .............................................32

Preparing the worktop ..............................................34

Fixing the spring clamps ............................................35

Installing the hob ..................................................36

Protective shelf ...................................................37

Sealant ..........................................................37

Electrical connection ...............................................38

Wiring diagram ...................................................40

Contents

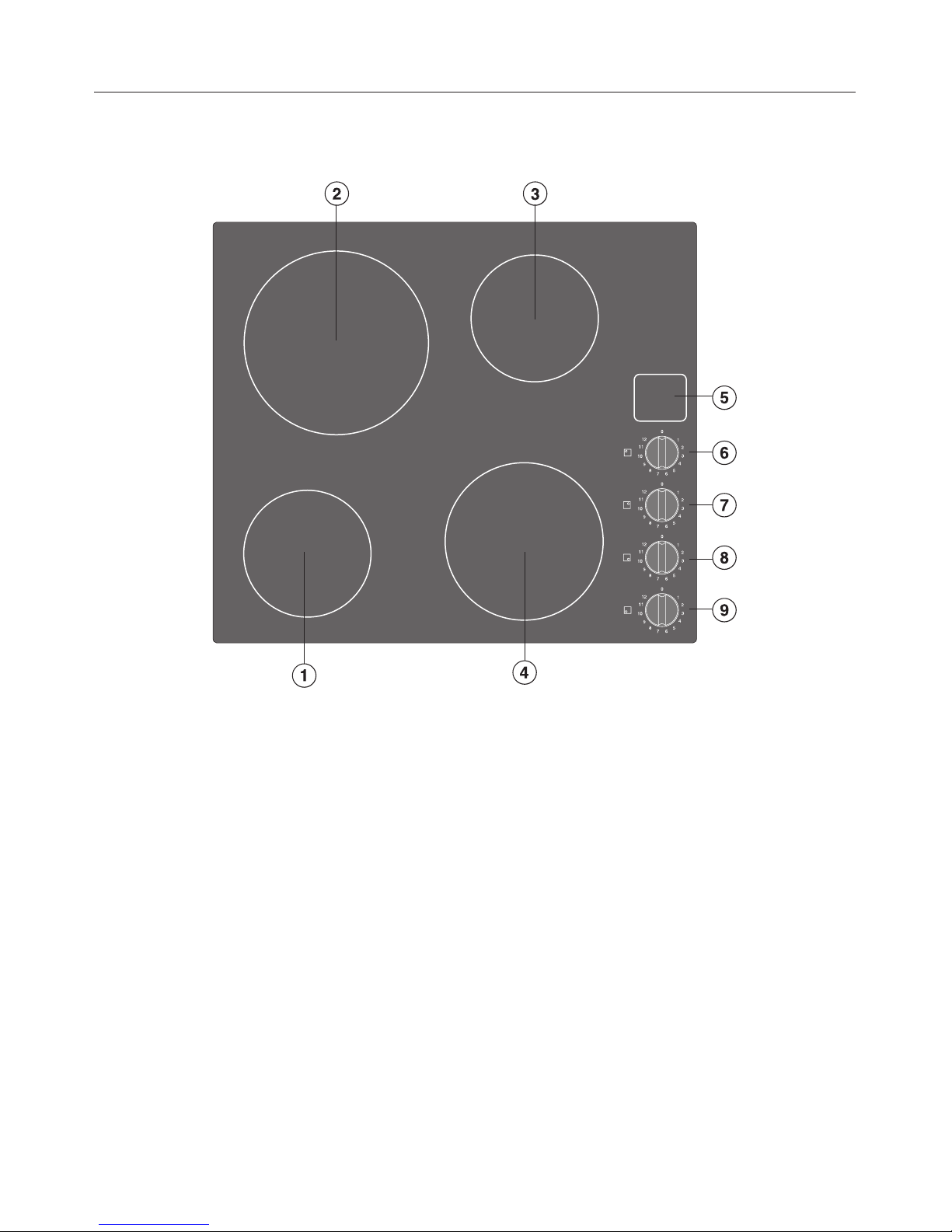

KM 520

abcd Single circle zones

eResidual heat indicators

Control for cooking zone

fRear left

gRear right

hFront right

iFront left

Description of the appliace

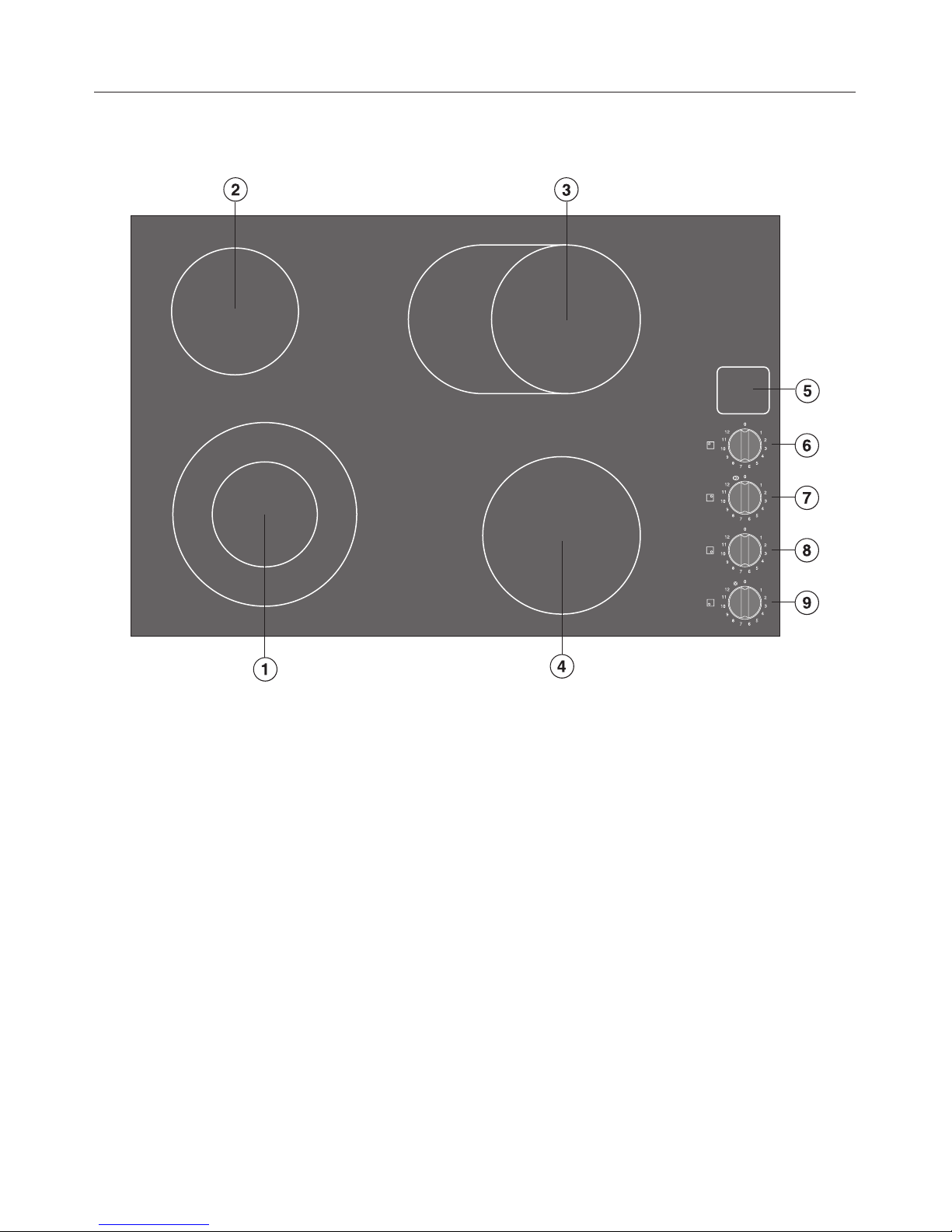

KM 523

aDouble circle zone

bd Single circle zones

cExtended cooking zone

eResidual heat indicators

Control for cooking zone

fRear left

gRear right

hFront right

iFront left

Description of the appliace

Cooking zones

Cooking

zone

KM 520 KM 523

Cin cm Rating in watts

(230 V)

Cin cm Rating in watts

(230 V)

y14.5 1200 12.0 / 21.0 750 / 2200

w21.0 2300 14.5 1200

x14.5 1200 17.0 / 17.0 x 26.5 1500 / 2400

z18.0 1800 18.0 1800

Total: 6500 Total: 7600

Description of the appliace

To avoid the risk of accidents and

damage to the appliance, please

read these instructions carefully

before using it for the first time. They

contain important notes on its

installation, safety, use and

maintenance.

This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

metal capabilities, or lack of

experience or knowledge, unless

they have been given supervision or

instruction concerning its use by a

person responsible for their safety.

Keep these instructions in a safe

place for reference, and pass them

on to any future user.

Technical safety

~The appliance must be installed and

connected by a suitably qualified and

competent person in strict accordance

with current local and national safety

regulations. The manufacturer cannot

be held liable for damage caused by

incorrect installation or connection.

~The electrical safety of this

appliance can only be guaranteed

when continuity is complete between it

and an effective earthing system which

complies with current local and national

safety regulations. It is most important

that this basic safety requirement is

present and regularly tested, and

where there is any doubt, the

household wiring system should be

inspected by a qualified electrician.

The manufacturer cannot be held liable

for the consequences of an inadequate

earthing system (e.g. electric shock).

~Do not connect the appliance to the

mains electricity supply by an extension

lead. Extension leads do not guarantee

the required safety of the appliance

(e.g. danger of overheating).

~Never open the casing of the

appliance.

Tampering with electrical connections

or components is highly dangerous to

the user and can cause operational

faults.

Warning and Safety instructions

Correct usage

~For safety reasons this appliance

must only be operated after it has been

built in. This is necessary to ensure that

all electrical components are shielded.

~This appliance is intended for

domestic use only and is not to be used

for commercial purposes.

~Do not leave the appliance

unattended whilst it is in use.

Pans that have boiled dry can cause

damage to the ceramic surface for

which the manufacturer cannot be held

liable.

Boiling fat or oil could ignite and cause

a fire.

~Use this appliance for the

preparation of food only. Any other

usage is at the owner's risk and could

be dangerous. The manufacturer

cannot be held liable for damage

resulting from incorrect or improper use

or operation.

~Do not use the appliance to heat up

the room. Due to the high temperatures

radiated, objects near the appliance

could catch fire. The life of the

appliance could also be reduced.

Warning and Safety instructions

Safety with children

~The appliance is only intended for

use by adults who have read these

instructions.

~This appliance is not a toy! To avoid

the risk of injury, keep children well

away, and do not allow them to play

with it or use the controls. They will not

understand the potential dangers

posed by it. They should be supervised

whenever you are working in the

kitchen.

~Older children may use the

appliance only when its operation has

been clearly explained to them and

they are able to use it safely,

recognising the dangers of misuse.

~The appliance gets hot when in use

and remains hot for quite a while after

being switched off. To safeguard

against burning, keep children well

away from the appliance at all times.

~Do not store anything which might

arouse a child's interest in storage

areas above or next to the appliance.

Otherwise they could be tempted into

climbing onto the appliance with the

risk of burning themselves.

~Keep all pans out of reach of

children. Turn pan handles inwards

away from the edge of the hob. Danger

of burning or scalding. Special hob

guards are available from good retail

outlets.

~Packaging, e.g. cling film,

polystyrene and plastic wrappings,

must be kept out of the reach of babies

and young children. Danger of

suffocation. Dispose of or recycle all

packaging safely as soon as possible.

Warning and Safety instructions

Protecting the appliance from

damage

~Do not use pots and pans on the

ceramic hob with bases with

pronounced edges or ridges, e.g. cast

iron pans. These could scratch or scour

the hob surface permanently.

~Never heat an empty pan unless

the manufacturer of the pan expressly

states that you can do so. This could

damage the appliance.

~Keep the hob clean. Grains of salt,

sugar and sand (e.g. from cleaning

vegetables) can cause scratches.

~Do not allow either solid or liquid

sugar, or pieces of plastic or aluminium

foil to get onto the cooking zones when

they are hot. If this should occur, switch

off the appliance, and carefully scrape

off all the sugar, plastic or aluminium

residues from the hob whilst they are

still hot, using a shielded scaper blade.

Take care not to burn yourself.

If residues are allowed to cool before

being removed, the ceramic surface

will be susceptible to pitting or even

cracking.

Once the residues have been removed,

allow the appliance to cool down, and

then clean with a suitable proprietary

ceramic hob cleaner.

~To prevent the risk of spillages etc.

burning on, remove any soiling as

quickly as possible and ensure that pan

bases are clean, dry and free of

grease.

~Do not drop anything on the ceramic

surface. Even a light object could

cause damage in certain

circumstances.

~Do not use a steam cleaner to clean

this appliance. The steam could attack

the electrical components and cause a

short circuit.

~Never place hot pots or pans near

the residual heat display area. This

could damage the electronic unit

underneath.

Warning and Safety instructions
