Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
Information is subject to change. Please refer to our website to obtain the most
current product specification, technical & warranty information.
To prevent accidents
and appliance damage
read these instructions
before
installation or use.
,WARNING - Read all instructions
before installation or use of the
steam oven to prevent injury and
machine damage.
~Before installation make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
~Do not operate any appliance with a
damaged cord or plug or if the
appliance has been damaged in any
manner. Return the appliance to the
nearest authorized service facility for
examination, repair or adjustment.
~Make sure that the outlet is easily
accessible after installing the
appliance.
~This appliance is not to be used in
mobile installations, such as ships.
~The appliance must be placed so
that the content of the cooking pan on
the top shelf level can be seen. Only in
this way can scalding from spilling hot
food and hot water be avoided.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
Note to the installer:
Please leave these instructions with the
consumer of the appliance for the local
building inspectors use.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
150
Dimension details of the appliance front
* Appliances with glass front
** Appliances with metal front
Installation reference
151
Control panel swivel range The area in front of the control panel
must not be blocked by anything (such
as a door handle) this would hinder the
control panel from opening and closing.
Installation reference
152

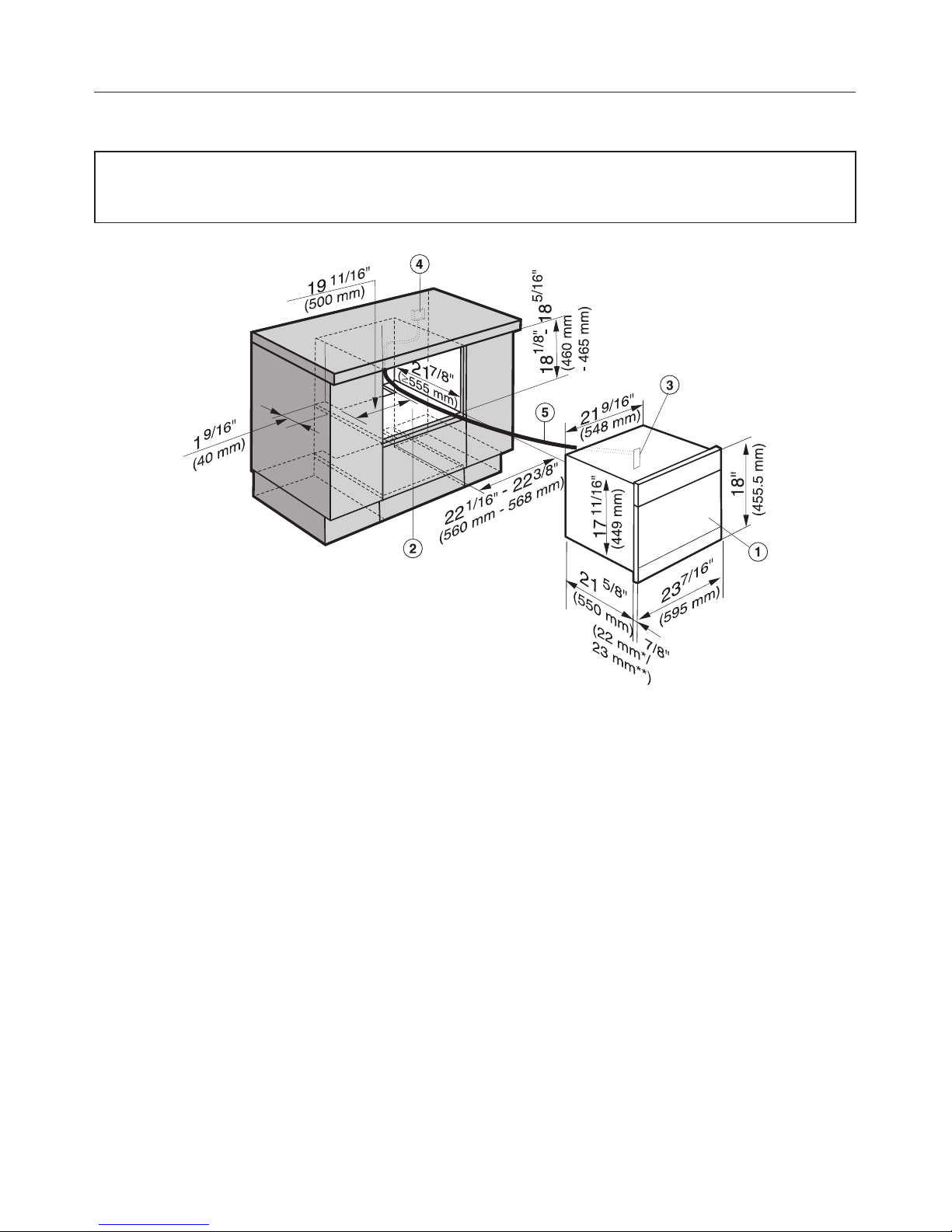

Wall cabinet installation
aCombi Steam Oven
bInstallation niche
cPower supply to the appliance
dRecommended location for electrical connection
ePower cord
* Appliances with glass front
** Appliances with metal front
Appliance and installation dimensions
153
Cut-outs for venting the Combi Steam Oven
To ensure that the Combi Steam Oven has adequate ventilation, the following
cut-outs measuring 19 11/16" x 1 9/16" (500 x 40 mm) must be made:
ain the top of the cabinet
bin the center shelf above the installation niche
The cabinet housing must not have a back panel fitted behind the installation
niche.
Appliance and installation dimensions
154
Undercounter installation
If the appliance is to be installed under a cooktop, observe the instructions for
installation of the cooktop and its installation height.
aCombi Steam Oven
bInstallation niche
cPower supply to the appliance
dRecommended location for electrical connection
ePower cord
* Appliances with glass front
** Appliances with metal front
Appliance and installation dimensions
155
Cut-outs for venting the Combi Steam Oven
To ensure that the Combi Steam Oven has adequate ventilation, the following
cut-outs measuring 19 11/16" x 1 9/16" (500 x 40 mm) must be made:
ain the appliance support base
bin the bottom of the cabinet space below
The cabinet housing must not have a back panel fitted behind the installation
niche.
Appliance and installation dimensions
156
Installation in combination with an oven
aCombi Steam Oven
bInstallation niche
cPower supply to the appliance
dRecommended location for electrical connection
ePower cord
fOven
* Appliances with glass front
** Appliances with metal front
Appliance and installation dimensions
157
Cut-outs for venting the Combi Steam Oven
To ensure that the Combi Steam Oven has adequate ventilation, the following
cut-outs measuring 19 11/16" x 1 9/16" (500 x 40 mm) must be made:
ain the top of the cabinet
bin the center shelf above the installation niche
The cabinet housing must not have a back panel fitted behind the installation
niche.
Cut-out for venting the oven:
Please refer to the installation instructions for the oven.
Appliance and installation dimensions
158
