Installation Instructions

H 6560 BP, H 6660 BP HQ&$



,QVWDOODWLRQUHSDLUDQGPDLQWHQDQFHZRUNVKRXOGEHSHUIRUPHGE\

D0LHOHDXWKRUL]HGVHUYLFHWHFKQLFLDQLQDFFRUGDQFHZLWKQDWLRQDO

DQGORFDOVDIHW\UHJXODWLRQVDQGWKHSURYLGHGLQVWDOODWLRQLQVWUXFWLRQV

Caring for the environment

Disposal of the packing

material

The cardboard box and packing

materials protect the appliance during

shipping. They have been designed to

be biodegradable and recyclable.

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of children.

Danger of suffocation!

Disposal of your old appliance

Old electrical and electronic appliances

often still contain valuable materials.

However, they also contain harmful

substances that were essential for the

proper functioning and safe use of the

equipment. Handling these materials

improperly or disposing of them in your

household waste can be harmful to

your health and the environment.

Therefore, please do not dispose of

your old appliance with regular

household waste.

Old appliances may contain materials

that can be recycled. Please contact

your local recycling authority about the

possibility of recycling these materials.

Please be sure that your old appliance

does not pose a danger to children

while being stored for disposal.

Electrical connection

ɘCAUTION:

Before servicing, disconnect the

power supply by either removing the

fuse, shutting off the power main or

manually "tripping" the circuit

breaker.

Installation, repair and maintenance

work must be performed by a Miele

authorized service technician. Work

by unqualified persons could be

dangerous and may void the

warranty.

Before connecting the appliance to

the power supply, make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an

electrician if in doubt.

Only operate the appliance after it

has been installed into cabinetry.

The plug must be plugged into an

appropriate outlet that is installed

and grounded in accordance with all

local codes and ordinances.

WARNING: THIS APPLIANCE MUST

BE GROUNDED

Installer: Please leave these

instructions with the consumer.

Electrical connection

The oven is equipped with a power

cord approx. 7' 2" (2.2 m) in length with

a NEMA 14-30 P plug ready for

connection to the power supply:

– 120/208 V, 20 A, 60 Hz

– 120/240 V, 20 A, 60 Hz

The voltage can be adjusted (see

"Settings - Electrical Version").

SAVE THESE INSTRUCTIONS FOR

THE ELECTRICAL INSPECTOR'S

USE.

Installation diagrams

Appliance and cut-out dimensions

Miele ovens can be installed flush or proud. Discuss your installation

requirements with your architect, designer and installer.

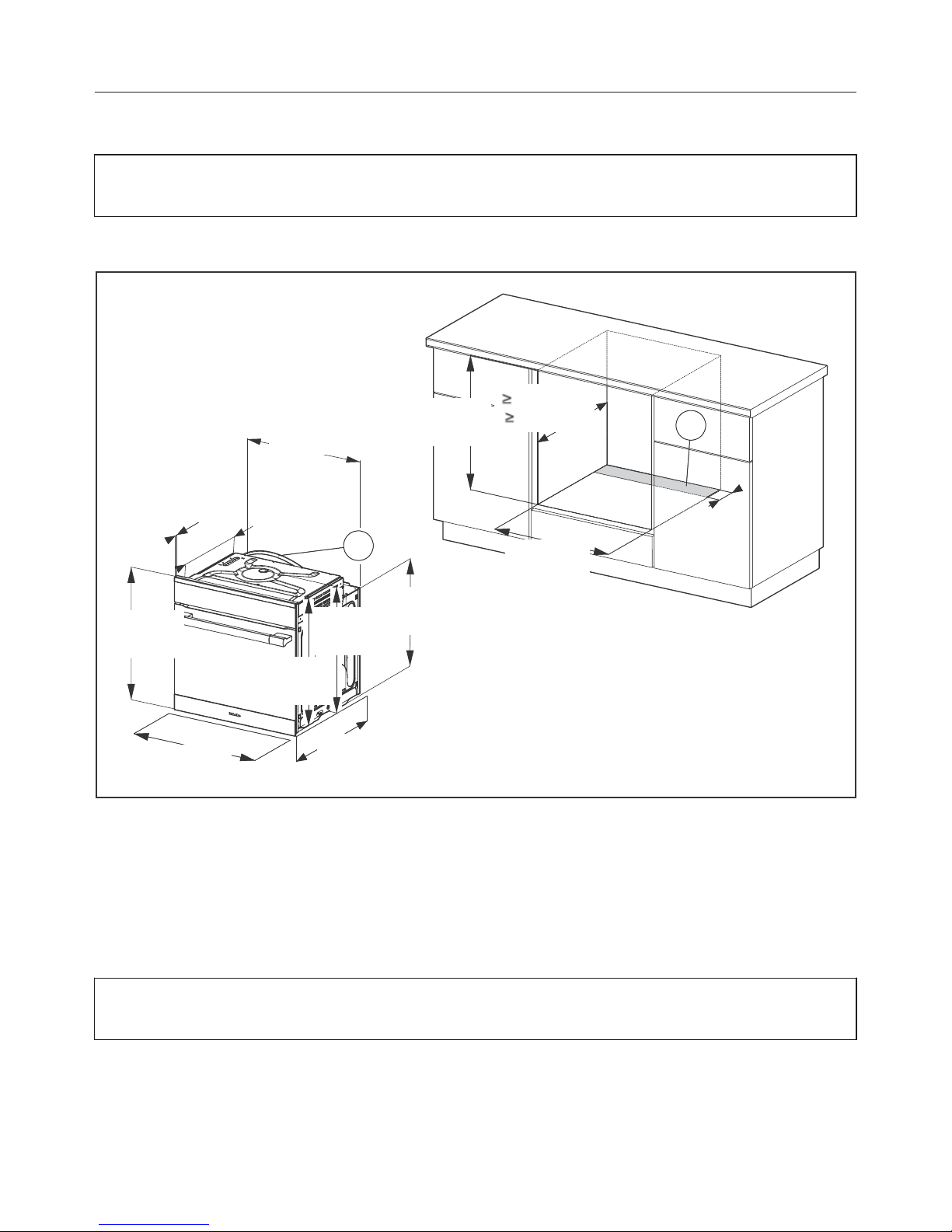

Undercounter installation



PP 

PP

PP



PP



PP



PP





PP



PP



PP



PP



PP



PP



PP

ǞCut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power

cord and ventilation

ǟPower cord with plug

*Oven with glass front

** Oven with metal front

Front design may vary depending on model. For the more current specifications

please visit the Miele website.

Installation diagrams

100

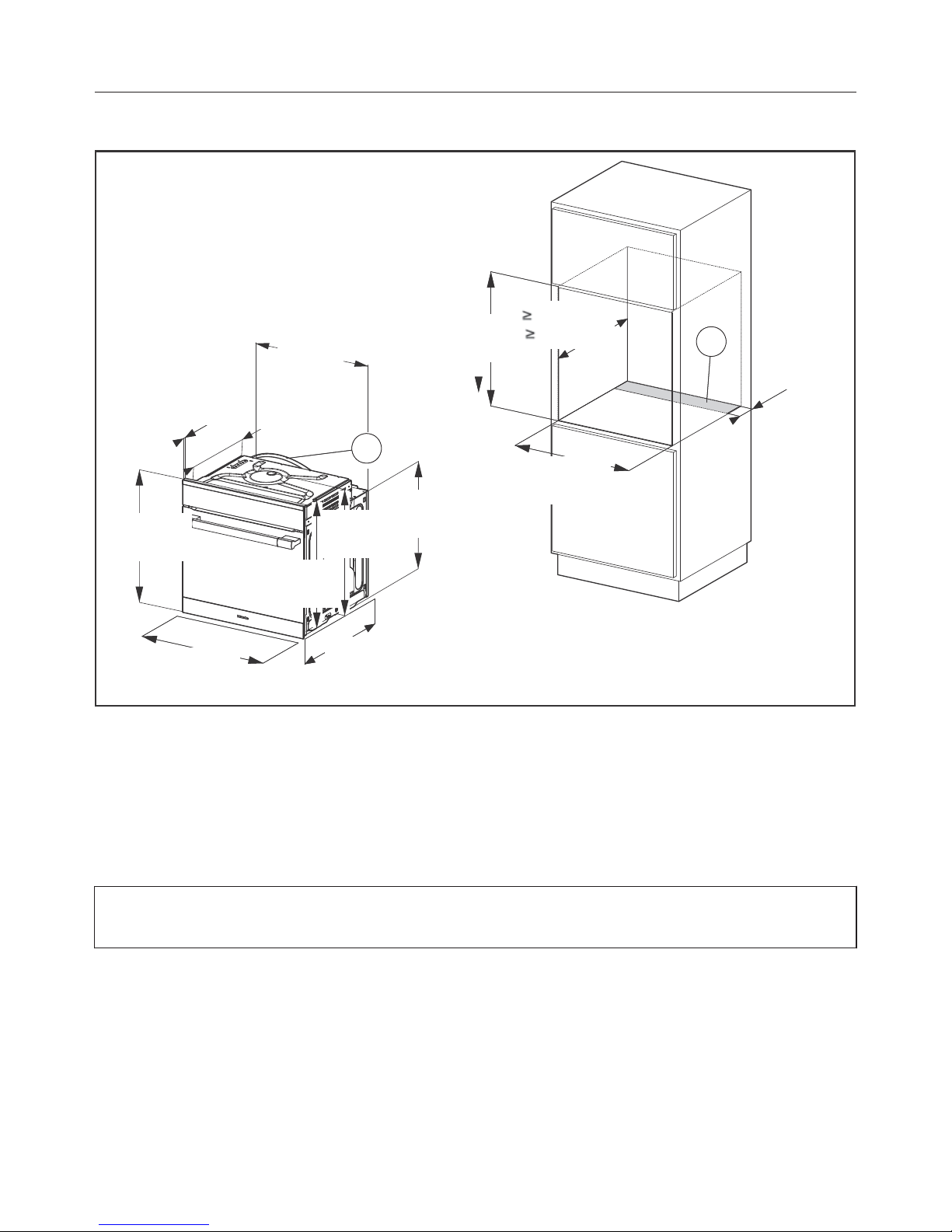

Installation into a tall cabinet



PP 

PP

PP



PP



PP



PP





PP



PP



PP



PP



PP



PP



PP

ǞCut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power

cord and ventilation

ǟPower cord with plug

*Oven with glass front

** Oven with metal front

Front design may vary depending on model. For the more current specifications

please visit the Miele website.

Installation diagrams

101

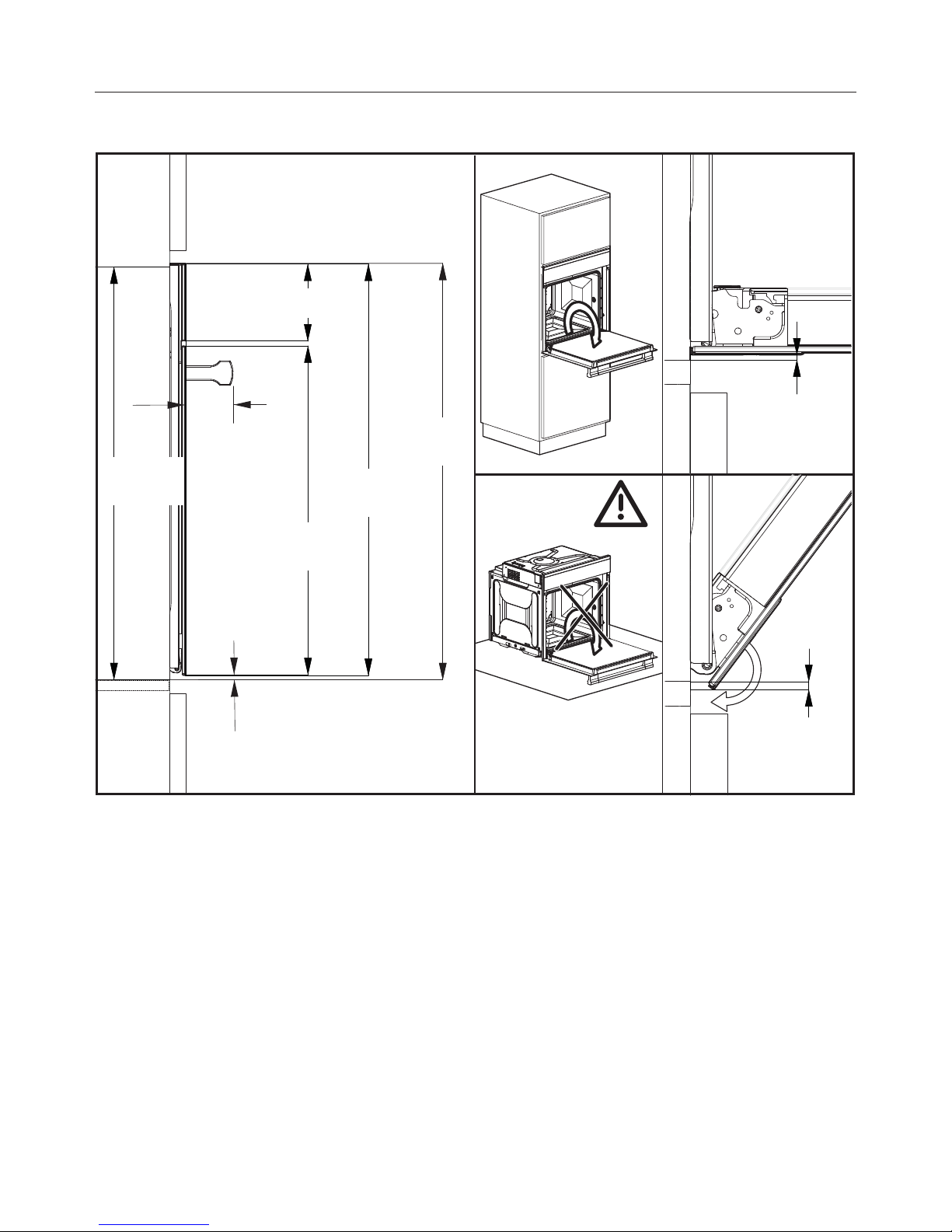

Front dimensions

- 1/16"

(-2 mm)

22 5/8"

(575 mm)

4 3/8" (111 mm)

3/16"

(4 mm)

18 5/8"

(473 mm)

23 5/16"

(592 mm)

23 7/16"

(596 mm)

AH65xx: 2 11/16" (69 mm)

BOven with glass front: 1/16" (2.2 mm)

Oven with metal front: 1/16" (1.2 mm)

Installing the oven

102

ɘThe oven must not be operated

until it has been properly installed

within cabinetry.

The oven must have an adequate

supply of cool air for proper

operation. The required air must not

be heated excessively by other heat

sources, e.g. wood burning stove.

Observe the following when

installing:

Build into cabinetry with no back

wall.

Make sure that the shelf that the

appliance sits on does not touch the

wall.

Do not install insulation strops on the

side walls of the cabinet housing.

Before installation

ĺBefore connecting the oven to the

power supply, first disconnect the

power supply from the oven isolator

switch.

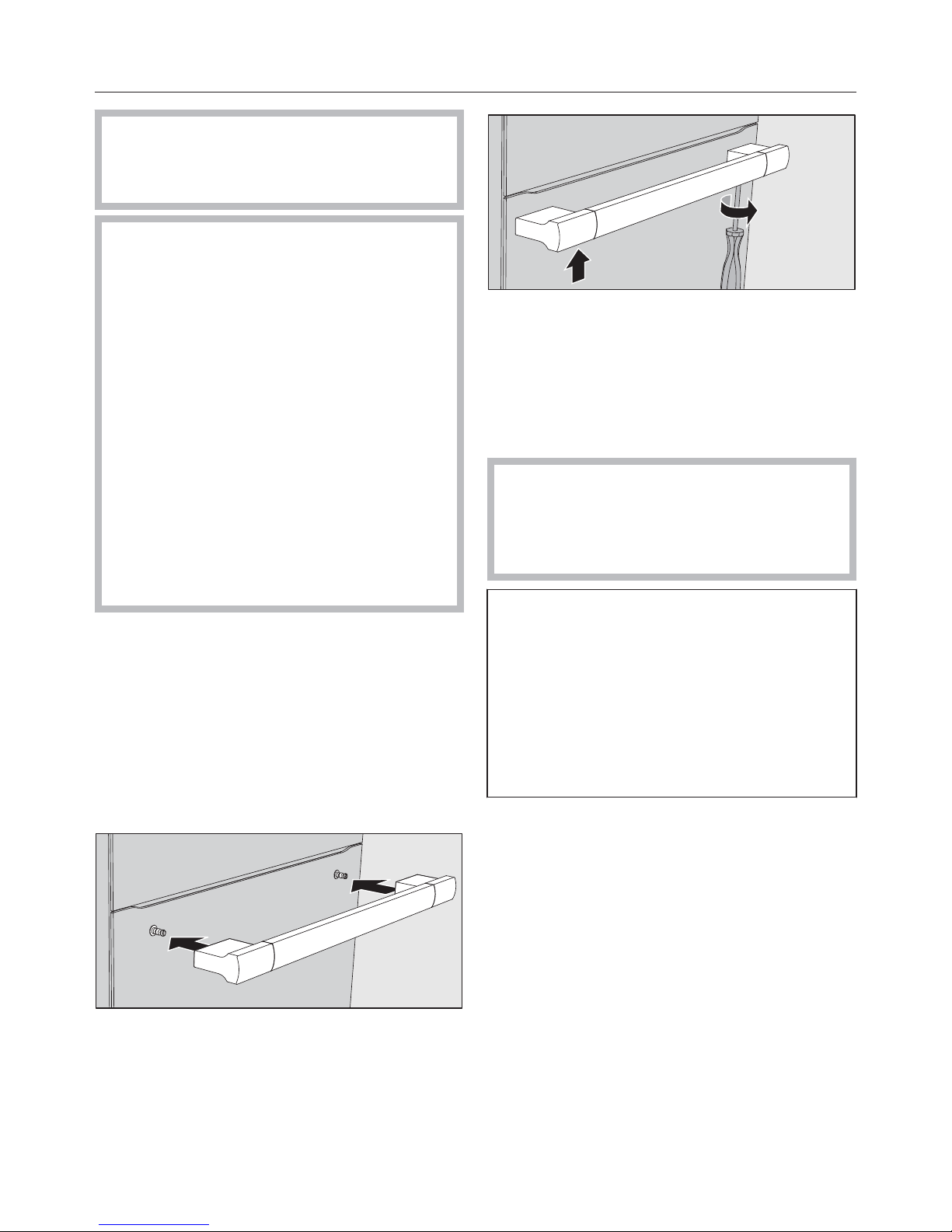

Mounting the door handle

(depending on model)

ĺMount the handle onto the retaining

bolts.

ĺUse the supplied Allen wrench to

tighten all four bolts.

Installing the oven

ĺConnect the power cord to the

electrical supply.

Do not carry the oven by the door

handle. The door can be damaged.

Use the handles on each side of the

oven to carry it.

It is recommended that you remove

the door before installing the

appliance (see "Cleaning and Care -

Removing the door") and all oven

accessories from the cavity. This will

make for easier installation into the

niche and will not tempt you to use

the handle to carry it.

ĺIf there are side handles, please

remove them.

ĺPush the oven into the cabinetry and

align it.

ĺOpen the door (if it was not removed

previously).

Installing the oven

103

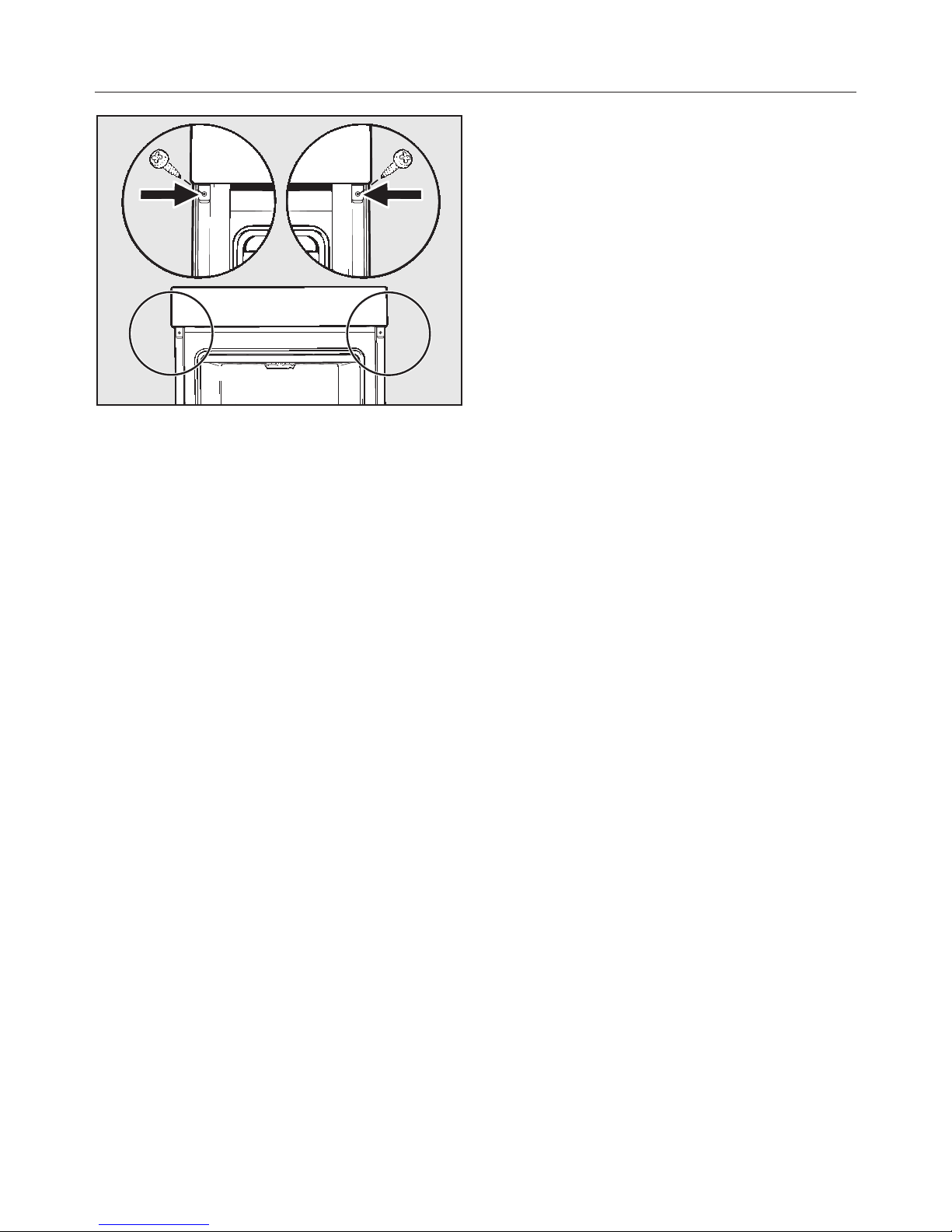

ĺUse the supplied screws to secure

the oven to the side walls of the

cabinetry through the holes in the

trim.

ĺReinstall the door, if necessary (see

"Cleaning and care - Installing the

door").
