Operating Instructions

Upright Vacuum Cleaner

Dynamic U1 Series

M.-Nr. 10 098 300

en-US

HS08

Only Miele FilterBags, filters and accessories with

the "Original Miele" logo can be used with this

vacuum. Only then can the suction power of the

vacuum cleaner reach its optimum potential creating

the best possible cleaning results.

USE OF NON-MIELE COMPONENTS MAY VOID

THE WARRANTY.

,The use of FilterBags made of paper or a similar

material, or FilterBags with a cardboard retaining

plate can lead to serious damage to the vacuum

cleaner and may void the warranty, just as with the

use of FilterBags without the "Original Miele" logo.

The "Original Miele" Logo will appear on the

packaging or directly on the FilterBag.

Purchasing new FilterBags and filters

Original Miele FilterBags and filters can be purchased

from an authorized Miele vacuum dealer or by visiting the

Miele store at www.mieleusa.com.

Guide to the vacuum cleaner

IMPORTANT SAFETY INSTRUCTIONS

Before the first use

Included accessories

Use

Power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Rewinding the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Release the vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning the vacuum cleaner On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

"Automatic" setting .................................................11

Vacuum hose .....................................................12

Telescopic wand ..................................................12

Powerbrush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning the Powerbrush On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance and care

Purchasing new FilterBags and filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Which FilterBags and filters are the right ones? . . . . . . . . . . . . . . . . . . . . . . . . . . 14

When to change the FilterBag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Changing the FilterBag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

When to change the dust compartment filter (pre-motor filter) . . . . . . . . . . . . . . . 15

Changing the dust compartment filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

When to change the exhaust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing the "AirClean" filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Replacing the "Active AirClean 30" filter and the "HEPA AirClean 30" filter. . . . . . 16

Exchanging exhaust filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Service indicator with reset button ....................................17

Removing hair and threads from the Powerbrush .........................17

Blockages .......................................................17

Cleaning and care

Frequently asked questions

After sales service

Optional accessories

Caring for the environment

LIMITED WARRANTY - VACUUM CLENERS USA ...................21

en - Contents

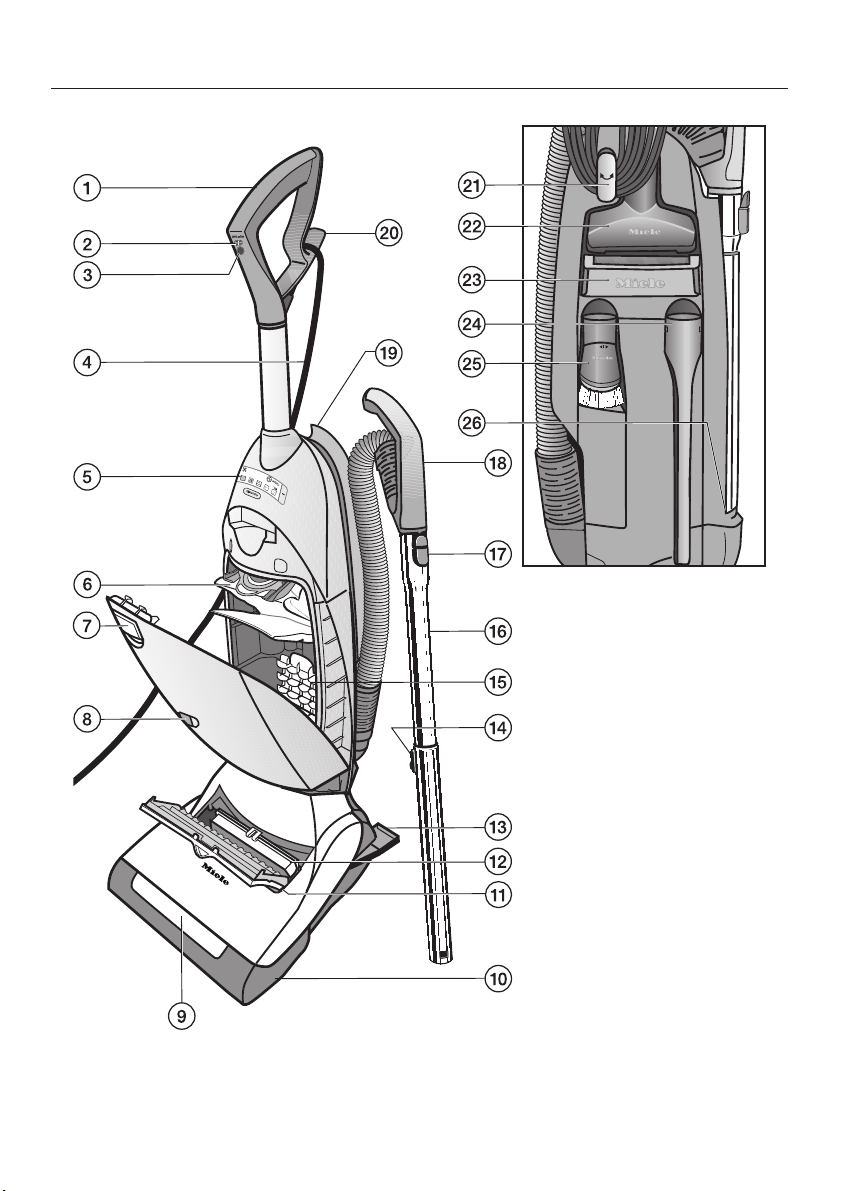

The illustration shows the vacuum cleaner with all available options.

Options vary depending on model.

Guide to the vacuum cleaner

aHand piece

bOn/Off switch

cCarpet/Floor Powerbrush selector

dPower cord

eControl panel

fFilterBag

gDust compartment lid release

hAirflow indicator

iHeadlight *

jPowerbrush

kExhaust filter compartment

lExhaust filter *

mFoot pedal to recline vacuum

nTelescopic wand release button

oDust compartment filter (pre-motor filter)

pTelescopic wand

qRelease button

rVacuum hose with handle

sHose clip

tPower cord hook (upper)

The features marked * may vary or not be available on your model.

Back of vacuum cleaner

uAdjustable power cord hook (lower)

vUpholstery tool

wCarrying handle

xCrevice nozzle

yDust brush

zBracket for telescopic wand

Guide to the vacuum cleaner

When using an electrical appliance, basic precautions should always be followed,

including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS APPLIANCE

WARNING-

To reduce the risk of fire, electric

shock or injury:

Before using

~Check the voltage rating of the

vacuum cleaner before connecting the

power cord to an electrical outlet. The

power source should correspond with

the voltage rating plate of the vacuum

cleaner. Use only household AC

outlets. Never use DC power sources. If

you are not sure of your home’s voltage

supply, consult a qualified electrician.

Connecting the vacuum cleaner to a

higher voltage may result in damage or

injury.

~To reduce the risk of electric shock,

this appliance has a polarized plug

(one blade is wider than the other). This

plug will fit in a polarized outlet only one

way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does

not fit, contact a qualified electrician to

install the proper outlet. Do not alter the

plug in any way.

~The electrical outlet must be fitted

with a 15 A fuse.

~A damaged vacuum cleaner can be

dangerous. Check the packaging,

vacuum cleaner and accessories for

any signs of damage. Do not use a

damaged appliance.

~Do not use with a damaged cord or

plug. If the appliance is not working as

it should, has been dropped, damaged,

left outdoors or submerged in water,

bring it to a service center.

IMPORTANT SAFETY INSTRUCTIONS

Use

~Do not use on people or animals.

~Do not use outdoors or on wet

surfaces. Only dry surfaces should be

vacuumed.

~Use only as described in this

manual with Miele recommended

accessories.

~This appliance is intended for

household use only.

~Do not allow the vacuum cleaner to

be used as a toy. Close attention is

necessary when used near children.

~Be aware, the cord clip can become

loose over time. Do not allow children to

come in contact with this small part.

Choking hazard.

~Never use the vacuum cleaner

without the dustbag or filters in place. It

may cause damage.

~If a dustbag is not inserted, the dust

compartment lid will not close. Do not

force it shut.

~Do not leave the vacuum cleaner

plugged in. Unplug it from the outlet

when not in use and before servicing.

~This vacuum cleaner should not be

used to entrap or retain any hazardous

materials.

~Do not use the vacuum cleaner to

pick up liquids or damp dirt. This could

impair the electrical safety of the

vacuum cleaner. Wait for freshly

shampooed carpets to dry.

~Do not vacuum anything that is

burning or smoking such as cigarettes,

matches or hot ashes. The vacuum

cleaner could catch fire.

~Do not vacuum toner dust. Toner,

such as that used in printers and

photocopiers, can conduct electricity.

~Do not vacuum flammable or

combustible liquids, such as gasoline,

or use in areas where they may be

present.

~Do not vacuum items which are

heavy, hard or have sharp edges. They

could cause a blockage and damage

the appliance.

~Do not pull or carry by the cord, use

the cord as a handle, close a door on

the cord, or pull the cord around sharp

edges or corners. Do not run the

appliance over the cord. Keep the cord

away from heated surfaces.

~Do not unplug the vacuum cleaner

by pulling on the cord. To unplug,

grasp the plug, not the cord.

~Do not handle the plug or vacuum

cleaner with wet hands.

~Keep the power cord, hair, loose

clothing, fingers and other parts of the

body away from openings and moving

parts.

~Do not place anything into the

openings of the vacuum cleaner. Do

not use if any openings are blocked;

keep them free of dust, lint, hair, or

anything that may reduce air flow.

IMPORTANT SAFETY INSTRUCTIONS

~Turn off all controls before

unplugging.

~Use extra care when cleaning on

stairs.

~The hose, wand and accessories

must not be used at head level to avoid

injury to eyes and ears.

~Monitor the airflow indicator and

inspect all filters regularly. For best

performance, the FilterBags and filters

should be replaced when necessary. A

full bag or blocked filter will reduce the

vacuum cleaner’s suction power. A

temperature limiter automatically

switches the vacuum cleaner off if it

gets too hot, see "Frequently asked

questions".

Using accessories

~Unplug the vacuum cleaner when

changing accessories.

~To avoid the risk of injury when

vacuuming do not touch the beater bar.

Danger of injury.

~Do not use the vacuum hose or

telescopic wand without an accessory

attached. The rim could be damaged

and injuries could result from sharp

edges.

~Miele FilterBags are disposable and

intended to be used only once. Do not

attempt to reuse them. An over stuffed

FilterBag will reduce the efficiency of

the vacuum cleaner.

~Only use genuine Miele FilterBags

with the Miele quality signet and

original Miele filter and accessories.

Only then can the manufacturer

guarantee its safety.

Cleaning, maintenance and

repairs

~Turn the vacuum cleaner off after

each use and before every cleaning/

maintenance. Pull the plug from the

outlet.

~Never submerge the vacuum

cleaner in water. Clean only with a dry

or slightly damp cloth when

disconnected from the mains supply. If

moisture gets into the appliance there

is a risk of electric shock.

~Repairs must only be performed by

an authorized service agent in

accordance with national and local

safety regulations. Repairs by

unqualified persons could be

dangerous. The manufacturer cannot

be held responsible for unauthorized

work.

~If the power cord is damaged it

should be replaced with a genuine

Miele cord by Technical Service.

Disposing of an old appliance

~Before discarding an old vacuum

cleaner, please cut off the power cord

and render the plug useless. Ensure

the appliance presents no danger to

children while being stored for

disposal.

SAVE THESE

INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

The illustrations referred to in the text

are shown on the fold-out pages at the

end of these operating instructions.

Before the first use

Assembly (see fig. 1)

^Put the vacuum cleaner in an upright

position.

^Push the handle down into the body

of the vacuum cleaner until it

engages (see illustration).

Activating the exhaust filter change

indicator (see fig. 2-6)

Depending on the model, one of the

following standard exhaust filters is

installed (see fig. 2).

aAirClean Filter

bActive AirClean Filter SF-AA 30 (black)

cHEPA AirClean Filter SF-HA 30 (white)

If your vacuum cleaner is equipped

with a type bor cexhaust filter, you will

need to activate the exhaust filter

change indicator.

^Open the lid of the exhaust filter

compartment and slightly pull the

exhaust filter out of its slot (see fig. 3).

^Remove the marker strip and then

reinsert the exhaust filter (see fig. 4).

^Press the exhaust filter change indi-

cator ~(see fig. 5).

^After about 10-15 seconds, a small

red marker will appear in the left-

hand side of the display (see fig. 6).

^Close the lid of the exhaust filter com-

partment.

How the exhaust filter change indica-

tor works (see fig. 7).

The exhaust filter change indicator

displays the useful life of the exhaust

filter. The indicator will turn fully red

after approx. 50 hours of operation,

which is equivalent to one year of

average use.

Included accessories (see fig. 8)

The following accessories are mounted

on the rear of the vacuum cleaner.

aUpholstery tool

bCrevice nozzle, 12" (300 mm)

cDust brush with natural bristles

Attach the accessory you wish to use to

the handle on the vacuum hose or the

telescopic wand.

Upholstery tool

For cleaning upholstery, mattresses,

cushions, draperies, etc.

Crevice nozzle, 12" (300 mm)

For cleaning folds, crevices, corners

and tight spaces.

Dust brush with natural bristles

For cleaning moldings, ornate and

carved articles, delicate items, etc.

The brush head can be turned to attain

the optimal cleaning position.

Use

Power cord (see fig. 9)

The lower cord hook can be rotated.

^Rotate the hook upward to release

the power cord.

Rewinding the power cord (see fig. 10)

When the vacuum cleaner is not in use,

the power cord can be wound around

the two cord hooks.

^To prevent the cord from unwinding

press it into the locking groove of the

plug (see insert).

Plug in the vacuum cleaner (see fig.

11)

^Guide the power cord through the

notch at the side and over the upper

cord hook (see illustration).

This will keep the cord in an optimal

position so that it will not interfere with

vacuuming. It also keeps the power

cord from becoming caught in the

handle.

Release the vacuum cleaner (see fig.

12)

^Briefly press the foot pedal and

recline the body of the vacuum

cleaner to a comfortable position.

Turning the vacuum cleaner On/Off

(see fig. 13)

Always follow the flooring

manufacturer's cleaning and care

instructions.

^Press the On/Off button on the

handle.

The vacuum cleaner turns on.

ComfortLine Models:

The "On" indicator on the control panel

lights yellow.

PremiumLine Models:

The suction power levels on the control

panel light yellow.

Lighting (depending on model)

The headlight turns on automatically.

Control panels

Depending on the model, your vacuum

cleaner will include one of the following

control panels.

ComfortLine Models (see fig. 14)

aVacuum "On" indicator

bOperation/Blockage protection

indicator

Yellow: the Powerbrush was turned

on using the Carpet/Floor button on

the hand piece.

Red: the beater bar is blocked

cRotary selector

Indice

Manuali Aspirapolvere verticale popolari di altre marche

Tennant

Tennant V-HDU-14 Manuale utente

Kärcher

Kärcher CV 30/1 Manuale utente
