Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
Information is subject to change.
Please refer to our website to obtain the most current product specification,
technical & warranty information.
To prevent accidents
and machine damage
read these instructions
before
installation or use.
~Before installation make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond in order to avoid risk
of damage to the appliance. If in doubt,
consult a qualified technician.
~The electrical outlet should be easily
accessible after installing the unit.
~The gourmet warming drawer must
be installed only in combination with
other appliances specified by Miele.
When installed with other appliances,
the warranty is void since the
manufacturer cannot guarantee the
safe use of the warming drawer.
~A solidly installed base must be
present for the installation of the
gourmet warming drawer and the
combination device to ensure the
required load carrying capacity for both
appliances.
~The combination appliance is
placed directly onto the installed
gourmet warming drawer; an
intermediate base is not required.
~The appliance must be installed in
such a manner that the contents of the
dishes can be seen. Scalding due to
spilling of hot food can be avoided.
Sufficient space must be given to pull
the drawer out.
~The gourmet warming drawer is
available in two variants differing in
height. The required niche dimensions
result from the installation dimensions
of the gourmet warming drawer and the
installation dimensions of the
combination device.
Note to the installer:
Please leave these instructions with the
consumer of the appliance for the local
building inspectors use.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
24

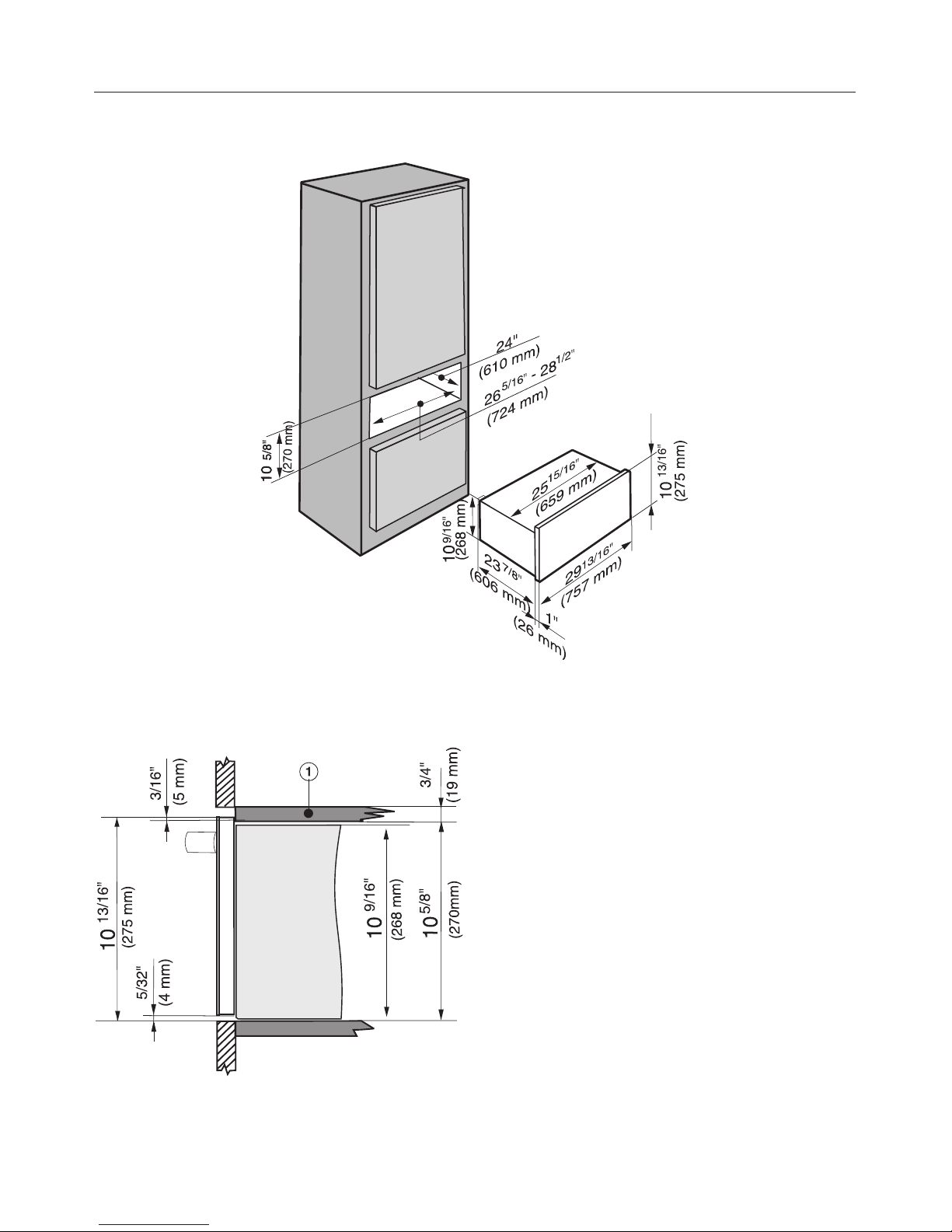

Solo installation
Side view
aFixed shelf
* Appliances with glass front
** Appliances with stainless steel front
Installation dimensions
25

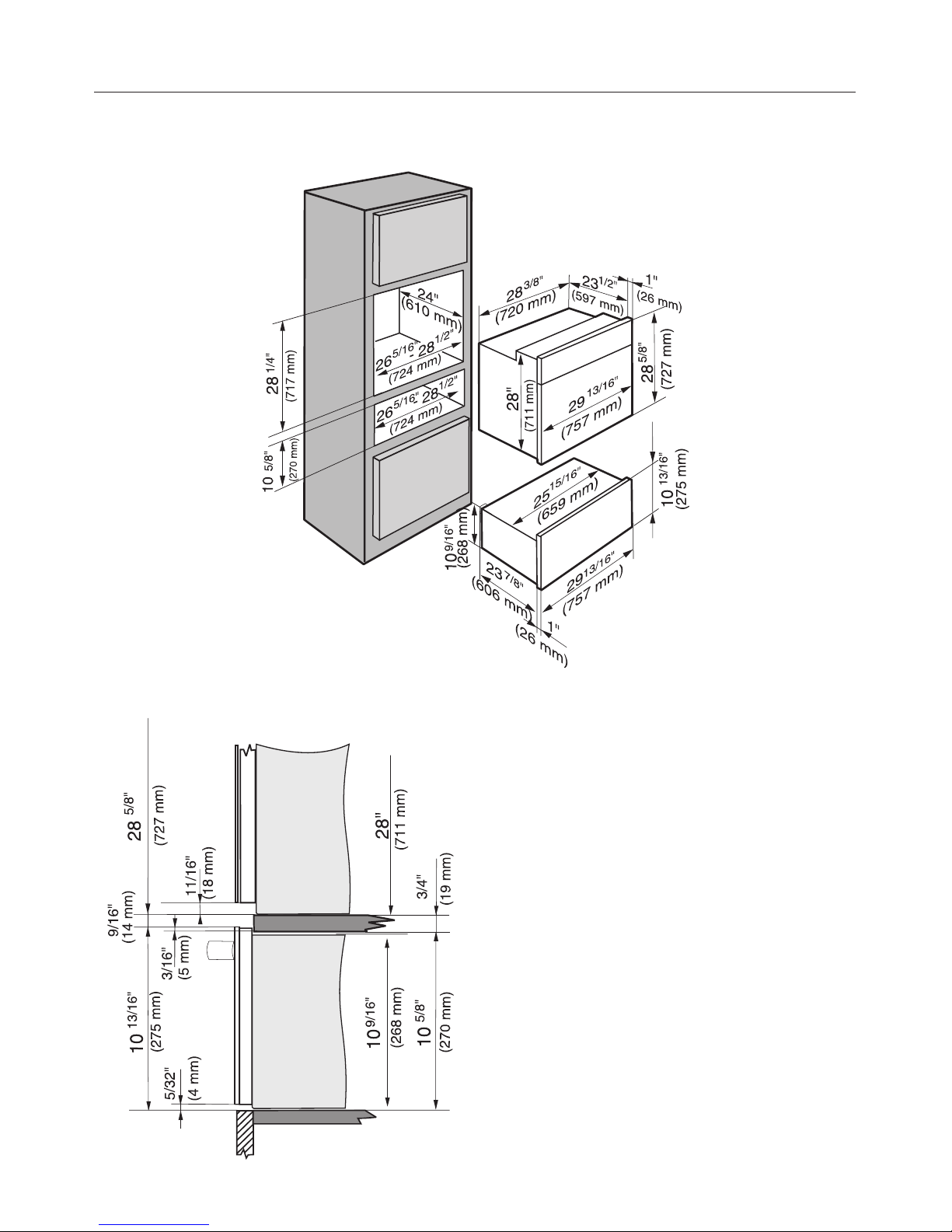

Installation with an oven
Side view with oven
* Appliances with glass front
** Appliances with stainless steel front
Installation dimensions
26

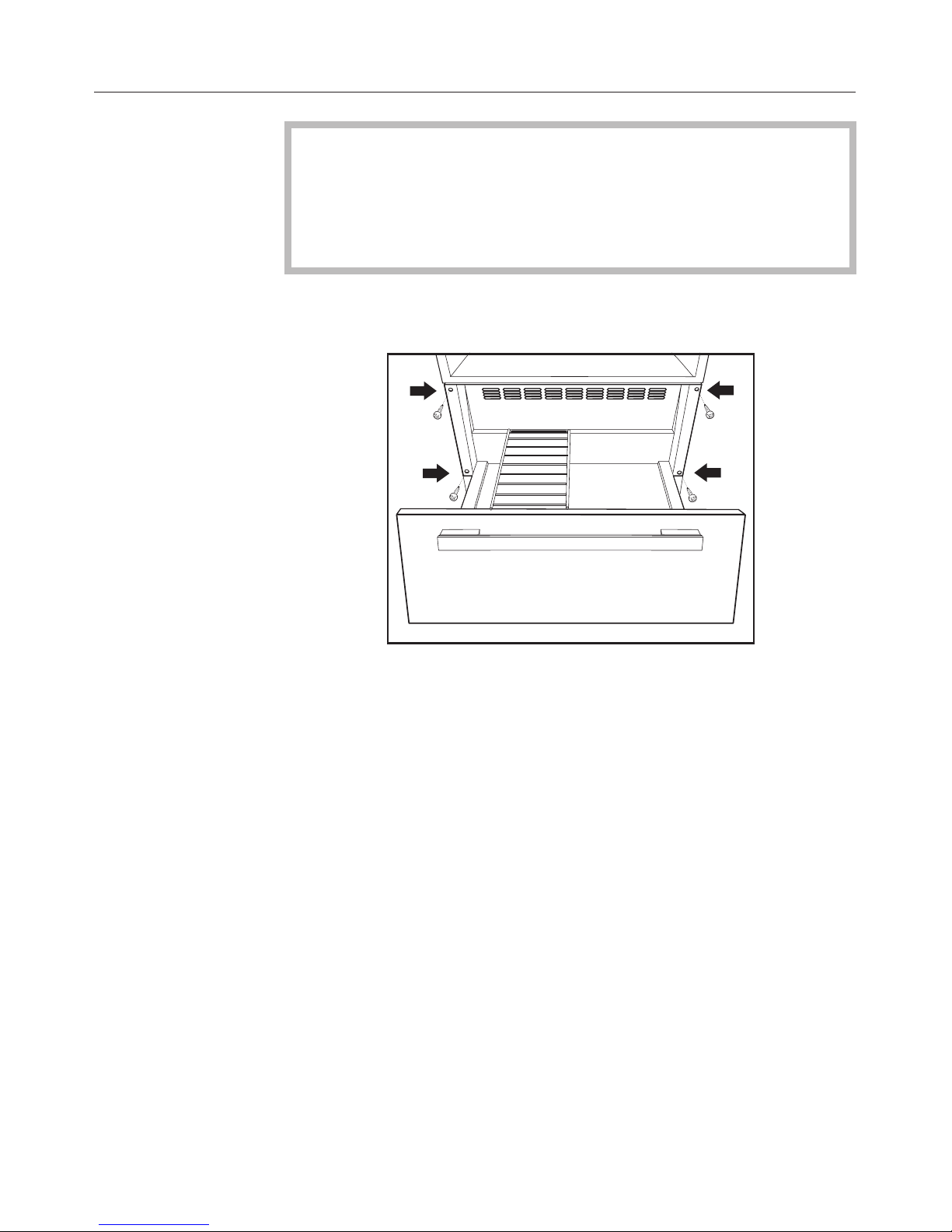

Check that the base of the warming drawer is clean and
level. Only then will it function properly.
When inserting the appliance, wear work gloves to avoid
injuries.
^Push the drawer into the cabinet as far as the vapor strip,
and align it.
^Open the drawer, and use the 4 screws provided to secure
the drawer to the side walls of the cabinet.
^Install the combination appliance according to the manual
included with that appliance.
Installation
27
ESW 6380 FB

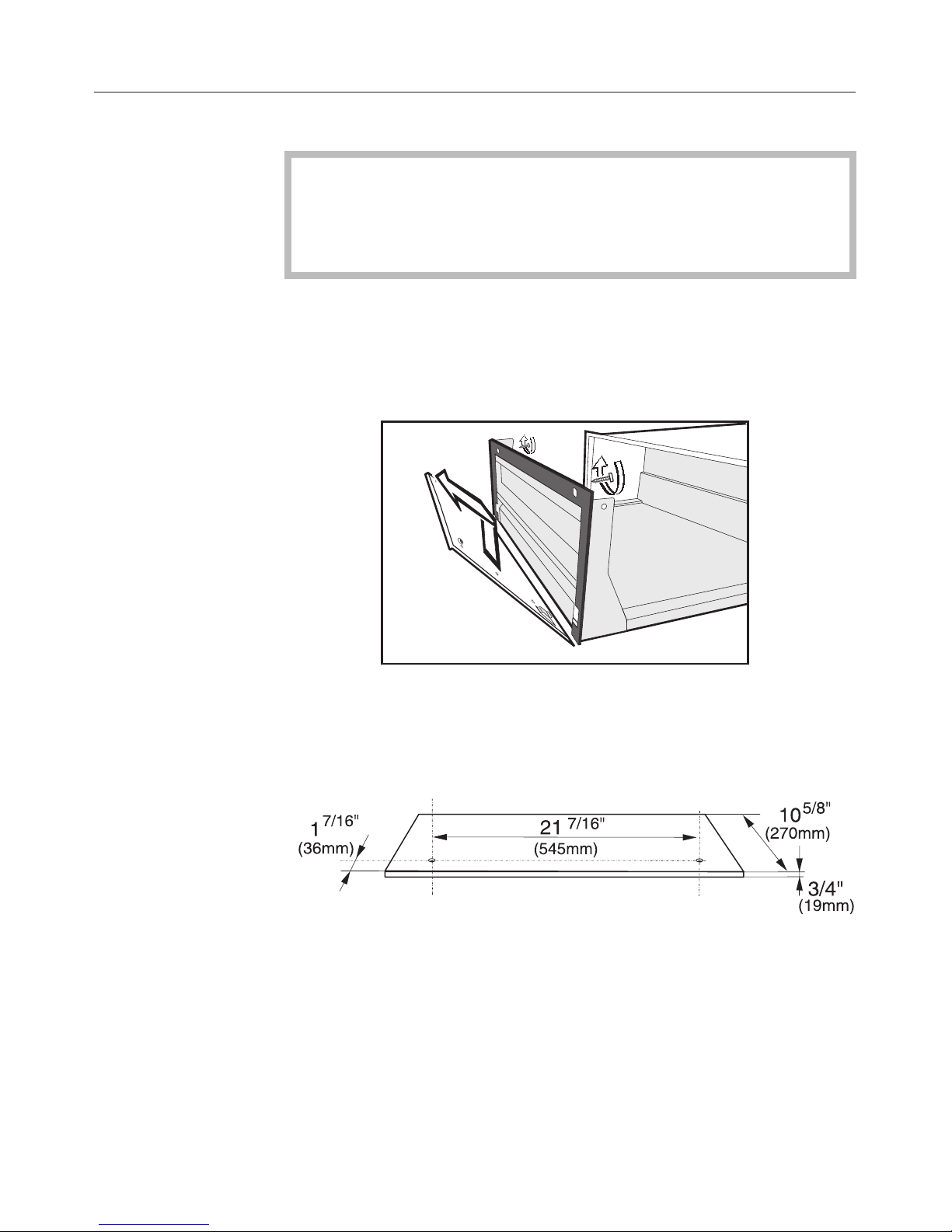

The front panel must be at least 3/4" (19 mm) thick and
made of heat resistant material 140° F (60° C). The front
panel, including handle, must not exceed 11 lb (5 kg) in
weight.
^Attach the handle to the front panel using countersunk
screws.
^Remove the screws from the left and right sides of the
drawer front and carefully lift the control panel out. Be
careful not to pull on or damage the power cord.
^Remove the two screws on the inside of the front and
remove the panel from the front of the drawer.
^Pre-drill the custom front panel (see illustration).
C3/8" (10 mm), t = 3/8" (10 mm)
Installing the front panel
28

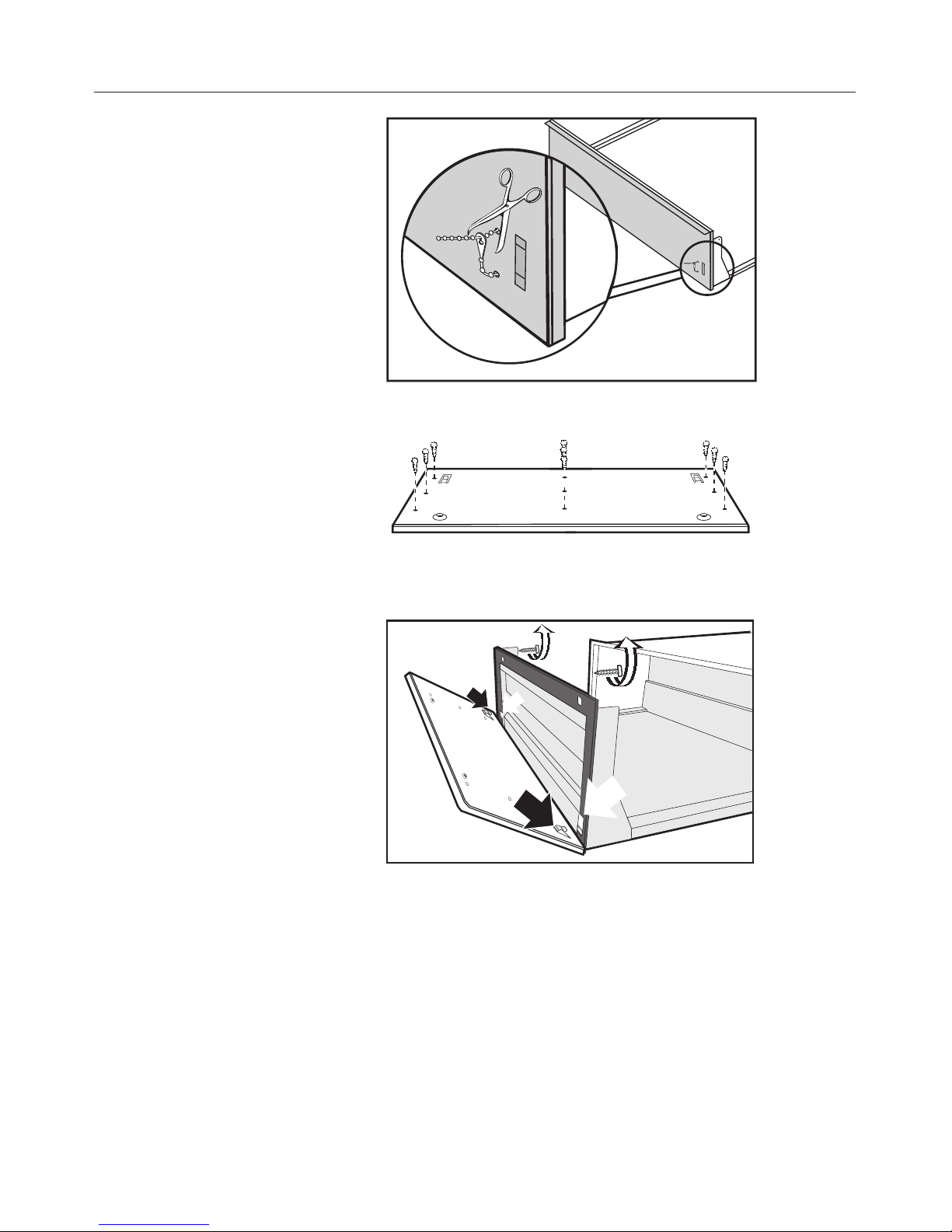

^Remove the cable tie from the panel.
^Screw the removed panel to the front panel (see
illustration).
^Hook the panel into the bottom. Make sure the seal is
seated correctly.
^Replace and slightly tighten the screws on the inside of the
drawer front.
^Align the front.
^Tighten the screws on the inside of the drawer front.
^Replace the control panel. Use caution with the power
cord.
^Replace and tighten the screws on the left and right side of
the drawer front.
Installing the front panel
29
,CAUTION: Before servicing,
disconnect the power supply by
either removing the fuse, shutting off
the power main or manually
"tripping" the circuit breaker.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous.
Before connecting the appliance to
the power supply, make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This
data must correspond to prevent
machine damage. Consult an
electrician if in doubt.
When another appliance is installed
in combination with the warming
drawer to the same circuit,
operating both appliances at the
same time may cause an overload.
If in doubt consult a qualified
electrician.
Power supply
This appliance is equipped witha5ft
(1.5 m) long power cord with a
three-prong grounding plug ready for
connection to a 120 V, 15 A, 60 Hz
power supply.
Further installation details are on the
wiring diagram.
Electrical connection
30
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the appliance. This
information is visible on the silver data
plate supplied with the appliance.
MieleCare
(USA only)
MieleCare, our Extended Service
Contract program; gives you the
assurance of knowing that your
appliance investment is covered by 5
years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by the Miele Ser-
vice department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://mieleusa.com/mielecare
Technical Service
31
Disposal of packing materials
The cardboard box and packing
materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
disconnect it from the electrical supply
and cut off the power cord to prevent it
from becoming a hazard.
Help protect our environment
32
