Overview of TVMini+™
Video inputs
TVMini+™ features several video inputs:
• Coaxial TV input
• Composite input (via Breakout cable)
• S-Video input (via Breakout cable)
• RCA Stereo audio input (via Breakout cable)
•Coaxial connection: This is the TV Tuner connection, which can receive digital and analogue TV.
Connect the portable antenna, a cable from a roof-top antenna or a cable from a
CableTV outlet (the latter only works for analogue)
•Composite input: Composite is a widely used standard for connecting video
equipment. This type of connector is often found on camcorders and
VCRs.
•S-Video input: This connection gives a better image quality than composite and is
generally found on mid-range camcorders, VCRs and DVD players. If
you intend to capture video from an analogue source, use this
connection whenever you can.
• Stereo audio IN: TVMini+ card uses conventional RCA plugs

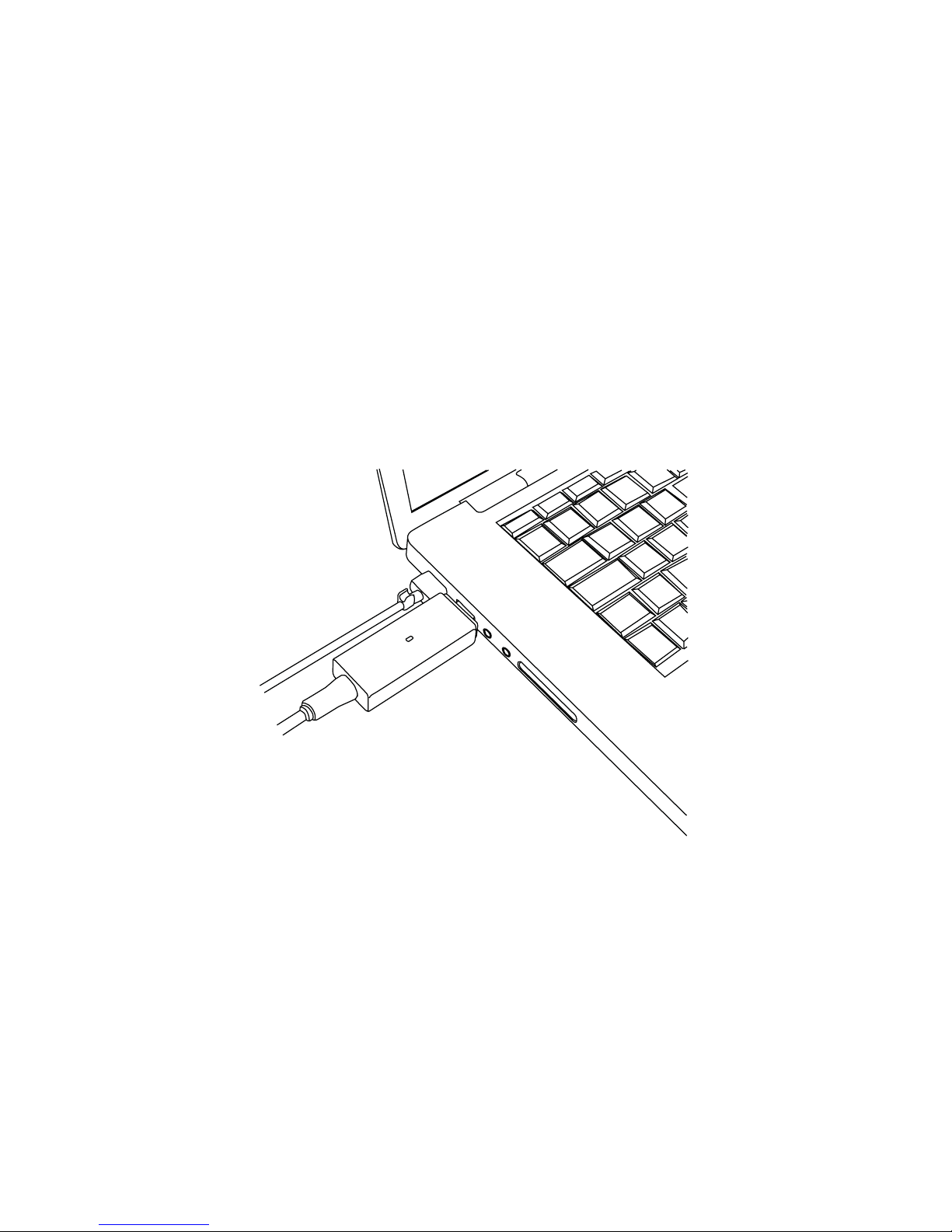

• USB 2.0: For the connection to your Mac
TVMini+™ User Guide
Page 3
Composite
S-Video
Audio
TV
USB 2.0
