Milestone pro MPHT-4T-H2KIT Manuale utente

MPHT-4T-H2 KIT

1x4 HDBaseT Splitter Kit

Version: MPHT-4T-H2 KIT_2019V1.1

1x4 HDBaseT Splitter Kit

Table of Contents

1. Product Introduction ............................................................................................................ 1

1.1 Features ................................................................................................................. 1

1.2 Package List ............................................................................................................ 2

2. Technical Specification .........................................................................................................3

2.1 HDBaseT Splitter .......................................................................................................3

2.2 HDBaseT Receiver .................................................................................................... 4

2.3 Video Resolution Down-scaling ......................................................................................6

3. Panel Description ............................................................................................................... 7

3.1 Splitter Front Panel .................................................................................................... 7

3.2 Splitter Rear Panel ..................................................................................................... 7

3.3 HDBaseT Receiver Panel .............................................................................................8

4. System Connection ............................................................................................................. 9

5. IR Control .......................................................................................................................11

5.1 Controlling the Display Device by IR IN .......................................................................... 11

5.2 Controlling the Display Device by IR ALL IN .....................................................................12

5.3 Controlling the Source Device ..................................................................................... 13

6. RS232 Control .................................................................................................................14

7. DIP Switch Operation ........................................................................................................ 17

7.1 EDID Management ...................................................................................................17

7.2 HDCP Mode ...........................................................................................................18

8. Firmware Upgrade ............................................................................................................ 18

1x4 HDBaseT Splitter Kit

1. Product Introduction

Thanks for choosing this1x4 HDBaseT Splitter Kit! This device accepts a single HDMI

input and splits it into one HDMI and four HDBaseT outputs. The splitter is designed

with an IR loop out and loop in which are intended to cascade to additional units. It

supports video resolutions up to 4K@60Hz 4:4:4 8bit and all HDMI audio formats. It

can extend 1080p signals on each output to distance up to 229 feet (70 meters) and

4K signals to distance up to 131 feet (40 meters) over a single CATx Ethernet cable. It

supports the Power over HDBaseT (PoC) feature, which allows the receivers to be

powered from the splitter over the Ethernet cables. It supports bidirectional IR

pass-through and IR, RS232 cascade control.

1.1 Features

Support HDMI 2.0, video resolutions up to 4K@60Hz 4:4:4.

Distribute one UHD/4K HDMI signal to four HDBaseT outputs and one loop HDMI

output.

Supports cascade connection, distribute video signal to multiple video displays.

Maximum transmission distance is up to 40m for 4K, and 70m for 1080p.

Supports video resolution down-scaling, 4K input can be automatically

downgraded to 1080 output.

Supports audio de-embedding.

Each HDBaseT output supports IR pass-through.

Support RS232 and IR cascade control.

Support 24V PoC, the HDBaseT receiver can be powered by HDBaseT splitter.

1x4 HDBaseT Splitter Kit

1.2 Package List

HDBaseT Splitter

1x MPHT-4T-H2 1x4 HDBaseT Splitter

2x Mounting Ears with 4 Screws

4x Plastic Cushions

1x RS232 Cable (3-pin to 3-pin, used for RS232 cascade)

1x RS232 Cable (3-pin to DB9)

1x 5-pin terminal block

1x IR Cable (3.5mm to 3.5mm, used for IR cascade)

4x IR Receivers

1x IR Emitter

1x Power Adaptor (24V DC 5A)

HDBaseT

Receivers

4x MP-T70SR-H2 HDBaseT Receivers

8x Mounting Ears with 16 Screws

16x Plastic Cushions

4 x 3-pin terminal blocks

1x User Manual

Note: Please contact your distributor immediately if any damage or defect in the

components is found.

1x4 HDBaseT Splitter Kit

2. Technical Specification

2.1 HDBaseT Splitter

Video Input

Input

(1) HDMI

Input Connector

(1) Female type A HDMI

HDMI Input Resolution

Up to 4K@60Hz 4:4:4 8bit

Video Output

Output

(1) HDMI, (4) HDBT

Output Connector

(1) Female type A HDMI; (4) RJ45

HDMI Output Resolution

Up to 4K@60Hz 4:4:4

HDBT Output Resolution

Up to 4K@60Hz 4:4:4 (Signal has been compressed.)

SPDIF Audio Output

Audio Output

(1) SPDIF

Audio Output Connector

(1) Toslink

Audio Format

LPCM 2ch, Dolby Digital 2ch, 5.1ch, 7.1ch, Dolby TureHD 7.1ch, DTS

2ch, 5.1ch

Output Level

±0.05dBFS

Frequency Response

20Hz ~20kHz, ±1dB

THD+N

< 0.05%, 20Hz ~20kHz bandwidth, 1kHz sine at 0dBFS level (or max

level)

SNR

> 90dB, 20Hz ~20kHz bandwidth

Crosstalk Isolation

> 70dB, 10kHz sine at 0dBFS level (or max level before clipping)

Noise

-90dB

Stereo Balanced L/R Audio Output

Audio Output

(1) Stereo balanced L/R audio

Audio Output Connector

(1) 5-pin terminal block

Audio Format

PCM

Frequency Response

20Hz ~20kHz, ±1dB

Max output level

2.0Vrms ± 0.5dB.

THD+N

< 0.05%, 20Hz ~20kHz bandwidth, 1kHz sine at 0dBFS level (or max

level)

SNR

> 80dB, 20Hz ~20kHz bandwidth

Crosstalk Isolation

> 70 dB, 10kHz sine at 0dBFS level (or max level before clipping)

L-R Level Deviation

< 0.3 dB, 1kHz sine at 0dBFS level (or max level before clipping)

Output Load Capability

1kohm and higher (supports 10x paralleled 10kohm loads)

Noise

- 80dB

1x4 HDBaseT Splitter Kit

Control

Control port

(1) EDID, (1) FIRMWARE, (1) ID PRESET, (1) IR ALL IN/LOOP IN,

(1) IR OUT, (4) IR IN, (1) IR LOOP OUT, (1) RS232 IN, (1) RS232 OUT,

Control Connector

(1) 4-pin DIP switch, (1) Micro-USB, (1) DIP switch, (7) 3.5mm mini

jacks, (2) 3-pin terminal blocks

General

HDMI Standard

2.0

HDCP Version

2.2

Transmission Mode

HDBaseT

Transmission Distance

1080p ≤ 229 feet (70 meters), 4K ≤ 131 feet (40 meters)

Operation Temperature

-10 ~ +55℃

Storage Temperature

-25~ +70℃

Relative Humidity

10% ~ 90%

AC Adapter Input Power

100V~240V AC, 50/60Hz

Input Power

24V DC 5A

Power Consumption

47W (Max)

Dimension (W*H*D)

250mm x 44mm x 148mm

Net Weight

1.16kg

Note: SPDIF audio output does not support DTS-HD Master Audio and Dolby TrueHD

format.

2.2 HDBaseT Receiver

Video

Input

(1) HDBT

Input Connector

(1) RJ45

Input Resolution

Up to 4K@60Hz 4:2:0

Output

(1) HDMI

Output Connector

(1) Type-A female HDMI

Output Resolution

Up to 4K@60Hz 4:4:4 8bit HDR10

Audio

Output

(1) Audio Breakout

Output Connector

(1) Toslink connector

Audio Format

Supports PCM, Dolby Digital, Dolby True-HD, DTS and DTS-HD

Frequency Response

20Hz - 20KHz, ±3dB

Max Output Level

2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV)

1x4 HDBaseT Splitter Kit

nominal consumer line level signal

THD+N

< 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS

level (or max level)

SNR

> 85dB, 20Hz-20 kHz bandwidth

Crosstalk Isolation

> 70dB, 10KHz sine at 0dBFS level (or max level before clipping)

L-R Level Deviation

< 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)

Frequency Response

Deviation

< ± 0.5dB 20Hz - 20KHz

Output Load Capability

1KΩ and higher (Supports 10x paralleled 10KΩ loads)

Stereo Channel Separation

>70dB@1KHz

Control

Control Part

(1) FW, (1) IR In, (1) IR Out, (1) RS232

Control Connector

(1) Micro-USB port, (2) 3.5mm jacks, (1) 3-pin terminal block

General

Bandwidth

18Gbps

HDMI Standard

2.0

HDCP Version

2.2, 1.4 compliant

Bidirectional PoC

Supported

HDMI 2.0 Cable Length

4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, 1080p ≤ 15m

Transmission Standard

HDBaseT

Transmission Distance

1080p@60Hz ≤ 230 feet (70 meters),

4K@60Hz ≤ 131 feet (40 meters)

Operation Temperature

-5~ +55℃

Storage Temperature

-25 ~ +70℃

Relative Humidity

10%-90%

Power Supply

Input:100V~240V AC; Output:24V DC 1.25A

Power Consumption

12W (Max)

Dimension (W*H*D)

140mm x 19.5mm x 84mm

Net Weight

290g

Note: Please adopt quality CAT Ethernet cable compliant with CAT6e or higher

standard for reliable transmission.

1x4 HDBaseT Splitter Kit

2.3 Video Resolution Down-scaling

The product supports video resolution down-scaling, the 4K input can be automatically

degraded to 1080p output for compatibility with 1080p display, shown in the below chart.

HDMI Output:

Input

Output

Resolution

Refresh

Color Space

Downscale

1080p Specs

3840x2160

4:4:4

Support

1080p@60Hz 4:4:4

3840x2160

4:4:4

Support

1080p@30Hz 4:4:4

3840x2160

4:4:4

Support

1080p@24Hz 4:4:4

3840x2160

4:2:0

Support

1080p@60Hz 4:4:4

3840x2160

4:2:2

Support

1080p@60Hz 4:4:4

3840x2160

4:2:2

Support

1080p@30Hz 4:4:4

3840x2160

4:2:2

Support

1080p@24Hz 4:4:4

3840x2160

RGB

Support

1080p@60Hz RGB

3840x2160

RGB

Support

1080p@30Hz RGB

3840x2160

RGB

Support

1080p@24Hz RGB

HDBT Output:

Input

Output

Resolution

Refresh

Color Space

Downscale

1080p Specs

3840x2160

4:4:4

Support

1080p@60Hz 4:4:4

3840x2160

4:4:4

Support

1080p@30Hz 4:4:4

3840x2160

4:4:4

Support

1080p@24Hz 4:4:4

3840x2160

4:2:0

Support

1080p@60Hz 4:4:4

3840x2160

4:2:2

Support

1080p@60Hz 4:4:4

3840x2160

4:2:2

Not Support

N/A

3840x2160

4:2:2

Not Support

N/A

3840x2160

RGB

Support

1080p@60Hz 4:4:4

3840x2160

RGB

Support

1080p@30Hz RGB

3840x2160

RGB

Support

1080p@24Hz RGB

1x4 HDBaseT Splitter Kit

3. Panel Description

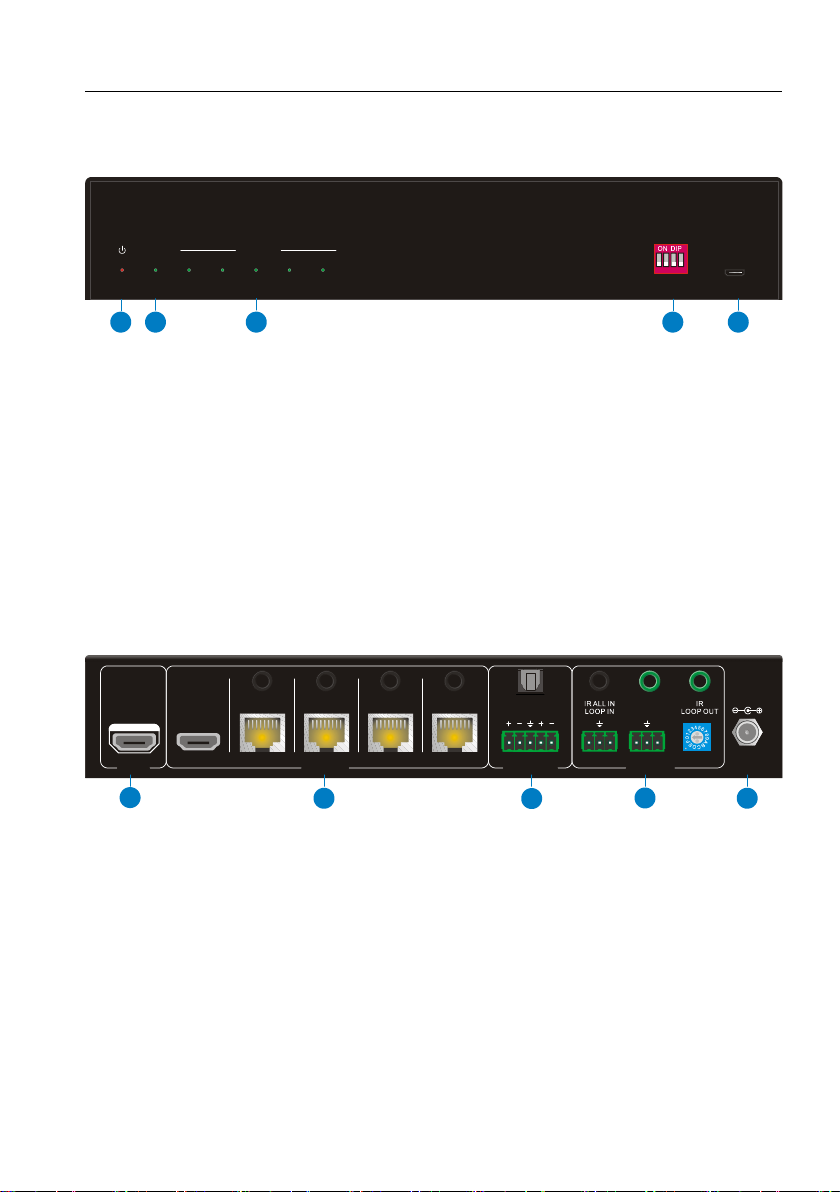

3.1 Splitter Front Panel

FIRMWARE

OUTPUTS

INPUT

HDMI HDBT 1 HDB T 2 HDBT 3 HDBT 4

1 2 3 4

OFF

123 4 5

1. POWER LED: Illuminates red when power is applied.

2. INPUT LED: Illuminates green when there is HDMI source input.

3. OUTPUT LEDs: The HDMI LED illuminates green when there is HDMI output. The

HDBT 1~3 LEDs illuminate green when there is a valid HDBaseT link between the

splitter and the receiver.

4. 4-pin DIP switch for EDID setting and HDCP mode selection.

5. FIRMWARE: Micro-USB port for firmware upgrade.

3.2 Splitter Rear Panel

ID PRESET DC 24V

OU TPUTS

RS232 OUT

Tx RxTx Rx

RS232 INHDMI

IN PUT

HDMI

IR OUT

CO NTROL

IR IN IR IN IR IN IR IN

HDBT 1 HDBT 2 H DBT 3 H DBT 4

AU DIO OUT

L R

SPDIF

12345

1. HDMI INPUT: Connects to HDMI source device.

2. OUTPUTS:

HDMI: Connects to local HDMI display device.

HDBT 1~4: Connect to four HDBaseT receivers.

IR IN: Connect to four IR receivers to control far-end third-party devices by IR.

3. AUDIO OUT:

Toslink audio output for audio de-embedding from HDMI output.

Balanced L/R audio output for audio de-embedding from HDMI output.

1x4 HDBaseT Splitter Kit

4. CONTROL:

IR ALL IN/LOOP IN: Connects to IR receiver to control far-end display device,

or it can be connected to IR LOOP OUT of previous splitter.

IR OUT: Connects to IR emitter to control the local source device by IR.

IR LOOP OUT: Connects to IR ALL IN port of next splitter.

RS232 IN: Connects to control device (e.g. PC) to control the splitter or far-end

third-party devices by RS232, or it can be connected to the RS232 OUT port of

previous splitter.

RS232 OUT: Connects to the RS232 IN port of next splitter.

ID PRESET: Assigns a unique ID to each splitter when cascading multiple

splitters. There are sixteen ID (0~9, A~F) can be set by using a small, flathead

screwdriver. The new ID will take effect after device reboot.

5. DC 24V: DC connector for the power adapter connection.

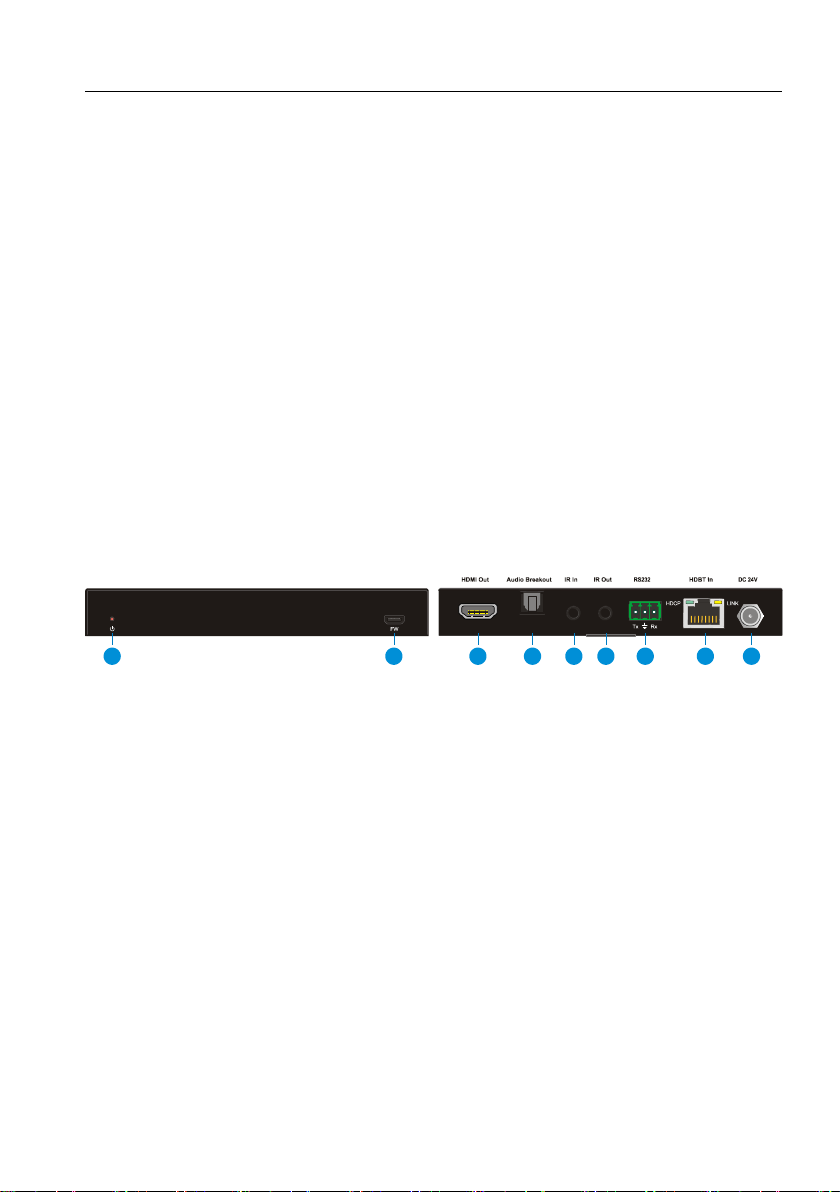

3.3 HDBaseT Receiver Panel

123456789

1. Power LED: Illuminates red when power is applied.

2. FW: Micro-USB port for firmware upgrade.

3. HDMI Out: Connects to HDMI display (e.g.TV).

4. Audio Breakout: Connects to speaker or amplifier for HDMI source audio

de-embedding.

5. IR In: Connects to the IR receiver to control source device at splitter end.

6. IR Out: Connects to the IR emitter to control the display device at receiver end.

7. RS232: Connects to the RS232 control device (e.g. PC) or a third-party device to

be controlled.

8. HDBT In: Connects to the HDBT output port of transmitter by CATx Ethernet cable.

The LINK LED illuminates orange when there is a valid HDBaseT link between the

transmitter and the receiver. The HDCP LED illuminates green when the video

contains HDCP content.

9. DC 24V: DC connector for the power adapter connection.

Indice

Altri manuali Milestone pro Convertitore multimediale

Milestone pro

Milestone pro MP-UCUH-KVM Manuale utente

Milestone pro

Milestone pro MP-IP500E Manuale utente

Milestone pro

Milestone pro MP-DA28UHD Manuale utente

Milestone pro

Milestone pro MP-DA16UHD-4K Manuale utente

Milestone pro

Milestone pro MP-DA4UHD-H2 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
