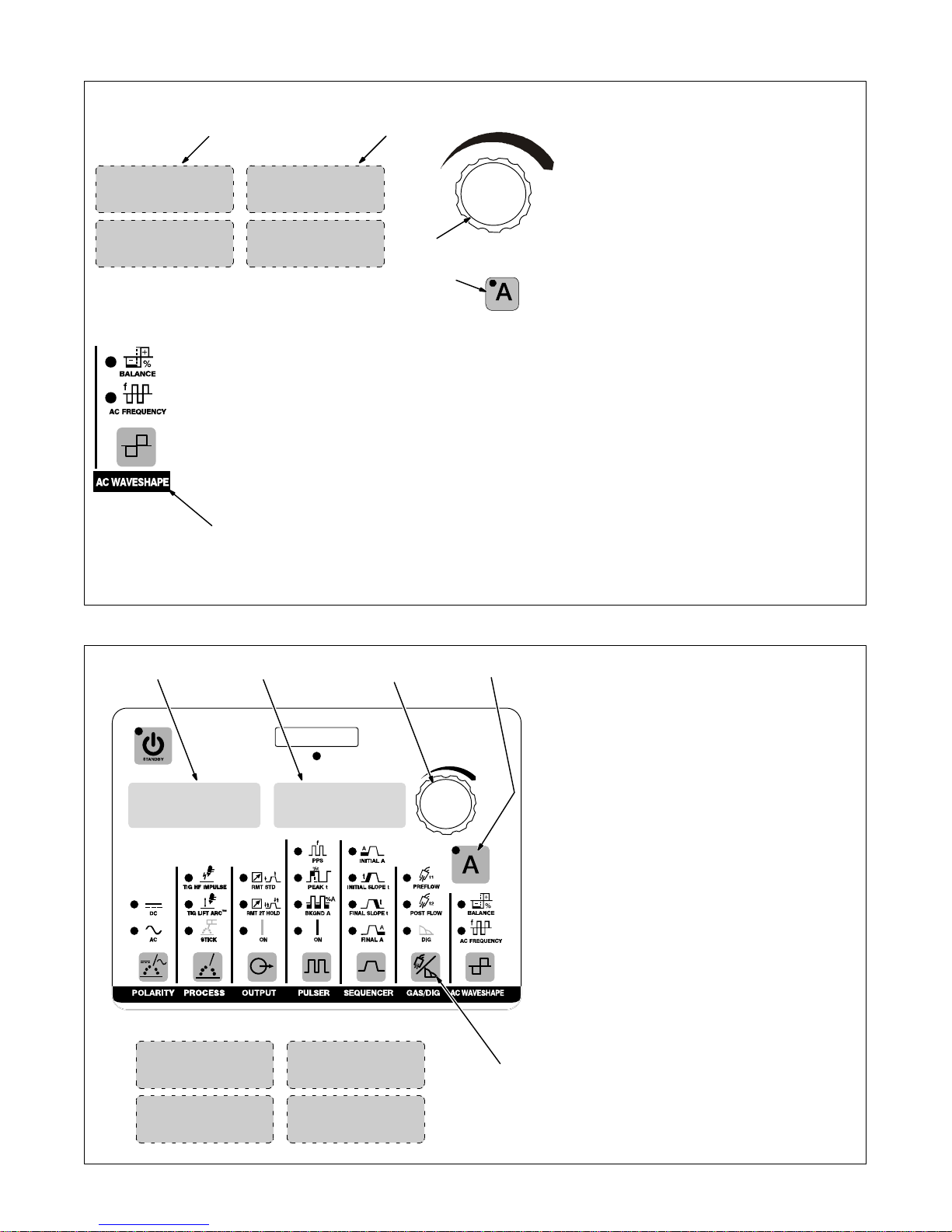

1-2. AC Independent Amplitude (Dynasty DX Models Only)
1
2
3
1 AC Waveshape Control
Press switch pad until desired function is select-
ed.
2 Encoder Control (Set Value)
3 Ammeter (Displays Value)
4 Voltmeter (Parameter Selection)
EN Amperage [EN] -Use with AC TIG only to se-
lect electrode negative amperage value.
EP Amperage [EP] -Use with AC TIG only to se-
lect electrode positive amperage value.
.Both Balance and AC Frequency LEDs light
wheneither EN or EP Amperage is selected.
5 AmperageControl
Average Amperage Control: Setting EN Am-
perage,EP Amperage, Balance, and Frequency
values creates an average amperage. The oper-
ator can change the average amperage value
whilemaintaining the same EN amperage to EP
amperageratio at the existing balance and fre-
quency. To change the average amperage value,
press the Amperage switch pad and turn the En-
coder control. The changing average value is dis-
playedon the ammeter. Example: If EN Amper-
age is 150, EP Amperage is 100, Balance is 75%,
and Frequency is 120, the average amperage is
138 amps. If you press the Amperage switch pad
and turn the Encoder control until 69 amps is dis-
played,the EN amperage is now 75 and EP am-
perageisnow 50. The balance remains 75%, and
the frequency is still 120, and the 1.5 to 1 EN am-
perageto EP amperage ratio is maintained.
5
4
150 A
150 A
EN
EP
1-3. AC Independent Waveshape (Dynasty DX Models Only)
.See Dynasty 210 DX and 280 DX Opera-
tion section in Owner’s Manual for addi-
tionalinformation on Accessing User Set-
up Menu. The [ACEN], [ACEP] option re-
places the [AC] option.
1 Amperage (A) Control
2 Gas/DIG Control
3 Parameter Display
Press Gas/DIG control until [ACEN] is dis-
played.Press the Amperage (A) control to tog-
gle between [ACEN] and [ACEP].
4 Setting Display
5 Encoder Control
Use Encoder to select between advanced
squarewave [ADVS], soft squarewave
[SOFT], sine wave [SINE], or triangle wave
[TRI]. The default is [SOFT].
MENU
1
345
USER
SOFT
SOFT
ACEN
ACEP
2
