1 Blue Cord 70mm As received, apply with #8.

2 Brown Cord 70mm As received, apply with #9.

3 White Field ----- As received.

4 Black Field ----- As received.

5 White Field ----- Strip 5mm for T1.

6 White Field ----- Strip 5mm for T1.

Green/Yellow

Cord ----- Strip 5mm for T1.

DYMODRILL and SWITCH BOX 58-03-0020

DATE

Feb. 2011

MILWAUKEE ELECTRIC TOOL CORP. 13135 WEST LISBON RD. BROOKFIELD, WIS. BULLETIN

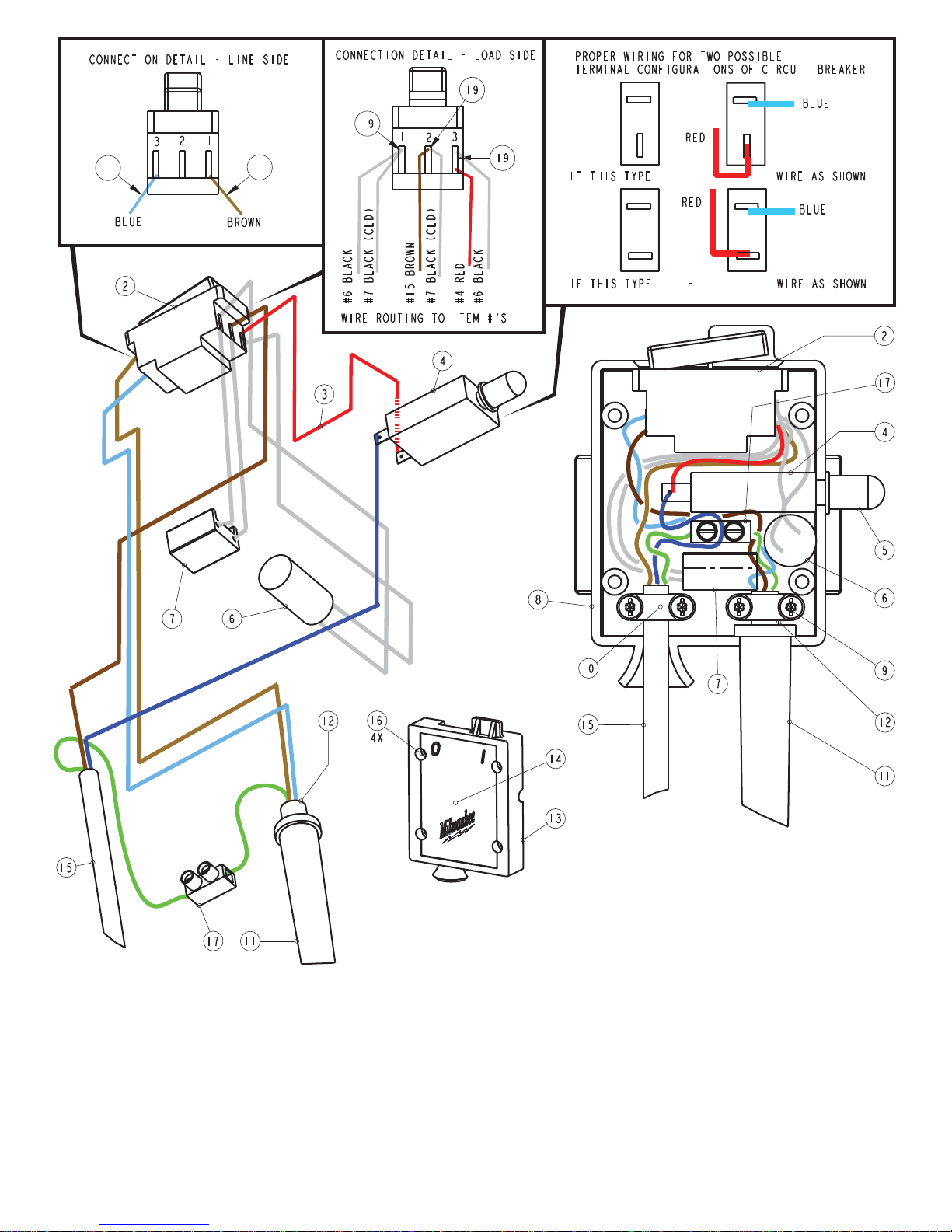

WIRING INSTRUCTIONS

TITLE

Drwg. 2

CONNECTOR DESCRIPTION

NOTE:

All leads must be held to ± 1/8".

All lead lengths are before stripping.

TERMINAL DESCRIPTION

Part No.Code Qnty.

Terminals, Connectors and 1 or 2 End Wire Preparation

Wire

Color Origin or

Gauge

Wire

No. Length

WIRING SPECIFICATIONS

T1 23-74-0840 3

20 20

ITEM PART NUMBER DESCRIPTION QTY.

1 22-68-0200 SWITCH BOOT (Not Shown) (1)

2 23-66-1430 SWITCH - DELAY TYPE (1)

3 23-94-9915 LEADWIRE ASSEMBLY - RED (1)

4 22-36-0150 BREAKER (1)

5 22-68-0210 BREAKER BOOT (1)

6 22-33-0430 SUPPRESSOR (1)

7 22-74-0053 CURRENT LIMIT DEVICE (1)

8 22-12-0200 ENCLOSURE (1)

9 06-82-7299 SCREW (4)

10 31-17-0155 CLAMP (2)

11 44-76-0140 CORD PROTECTOR (1)

12 23-37-0170 CORD SETASSEMBLY (1)

13 22-68-0190 COVER (1)

14 12-98-3080 INSTRUCTION PLATE (1)

15 22-64-5050 CORD SET (1)

16 06-82-7326 SCREW (4)

17 22-56-0480 TERMINAL BLOCK (1)

18 10-98-3030 GROUND LABEL (Not Shown) (1)

19 23-74-2005 1.5MM FERRULE (Not Shown) (3)

20 23-74-2000 1.0MM FERRULE (Not Shown) (2)

SERVICE NOTES:

Screws can use either a ﬂat blade or T-20 screwdriver.•

Cover (13) should mate ﬂush with enclosure (8) before•

securing with cover screws (16). Agap indicates a

misplaced wire or component.

Tighten breaker boot (5) after installing cover (13).•

Cord jackets (12 and 15) are to extend a minimum of .125"•

beyond cord clamps (10), 2 places. Cord set (12) is shown

inside cord protector (11).

Ground label (18) is to be applied to the inside of the•

enclosue (8), under the terminal block (17).

Tuck the red leadwire assembly (3) down below pegs.•
