Milwaukee 58-03-0021 Manuale utente

1 Blue Cord 70mm As received, apply with #8.

2 Brown Cord 70mm As received, apply with #9.

3 White Field ----- As received.

4 Black Field ----- As received.

5 White Field ----- Strip 5mm for T1.

6 White Field ----- Strip 5mm for T1.

Green/Yellow

Cord ----- Strip 5mm for T1.

DYMODRILL and SWITCH BOX 58-03-0021

DATE

Oct. 2003

MILWAUKEE ELECTRIC TOOL CORP. 13135 WEST LISBON RD. BROOKFIELD, WIS. BULLETIN

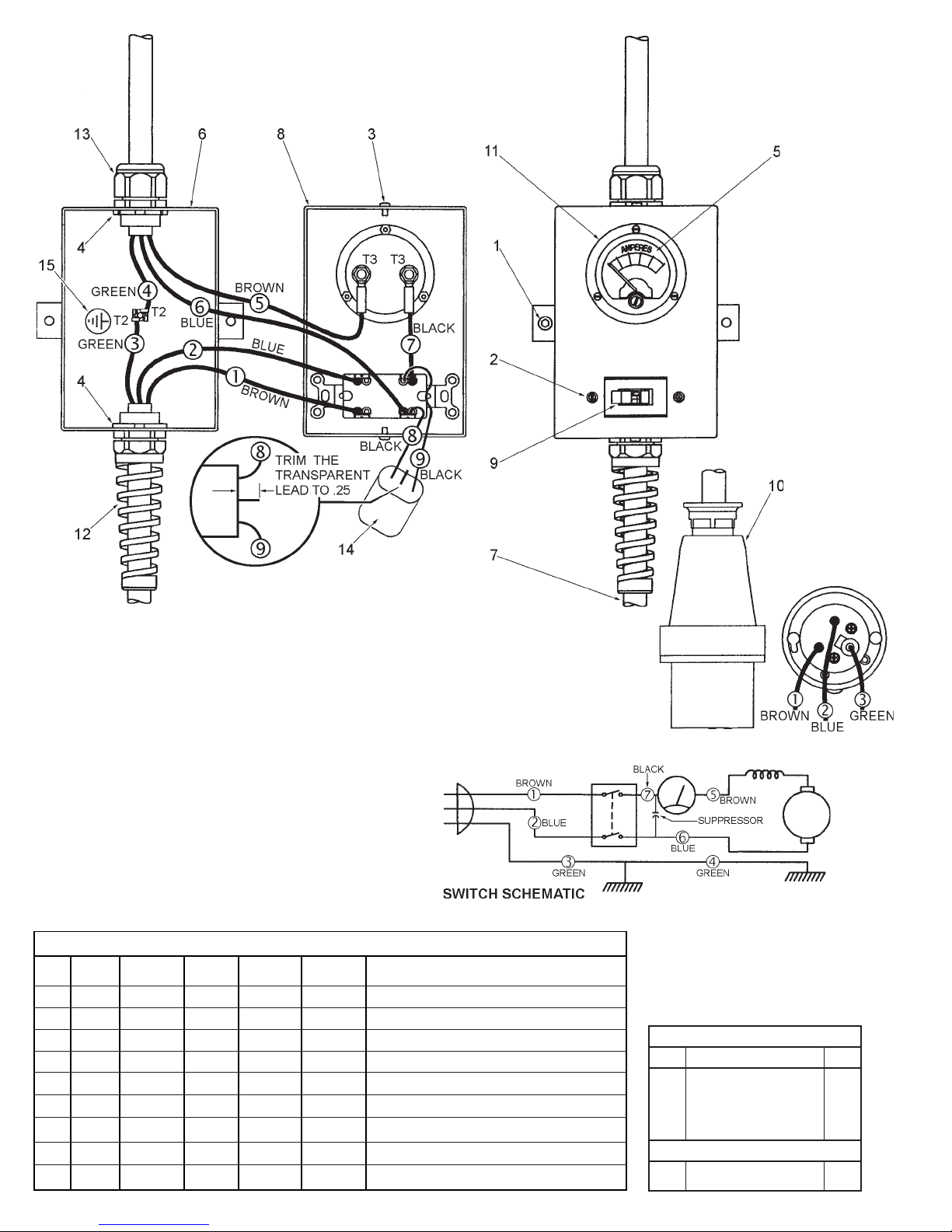

WIRING INSTRUCTIONS

TITLE

Drwg.5

CONNECTOR DESCRIPTION

NOTE:

All leads must be held to ± 1/8".

All lead lengths are before stripping.

TERMINALDESCRIPTION

Part No.Code Qnty.

Terminals, Connectors and 1 or 2 End Wire Preparation

Wire

Color Origin or

Gauge

Wire

No. Length

WIRING SPECIFICATIONS

T1 23-74-0840 3

CONNECTOR DESCRIPTION

NOTE:

All leads must be held to ± 1/8".

All lead lengths are before stripping.

TERMINALDESCRIPTION

Part No.Code Qnty.

T1 23-74-0840 1

T2 23-74-0610 2

T3 23-74-0310 2

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 06-75-3200 Screw (1)

2 06-81-5660 Screw (2)

3 06-82-5270 Screw (2)

4 06-55-3870 Nut (2)

5 22-04-0030 Meter (1)

6 22-12-0185 Box Body (1)

7 22-64-0195 Power Cord (1)

8 22-68-0175 Box Cover (1)

9 23-66-3030 Switch (1)

10 23-36-3200 Plug (1)

11 31-01-2030 Meter Cover (1)

12 44-76-0185 Cord Strain Relief (1)

13 44-76-0385 Straight Thru Fitting (1)

14 22-33-0030 Suppressor (1)

15 10-98-3030 Ground Label (1)

No. 23-37-0200 Meter Box - Complete

1 Brown Plug Cord 2.5 3.5 Strip both ends .39.

2 Blue Plug Cord 2.2 3.5 Strip both ends .39.

3 Green Plug Cord 2.5 5.5 Strip .19 for T2, Strip the other end .39.

4 Green Motor Cord 4.62 5.5 Strip .19 for T2, Strip .19 for T1.

5 Brown Motor Cord 2.25 3.5 Strip .39 for T3, Strip the other end .39.

6 Blue Motor Cord 2.75 3.5 Strip both ends .39.

7 Black 23-94-4300 4.0 Strip .39 for T3, Strip the other end .39.

8 Black 22-33-0030 Component of the suppressor assy.

9 Black 22-33-0030 Component of the suppressor assy.

Term./Conn. and 1 or 2 End Wire Preparation

Wire

Color Origin or

Gauge

Wire

No. Length

Plug End

WIRING SPECIFICATIONS

Length

Box End

Length

Motor End
