Schematic Plan for DP-8800plus/DP-8600 Part Installation
Figure 1 Schematic Plan of Part Installation (with 14” monitor)
1
2
3
45
6
7
8
9
Figure 2 14” Monitor Assembly
1. transducer holder C
2. transducer holder D
3. ultrasound gel holder
4. hexagon socket screw
M5×35/spring washer Φ5/plain
5. pushing handle
6. limit screw M5×16/spring washer
Φ5
7. transducer cable hook
8. screw M4×8
9. rear cover of monitor
10. screw M4×8
11. monitor assembly
12. neck cover
13. main unit
1. limit screw
2. cable strap
3. screw M4×8
4. rear cover of monitor
5. power cable
6. signal cable
7. monitor
8. friction pad
9. neck cover
2
Operating procedures are shown as follows:
I. Installing the monitor
1. As shown in the figure, prior to installation of the monitor, place the neck cover on the neck
of the main unit, and place the friction pad on the rotating axis.
2. Thread the power cable and signal cable through the axis, and then place the rotating axis
into the axile bush. Connect the cables to the connectors, tighten the cables, and fix the
cables by the cable strap at the bottom of the monitor.
3. Install the rear cover of the monitor and tighten it with three M4X8 screws.
4．Fix the neck cover with M4X8 screws.
5．Tighten the limit screw on the neck.
6．After installation of the monitor, remove the protecting film on the screen.
II. Installing the pushing handle
Take out the pushing handle and three sets of hexagon socket screws M5x35/spring
washers Φ5/plain washers Φ5, and then use the M5 hexagon socket wrench to fix the
pushing handle in position.
III. Installing transducer cable hook and holder
Take out the transducer cable hook and holder, and place them in position.
VI. Installing the transducer
1．Unlock the lever of the transducer connector, put the cable upward, and insert the
connector vertically into the socket.
2．Turn the lever clockwise 90°.
3．Check that the connector is tightened.
Installation of the transducer is shown in figure 3.

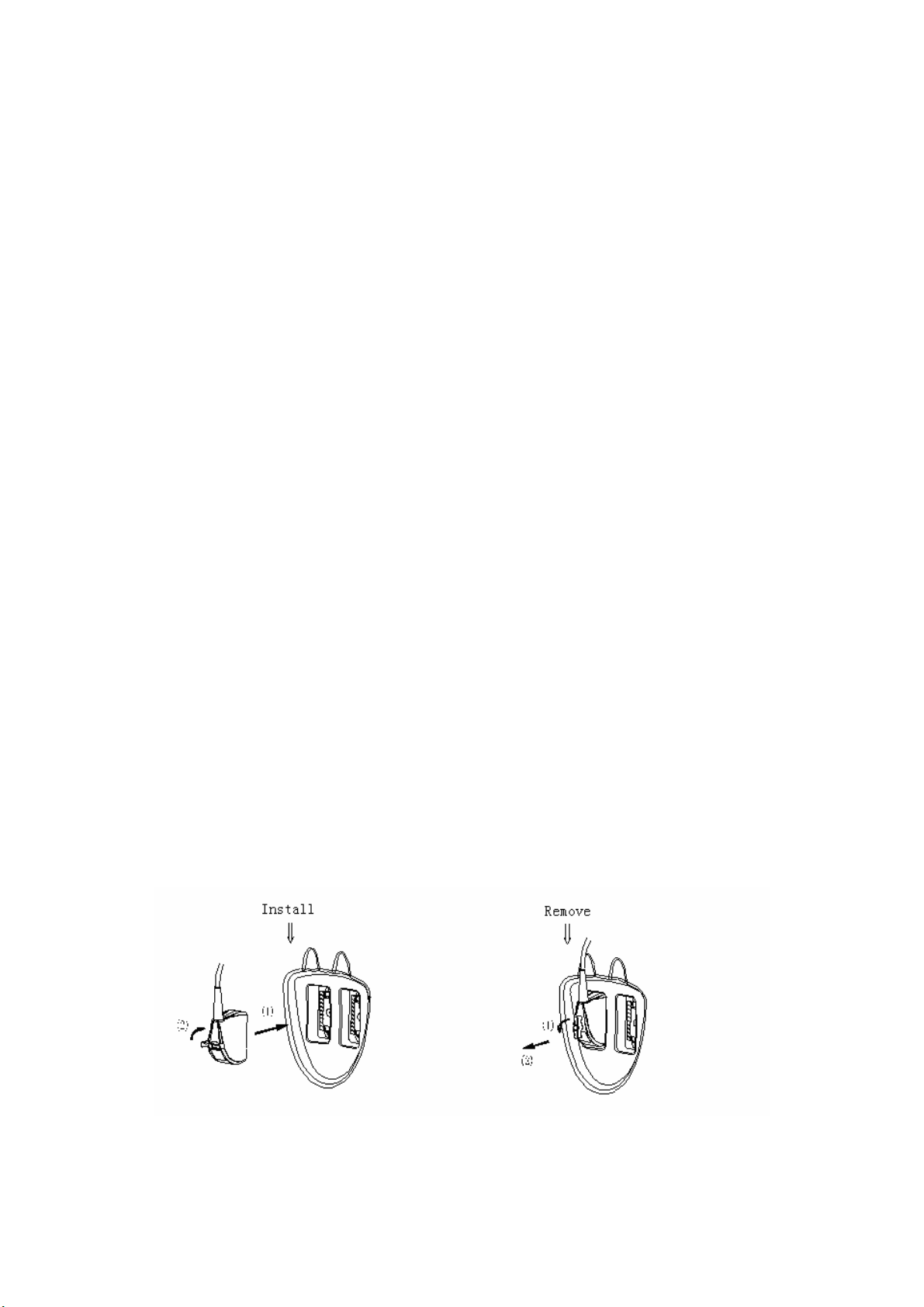

Figure 3 Installing and Removing the Transducer
3
Schematic Plan for DP-9900plus/DP-9900/DP-9600 Part
Installation

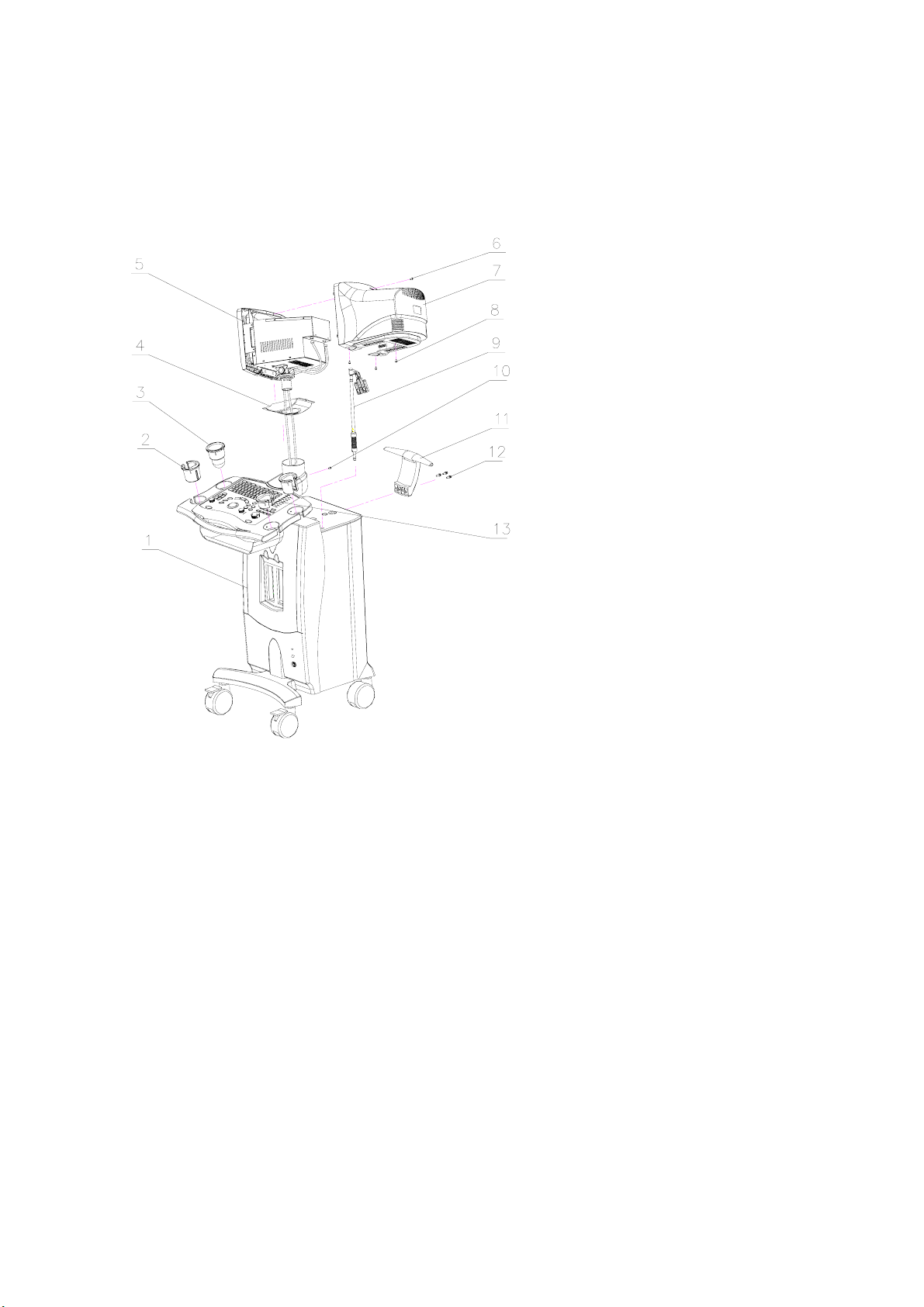

Figure 4 Schematic Plan of Part Installation
Operating procedures are shown as follows:
I. Installing the monitor
1. As shown in the figure, prior to installation of the monitor, place the neck cover on the neck of
the main unit, and place the friction pad on the rotating axis.
2. Thread the power cable and signal cable through the axis, and then place the rotating axis
into the axile bush. Connect the cables to the connectors, tighten the cables, and fix the
cables by the cable strap at the bottom of the monitor.
3. Install the rear cover of the monitor and tighten it with three M4X8 screws. Fix the neck cover
with screw M5×16 and spring washer Φ5.
1. main unit
2. transducer holder B
3. ultrasound gel holder
4. neck cover washer Φ5
5. monitor assembly
6. screw M4x8
7. rear cover of monitor
8. screw M4×8
9. transducer cable hook
10. limit screw M5×16/spring
washer Φ5
11. pushing handle
12. hexagon socket M5x35/spring
washer Φ5/plain washer Φ5
13. transducer holder A
4
II. Installing the pushing handle
Take out the pushing handle and three sets of hexagon socket screws M5x35/spring washers
Φ5/plain washers Φ5, and then use the M5 hexagon socket wrench to fix the pushing handle in
position.
III. Installing transducer cable hook and holder
Take out the transducer cable hook and holder, and place them in position.
VI. Installing the transducer
1．Unlock the lever of the transducer connector, put the cable upward, and insert the
connector vertically into the socket.
2．Turn the lever clockwise 90°.
3．Check that the connector is tightened.

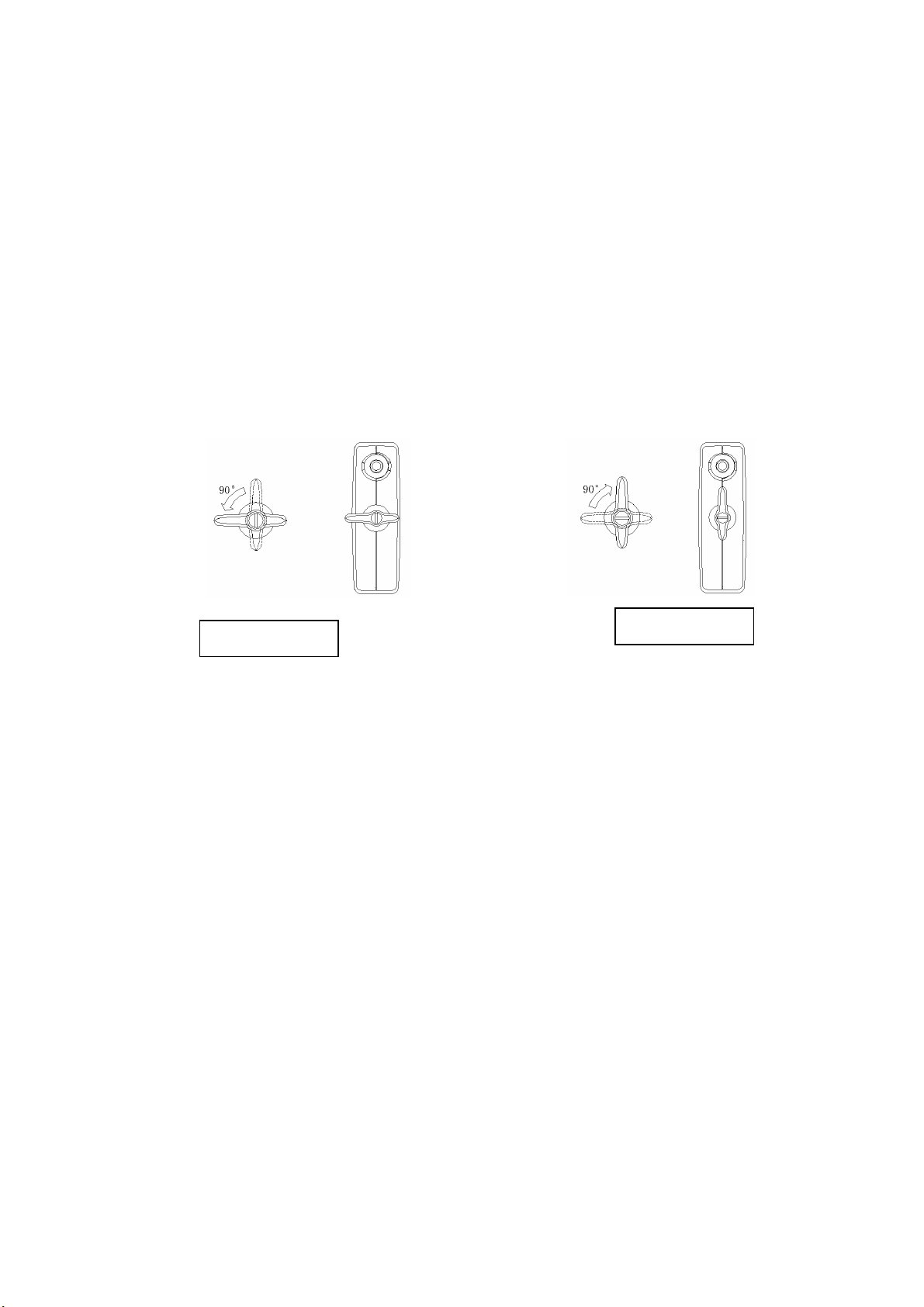

Figure 5: Unlocking and Locking the Transducer
Locking status
Unlocking status
