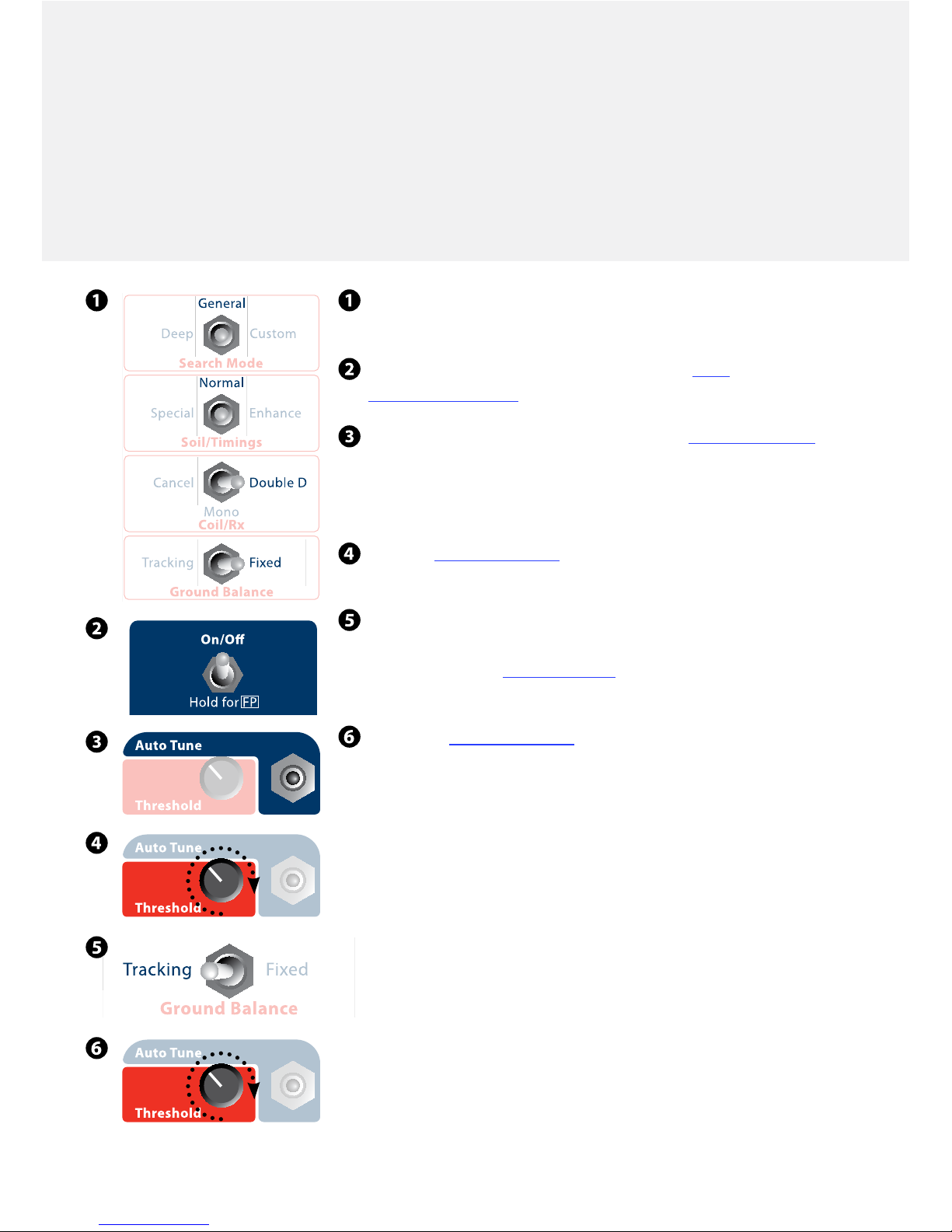

Set the Front Control Panel switches to the

following positions.

Press and release the On/Off switch on the Rear

Control Panel (p. 26).

Raise the coil off the ground and Press the Auto Tune (p. 32)

button to reduce electrical interference. The tuning process

takes approximately 60 seconds. Do not move the coil or

pass metal objects near the coil until you hear 3 beeps.

Turn the Threshold (p. 33) control clockwise until a hum is

audible through the headphones.

Whilst raising and lowering the coil, between 25mm and

100mm (1" and 4") from the ground, change the Ground

Balance switch to Tracking (p. 40). Any variations in the

Threshold will smooth out within 3–5 seconds.

Adjust the Threshold (p. 33) to a very faint but still audible

level. It should be smooth with only minor fluctuations.

You are now ready to start searching!

Minelab is always interested in your opinions. If you have

any questions or comments regarding your GPX Series or

any other Minelab product, please feel free to contact us

directly or via your local Authorised Minelab dealer.

For further product information and detecting tips, refer to:

www.minelab.com

Quick Start

1Congratulations on purchasing

your Minelab

metal detector!

Gold detecting is a fascinating and rewarding activity enjoyed by people all over the world. By

getting to know your GPX Series detector you can become one of the many who find gold and

valuable treasure on a regular basis.

The GPX 5000 and GPX 4800 are Minelab's most advanced gold detectors. They are high precision

instruments incorporating Multi-Period Sensing (MPS), Dual Voltage Technology (DVT), Smart

Electronic Timing Alignment (SETA) and the latest in high-tech analogue components combined

with advanced digital processing.

The GPX 5000 and GPX 4800 will locate gold in all types of ground, especially highly mineralised

ground conditions, with greater efficiency than any previous detector.

This manual is designed to help both the beginner and expert prospector get the best

performance out of their GPX 5000 and GPX 4800.

Minelab wishes you every success in your quest for gold and treasure!

Read your Instruction Manual!

A comprehensive explanation on how to use your GPX 5000’s or GPX 4800’s

functions and settings are set out within these pages. By thoroughly reading this

Instruction Manual you will have a better understanding on how to operate your

Minelab metal detector.

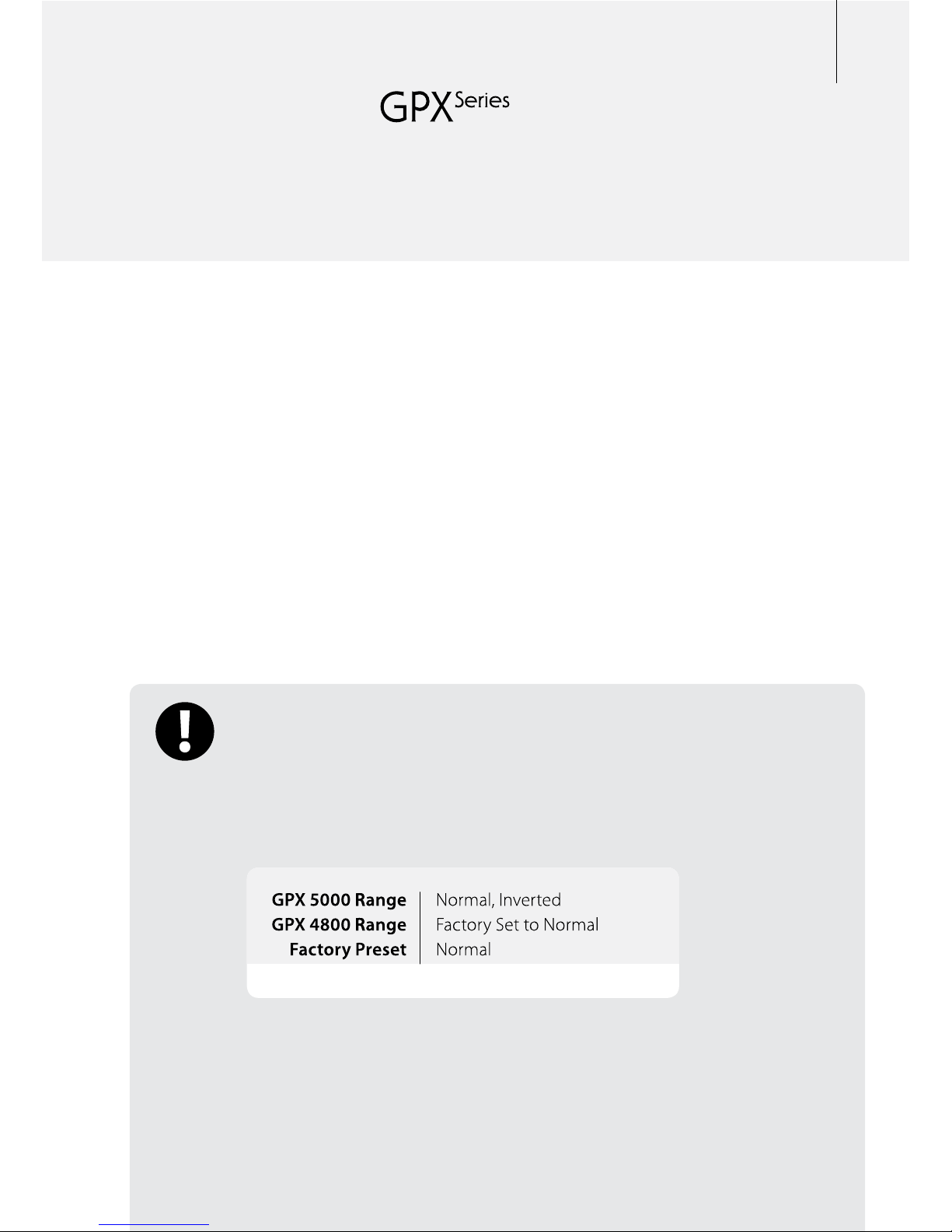

At the top of each page that explains a GPX Series setting you can change, the

“Range” and “Factory Preset” will be stated for that setting. Some settings are

not adjustable depending on your model and have been Factory Set. In the

example above, the available range for the GPX 5000 is Normal and Inverted,

and the Factory Preset is Normal. For the GPX 4800 you cannot adjust the setting

and it has been Factory Set to Normal.

2Contents

Quick Start

Introducing the GPX 5000 and GPX 4800

List of Parts

Assembly

Adjusting the Detector for Comfortable Detecting

Charging the Battery

Battery LED Patterns

Taking Care of Your Battery

Detecting Basics

Detector Sounds

Front Control Panel

Rear Control Panel

Turning the Detector On

LCD Menu Structure

Search Mode

Tune / Reducing electrical interference.

Auto Tune

Threshold / Adjusting the background audio level.

Soil/Timings / Optimising for soil and target types.

Coil/Rx / Changing transmit (Tx) and receive (Rx) fields.

Ground Balance / Compensating for ground mineralisation.

Ground Balance Procedure for Tracking

Ground Balance Procedure for Fixed

Restoring Factory Presets

Factory Presets

Function Select Control / Scrolling through functions.

Setting Control / Adjusting settings.

Front Panel Functions

Item Number: 4901-0096 Revision: 2

LCD Backlight

Battery Test / Viewing the battery voltage.

Volume Limit / Setting the maximum volume of all sounds.

Ground Balance Type

Ground Balance Procedure for Specific

Special / Soil/Timings.

Manual Tune / Reducing electrical interference.

Changing Search Modes / Via the LCD.

Motion / Adjusting sweep speed.

Rx Gain / Adjusting the sensitivity of the detector.

Audio Type / Changing the audio response of target signals.

Audio Tone / Adjusting the pitch of the Threshold.

Stabilizer

Signal Peak / Adjusting the pitch variation of target signals.

Target Volume

Response / Inverting the pitch of the target signal.

Tracking Speed / Keeping up with changing ground.

Iron Reject

Iron Reject / Rejecting ferrous targets.

Custom Name / Changing your Custom Search Mode name.

Pinpointing / Locating the target.

Recovering the Target

Detecting Tips

Commander Coils

Choosing the Right Coil for the Job

Troubleshooting

Glossary

Taking Care of Your Detector

User Preferences

Technical Specifications

Warranty

Service and Repair Form

Rear Panel Functions

4Introducing the

and

The GPX Series utilise Minelab’s proven 'Dual Voltage

Technology' (DVT). This ensures an accurate Ground Balance to

provide maximum sensitivity and depth in all ground types.

The GPX 5000 offers a total of eight Timing options, the

GPX 4800 offers six; each incorporating the all-new SETA

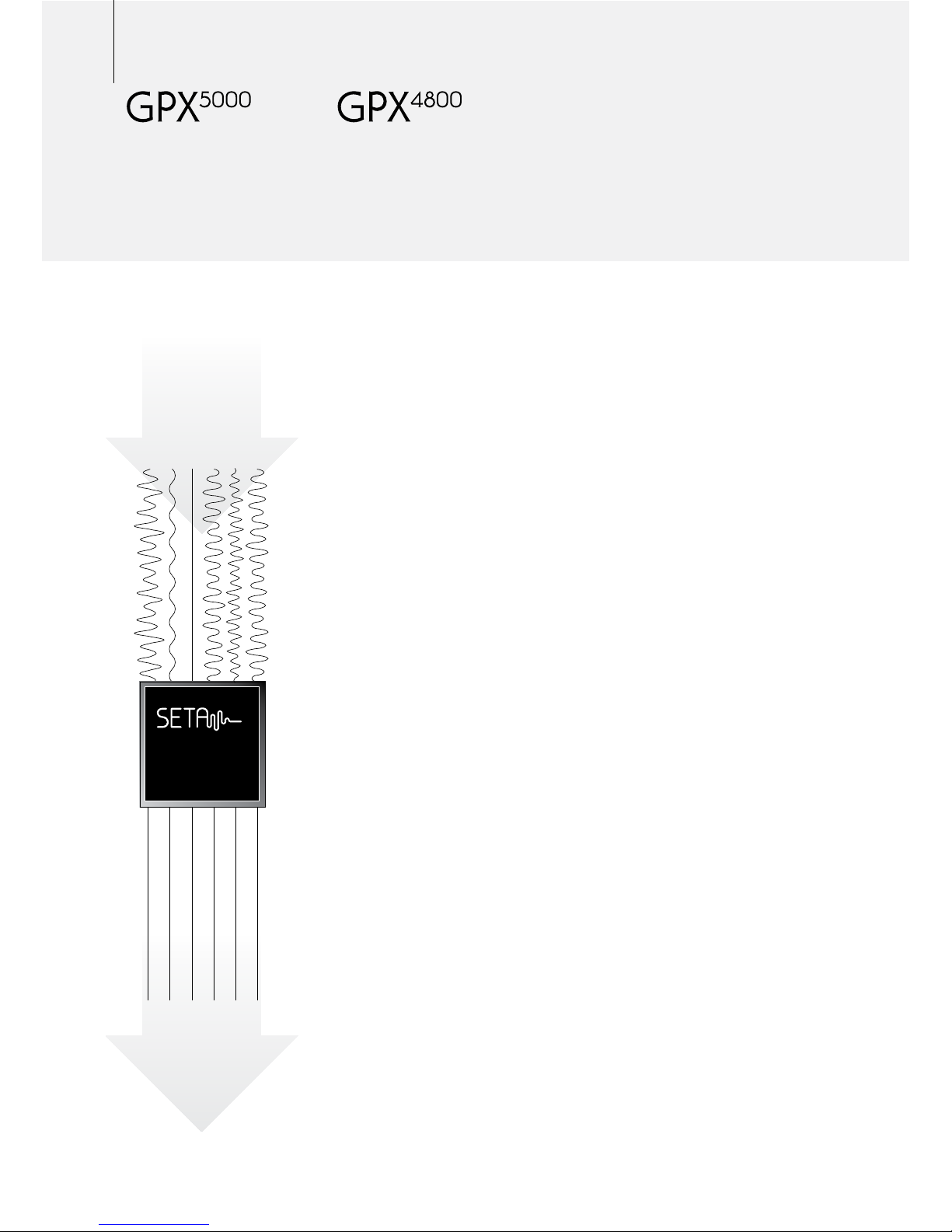

technology. Smart Electronic Timing Alignment (SETA)

ensures the detector is precisely aligned for each individual

Timing option. This improvement in calibration reduces the

susceptibility to certain types of interference, and significantly

improves the detector’s immunity to highly magnetic

rocks and soils.

Through a process of dynamic noise compensation,

SETA ensures that the threshold stability is improved and

maintained, allowing you to operate the GPX 5000 and GPX

4800 with maximum efficiency under all conditions.

The GPX 5000 offers six preprogrammed Search Modes, and

the GPX 4800 offers three. Both models are set up for the most

common search techniques.

Each Search Mode can be fine tuned by simply scrolling

through the various functions of the detector and adjusting

the settings.

With improved functionality and new timings the GPX 5000

and GPX 4800 are capable of finding nuggets in a diverse

range of ground conditions with greater ease than

previous detectors.

Timings stability

prior to SETA

Precisely aligned

timings after

SETA processing

Dynamic

Noise

Compensation

5Features

Ground Balance (GB) Type

Ground Balance Type has three settings:

Normal, Specific, and GB Off. Normal is the

preferred setting for most soil types. Specific

Ground Balance is designed to be used in

very hot ground, and is especially useful with

Monoloop coils. GB Off switches the ground

balance circuit off for maximum depth in very

mild soils, sand etc.

Custom Search Mode (GPX 5000)

With Custom selected, a range of Custom

Search Modes become available from the

LCD menu. A mode name picker is also

included so you can name your own Search

Modes for different locations, and use them

for future visits.

Timings

The GPX Series feature a number of new

timings, increasing performance in different

conditions. Fine Gold, Salt/Gold and Coin/

Relic are new timings for the GPX 5000. Coin/

Relic is also new to the GPX 4800.

Rx Gain

The Rx Gain function sets the overall

sensitivity level of your detector. In areas

where soil conditions are mild you can

increase the Rx Gain. In areas that are more

difficult Rx Gain can be reduced.

Motion

The speed at which you sweep the coil has an

effect on target response time and Ground

Balance adjustment. Matching your preferred

coil sweep speed with the corresponding

Motion setting can reduce noise and improve

your ability to pick up targets at depth.

Response (GPX 5000)

The Response function allows you to invert

the target response. Deep targets can now

sound like the more familiar ‘rising and falling’

pitch of a shallow target signal.

Stabilizer

This feature allows you to fine tune your

audio, in order to obtain the best compromise

between smooth operation and clear

target signals.

Target Volume

Used to control the built-in amplifier which

affects the volume of target signals. It is

active with both headphones and an external

speaker. Target Volume can also be used to

reduce the severity of ground signals.

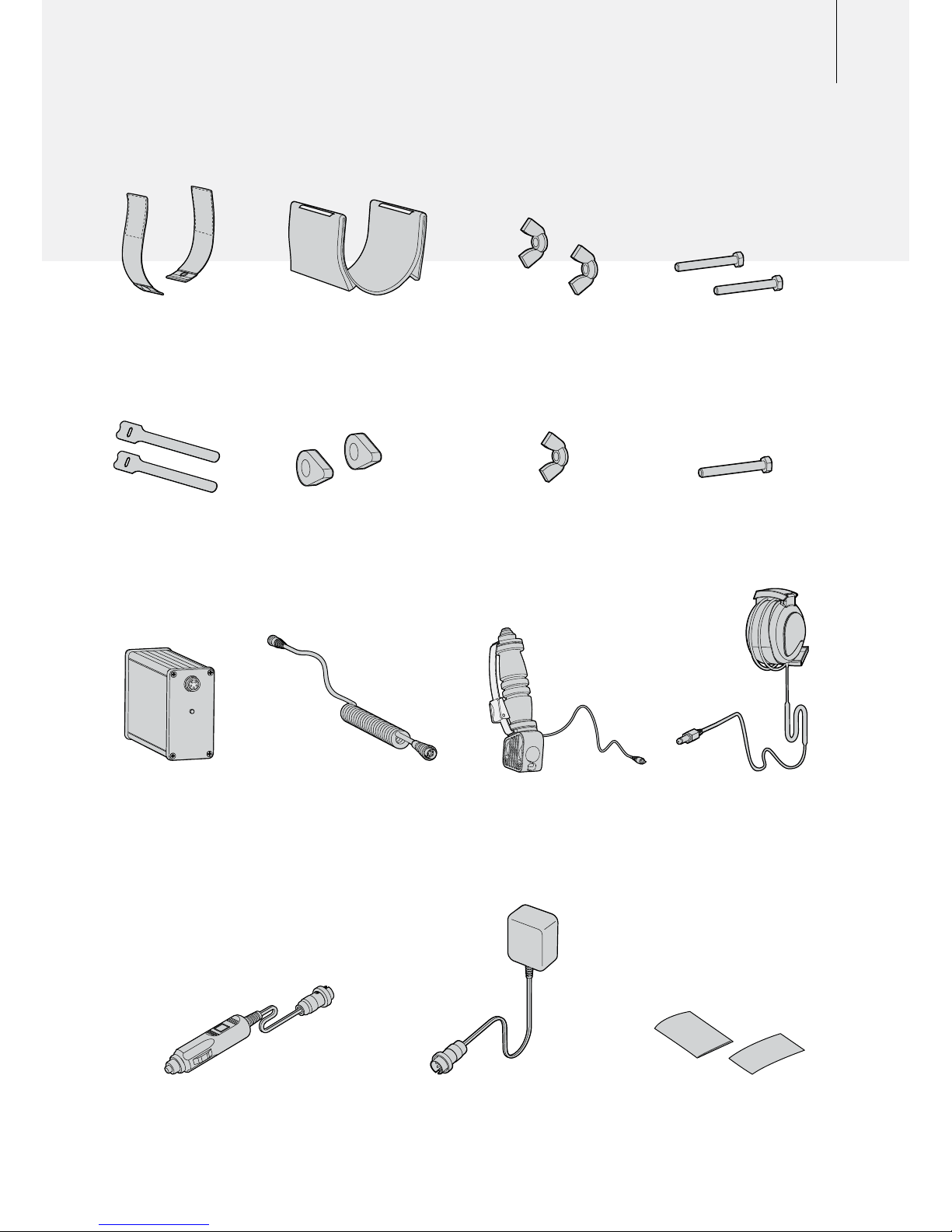

6List of Parts

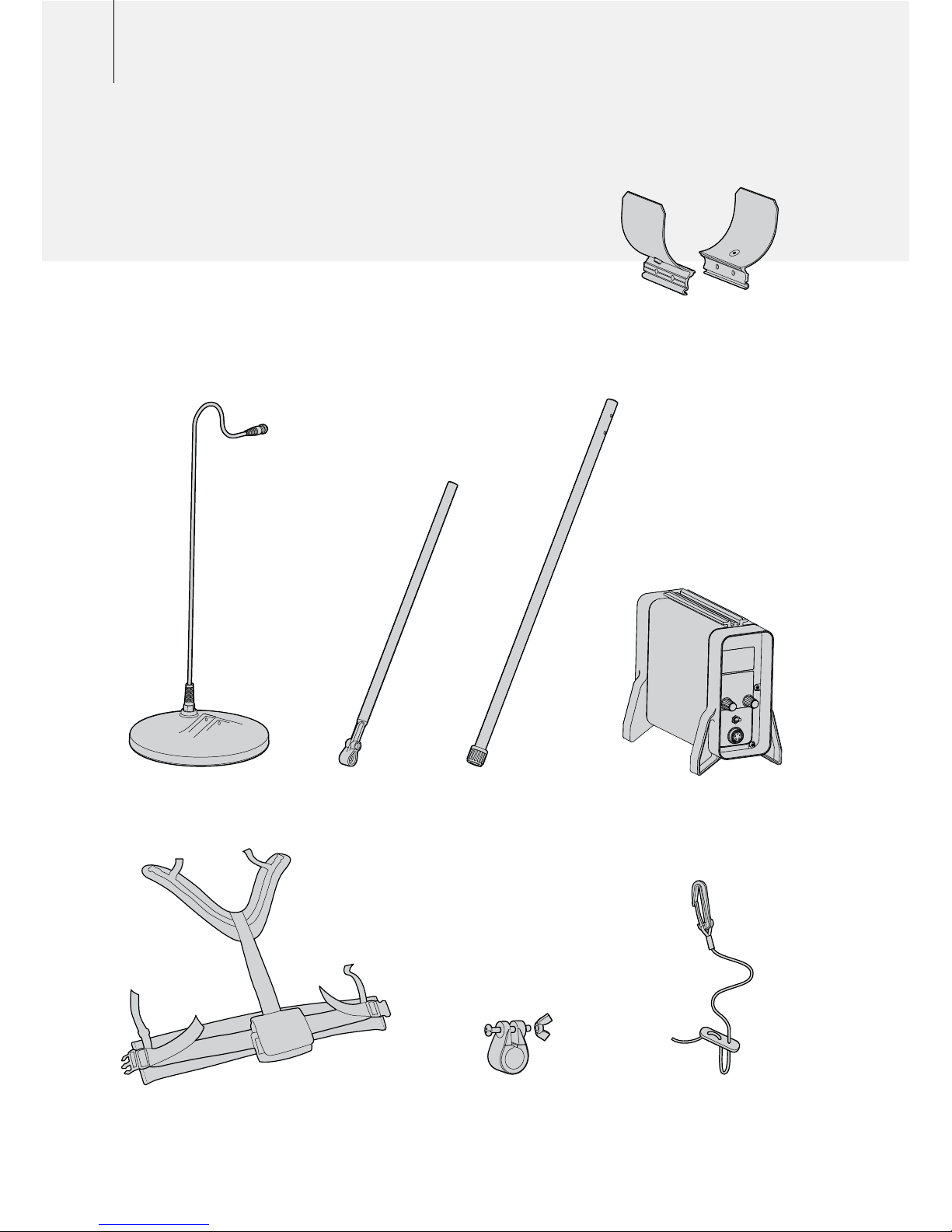

Battery Harness

Lower Shaft11" Coil Upper Shaft

Handle

(with Quick-Trak

Button)

Power CableLithium-ion Battery

Control Box

Headphones

Instruction Manual

& Warranty Card

Armrest (2 sections)

Armrest Bolts

Armrest Wingnuts

Armrest Straps Armrest Cover

Vehicle Charger Adaptor

Velcro Tabs

Bungy Cord Clamp

(Bow Knuckle) with

Bolt and Wingnut

Bungy Cord

Lower Shaft Washers Lower Shaft BoltLower Shaft Wingnut

Mains Charger Adaptor

Battery Harness

Lower Shaft11" Coil Upper Shaft

Handle

(with Quick-Trak

Button)

Power CableLithium-ion Battery

Control Box

Headphones

Instruction Manual

& Warranty Card

Armrest (2 sections)

Armrest Bolts

Armrest Wingnuts

Armrest Straps Armrest Cover

Vehicle Charger Adaptor

Velcro Tabs

Bungy Cord Clamp

(Bow Knuckle) with

Bolt and Wingnut

Bungy Cord

Lower Shaft Washers Lower Shaft BoltLower Shaft Wingnut

Mains Charger Adaptor

8Assembly

Spring loaded pin

The Coil cable is directly wired into the coil and is not

removable. Any attempt to disconnect this cable will void

your warranty

Attaching the Coil to the Lower Shaft:

1 Plug the two rubber washers into the holes on either side of

the lower shaft.

2 Ensure that the spring loaded pin of the lower shaft is

pointing downwards. Slide the lower shaft into the bracket

on top of the coil.

3 Insert the bolt through the lower shaft and the bracket on

top of the coil. Fasten with the nut provided; being careful

not to damage the thread of the nut by over-tightening. This

may need to be loosened to adjust the coil to a comfortable

detecting angle.

Note: If the coil becomes loose over time the rubber washers

may need replacing.

Altri manuali per GPX5000

Indice

Altri manuali Minelab Rilevatore di metalli

Minelab

Minelab Quattro MP Manuale utente

Minelab

Minelab Musketeer ADVANTAGE Manuale utente

Minelab

Minelab CTX3030 Manuale utente

Minelab

Minelab X-TERRA PRO Manuale utente

Minelab

Minelab Sovereign GT Manuale utente

Minelab

Minelab PRO-FIND 40 Manuale utente

Minelab

Minelab Gold Monster 1000 Manuale utente

Minelab

Minelab GPX5000 Manuale utente

Minelab

Minelab F3Ci Manuale utente

Minelab

Minelab X-Terra 30 Manuale utente

Minelab

Minelab gold striker Manuale utente

Minelab

Minelab F3 Manuale utente

Minelab

Minelab Explorer Manuale utente

Minelab

Minelab F3 Manuale utente

Minelab

Minelab GPX5000 Manuale utente

Minelab

Minelab GPX 6000 Manuale utente

Minelab

Minelab MF5 Manuale utente

Minelab

Minelab EQUINOX 700 Manuale utente

Minelab

Minelab EQUINOX 900 Manuale utente

Minelab

Minelab X-Terra 705 Manuale utente

Minelab

Minelab Eureka Gold Manuale utente

Minelab

Minelab Gold Monster 1000 Manuale utente

Minelab

Minelab The Sovereign Manuale utente

Minelab

Minelab Explorer SE Pro Manuale utente

Manuali Rilevatore di metalli popolari di altre marche

Garrett

Garrett MAGNASCANNER CS 5000 Manuale utente

Valex

Valex 1800200 Manuale utente

Gauss

Gauss MIL MD Manuale utente

Velleman

Velleman CS130 Manuale utente

Sears

Sears 321.596370 Manuale utente

Eriez

Eriez X8 Manuale utente

Steinberg Systems

Steinberg Systems SBS-MD-22 Manuale utente

Zircon

Zircon MetalliScanner m60c Manuale utente

nalanda

nalanda MD027 Manuale utente

REV Ritter

REV Ritter CB-7005 Manuale utente

Fisher Research Labs

Fisher Research Labs F70 Manuale utente

Steinberg Systems

Steinberg Systems SBS-MD-12 Manuale utente

GOLDEN MASK

GOLDEN MASK 5 Manuale utente

Grizzly

Grizzly YM 203 Manuale utente

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Manuale utente

Treasure Cove

Treasure Cove Vibra-Probe 560 Manuale utente

Accurate Locators

Accurate Locators XL16 IMAGER Manuale utente

Teknetics

Teknetics G2 Manuale utente
