Mini Gadgets HCHDTouchGlasses Manuale utente
1 Version 1.0
FHD One-Touch Glasses
SKU: HCHDTouchGlasses
2 Version 1.0
THANK YOU FOR PURCHASING THE
HCHDTOUCHGLASSES
Please read this manual before operating the
camera and keep it handy.
Your purchase should include:
1 x Glasses Pair
2 x Battery Legs
1 x Tweezers
1 x Manual
1 x Charging Adapter
1 x USB Cable
1 x Glasses Cleaning Cloth
1 x MicroSD Card Reader
1 x 16GB MicroSD Card
3 Version 1.0

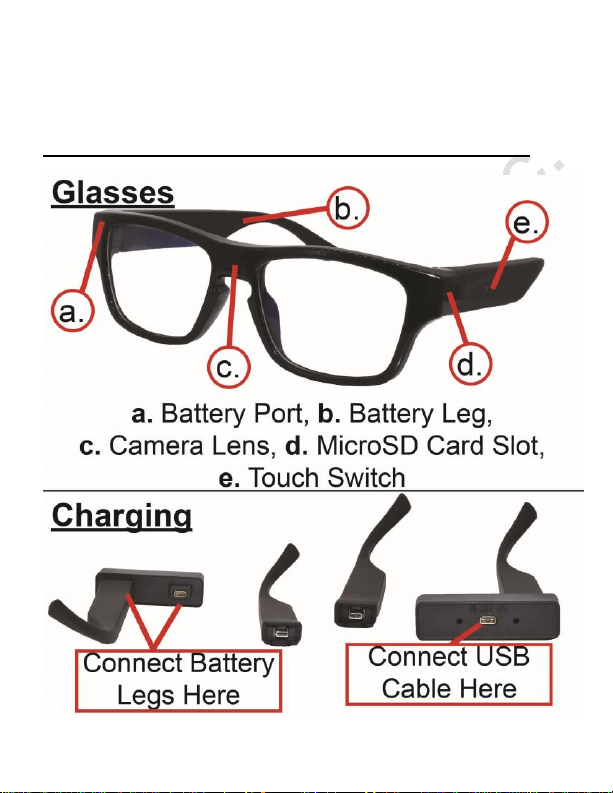

GET FAMILIAR WITH YOUR HCHDTOUCHGLASSES
4 Version 1.0
BEFORE YOU START
Note: If you are not located in the US, or if you intend
to use this product anywhere other than the US, you
will need to purchase a converter in order to use the AC
wall plug in and avoid damaging the product. Because
different countries use different voltages in their
electrical wiring, you will need a converter that adapts
to the current in your particular country.
OPERATING YOUR DEVICE
IMPORTANT NOTICE: Allow the device to charge 3 hours
before using.
CHARGING THE BATTERY
1. This device comes with 2 battery sticks, which
you can charge at the same time. See page 3
5 Version 1.0
for a visual representation of charging your
device.
2. Plug the two battery legs into the side of the
charging adapter with two identical ports.
3. Plug the USB cable into the other end of the
charging adapter.
4. Plug the other end of the USB cable into an AC
wall adapter, then plug the adapter into a
functioning outlet.
5. Wait 3 hours for the device to fully charge, or
until the red indicator light turns off.
a. When fully charged, remove the battery
legs from the charging adapter.
b. To attach the battery leg, start to plug it
in with the leg angled downwards, then
lift and push until the leg clicks into the
device.
HOW TO RECORD USING YOUR DEVICE
6 Version 1.0
1. Ensure you have a MicroSD card inserted
before operating the device.
2. Touch the touch sensor on the left glasses leg
(see page 3) for 3 seconds.
a. The device will vibrate once to indicate
it is powered on and recording video.
b. The videos will be saved in increments
of 3 minutes.
3. To stop recording and power off the device,
touch the touch sensor for 3 seconds once
more.
a. The device will vibrate 3 times to
indicate it is saving your files and
powering off.
SETTING THE TIME AND DATE ON THE VIDEO FILES
You will need to remove the MicroSD card from your
device and connect it to your computer.
7 Version 1.0
1. There will be a text file saved in your device’s
SD card folder.
2. Right click on the “Text Document”.
3. Rename “New Text Document” as “time”.
The title must be in all lowercase letters!
Before Step 3
After Step 3
8 Version 1.0
4. Now double click on the file to open the text
document.
5. Enter the date/time in the following format:
a. Example: (for January 8th, 2018 at 3pm)
2018/01/08 15:00:00
6. Change the “N” at the end of the string of
numbers to “Y”.
7. Save the text document.
8. Safely eject the MicroSD card from your
computer and reinsert it into your device.
Perform a test recording to make sure the time/date
stamp was added successfully.
MICROSD CARD SLOT
1. To access the MicroSD Card Slot, you must
gently close the legs of the glasses. The SD slot is
located in the left leg (see page 3 for help
locating it).
9 Version 1.0
2. Gently push the MicroSD Card into the slot at
the bend of the leg.
a. Never force the card into the Card Slot
under any circumstances. Otherwise the
unit or the MicroSD card itself will be
damaged.
3. To remove the SD card, use the included
tweezers to gently pull the card out of the leg.
MicroSD cards 65GB and above will require special
formatting to work. The device will not function with
these cards if they are not properly formatted
beforehand.
Visit www.mgidownloads.com/Software and download
the “guiformat.zip” file. Extract the files and follow the
instructions in the “64GB SD Card Formatting.pdf”
document.
10 Version 1.0
IMPORTANT NOTICE: Ensure that the device is off before
inserting the MicroSD card. Otherwise potential
corruption of the card file(s) may occur.
RETRIEVE THE FILES TO YOUR PC
1. Connect the MicroSD card to your computer
using the supplied MicroSD card reader. See
page 3 to locate the MicroSD card slot.
2. Locate “Removable Disk” inside the (My)
Computer folder.
AutoPlay Removable Disk > Open folder
to view files
