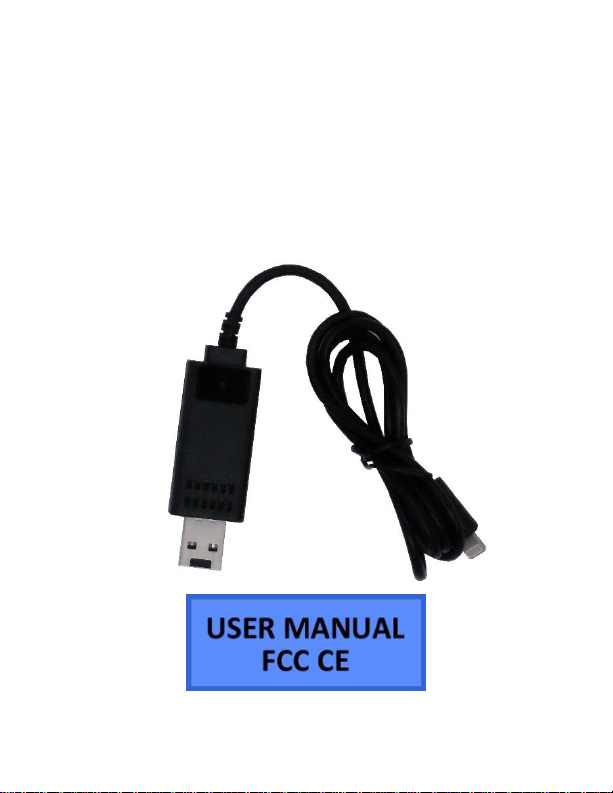

Mini Gadgets HCWiFiCable Manuale utente

1 Version 1.2

Smartphone USB

Cable Wi-Fi & DVR

SKU: HCWiFiCable

2 Version 1.2

THANK YOU FOR PURCHASING THE HCWIFICABLE

Please read this manual before operating the

HCWiFiCable and keep it handy.

Your purchase should include:

1 x HCWiFiCable

1 x Manual

1 x 16GB Micro SD Card

1 x Micro SD Card Reader

1 x Carrying Case

3 Version 1.2

GET FAMILIAR WITH YOUR HCWIFICABLE

4 Version 1.2

OPERATING THE HCWIFICABLE

BEFORE YOU START

1. First you must download the

P2PLiveCam app from the Google Play

Store or the iPhone App Store.

oAndroid:

https://play.google.com/store/a

pps/details?id=com.g_zhang.my

p2pcam&hl=en

oiPhone:

https://itunes.apple.com/us/app

/p2plivecam/id789572618?mt=8

2. If you wish to enable SD Card recording,

you must insert a MicroSD card into the

unit. See the image on page 3 to locate

the MicroSD Card slot.

Note: If you are not located in the US, or if you

intend to use this product anywhere other than

the US, you will need to purchase a converter in

5 Version 1.2

order to use the AC wall plug in and avoid

damaging the product. Because different

countries use different voltages in their

electrical wiring, you will need a converter that

adapts to the current in your particular country.

CONNECTING TO YOUR DEVICE DIRECTLY [PART

In order to view your device remotely, you

must complete the following two-part

sequence of steps.

1. Plug the device into a functional AC

charger or portable battery via the USB

port (see page 3).

2. Turn on your phone’s Wi-Fi and wait up

to 7 minutes for the device to generate

a Wi-Fi signal. The Wi-Fi Signal name will

match the UID on the sticker on the

back of the device (the opposite side of

the camera).

6 Version 1.2

oYou will be looking in your Wi-Fi

settings for a network that

looks like CMXXXX-

XXXXXXXXXX-XXXXX.

3. Once the device generates its Wi-Fi

signal, connect to it via the Wi-Fi

settings on your phone.

NOTE: Some Android devices may produce a

warning that the network has no internet

access. If you see this, choose to connect to the

network anyway.

4. After connecting to the Wi-Fi Signal with

your mobile device, open the

P2PLiveCam App.

NOTE: For iOS devices you must wait until the

Wi-Fi Signal appears next to your Phone Carrier

Name in the status bar at the top of your phone

screen.

5. Once the app opens, tap the plus (+)

button at the top left of the app.

7 Version 1.2

6. Tap “Search (LAN)” and the app should

show a “New Device”.

7. Tap on the New Device and all the

camera’s information will be filled in.

8. Tap “OK”.

9. Now you will see the app listed in the

home screen of the app and it will show

“Online”. You may now tap on this

camera entry to test the video feed.

NOTE: You will be prompted to change the

device password the first time you view the

camera video feed. We suggest that you do

change this to prevent any unauthorized viewing

of your camera.

IMPORTANT: You must keep this password in a

safe place. If you ever need to access the camera

from a different phone or reinstall the camera

app, this password will be required to re-add the

camera. If you forget the password, a factory

8 Version 1.2

reset will be required. In order to factory reset

the device it will most likely need to be sent to us

via an RMA (return merchandise authorization).

If you have any questions regarding this, please

call us.

CONNECTING THE DEVICE TO YOUR WI-FI FOR

REMOTE VIEWING [PART 2]

1. From the home screen of the app, tap

the settings gear next to the camera

name.

2. A menu will pop up, choose “Device

Settings”.

oFor Android devices, the option

will be “Advanced Config”.

3. Next choose “WiFi Config”.

4. Select your network from the list of

available networks, and then enter your

Wi-Fi password and press OK.

5. A dialog will pop up to confirm the

network name and password you

9 Version 1.2

entered. Make sure these are correct

and then press OK.

6. The device will reboot. You will know

the device has connected to your Wi-Fi

successfully when the camera shows

Online in the home screen of the app.

This may take up to 5 minutes.

7. Once the device shows as Online,

confirm that it connected to your Wi-Fi

successfully by opening the settings app

on your phone and choosing your Wi-Fi

settings. If you connected successfully,

the device will no longer be generating

its own Wi-Fi signal, and you should be

connected to your own Wi-Fi.

oNOTE: If you still see a network

broadcasting that is the named

after the UID on the back of your

device, connecting to your Wi-Fi

has failed. Please repeat steps 3-

7 above and pay careful

10 Version 1.2

attention to the network

password you entered.

8. The device is now connected to your

Wi-Fi and may be accessed from

anywhere that your phone has an

internet connection.

HOW TO ADJUST THE VIDEO QUALITY OF THE

STREAM

1. Open the live video stream of your

camera.

2. Once the video is streaming, tap the

screen once to reveal the options.

3. In the top right of the screen there will

be a video quality setting (HD, High,

Normal, and Low Bandwidth). Choose

the quality according to your

preference.

HOW TO SET UP MOTION ALARM RECORDING
