Mini Gadgets BB2TissueBox Manuale utente
1 Version 2.3
BB2 Tissue Box
SKU: BB2TissueBox
2 Version 2.3
THANK YOU FOR PURCHASING THE BB2TISSUEBOX
Please read this manual before operating the camera
and keep it handy.
This tissue box blends right in with any home or office
setting. It conceals a powerful camera with a wide
viewing angle of 72°. Like all BushBaby products it is
equipped with motion detection functionality and
remote control operation. This unit can actually be
used as a tissue dispenser. Even if the camera is
handled by someone curious, the electronics are
sealed inside. It records VGA quality 1280 x 960 video.
Either record continuously or use the motion detection
setting.
Your purchase should include:
1 x Bush Baby 2 Tissue Box
1 x Remote Control
1 x USB Cable
1 x User Manual
3 Version 2.3
GET FAMILIAR WITH YOUR BB2TISSUEBOX
Camera
4 Version 2.3
5 Version 2.3

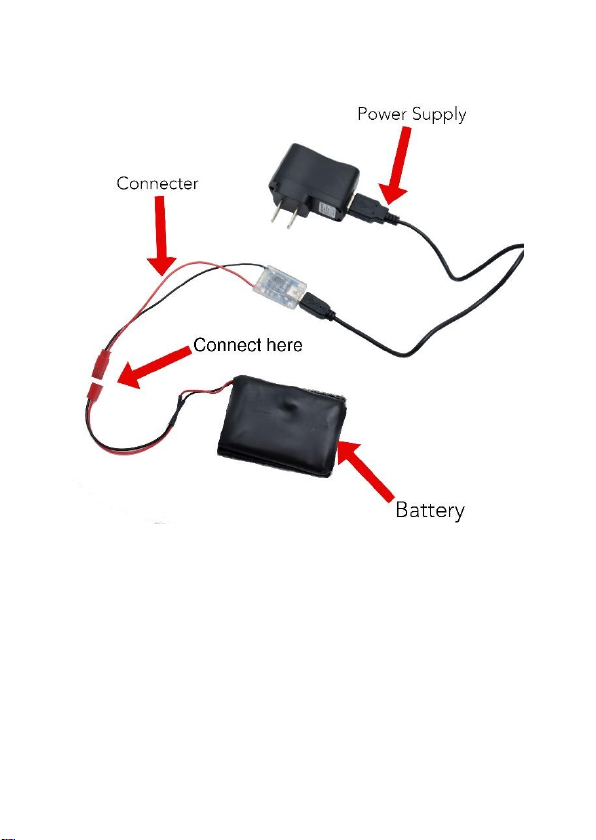

BEFORE YOU START
To preserve battery power, your device will come with
the battery connector disconnected. Before
attempting to use the device be sure to connect the
battery’s connector to the circuit board power lead.
OPERATING THE CAMERA
NOTICE: Allow the device to charge 4 –6 hours before
using.
HOW TO TURN ON THE CAMERA
1. Point the remote control at the camera and
press the “Power button.” (The Green
Indicator Light on the back of the unit will
turn on)
2. The camera is now in Standby Mode
6 Version 2.3
HOW TO TURN OFF THE CAMERA
1. Press the “Power Button” on the remote
control. (The Green Indicator Light will turn
off)
2. The camera is now off.
HOW TO RECORD VIDEO
1. When the camera is in Standby Mode press
the “Video Button” one time (The Green
Indicator Light will flash three times)
2. Once the Green Indicator Light turns off the
camera is now recording video.
3. To stop recording, press the “Video Button”
once and the device will enter back in to
standby mode.
HOW TO TAKE PICTURES
1. When the camera is in Standby Mode press
the “Photo Button”. (The Green Indicator
Light will flash once)
2. Once the Green indicator light flashes once
the picture has been taken.
7 Version 2.3
HOW TO RECORD MOTION DETECTION
1. When the camera is in Standby Mode press
the “Motion Detection Button”. (The Green
Indicator Light will flash several times then
turn off)
2. Once the blue indicator light is done flashing,
the camera is now recoding motion detection.
3. To stop recording, press the “Motion
Detection” button one time.

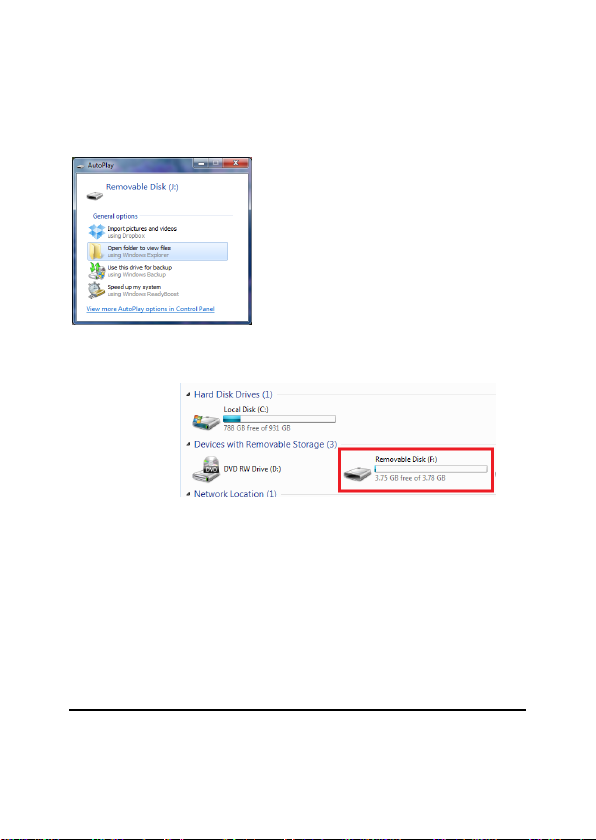

RETRIEVE THE FILES TO YOUR PC
1. Plug the device into your PC using the USB
cable
2. Power on the device using the remote and
wait for your computer to recognize it
3. Locate “Removable Disk” inside the (My)
Computer folder
AutoPlay Removable Disk > Open
folder to view files
8 Version 2.3
Or… Go to Start > Computer > Removable Disk
4. Open the Removable Disk drive
5. Open the [folder name] folder
6. Double click the file you want to view
VLC Player is recommended for
watching videos
9 Version 2.3
TROUBLESHOOTING
THE DEVICE WON’T TURN ON
Charge the device for at least 4 hours before
the first use
Make sure the charging cable is securely
inserted into the device and into the power
source
THE DEVICE ISN’T CHARGING
Replace the battery or charging cable
If you are charging via a wall power source,
you may need to charge via your PC. The AC
adapter might be bad
MY COMPUTER DOESN’T RECOGNIZE THE DEVICE
Unplug the device from your PC and reboot
the device
Unplug the device from your PC and reboot
your PC
Try using a different USB slot on your PC
Replace the USB cable
10 Version 2.3
OTHER PROBLEMS
Call our technical support at 770–694–6923
