MinimumRC T-28 Trojan Manuale utente

T-28 Trojan

Assembly Instructions

All manuals and user guides at all-guides.com

all-guides.com

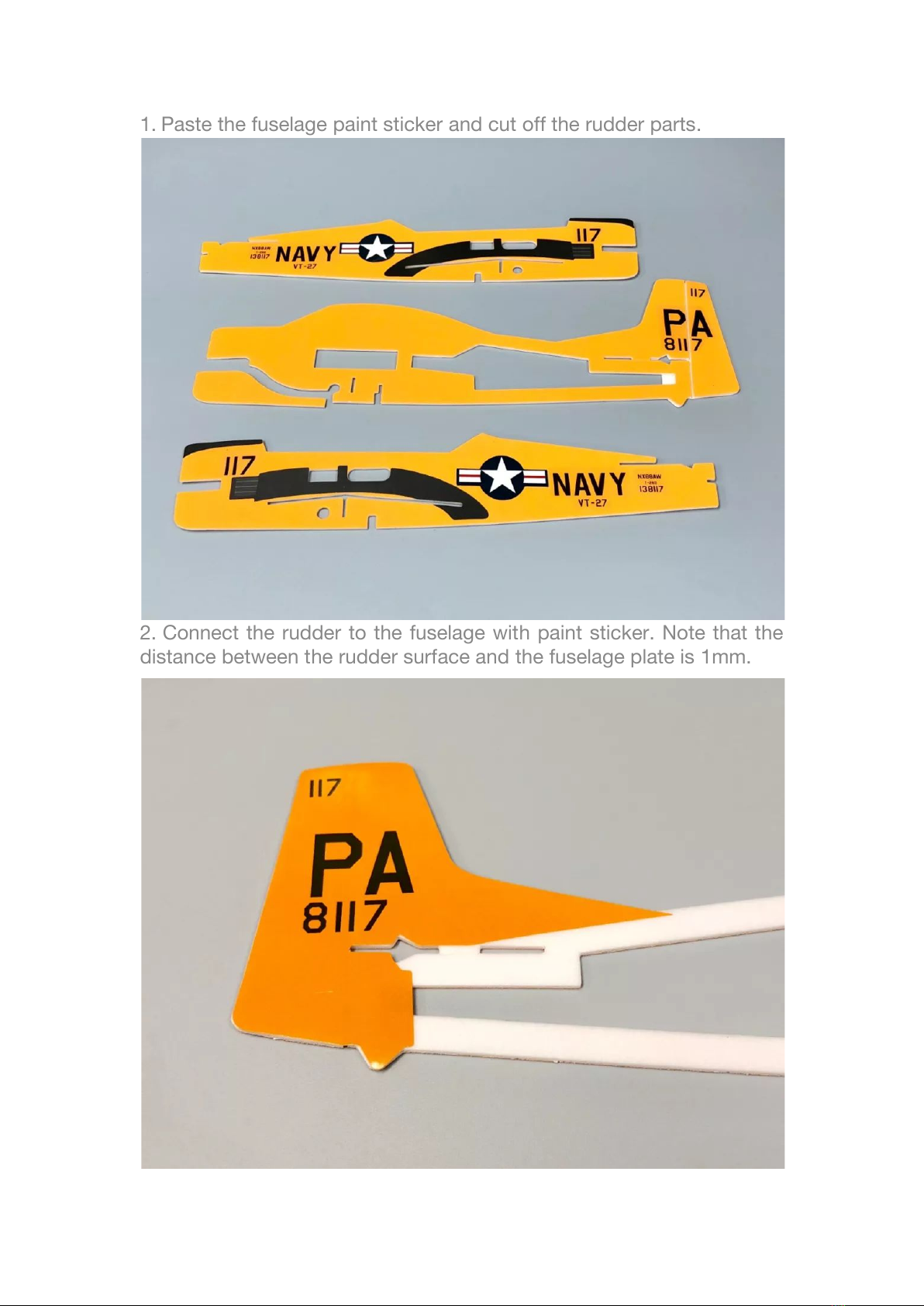

1. Paste the fuselage paint sticker and cut off the rudder parts.

2. Connect the rudder to the fuselage with paint sticker. Note that the

distance between the rudder surface and the fuselage plate is 1mm.

All manuals and user guides at all-guides.com

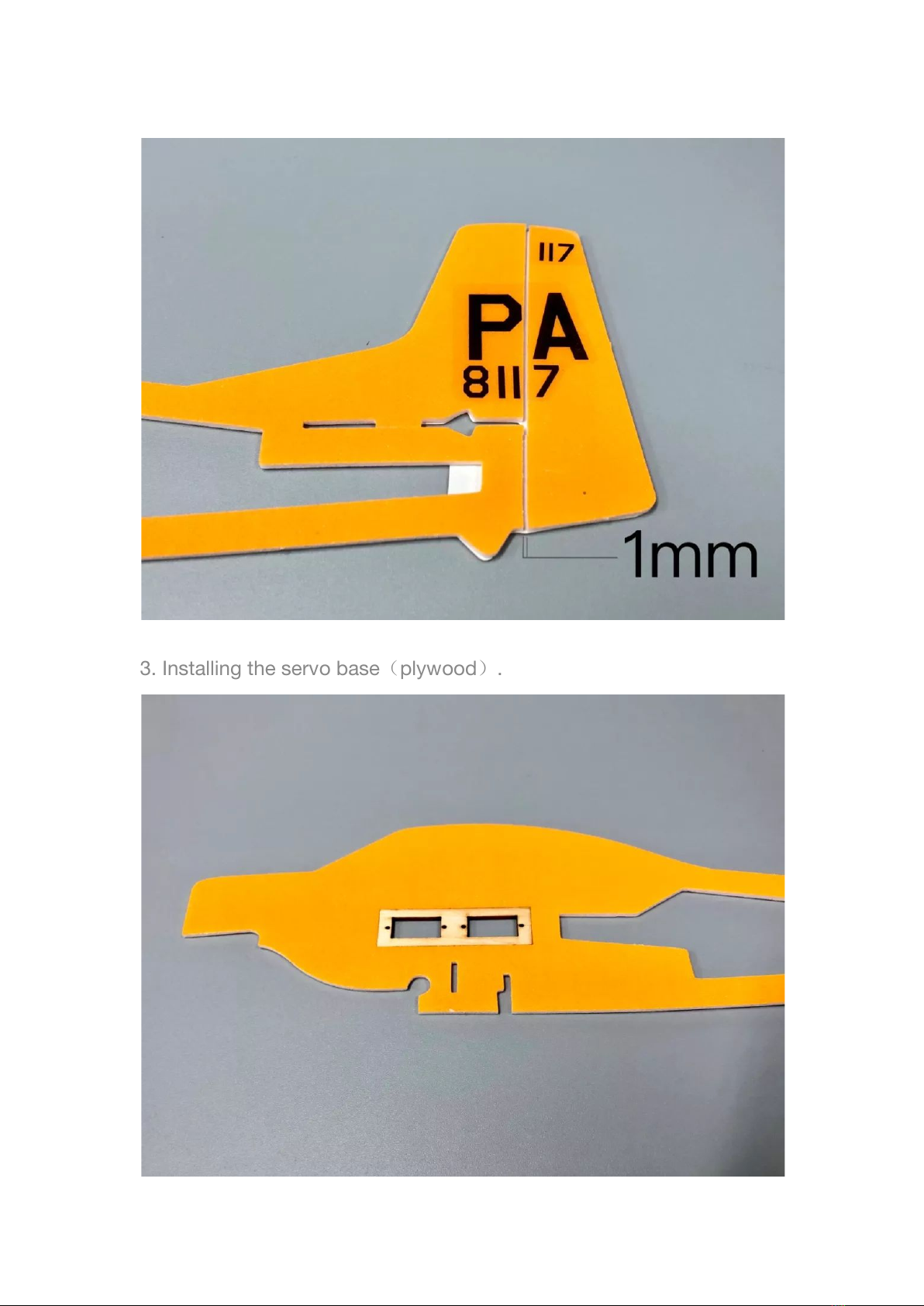

3. Installing the servo base（plywood）.

All manuals and user guides at all-guides.com

4. Paste fuselage coated stickers and assemble fuselage panels.

5. After assembling the fuselage panels, paste the hatch cover stickers.

All manuals and user guides at all-guides.com

6. Coating paper coated motor.

7. Install the motor and paste the front landing gear steel wire

according to the carved position.

All manuals and user guides at all-guides.com

8. After the motor wire passes through the hole in the middle of the

fuselage, the bottom of the fuselage is filled.

9. Fixed main landing gear steel wire and base with screw.

All manuals and user guides at all-guides.com

all-guides.com

10. Installation of main landing gear base.

11. Installation of wing support.

All manuals and user guides at all-guides.com

12. Cut off the elevator and connect with the hinge patch.

(the patch is better fixed with glue).

Note that there is a 1 mm gap between the rudder and the tail plate.

13. Install the horizontal tail fin, the elevator needs to move freely.

All manuals and user guides at all-guides.com

14. Bend the wing along the notch.

14.Installation of the wing.

All manuals and user guides at all-guides.com

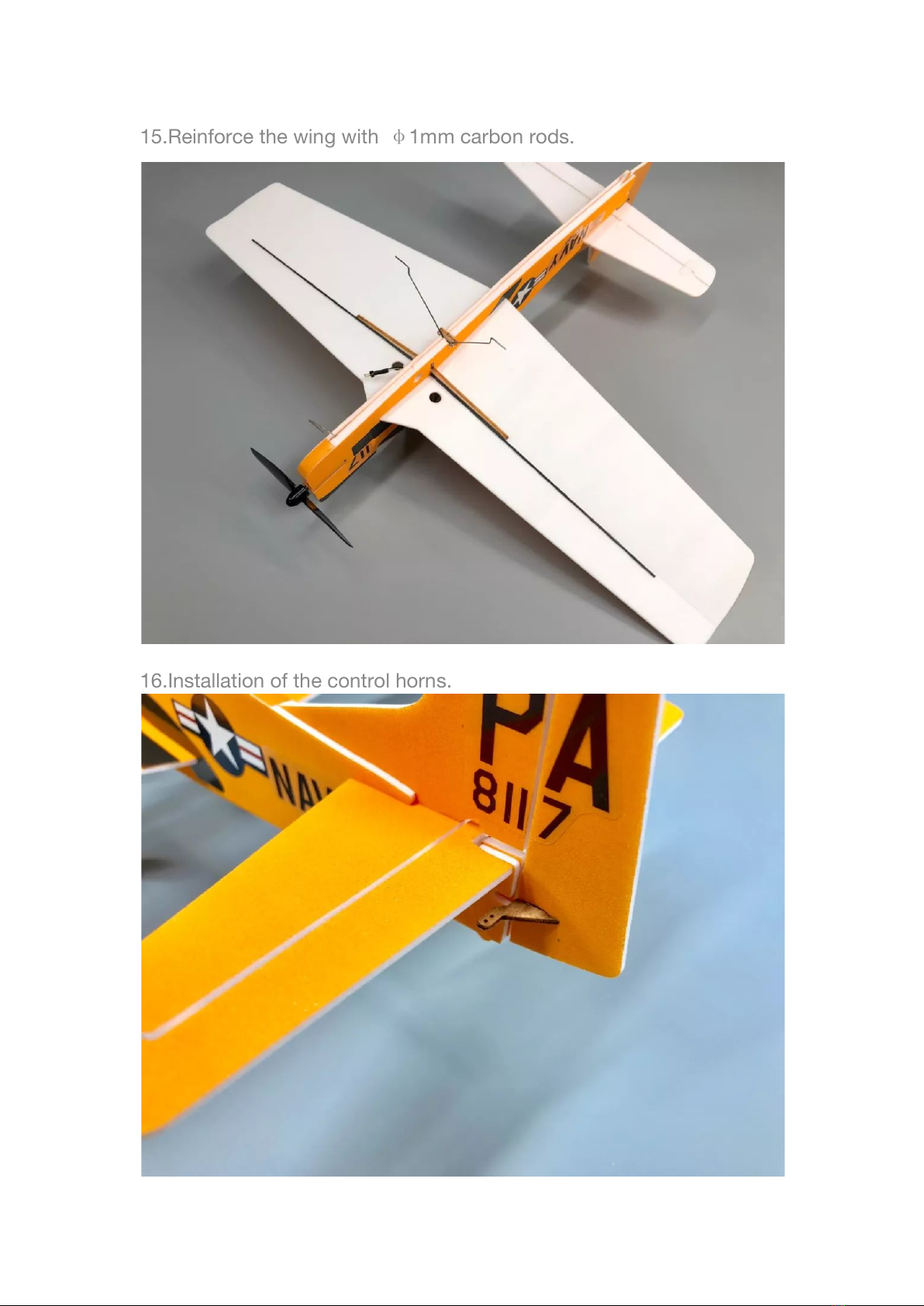

15.Reinforce the wing with φ1mm carbon rods.

16.Installation of the control horns.

All manuals and user guides at all-guides.com
