MINOURA T-817 Manuale utente

The T-817 is supplied ready to use with just the gauge bolts and plate to fit. Please assemble

these parts as per diagrams A and B. Extend the main gauge (which holds the wheel) to the

upright position and lock into place as per diagrams B and C.

The stand is now ready for use.

T-817 Wheel Truing Stand Instruction Manual

Please read this instruction manual carefully before use.

Thank you for purchasing the Minoura T-817 Truing Stand.

The T-817 is an economic truing stand, ideal for truing wheels

and it neatly folds together when not in use.

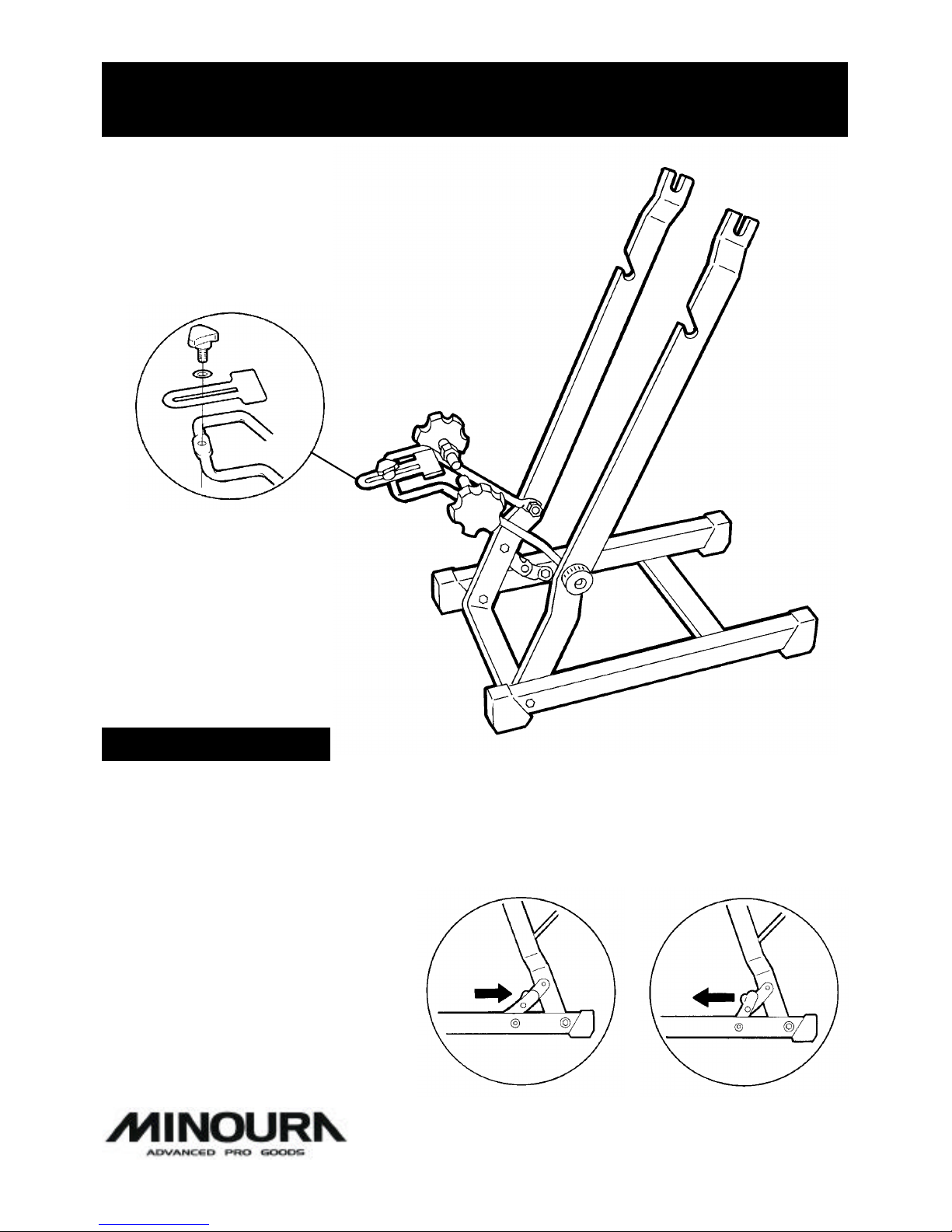

Assembling the T-817

Diagram A

Diagram B

Diagram C Diagram D

MINOURA CO., LTD.

1197-1 Godo, Anpachi, Gifu 503-2305 Japan / Email : [email protected]

MADE IN JAPAN

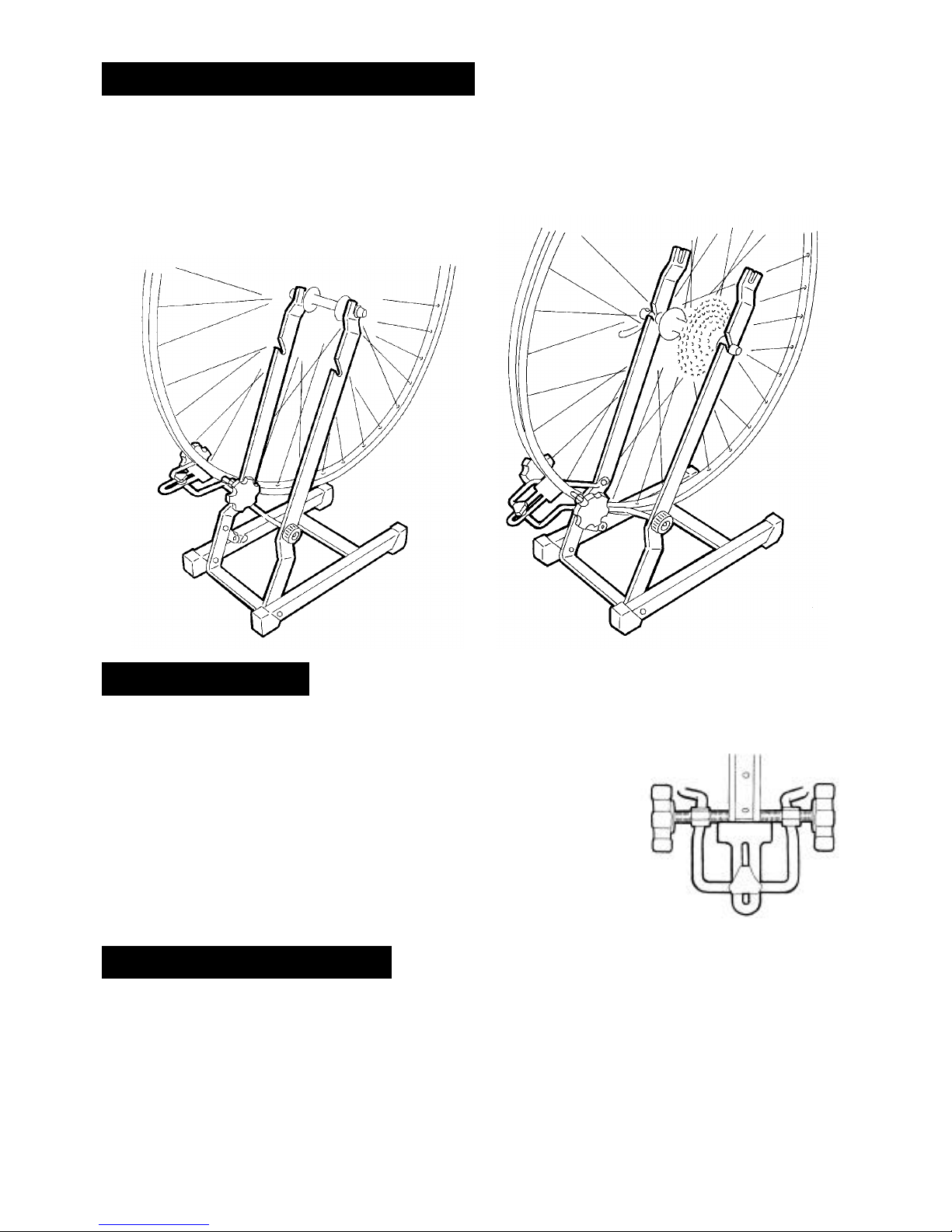

Fitting the wheel into the main gauge

Front wheel - Please fit the front wheel into the main gauge as per diagram E.

Rear wheel - Please fit the rear wheel into the main gauge as per diagram F.

Fasten the wheel into place using the quick release skewer fitted to the wheel, ensuring that it is

not over-tightened.

Front wheel

Diagram E Rear wheel

Diagram F

Truing the wheel

Position the vertical gauge plate between 1 - 3 mm away from the top of the rim and spin the

wheel (see diagram G). This will detect any flat spots in the wheel

which can then be removed.

Once any flat spots have been removed, position the two horizontal

gauge bolts between 1 - 3 mm away from each side of the rim and

spin the wheel (see diagram G). This will detect any buckles in the

wheel which can then be removed.

Diagram G

Folding the stand for storage

Once you have finished using the T-817 truing stand it will fold down for easy storage.

Unlock the main gauge as per diagram D and fold flat. The gauge stay will fold down against the

stand for easy storage. Removal of the gauge plate and bolts is optional.

Note : If you have any doubts over the condition of your bicycle’s wheels, please seek advice

from your local specialist shop.
