Minox MobiDV Manuale utente

Mobi DV

Instruction manual

2

Table of Contents

Chapter 1: Caution, Safety, and Introduction 3

Chapter 2: Machine 4

2-1 List of Accessories 4

2-2 Instruction of Operation 6

Chapter 3: Product 10

3-1 Brief Introduction of Product 10

3-2 Description 11

3-3 Functions 13

Chapter 4: Function Mode 16

4-1 Mode 16

4-2 Digital Video Camcorder 18

4-3 Digital Camera 24

4-4 Music Player 30

4-5 Video Recorder 33

4-6 Play Mode 35

4-7 Function Setup 38

4-8 Spotlight 41

Chapter 5: Connected to the Computer 42

Appendix 1: Product Specific 43

Appendix 2: Notes & Tips 45

3

Chapter 1: Caution, Safety, and Introduction

Correct Usage

Please operate the unit in strict accordance with this

manual.

Storage Guidelines

This product is not waterproof. It should not be stored

anywhere that the temperature rises above 60(100).

Breakage

Despite the rigid construction of this product, it should be

handled with due care and attention. It may suffer

damage if dropped.

Maintenance and Repair

Please consult a qualified technician if this product

requires any repairs.

Connecting to Other Devices

When connecting this equipment to another device such

as PC or Notebook, please read the manual first and make

sure you fully understand the operating procedures. Please

do not connect this unit to an incompatible product; the

manufacturer will not be responsible for damage to the

unit or to any other device as a result of improper

connection.

4

Chapter 2: Machine

2-1Package Contents

A. DV Camcorder

B. Battery (3.7 volts, rechargeable Li-ion Battery)

C.USB connectioncable

5

D.A/V cable

E. Earphone

F. AC Adapter

G. Driver CD

H. User’s manual

6

2-2 Operation guides

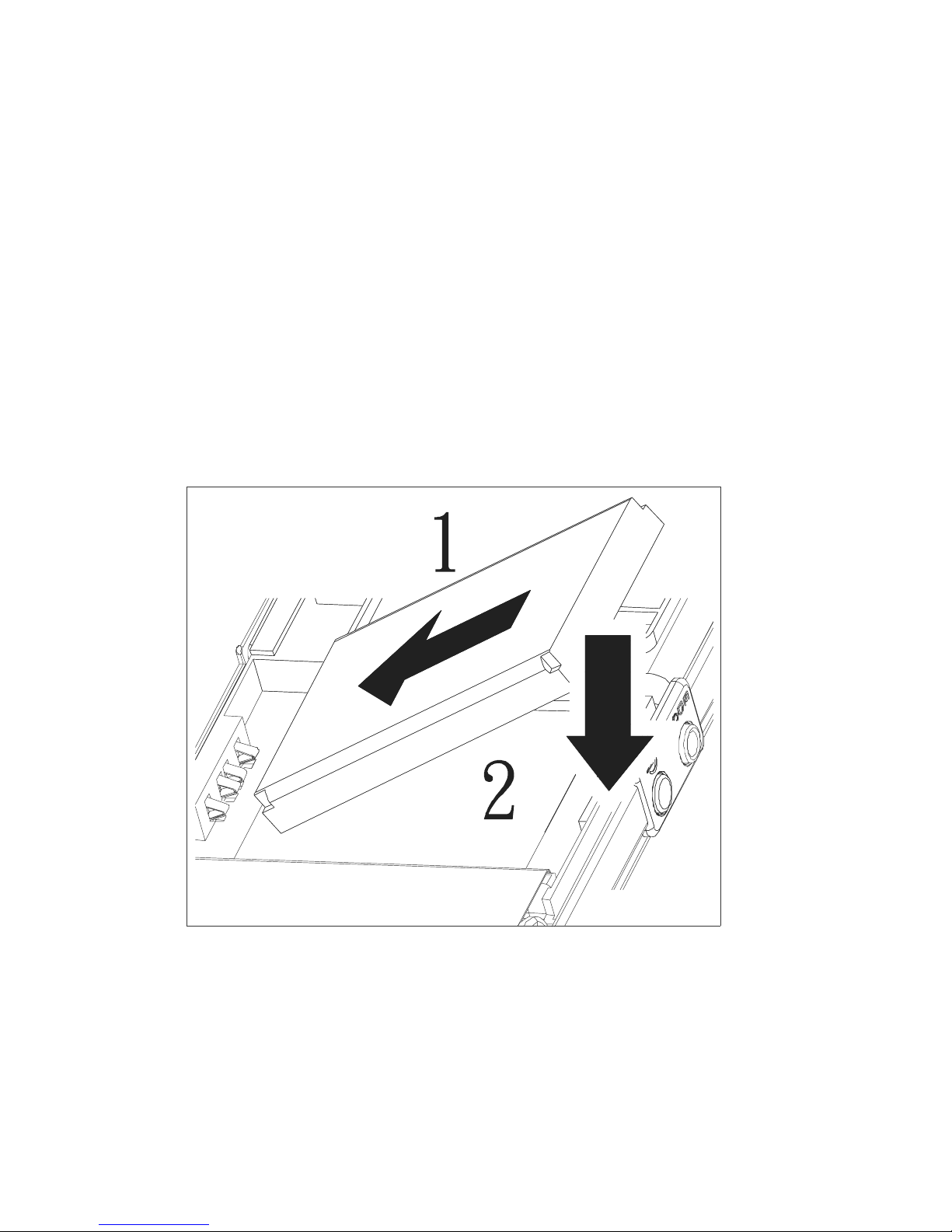

Battery Installation / Removal

The battery release button is located at the upper

side of the unit. Press the button and open the cover to

install the battery. The metal contact end of the

battery should face left, slide the battery into the bay

with 45°slant angle, then push the entire battery into

bay. When the battery is in the proper position, replace

the cover.

7

Recharging the Battery

Charging by AC-Adapter

Plug the AC end of the adaptor into the socket and

plug the USB end of the adaptor into the USB port of the

unit. The red backlight will turn on when the battery is

being charged; itwill turn off when the unit is fully

charged.

Charging by PC / Notebook

The battery can be charged by connecting the unit

to aPCoraNotebook via the USB cable. Connect the

thick end of the cable to the USB port of the computer

and the thin end to the USB port of the unit. The red

backlight will turn on when the battery is being

charged; it will turn off when the unit is fully charged..

8

Installing The Memory Card

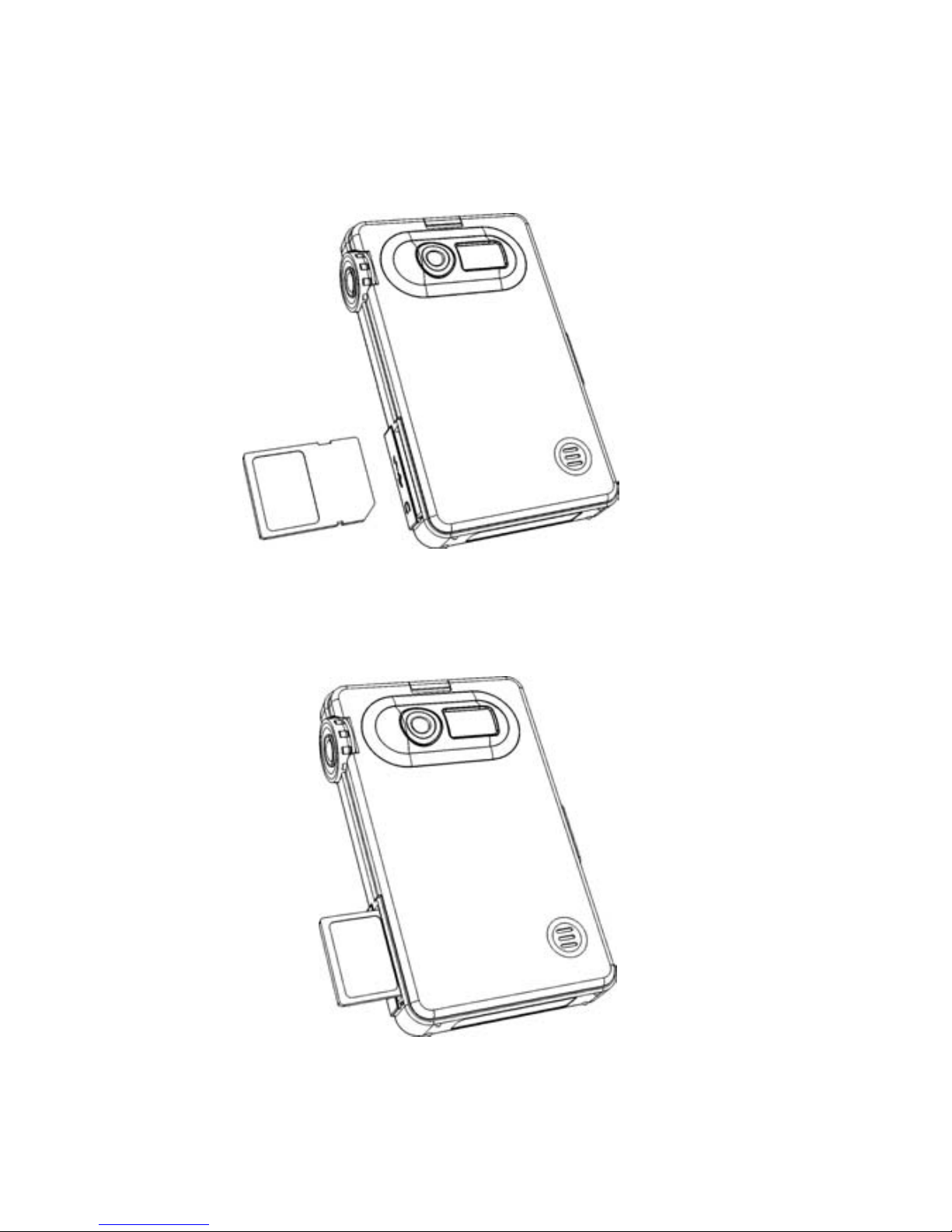

Insert the SD/MMC card according to the diagram below.

To remove the memory card, push the card firmly into the

slot, then release. The card will be ejected from the slot.

9

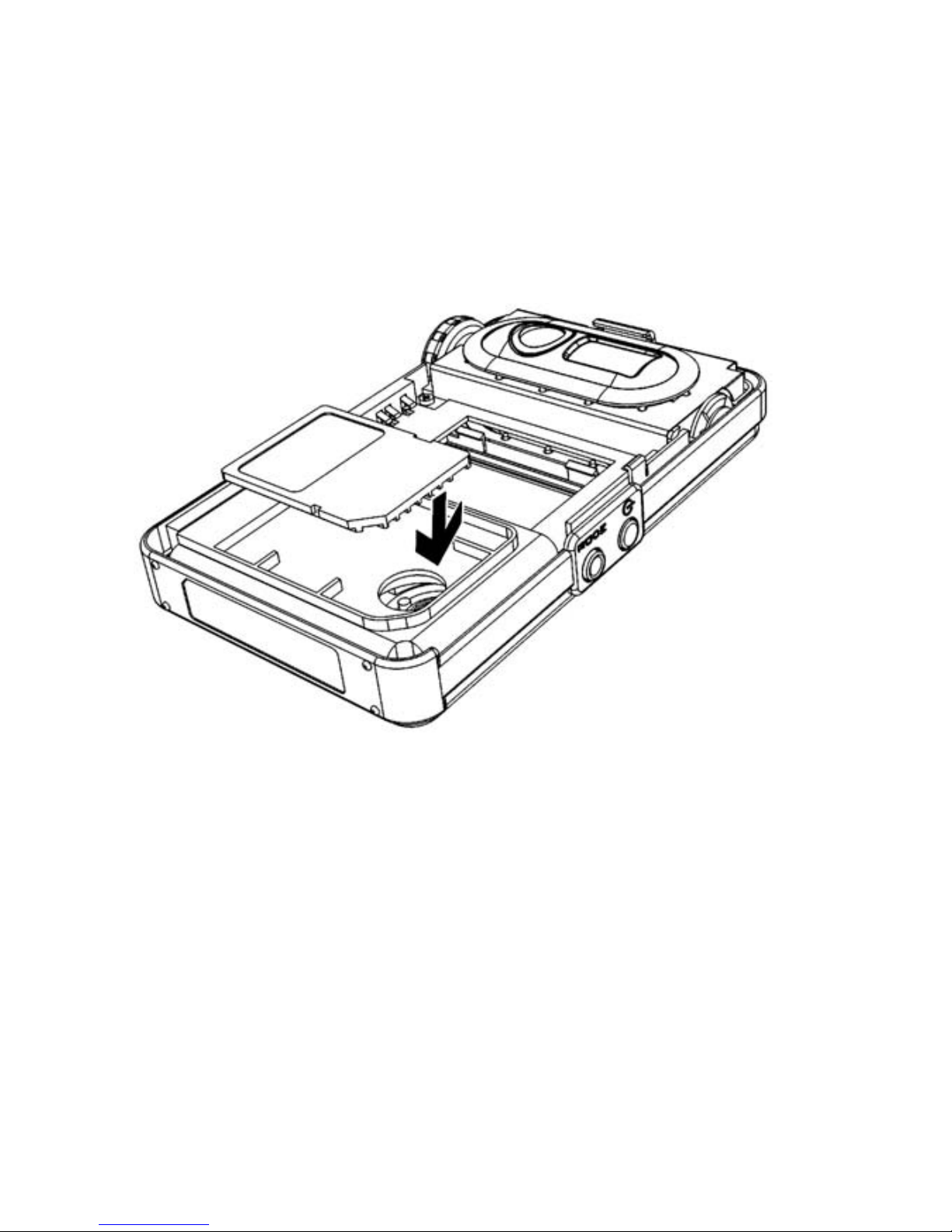

Storage for Spare Memory Card

In addition to the memory card installed in the SD slot, a

spare card can be stored in the unit underneath the

battery compartment as shown in the figure below. Due

to the limited space, only a thin card (such as a MMC

card) can be stored.

10

Chapter 3: Product

3-1 Brief Introduction of Product

No.

Description

No.

Description

1Power 13 Shutter key

2Mode 14Microphone

3Up15Release button

4Left 16 Spotlight

5Enter 17 Shutter key

6Down 18 Power

7Right 19Mode

8Menu 20 USB connector

9Display (LCD on/off) 21 Earphone Jack

10 Memory card slot 22 Speaker

11 LCD Screen 23 Memory card slot

12 Lens
