Miranda DV-Bridge+ Manuale di istruzioni

GUIDE TO INSTALLATION AND OPERATION

| DV Bridge+

Safety Compliance Information

This equipment complies with:

-CSA C22.2 No. 60950-1-03 / Safety of Information Technology Equipment,

Including Electrical Business Equipment.

-UL 60950-1 (1st Edition) / Safety of Information Technology Equipment,

Including Electrical Business Equipment.

-IEC 60950-1 (1st Edition) / Safety of Information Technology Equipment,

Including Electrical Business Equipment.

CAUTION

These servicing instructions are for use by qualified service personnel only. To

reduce the risk of electric shock, do not

perform any servicing other than that contained in the operating instructions

unless you are qualified to do so. Refer all

servicing to qualified service personnel.

Electromagnetic Compatibility

-This equipment has been tested for verification of compliance with FCC Part

15, Subpart B, class A requirements for Digital Devices.

-This equipment complies with the requirements of:

EN 55022 Class A, Electromagnetic Emissions,

EN 61000-3-2 & -3-3, Disturbance in Supply Systems

EN 61000-4-2, -3, -4, -5, -6, -8 & -11 Electromagnetic Immunity

EN 55024 Electromagnetic Immunity

CONTACT MIRANDA

For technical assistance, please contact

the Miranda Technical Support centre

nearest you:

Americas

Telephone:

+1-800-224-7882

e-mail:

tec[email protected]

Asia

Telephone:

+81-3-5730-2987

e-mail:

[email protected]

Europe, Middle East, Africa, UK

Telephone:

+44 (0) 1491 820222

e-mail:

[email protected]

France (only)

Telephone:

+33 (0) 1 55 86 87 88

e-mail:

francetech@miranda.com

Visit our web site at www.miranda.com

GUIDE TO INSTALLATION AND OPERATION

DV Bridge + | iii

Contents

page

1 DV-Bridge+ DV To/From Digital Audio-Video Codec ...............1

1.1 Introduction ..............................................................................1

1.2 Features...................................................................................2

2Installation................................................................................3

2.1 Connections.............................................................................3

2.2 Application Examples...............................................................4

3 Operation .................................................................................7

3.1 Front PanelUser Interface........................................................7

3.2 DIP Switches on Bottom Panel... .............................................8

3.3 Device Control........................................................................11

4 Troubleshooting .....................................................................13

5Specifications........................................................................14

GUIDE TO INSTALLATION AND OPERATION

| DV Bridge+

GUIDE TO INSTALLATION AND OPERATION

DV Bridge + | 1

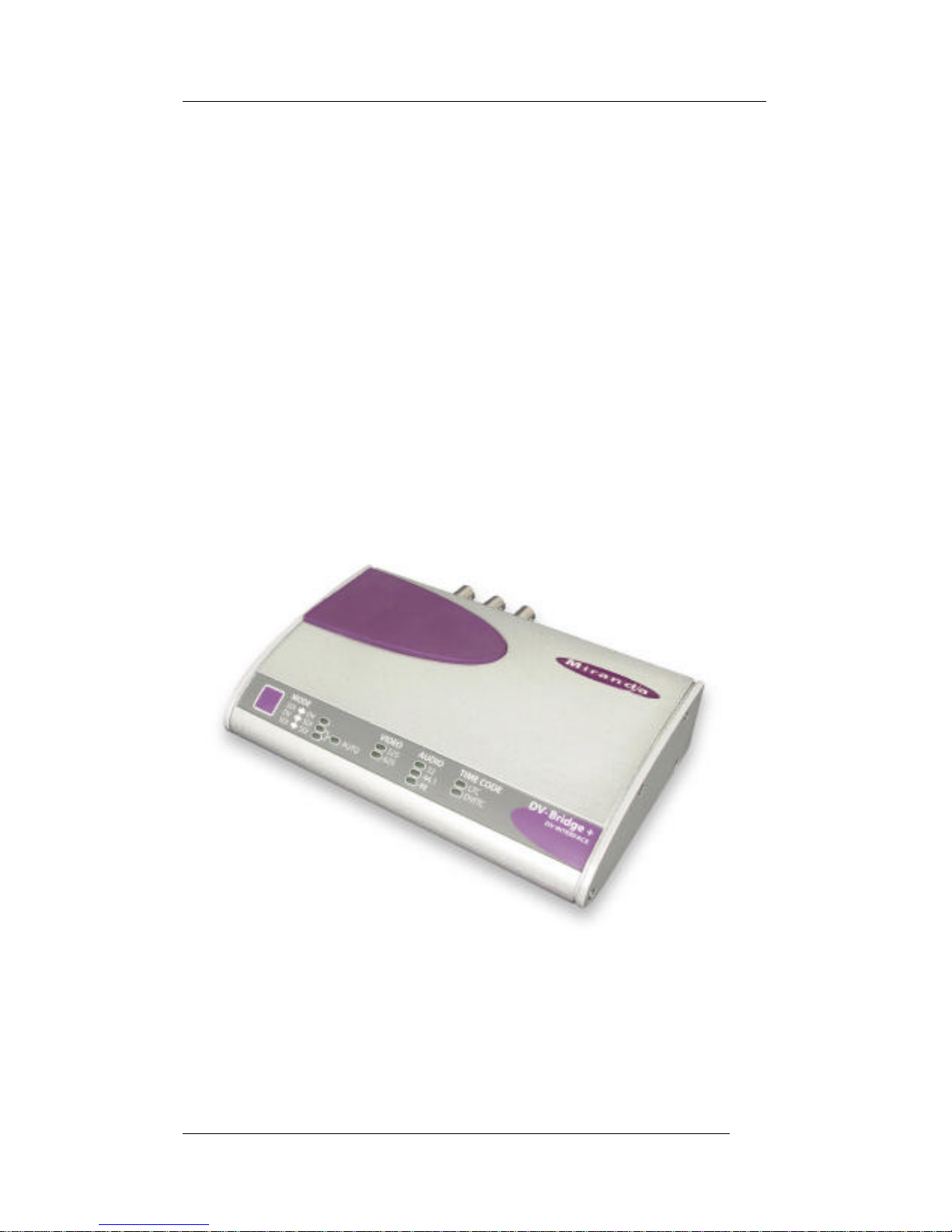

1 DV-Bridge+ DV To/From Digital Audio-Video Codec

1.1 Introduction

DV-Bridge+ is a compact, desktop unit designed to convert 4:2:2 (ITU-

601) video and AES-3id audio to and from DV compressed audio/ video.

The DV-Bridge+ is ideal for interfacing consumer or professional miniDV

camcorders, VTRs, and editing or graphics systems equipped with the

IEEE-1394 (FireWire, i.LINK) interface to professional uncompressed

(4:2:2 and AES-3id) video and audio equipment. DV-Bridge+ acts as

either a DV encoder or decoder. When operating in encode mode, DV-

Bridge+ encodes material originating in 4:2:2 and AES-3id to the DV

format and outputs DV on the IEEE-1394 interface. As a decoder, DV-

Bridge+ decodes material arriving on the same IEEE-1394 interface and

converts it to 4:2:2 and AES-3id. Convenient NTSC/PAL, S-Video and

line-level analog audio outputs allow simple monitoring or dubbing of the

DV signal. DV-Bridge+ is ideal for a number of recording, dubbing and

monitoring applications in a mixed DV/4:2:2 and AES-3id environment.

DV-Bridge+ also provides time code support (LTC, DVITC) and remote-

control capabilities through the IEEE-1394 ports and through a RS-422

serial port. The DV-Bridge+ features a simple user interface, using a

single button to control its functions and bi-color monitoring LEDs. Some

parameters are set using DIP switches on the bottom of the unit. Input

and output connectors are in the back, as is the power switch. The DV-

Bridge+ features a universal power supply, eliminating the need for a

GUIDE TO INSTALLATION AND OPERATION

| DV Bridge+

separate power converter. A built-in anti-slip camera rest allows a DV

camera to sit conveniently in view to monitor its operation.

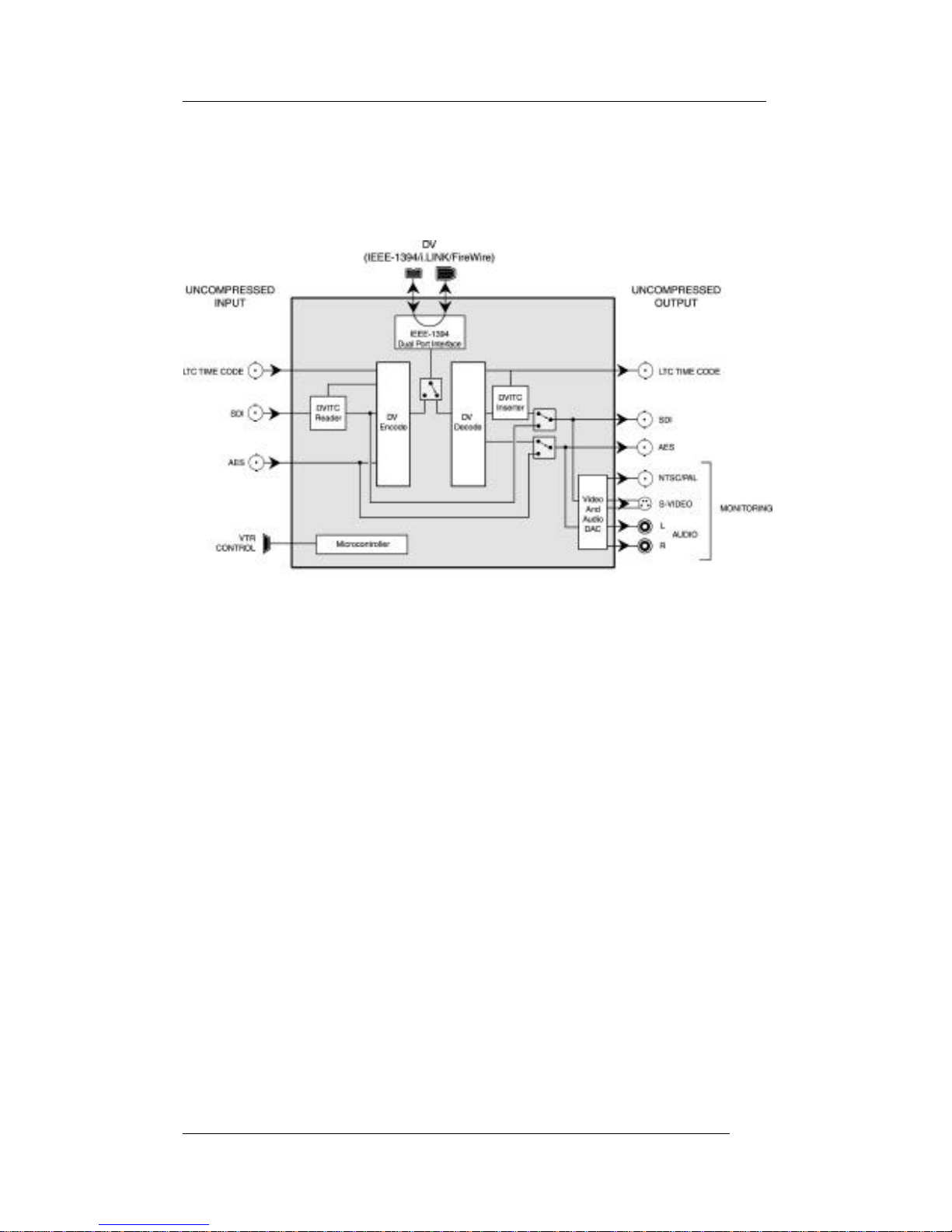

Figure 1 Functional Block Diagram

1.2 Features

-Bi-directional DV to SDI/AES converter

-Designed for DV devices equipped with IEEE-1394 interface (a.k.a.

i.LINK, Firewire)

-Encodes 4:2:2 video and AES-3id audio to DV stream

-Decodes DV stream to 4:2:2 (SDI) video and AES-3id audio

-Dual IEEE-1394 ports

-AES-3id audio input and output for interconnection with professional

audio equipment

-Convenient NTSC/PAL, S-Video and analog audio outputs for

monitoring and dubbing

-Automatic detection of 525/625 line/scan formats

-Support of 32, 44.1 and 48 kHz audio sample rates

-Fully compatible with existing software and hardware for DV/i.Link

processing

-Compact package suitable for desktop

-Built-in, universal power supply

-LTC and DVITC time code support in input and output with

OSD (On-Screen Display) capability

-Remote-control using IEEE-1394 (e.g. a DV VTR) or through the

RS-422 serial port (compatible with basic commands of the Sony

BVW-75 protocol)

GUIDE TO INSTALLATION AND OPERATION

DV Bridge + | 3

2 Installation

2.1 Connections

Refer to figure 2.1 and to the following description when connecting the

DV-Bridge+.

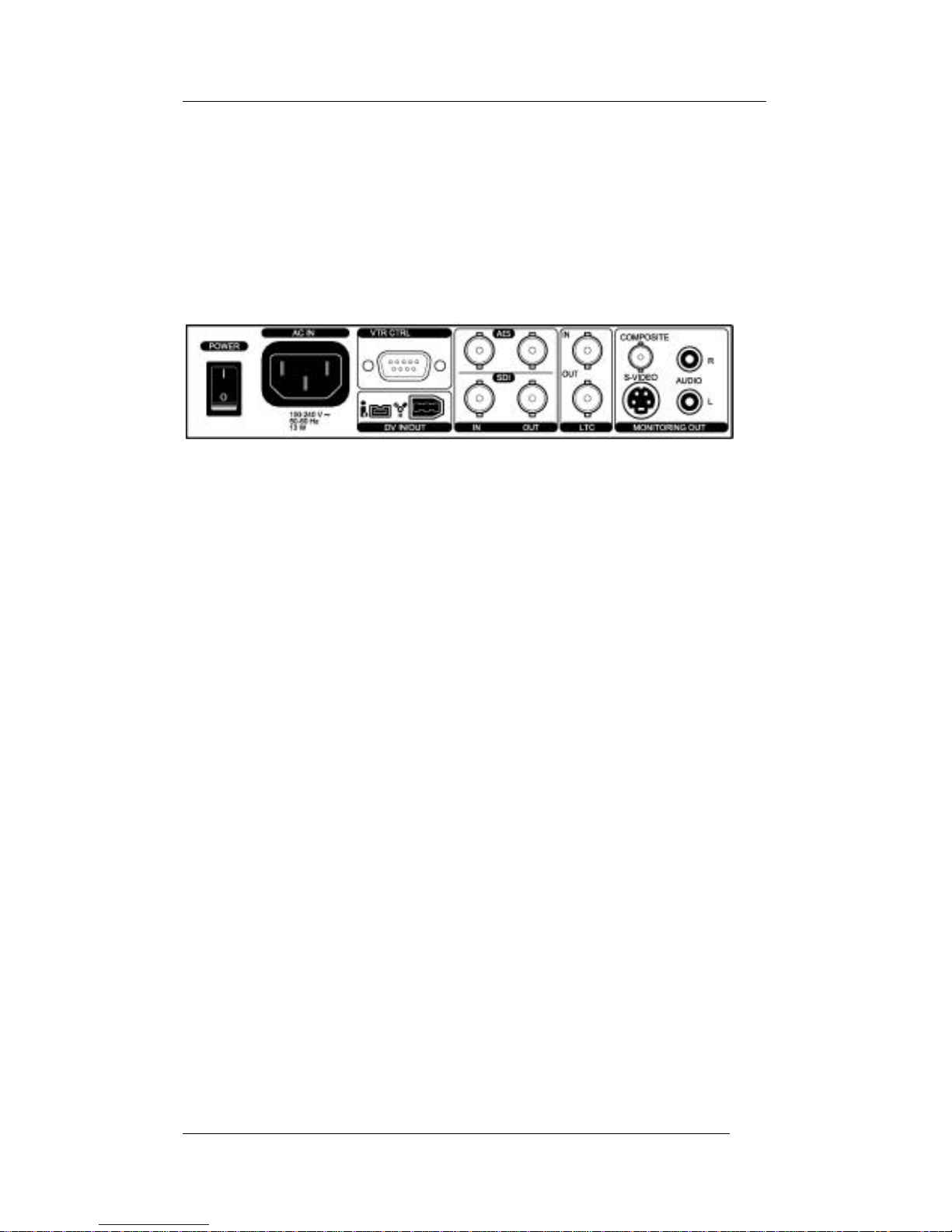

Figure 2.1 Rear view of the DV-Bridge+

1 DV In/Out

Connect a DV source to one of the DV connectors at the rear of the DV-

Bridge+ for input and output. Source must comply with IEEE-1394

(i.Link) standard. The 4-pin and 6-pin connectors effectively provide

active loop-through when the unit is turned on.

2 SDI In/Out

Connect an SDI signal to the SDI input BNC connector (left-hand side)

labeled SDI. The DV-Bridge+ accepts 4:2:2 serial digital video signals

in either 525 or 625 line formats. The input signal must conform to the

SMPTE 259M standard. For DVITC timecode support, insert a timecode

conforming to SMPTE 12M in the input signal. Connect destination

equipment to the SDI output BNC connector (right-hand side). The

DVITC timecode in the output signal respects the same standard as the

one in the input signal.

3 AES In/Out

Connect an unbalanced AES signal to the AES input BNC connector

labeled AES. The DV-Bridge+ supports 32, 44.1 and 48 kHz sample

rates. This signal must comply with the AES-3id-1995 (SMPTE 276M)

standard. Connect destination equipment to the AES output BNC

connector (right-hand side).

4 LTC In/Out

Connect an LTC signal to the LTC input BNC connector labeled LTC

(upper one). The DV-Bridge+ accepts LTC signals for 525 or 625 line

formats. This signal must comply with the SMPTE 12M standard.

Connect destination equipment to the LTC output BNC connector (lower

one).

GUIDE TO INSTALLATION AND OPERATION

| DV Bridge+

5 Monitoring Output

Connect analog destination equipment to the connectors at the rear of

the DV-Bridge+. Use the BNC labeled Composite or the mini-Din

labeled S-Video for video output; use the two RCA labeled R and L for

audio output.

6 AC In

Connect the supplied AC power cord into AC inlet. Both 120 VAC and

220 VAC standards are supported by the DV-Bridge+ built-in power

supply.

2.2 Application Examples

The following figures show typical set-ups for using the DV-Bridge+.

Editing video and audio where the editing workstation operates in either

DV or 4:2:2 while the video source/destination is in the other is

illustrated in figures 2.2 and 2.3. Transferring video and audio from one

format to the other is illustrated in figures 2.4 and 2.5. Dubbing from a

DV source to a consumer VTR is shown in figure 2.6, while figure 2.7

shows how to monitor a DV-to-DV dubbing session.

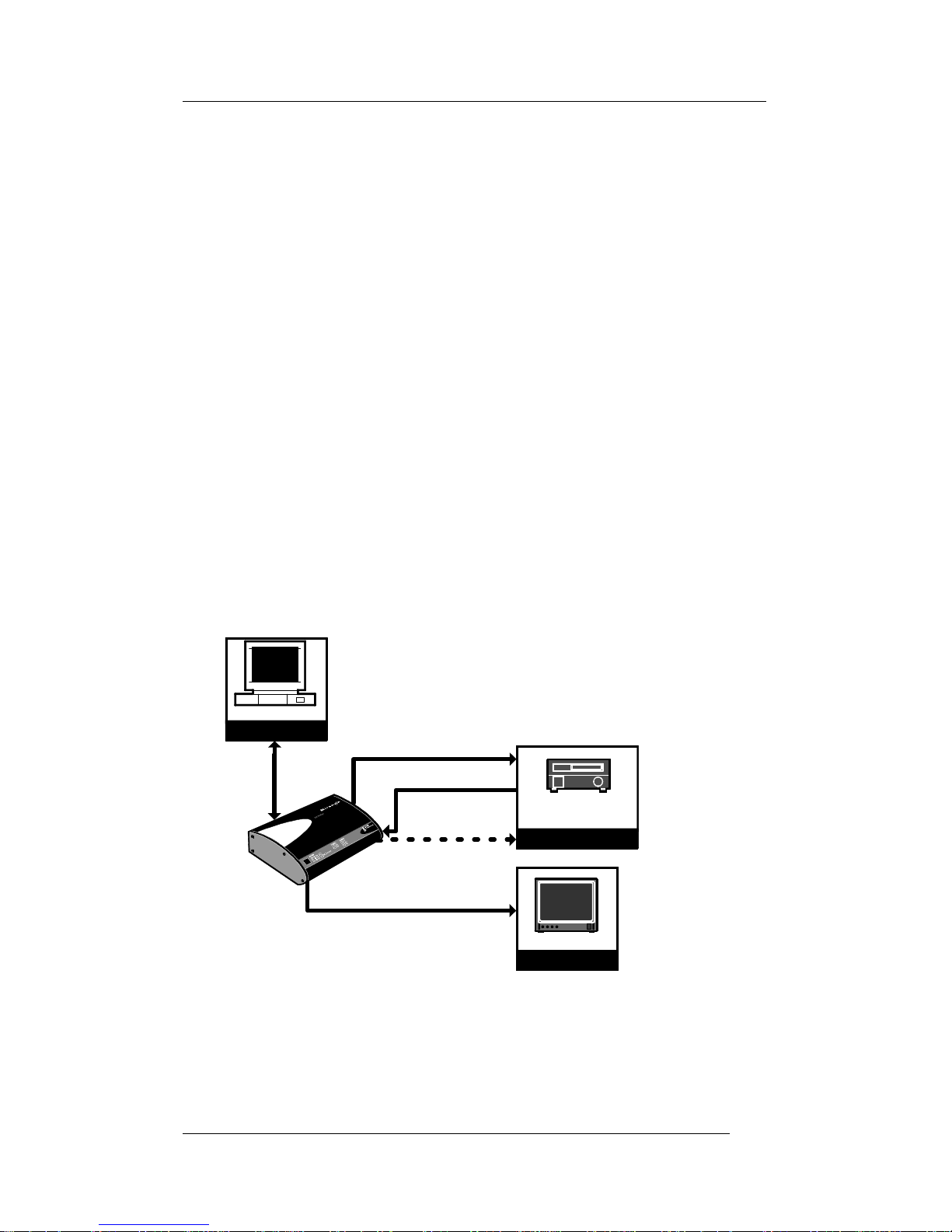

Figure 2.2 Editing with a DV Workstation and a 4:2:2 VTR

The RS-422 DIP switch is set to Controlling. IEEE-1394 device control

from the workstation is transferred to the VTR via RS-422 Sony

protocol.

DV/CONTROL

Analog Monitor

Studio VTR or Other

4:2:2 + AES Destination

4:2:2+AES+LTC

NTSC/PAL

& Audio

Monitoring

Destination

RS-422 SERIAL PORT

DV Editing System

Source

GUIDE TO INSTALLATION AND OPERATION

DV Bridge + | 5

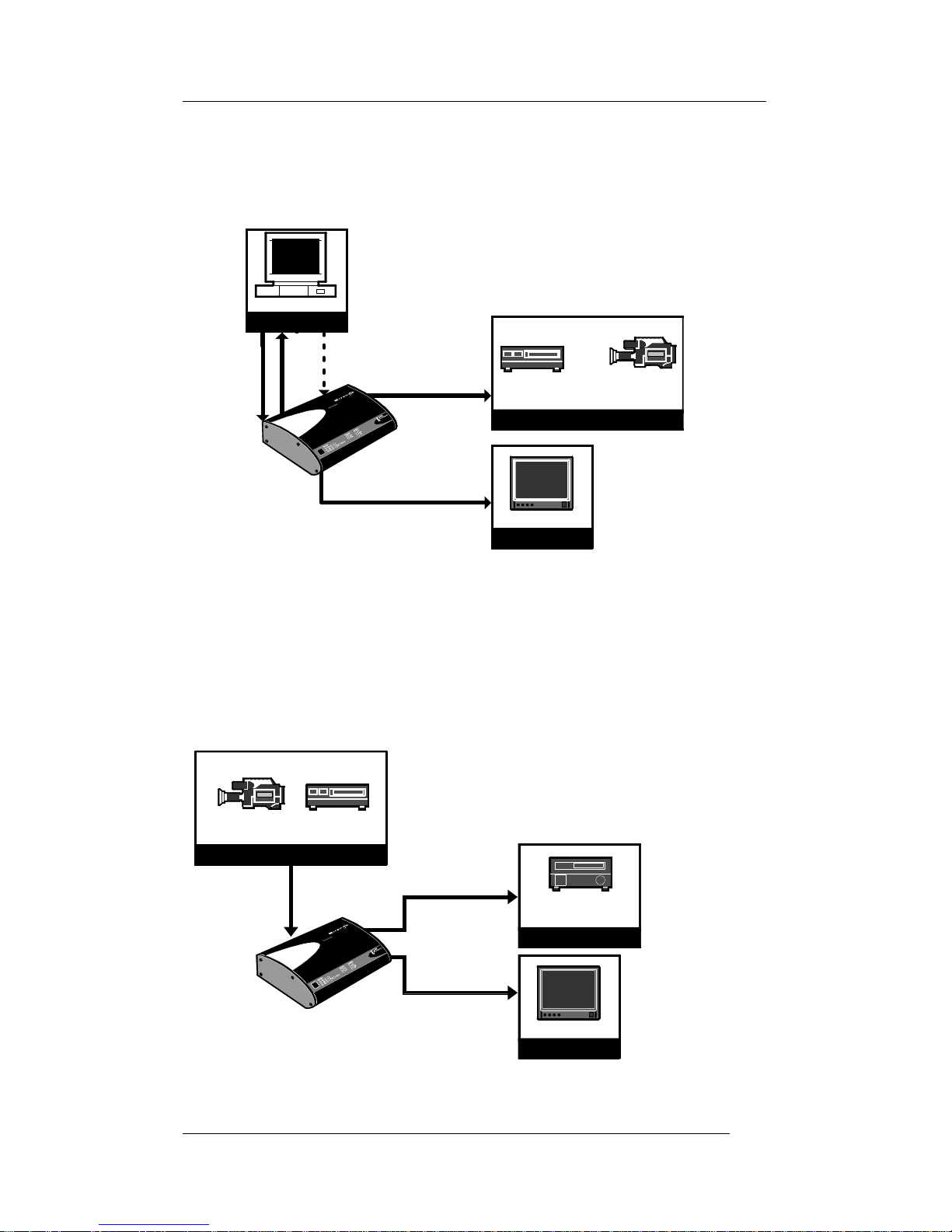

Figure 2.3 Editing with a 4:2:2 Workstation and a DV VTR

The RS-422 DIP switch is set to Tributary. RS-422 device control from

the workstation is transferred to the VTR via the IEEE-1394

NOTE : With Tributary option selected you must only connect one DV

device to the DV-Bridge+; the second IEEE-1394 port must remain

empty.

Figure 2.4 Transferring from DV to SDI+AES+LTC

Analog Monitor

4:2:2+AES+

LTC

NTSC/PAL

& Audio

Monitoring

4:2:2 Editing System

RS-422 SERIAL

PORT

Source

Destination

DV VTR DV Camcorder

DV/CONTROL

Analog Monitor

Studio VTR or Other

4:2:2 + AES Destination

4:2:2+AES+LTC

NTSC/PAL

& Audio

Monitoring

Destination

DV Camcorder

Source

DV VTR

GUIDE TO INSTALLATION AND OPERATION

| DV Bridge+

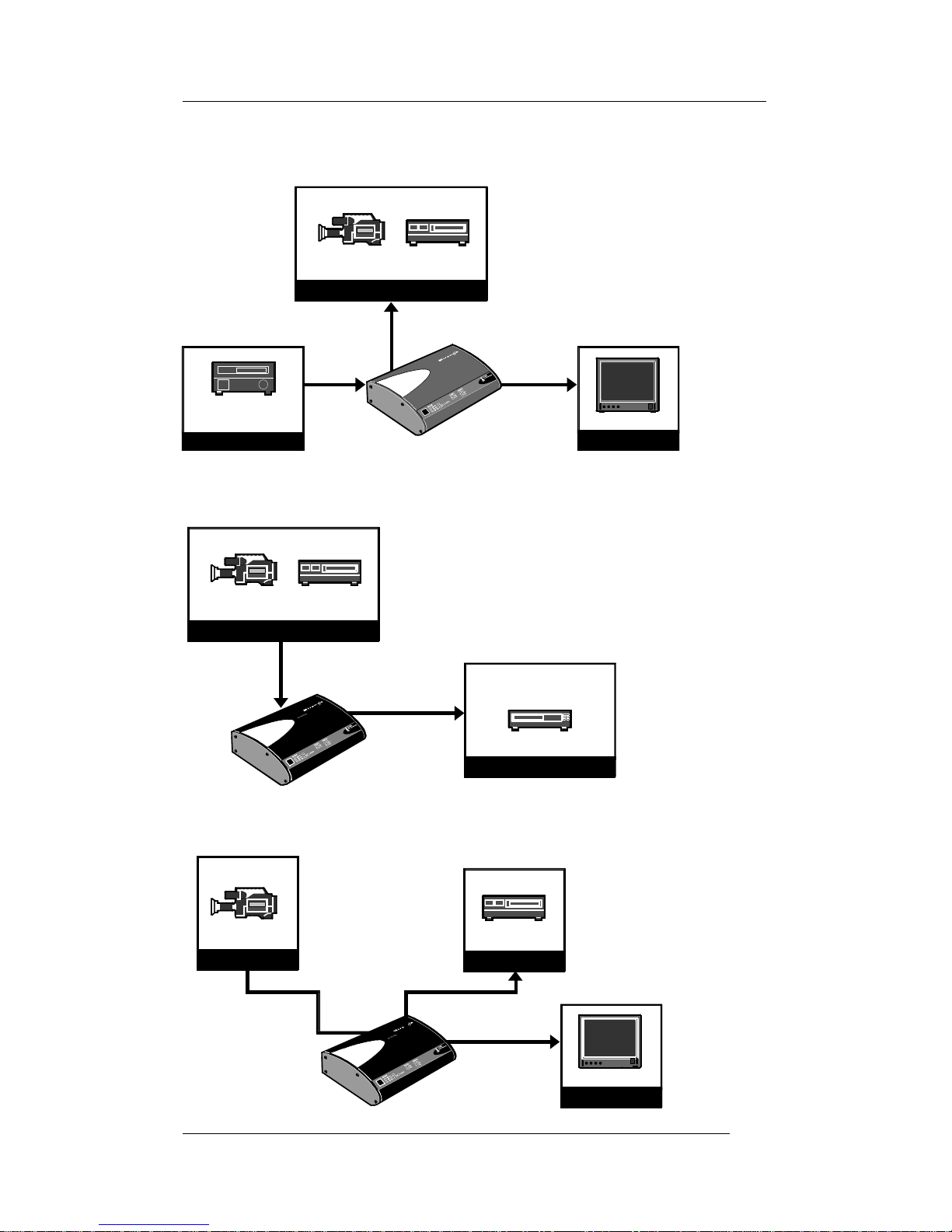

Figure 2.5 Transferring from SDI+AES+LTC to DV

Figure 2.6 Dubbing from DV to Consumer VCR (VHS or S-VHS)

Figure 2.7 Monitoring a DV to DV transfer

4:2:2

+ AES

Analog Monitor

NTSC/PAL

& Audio

MonitoringSource

Studio VTR or Other

4:2:2 + AES Destination

DV Camcorder

Destination

DV VTR

+ LTC

Analog Monitor

DV Camcorder

DV VTR

NTSC/PAL

& Audio

Monitoring

Source

Destination

Consumer VCR or VHS/SVHS

DV Camcorder

NTSC/PAL/S-Video

& Audio

Source

DV VTR

Altri manuali per DV-Bridge+

Indice

Altri manuali Miranda Convertitore multimediale

Miranda

Miranda Kaleido-X (7RU) Manuale utente

Miranda

Miranda ASD-771p Manuale di istruzioni

Miranda

Miranda FIO-1901-RT Manuale di istruzioni

Miranda

Miranda DVC-800 Manuale di istruzioni

Miranda

Miranda XVP-3901 DENSITE series Manuale di istruzioni

Miranda

Miranda Kaleido-X (7RU) Manuale utente

Miranda

Miranda KMV-3901 Manuale utente

Miranda

Miranda picoLink Series Manuale di istruzioni

Miranda

Miranda ADC-191p Manuale di istruzioni

Miranda

Miranda picoLink Series Manuale di istruzioni

Miranda

Miranda Kaleido-Solo Manuale di istruzioni

Miranda

Miranda XVP-3901 DENSITE series Manuale di istruzioni

Miranda

Miranda ASD-231i Manuale del proprietario

Miranda

Miranda KS-900 Manuale di istruzioni

Miranda

Miranda DENSITE IRD-3101 Manuale di istruzioni

Miranda

Miranda ASD-211i/2D Manuale di istruzioni

Miranda

Miranda SDM-872p Manuale di istruzioni

Miranda

Miranda SDM-875p Manuale di istruzioni

Miranda

Miranda FIO-1901-TT Manuale di istruzioni

Miranda

Miranda ASD-111i Manuale di istruzioni

Miranda

Miranda DENSITE IRD-3802 Manuale di istruzioni

Miranda

Miranda picoLink Series Manuale di istruzioni

Miranda

Miranda ASD-711i Manuale di istruzioni

Miranda

Miranda picoLink FIO-991p Manuale di istruzioni

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
