Miranda HMP-1801 Manuale di istruzioni

DENSITÉ series

HMP-1801

High Definition Media Player

Guide to Installation and Operation

M864-9900-108

21 Mar 2012

Miranda

Technologies Inc.

3499 Douglas-B.-Floreani

St-Laurent, Québec, Canada H4S 1Y6

Tel. 514-333-1772

Fax. 514-333-9828

www.miranda.com

GUIDE TO INSTALLATION AND OPERATION

HMP-1801

Electromagnetic Compatibility

This equipment has been tested for verification of compliance with FCC Part 15, Subpart B

requirements for Class A digital devices.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

This equipment has been tested and found to comply with the requirements of the EMC directive

2004/108/CE:

•EN 55022 Class A radiated and conducted emissions

•EN 61000-3-2 Harmonic current injection

•EN 61000-3-3 Limitation of voltage changes, voltage fluctuations and flicker

•EN 61000-4-2 Electrostatic discharge immunity

•EN 61000-4-3 Radiated electromagnetic field immunity – radio frequencies

•EN 61000-4-4 Electrical fast transient immunity

•EN 61000-4-5 Surge immunity

•EN 61000-4-11 Voltage dips, short interruptions and voltage variations immunity

How to contact us:

For technical assistance, please contact the Miranda Technical support centre nearest you:

Americas

Telephone:

+1-800-224-7882

e-mail:

support@miranda.com

Asia

Telephone:

+852-2539-6987

e-mail:

asiatech@miranda.com

Europe, Middle East, Africa, UK

Telephone:

+44 118 952 3444

e-mail:

eurotech@miranda.com

China

Telephone:

+86-10-5873-1814

e-mail:

asiatech@miranda.com

France (only)

Telephone:

+33 (0) 1 55 86 87 88

e-mail:

eurotech@miranda.com

Visit our web site at www.miranda.com

GUIDE TO INSTALLATION AND OPERATION

HMP-1801

Table of Contents

1HMP-1801 High Definition Media Player................................................................................. 1

1.1 Introduction ......................................................................................................................................... 1

1.2 Features.............................................................................................................................................. 1

1.3 Block Diagram..................................................................................................................................... 2

1.4 Front Card-edge Interface................................................................................................................... 2

1.4.1 Compression Format.............................................................................................................. 3

1.4.2 Flash Memory ........................................................................................................................ 3

1.4.3 Web Interface......................................................................................................................... 4

1.5 Applications......................................................................................................................................... 4

1.5.1 Apology Clip or Full Screen Promo Playback........................................................................ 4

1.5.2 Animated Curtains into Up/Down/Cross ARC........................................................................ 4

1.5.3 Fill & Key................................................................................................................................ 5

1.5.4 Direct Capture........................................................................................................................ 5

1.5.5 Advanced Workflow Option.................................................................................................... 6

2Installation ...............................................................................................................................7

2.1 Installation of Rear Connector Panels ................................................................................................ 7

2.2 Card Installation .................................................................................................................................. 8

2.3 Installing Densité-2 Cards and Rear Modules in a Densité-3 Frame ................................................. 8

2.4 Rear Connector Panels..................................................................................................................... 10

2.4.1 Ethernet Port Configuration .................................................................................................10

2.4.2 GPI Connector ..................................................................................................................... 11

2.4.3 VDCP Connector.................................................................................................................. 12

3Operation ............................................................................................................................... 13

3.1 Control options.................................................................................................................................. 13

3.2 Card-Edge Status LED...................................................................................................................... 13

3.2.1 Playback Mode..................................................................................................................... 13

3.2.2 Record Mode........................................................................................................................ 14

3.3 Local control using the Densité frame control panel......................................................................... 14

3.3.1 Overview ..............................................................................................................................14

3.3.2 Menu for local control...........................................................................................................15

3.4 Remote control using iControl........................................................................................................... 15

3.4.1 The iControl graphic interface window................................................................................. 15

3.4.2 The Status panel.................................................................................................................. 18

3.4.3 The Setting panel................................................................................................................. 19

3.4.4 The Playback panel..............................................................................................................25

3.4.5 The Record panel................................................................................................................. 28

3.4.6 The Media Manager panel...................................................................................................29

3.4.7 The Reference panel............................................................................................................29

3.4.8 The Thumbnail panel ........................................................................................................... 31

3.4.9 The RALM panel..................................................................................................................31

3.4.10 The Factory / Presets panel................................................................................................. 33

3.4.11 The Options panel................................................................................................................ 33

3.4.12 The Alarm Config panel .......................................................................................................35

GUIDE TO INSTALLATION AND OPERATION

HMP-1801

3.4.13 The Info panel ......................................................................................................................38

4Web Control Panel................................................................................................................. 40

4.1 Ingest and Configuration Utility......................................................................................................... 40

4.1.1 Playback............................................................................................................................... 41

4.1.2 Record.................................................................................................................................. 43

4.1.3 Library..................................................................................................................................45

4.1.4 Jobs...................................................................................................................................... 56

4.1.5 Backup.................................................................................................................................60

4.1.6 Refresh All............................................................................................................................ 61

4.1.7 Online / Offline ..................................................................................................................... 62

4.2 Firmware Upgrade ............................................................................................................................ 62

4.2.1 Using the Miranda Interface Updater (MIU)......................................................................... 62

4.2.2 Using the HMP-1801 webpage............................................................................................63

5Specifications........................................................................................................................ 65

ANNEX 1 – HMP-1801 User Interface (local menu structure)................................................... 67

A) HMP-1801 in PLAYBACK mode............................................................................................................ 67

B) HMP-1801 in RECORD mode............................................................................................................... 69

ANNEX 2 – VDCP Commands Supported by HMP-1801........................................................... 71

System Commands.................................................................................................................................... 71

Immediate Commands............................................................................................................................... 71

Preset / Select Commands ........................................................................................................................ 72

Sense Requests......................................................................................................................................... 73

Deferred (Time Line) Commands............................................................................................................... 73

Macro Commands...................................................................................................................................... 73

GUIDE TO INSTALLATION AND OPERATION

HMP-1801 | 1

1 HMP-1801 High Definition Media Player

1.1 Introduction

The Densité HMP-1801 module is a solid-state video clip server that can playback or record HD and SD video

sequences or stills. The HMP is ideal for frequently used full screen promos or for always available animated apology

sequences. The HMP-1801 can also be used to add animated side panels when performing aspect ratio conversion

using the Miranda XVP-1801 Up, Down, Cross and aspect ratio converter.

Clip selection and playback can be controlled manually with GPI contacts or using the VDCP protocol. Clips can also

be controlled with iControl and created or edited using a dedicated web interface.

The HMP-1801 relies on widely-available low-cost Flash Memory (Compact Flash) for media storage and makes no

use of moving mechanical parts for maximum long-term reliability and fast access times. JPEG2000 Video

compression is used to maximize storage space while preserving broadcast quality. Content can be transferred to the

card via the card’s dedicated 10/100Mbit Ethernet media transfer port.

The card can be genlocked using SD or HD reference signals or run on its own timebase-accurate oscillator. Multiple

cards installed in the same frame can be locked to an in-frame reference generated by the optional REF-1801 card.

1.2 Features

oCapture and playback of video, audio and ANC, such as closed captioning, timecode, AFD, Name dropper

and Dolby E metadata

oPlayback of a single clip or a sequence of clips (called a “clip list”)

oSupports SD and HD 525, 625, 1080i and 720p @ 50 and 59.94 Hz frame rates

oUses low-cost Compact Flash memory cards for media storage

oReference input with loop-through capability (loop-through available only on DRP rear module)

oDedicated 10/100 Ethernet port for Media access and upload

oDual HD/SD-SDI Outputs (2nd output only available on DRP and 2OUT-3SRP rear modules)

oEasy control & monitoring with iControl including Thumbnail for output confidence

oSupport for 6 GPI In and 6 GPI out

oBuilt-in Web Server for configuration and file management.

oImport .wav audio files at 48KHz only

o16, 20 and 24 bit resolution supported, plus 32 bit for TGA only

oSupports multiple mono files (up to eight channels) or a single multi-channel file. Groups 1-4 are supported,

with individual mute for each channel

oSupports a useful subset of VDCP commands

oSupports video key generation using 2nd output on DRP and 2OUT-3SRP rear modules only

GUIDE TO INSTALLATION AND OPERATION

2| HMP-1801

1.3 Block Diagram

This block diagram shows the functionality of the HMP-1801.

Figure 1.1 Functional block diagram of the HMP-1801

1.4 Front Card-edge Interface

The front card-edge of the HMP-1801 incorporates four elements:

•Status LED (see section 3.2)

•Select Button (see section 3.3)

•Compact Flash status indicator

•Ethernet Status indicator

Select

Status

HMP-1801

Status LED

Select Button

Compact Flash Status

Ethernet Status

Figure

1.2 Front card-edge layout

GUIDE TO INSTALLATION AND OPERATION

HMP-1801 | 3

1.4.1 Compression Format

The HMP-1801 utilizes the JPEG2000 compression algorithm for high-quality video. This technique uses wavelet

transforms rather than the discrete cosine transforms used for JPEG and MPEG compression. JPEG2000 does not

use temporal or interframe compression. Each frame is processed individually.

The artifacts of JPEG2000 encoding are less visible than those of conventional MPEG, appearing as a gradual

blurring or smoothing of the image rather than the blocking or mosquito noise encountered in MPEG images, and

JPEG2000 supports mode encode/decode cycles than other formats. Furthermore, the images can undergo a higher

compression before artifacts appear. The HMP-1801 import tool will encode video at 100Mbps for HD video and

25Mbps for SD contents.

The HMP-1801 allows the export and import of compressed data files, and it is convenient to use this approach when

exchanging video essences between cards. The HMP-1801 can import these file formats:

•Sequence or still BMP

•Sequence or still JPG

•Sequence or still 24 bit TGA without alpha channel

•Sequence or still 32 bit TGA with alpha channel

•Morgan MJ2K compressed AVI

•QuickTime file with Advanced workflow option

Note: The HMP-1801 will output the original content without applying any filters. It is the responsibility of the artist to

generate a video sequence that is compliant with the SMPTE standards

1.4.2 Flash Memory

Video essences and clip definitions are stored in Compact Flash memory on board the HMP-1801 card. The memory

card is removable, and is physically located as shown in the diagram below. .

•Since the memory card is not formatted as a standard Windows device, it cannot be replaced by an off-the-shelf

card

Figure 1.3 Location of Flash Memory Card

GUIDE TO INSTALLATION AND OPERATION

4| HMP-1801

1.4.3 Web Interface

The HMP-1801 incorporates its own ethernet interface, independent from the Densité frame’s interface. This

independent interface is used to load data, configure and manage clips and upgrade card’s firmware.

•This interface is described in detail in Section 4.

1.5 Applications

The following diagrams show some typical applications for the HMP-1801.

1.5.1 Apology Clip or Full Screen Promo Playback

1.5.2 Animated Curtains into Up/Down/Cross ARC

GUIDE TO INSTALLATION AND OPERATION

HMP-1801 | 5

1.5.3 Fill & Key

1.5.4 Direct Capture

GUIDE TO INSTALLATION AND OPERATION

6| HMP-1801

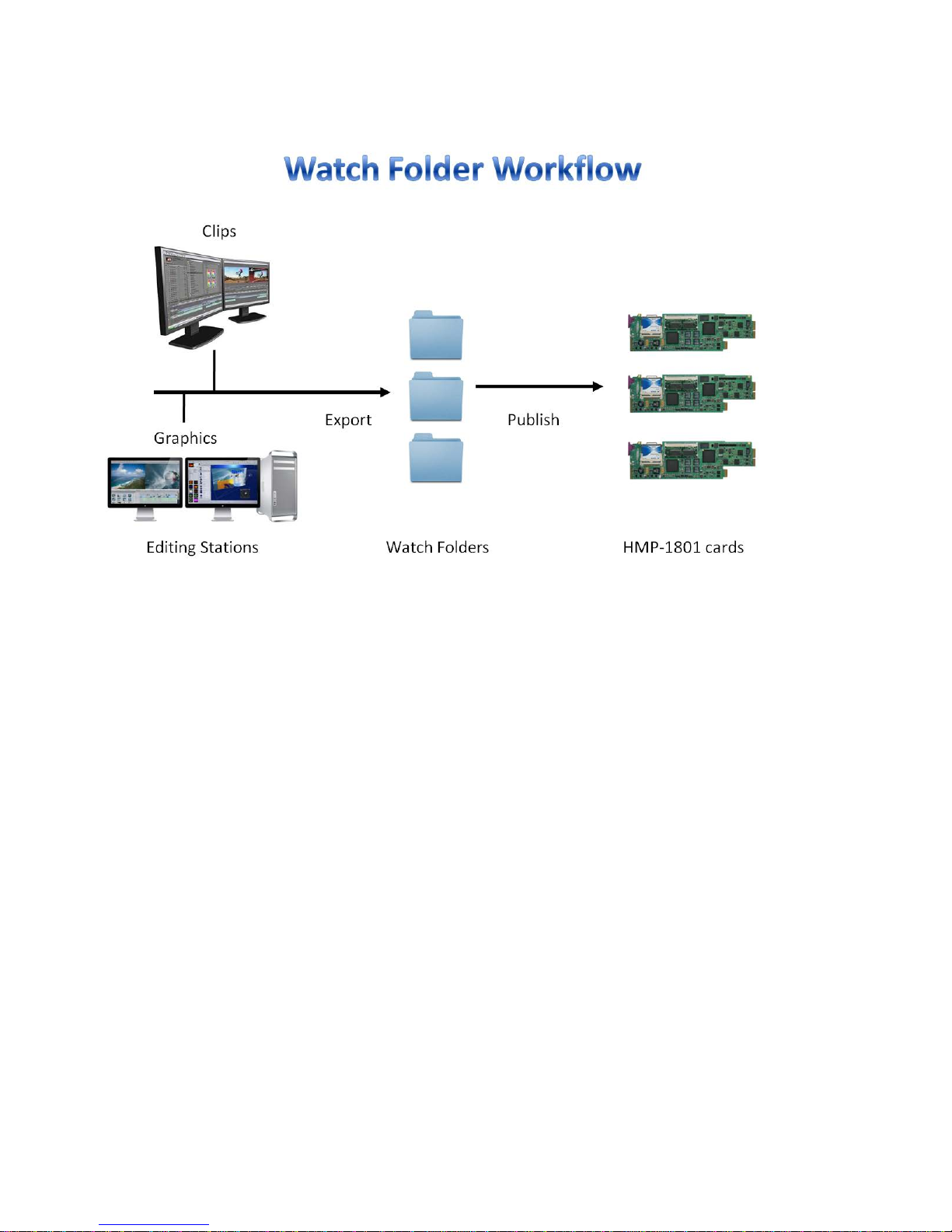

1.5.5 Advanced Workflow Option

Altri manuali per HMP-1801

Indice

Altri manuali Miranda Lettore multimediale

Miranda

Miranda HMP-1801 Manuale di istruzioni

Manuali Lettore multimediale popolari di altre marche

Visual Land

Visual Land Impulse Manuale utente

limHD

limHD 200i Manuale utente

Transcend

Transcend DMP10 Manuale utente

Philips

Philips GoGear Muse SA2MUS08 Manuale utente

Fantec

Fantec MM-HDRL Manuale utente

Dune HD

Dune HD Duo 4K Manuale utente

IAdea

IAdea HMP-505S Manuale utente

Camos

Camos MMS-1000 Manuale utente

Energy

Energy 75 Series Manuale utente

Z3 Technology

Z3 Technology DME-03 Manuale utente

Sony

Sony SVR-2000 Guida utente

Meicheng

Meicheng HD-1080K12 Manuale utente

DENAFRIPS

DENAFRIPS ARCE Manuale utente

Topaz

Topaz CMS Media Player Istruzioni per l’uso

InFocus

InFocus LightCast Manuale utente

IconBiT

IconBiT XDS1003D Manuale utente

Quanmax

Quanmax QDSP-2090 Series Manuale utente

Samsung

Samsung MP-80S Manuale utente
