INSTALLATION

INSTRUCTIONS

RTI-265 RemoteTrouble Unit

RAM-265 Remote Trouble & Alarm Unit

The RTI-265 Remote Trouble Unit provides remote trouble annunciation for the FA-

262/265 fire alarm control panels. The RAM-265 Remote Trouble and Alarm Unit

provides remote trouble annunciation for the FA-262/265 series fire alarm control

panels. A maximum of four RTI-265 and four RAM-265 units can be connected to each

control panel.

SPECIFICATIONS

• Green AC ON indicator

• Yellow Common Trouble

indicator

• Trouble Silence pushbutton

• Lamp Test function

• Communications: DAT & CLK

from control panel

• Standby current: 15 mA

• Voltage: 24 VDC

• Up to 8 addressable units

(4 of each type)

• Supervised

• Power: AUX & COM from control

panel

NOTE: This component must be included in the control panel battery

calculation. Refer to the Standby Battery Calculation Sheet included

with the control panel.

RTI-265 RAM-265

• Alarm current: 25 mA max.

• Single gang mounting

• 2 3/4 x 4 1/2” (70 mm x 115 mm)

• Alarm current: 40 mA max.

• Double gang mounting

• 4 1/2 x 4 1/2” (115 mm x 115 mm)

• Alarm & Supervisiory LED/Zone

Zone 1

Zone 2

Zone 3

Zone 4

Zone 5

In no event shall Mircom be liable for any direct, indirect or consequential damages,

loss of anticipated profits, loss of time or any other losses incurred by the buyer in

connection with the purchase, installation or operation or failure of this product.

Important!

Mircom recommends that the entire system be completely tested on a regular basis.

However, despite frequent testing, and due to but not limited to criminal tampering or

electrical disruption, it is possible for this product to fail to perform as expected.

LT-2030MIR Rev. 1

Canada

25 Interchange Way

Vaughan, ON, L4K 5W3

Tel: (905) 695-3545

Fax: (905) 660-4113

www.mircom.com

USA

60 Industrial Parkway PMB 278

Cheektowaga, NY, 14227

Tel: 1-888-MIRCOM5

Fax: 888-660-4113

WsuB-ruce

GWA61GWA81tnerruC

sreteMteeFsreteMteeFAm

gnimmargorPsserddA

1elbaT 8903061014591014651

sser

ddA2

1J 9451

0805679

02303

230158331565312541FF

FFO

770

840061062FFONO

91603020930821573NOFFO

51509615235601094NONO

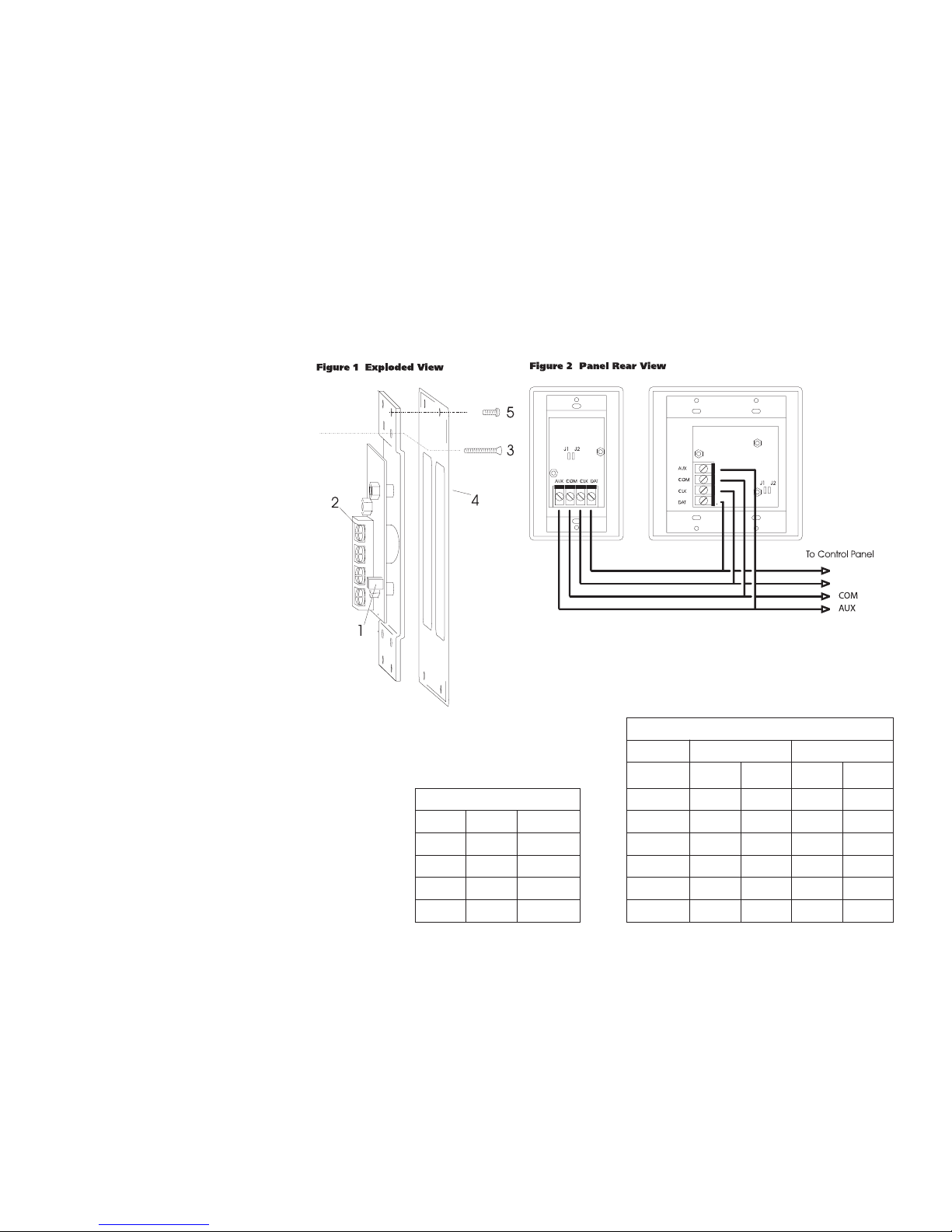

Typical wiring connections. Refer to the FA-262/265 Series

Control Panel Installation Manual for Secur-Bus wiring details.

INSTALLATION

The RTI-265 module mounts in a single gang

outlet box. The RAM-265 mounts in a double

gang outlet box. Refer to Figures 1 & 2 and

Tables 1 & 2.

1. Configure jumpers (item 1) for desired

operating address.

2. Affix zone identification labels, if

required, on the label aligned with the

LED indicators (RAM-265 Only).

3. Route Secur-Bus™ wiring through the

outlet box. Connect the 4 wires to the ter-

minals (item 2) on the PC board.

4. Position the module in the outlet box and

secure with the screws (item 3) pro-

vided (2 screws for the RTI-265, 4

screws for the RAM-265).

5. Secure the front panel (item 4) to module

with the screws provided (item 5).

OPERATION

The AC and Trouble LEDs on the remote

units follow the control panel AC and Trouble

LEDs. Pressing the Trouble Silence switch at

the panel or at any remote unit will silence

the trouble buzzer at the panel and all

remote units.

Zone indicators on the remote units follow

the zone indicators of the control panel. The

red LED will operate if the panel zone is pro-

grammed for ‘ALARM’ and the yellow LED

will operate if the panel zone is programmed

for ‘SUPERVISORY’.

The Lamp Test is initiated by pressing and

holding the Trouble Silence pushbutton for 1/

2 second. The LEDs will flash until the button

is released.
