Missing Link ML-1x6 Manuale utente
ML-1x6
1x6 3G/HD/SD-SDI Distribution Amplifier with Reclocking
User Manual
Made in Taiwan
~ 1 ~
Safety and Notice
The ML-1x6 1x6 3G/HD/SD-SDI Distribution Amplifier with Reclocking has been tested for conformance
to safety regulations and requirements, and has been certified for international use. However, like all electronic
equipments, the ML-1x6 should be used with care. Please read and follow the safety instructions to protect
yourself from possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away the objects that might damage the device and assure that the placement of this unit is on a
stable surface.
Use only the power adapter, power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
~ 2 ~

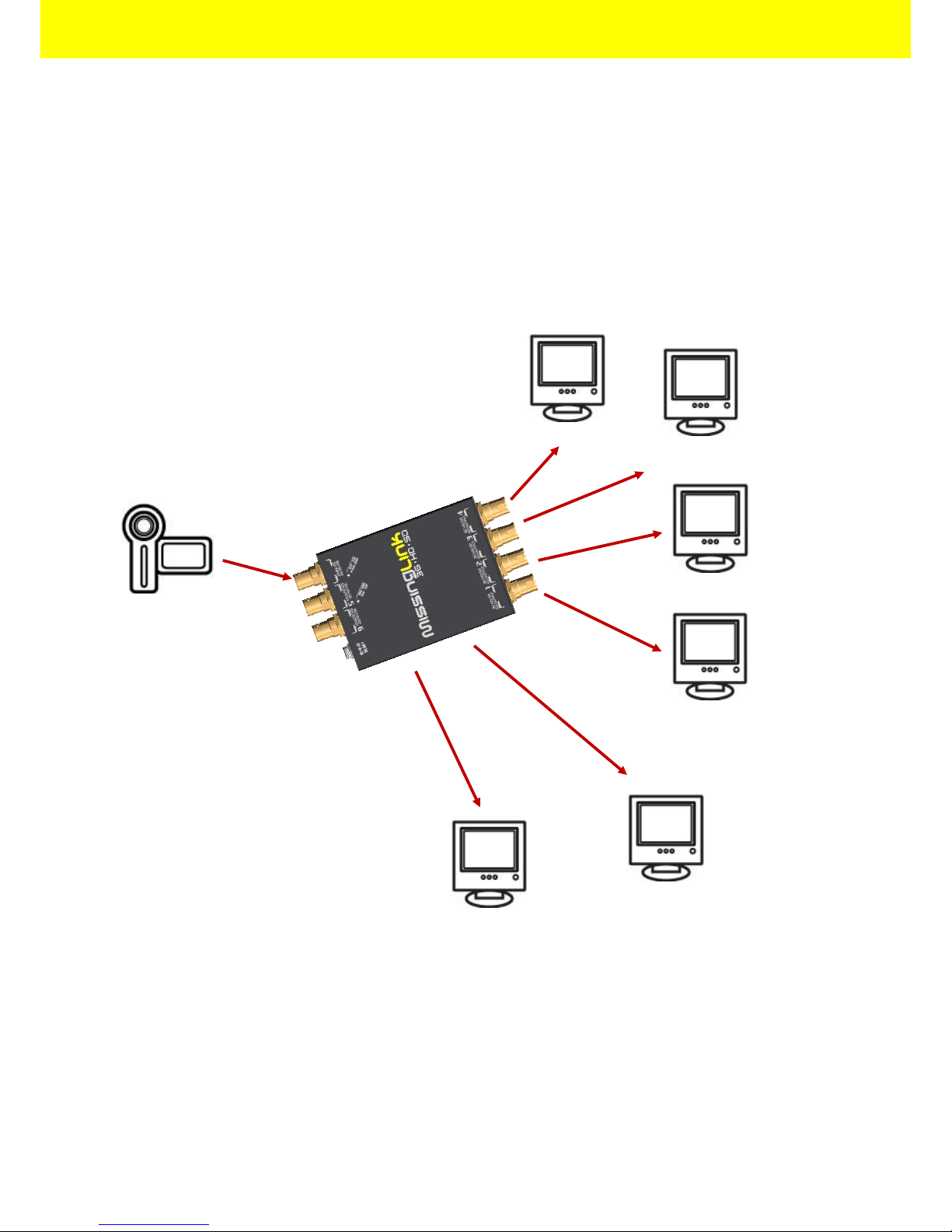

This ML-1x6 receives one SDI input, perfectly duplicates it, and re-transmits six SDI outputs for real time
multi-viewing. It is a reliable video device splitting a SDI, HD-SDI, or 3G-SDI video source to six SDI compliant
displays at the same time.
Features
3G/HD/SD triple-rate distribution
Six separately buffered and reclocked outputs
Cable equalization (Beldon 1694A) and signal retiming
Dual color LED indication of input lock and rate
Pass all ancillary data
Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD/3G
Reclocking SDI signals for cascading and thus longer transmission
Inter-locked power supply for better fixedness
Introduction
~ 3 ~
Specifications & Package Contents
Model Name
ML-1x6
Technical
SDI standards
3G/HD/SD-SDI
Auto 3G/HD/SD detection
Yes
Supported protocols
DVB-ASI at 270Mbps,SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M
Video bandwidth
[2.97Gpbs & 2.97/1.001Gbps]
Data rates
270 / 1483 / 1485 / 2970 Mbps
Output impedance
75
Reclocking function
Yes
Cable equalization
[3G] up to 150m (500ft) / [HD] up to 150m (500ft) / [SD] up to 300m (1000ft)
Audio support
Yes
RP-198 pathological patterns
Immune
PCB stack-up
4-layer board [impedance control —differential 100; single 50]
Input
1x BNC [SDI]
Output
6x BNC [SDI]
BNC connector
75inter-locked socket
Eye pattern characteristics
[HD]
Amplitude: Within 800mV (<10%)
Rise overshoot: Less than 2% (<10%)
Fall overshoot: Less than 2% (<10%)
Long time jitter: 0.195 UI (<1.0 UI)
Timing jitter: 0.8 UI (<1.0 UI)
Alignment jitter: 0.13 UI (<0.2 UI)
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
145 x 80 x 25mm [5.7”x3.2”x1”]
Package
270 x 175 x 80mm [10.6“x6.9”x3.2”]
Carton
450 x 370x 300mm [1‘5.7”x1’2.6”x11.8”]
Weight
Model
310g [ 10.9oz]
Package
785g [1.7lbs]
Fixedness
Inter-locked power supply
Power supply
5V 2A DC
Power consumption
5 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
Package Contents
1x ML-1x6
1x 5V/2A power adapter
1x User Manual
The measurement results are from Tektronix WFM-7120 with SDI through 1m (3.3ft) long Belden 1694A.
~ 4 ~

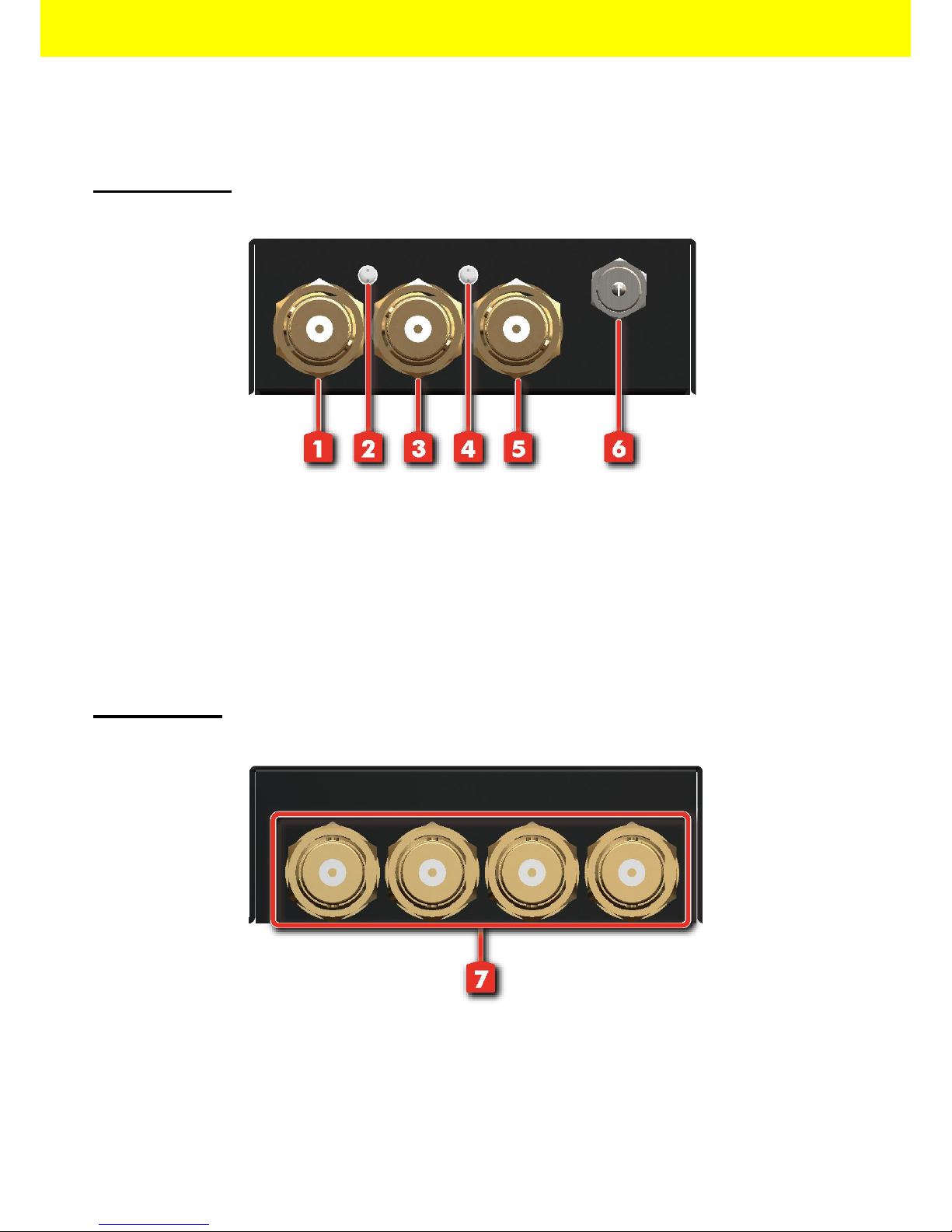

Front Panel
1. 3G/HD/SD-SDI input
2. LED —Orange: 3G/HD
Green: SD
3. 3G/HD/SD-SDI output 5
4. LED —Orange: Power indicator
Green: Signal Exist
5. 3G/HD/SD-SDI output 5
6. 5V DC power jack
Rear Panel
7. 3G/HD/SD-SDI output 1.2.3.4
Panel Descriptions
~ 5 ~
1. Connect a camera or other devices equipped with 3G/HD/SD-SDI outputs to ML-1x6 3G/HD/SD-SDI input.
2. Connect devices equipped with 3G/HD/SD-SDI inputs (e.g. monitors or video processors) to ML-1x6
3G/HD/SD-SDI outputs.
3. Plug power adapter cable into 5V DC power jack.

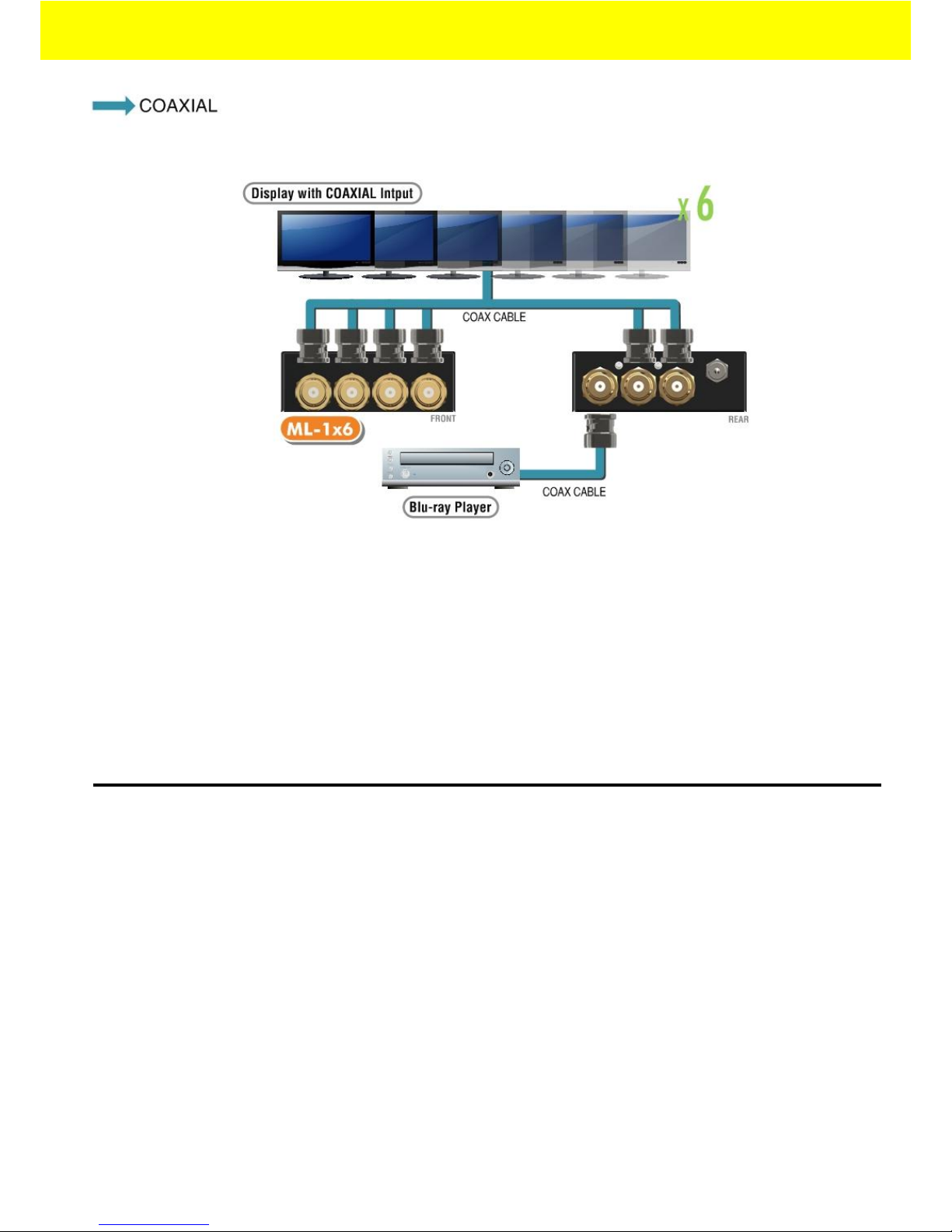

Hardware Installation
3G/HD/SD SDI Camera
3G/HD/SD SDI Display
3G/HD/SD SDI Display
3G/HD/SD SDI Display
3G/HD/SD SDI Display
3G/HD/SD SDI Display
3G/HD/SD SDI Display
~ 6 ~
The SELLER warrants the ML-1x6 1x6 3G/HD/SD-SDI Distribution Amplifier with Reclocking to be free
from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an
authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The
SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident,
disaster, abuse or any unauthorized modifications including static discharge and power surge. This warranty is
offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on
the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and
labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the
BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or
damage in transit. Under no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for
shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be free
from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will
NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or
omission in this manual, even if advised of the possibility of such damages. Also, the technical information
contained herein regarding the ML-1x6 features and specifications is subject to change without further notice.
Limited Warranty
~ 7 ~

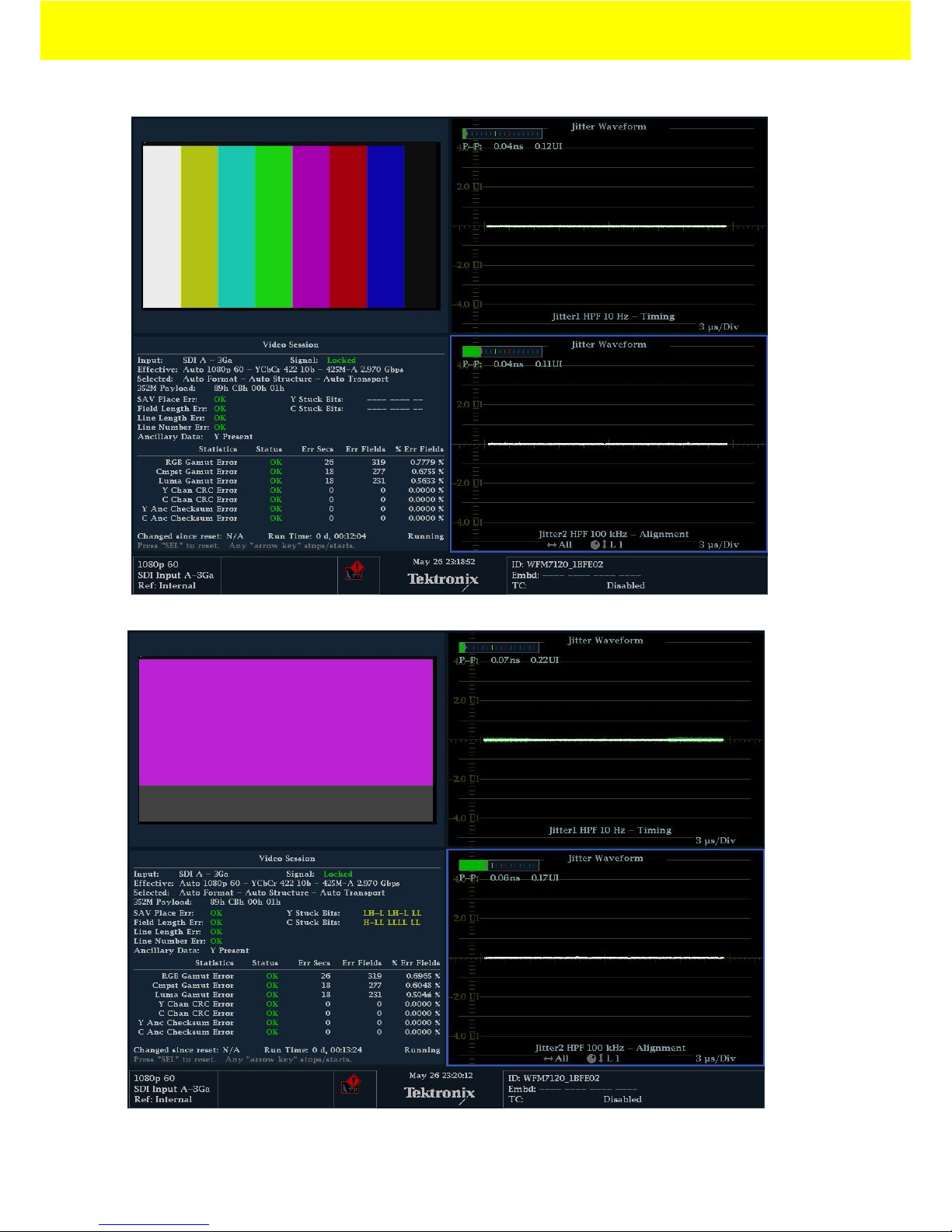

Signal Measurement
